Citroen C3 2013 2.G Owner's Manual

04
209
NAVIGATION - GUIDANCE

ALERT PARAMETERS
RISK AREAS
Select:
- "Vi
sual alert"
- "A
udible alert"
-
"Alert only in guidance"
- "
Overspeed alarm only".
Th
e choice of time of notifi cation defi nes how long in advance that Risk area
warnings are given.
Select " OK
" to confi rm the screen.
Select " Guidance options
" and confi rm,
then select "Set parameters for riskareas
" and confi rm.
These
functions are only available if risk areas have been
downloaded and installed on the system.
The detailed procedure for updatin
g risk area POIs can be found at
www.citroen.com.

Press NAVto display the " Navigation - guidance" menu.

04NAVIGATION - GUIDANCE

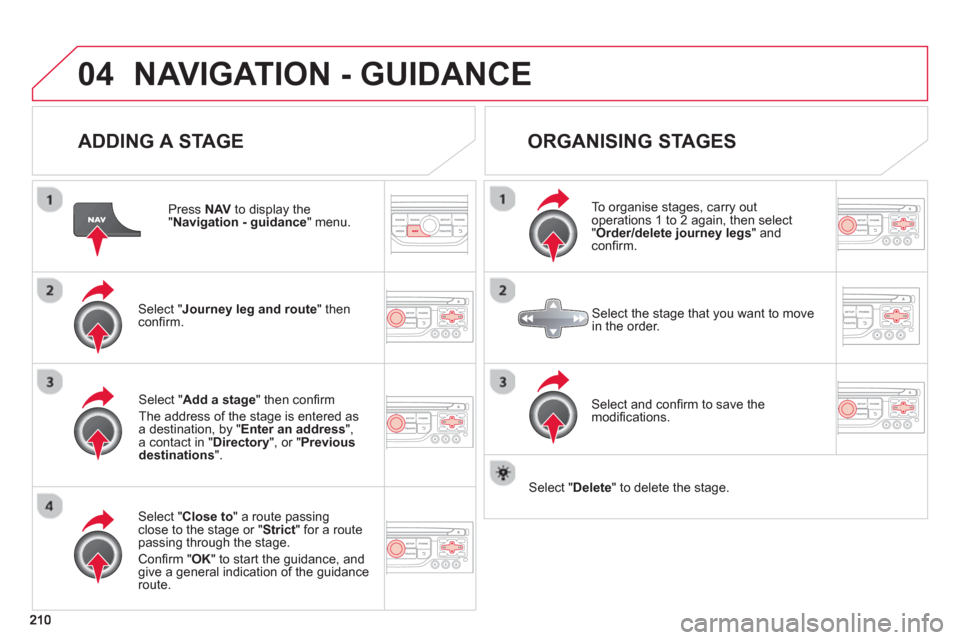

ADDING A STAGE


Press NAV
to display the "Navigation - guidance
" menu.
Select " Journey leg and route
" then confi rm.
Select " Close to
" a route passing close to the stage or " Strict
" for a routepassing through the stage.
Confi rm " OK " to start the guidance, andgive a general indication of the guidance
route.

Select "Add a stage
" then confi rm
The address o
f the stage is entered as
a destination, by "Enter an address",a contact in " Directory
", or " Previous destinations".


ORGANISING STAGES

To organise stages, carry out operations 1 to 2 again, then select"
Order/delete journey legs" andconfi rm.

Select and confi rm to save the
modifi cations.
Select the stage that you want to move
in the order.

Select "Delete
" to delete the stage.

04
211
NAVIGATION - GUIDANCE
ROUTE OPTIONS

CALCULATION CRITERIA
Select " Guidance options
" and confi rm.
Select " OK
" and confi rm to save themodifi cations.
Select " Defi ne calculation criteria" andconfi rm.
Thi
s function allows modifi cation of:

- the
guidance criteria: (" Fastest
route", " Shortest route", "Distance/Time "),

- the exclusion criteria:
(" With tolls"or "With Ferry
"),

- traffi c avoidance:
(" Traffi c info
").

Press NAV
to display the"Navigation - guidance" menu.
I
f traffi c avoidance (Traffi c info) is selected, the system suggests
an alternative route if there is a delay on the guidance route.

04
212
NAVIGATION - GUIDANCE
Press NAV
to display the
"Navigation - guidance" menu.


MAP MANAGEMENT


SELECTING THE POINTS OF INTEREST DISPLAYED ON THE MAP
Select " Map management
" and confi rm.
Select from the various categories the
ones that you want to display on thescreen.

Select "Map details" and confi rm.
Select " By default" to have only "Oil stations, garages" and"Accident-prone area
" appear on the map (if installed in the
system).
Select " OK
" then confi rm and select "OK" again then confi rm to save the
modifi cations.

04NAVIGATION - GUIDANCE
Select " Map management " and confi rm.
Select:


-
"Vehicle direction" to have the map follow the direction of travel,

- "North direction" to keep the map
alwa
ys North up,

- "Perspective view
" to displa
y aperspective view.


Select "Map orientation
" and confi rm. The colour o
f the map, different from the day and night mode, is confi gured in the " SETUP" menu.

MAP ORIENTATION

Pr
ess NAV
to display the
" Navigation - guidance" menu.
Street names are visible on the map from the 100 m scale.

04
214
NAVIGATION - GUIDANCE
Press NAV to display the"Navigation - guidance" menu.
ADJUSTING THE GUIDANCE SPEECH SYNTHESIS
Select " Guidance options
" and confi rm.
ADJUSTING THE VOLUME/DEACTIVATION
Select " Set speech synthesis" andconfi rm.
Select the volume graph and confi rm.

Select "Deactivate " to deactivate voice messages.
Select " OK " and press the dial to confi rm.

Adjust the volume to the desired level and confi rm.
The volume o
f messages can be adjusted during the transmissionof the message using the volume adjustment control.The volume settin
g of guidance messages is also accessible via the "SETUP" / " Voice synthesis " menu.

04NAVIGATION - GUIDANCE

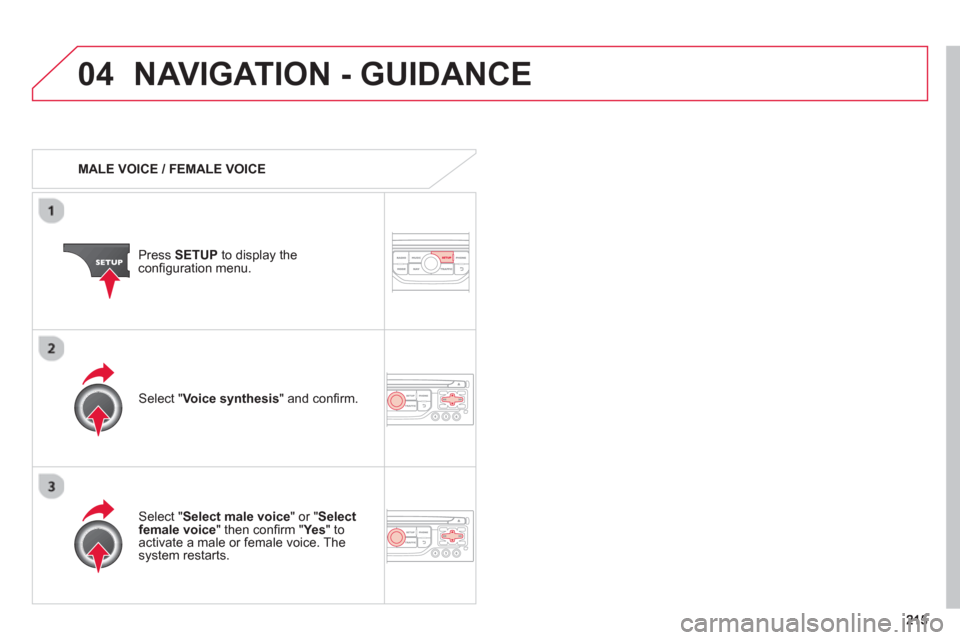

MALE VOICE / FEMALE VOICE
Press SETUP
to display theconfi guration menu.

Select "Select male voice
" or "Selectfemale voice" then confi rm " Ye s
" to activate a male or female voice. Thesystem restarts.

Select "Voice synthesis
" and confi rm.

05
216
TRAFFIC INFORMATION


Access to the "TRAFFIC INFORMATION" menu

Go from the list to the menu (left/right).

"""""""ac o at oTraffi c informationTraffic informationTraffic informationTraffic informationTraffic informationTraffic informationTraffic informationTraffic informationTraffic informationTraffic informationTraffic informationTraffic informationTraffic informationTraffic informationTffiif tiTffiif tiTffiif tiTffiif ti"""""""
or

Press "TRAFFIC".

05
217
TRAFFIC INFORMATION

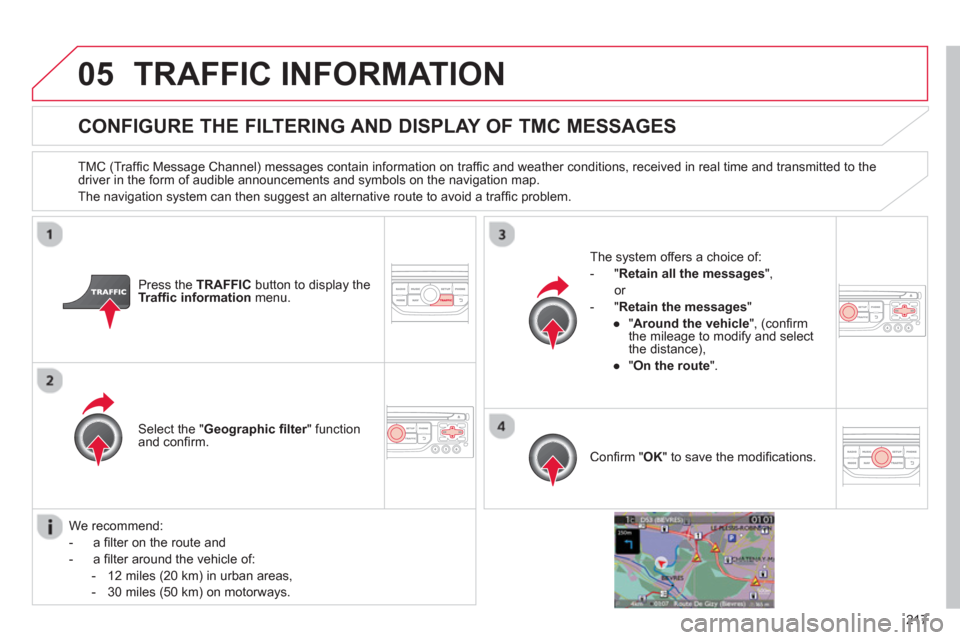

CONFIGURE THE FILTERING AND DISPLAY OF TMC MESSAGES

TMC (Traffi c Message Channel) messages contain information on traffi c and weather conditions, received in real time and transmitted to the
driver in the form of audible announcements and symbols on the navigation map.
The navi
gation system can then suggest an alternative route to avoid a traffi c problem.
Pr
ess the TRAFFICbutton to display the Traffi c informationmenu.
Select the "Geographic fi lter" function rand confi rm. The s
ystem offers a choice of:
- " Retain all the messa
ges",
or
-"Retain the messa
ges"
●
"Around the vehicle ", (confi rm
the mileage to modify and select
the distance),

●
" On the rout
e".
Confi rm " OK
" to save the modifi cations.


We recommend:


-
a fi lter on the route and

-
a fi lter around the vehicle of:
- 12 miles
(20 km) in urban areas,
- 30 miles
(50 km) on motorways.

05
218
TRAFFIC INFORMATION
PRINCIPAL TMC SYMBOLS

Red and yellow triangle: traffi c information, for example:
Black and blue trian
gle: general information, for example:
RECEIVING TA MESSAGES


The TA (Traffi c Announcement) function gives priority to TA alert messages. To operate, this function needs good reception of a radio station transmitting this type of message. When a traffi c report
is transmitted, the current audio source (Radio, CD, USB, ...) isinterrupted automatically to play the TA message. Normal playbackof the audio source resumes at the end of the transmission of themessage.
Pr
ess RADIO
to display the "FM / AMband " menu.
Select " Guidance options
" then confi rm.

A
ctivate or deactivate " TA
" then confi rm.

The volume settin
g for TA messages can be adjusted only during the
transmission of this type of alert.

Activate or deactivate the function at any time by pressing the button.
Durin
g a message, press the button to interrupt it.
