Contents
Direction indicators 105
Hazard warning lamps 105
Horn 106
Emergency or assistance call 106
Braking assistance systems 107
Tr ajectory control systems 108
Front seat belts 109
Airbags 111
Safety
Parking brake 115
6-speed manual gearbox 115
Gear effi ciency indicator 116
Electronic gearbox 117
Automatic gearbox 121
Stop & Start 124
Hill start assist 127
Speed limiter 128
Cruise control 130
Rear parking sensors 132
Reversing camera 134
Driving
Emergency or assistance 195
eMyWay 197
Audio system 251
Audio and telematics
Alphabetical index
Bonnet 136
Running out of fuel (Diesel) 137
Petrol engines 138
Diesel engines 139
Checking levels 140
Checks 142
Checks
Te m p o r a ry puncture repair kit 144
Changing a wheel 149
Snow chains 156
Changing a bulb 157
Changing a fuse 164
Battery 171
Energy economy mode 174
Changing a wiper blade 175
To w i ng the vehicle 176
To w i ng a trailer 178
Audio pre-equipment 180
Accessories 182
Practical informationTechnical data
Petrol engines 184
Petrol wei
ghts 185
LPG engines 187
LPG weights 188
Diesel engines 189
Diesel weights 191
Dimensions 193
Identifi cation markings 194
Visual search

Familiarisation
4

Rear parking sensors / Reversing camera
When reversing, these systems detect and provide a warning for any obstacles locatedbehind the vehicle.
Stop & Start
This system puts the engine temporarily into standby during stops
in the traffic (red lights, traffic jams, etc...). The engine restar ts automatically as soon as you want to move off. The Stop & Start system reduces fuel consumption, exhaust emissions and the noise level when stationary.
Temporary puncture repair kit

This kit is a complete system consisting of a compressor and sealant car tridge, to allow the
temporary repair of a tyre.
Zenith windscreen
This large windscreen provides incomparable
visibility and light in the passenger
compartment.








Exterior
6
124 132-134

.Familiarisation
9

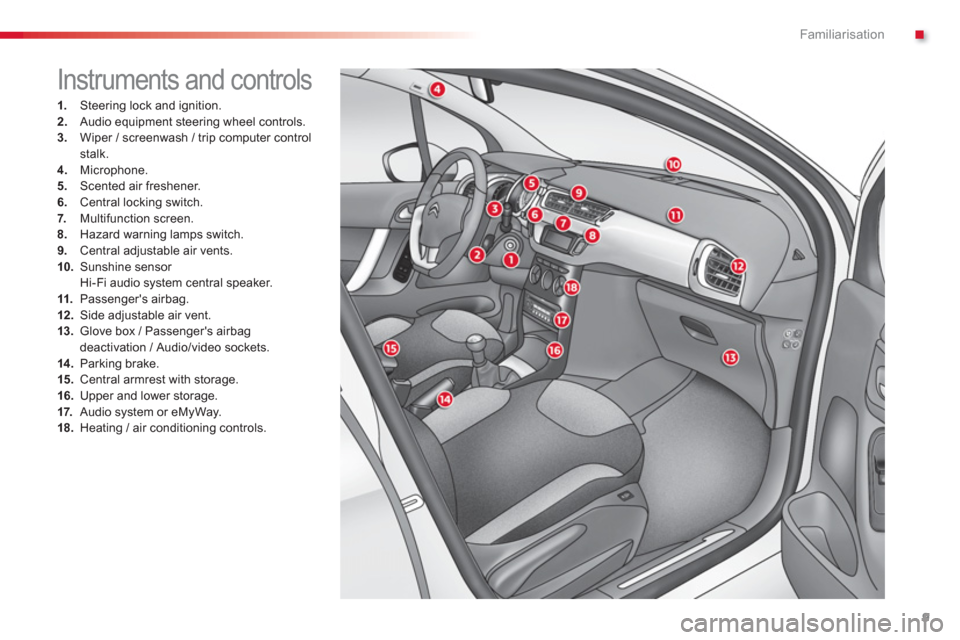

1. Steering lock and ignition. 2.Audio equipment steering wheel controls.3.Wiper / screenwash / trip computer controlstalk.4.
Microphone.
5. Scented air freshener.
6.Central locking switch.
7. Multifunction screen.
8.Hazard warning lamps switch. 9.
Central adjustable air vents.10.Sunshine sensor
Hi-Fi audio system central speaker.11. Passenger's airbag.12 .
Side adjustable air vent.13.Glove box / Passenger's airbag deactivation / Audio/video sockets.14.Parking brake.15.Central armrest with storage. 16.
Upper and lower storage.17.Audio system or eMyWay. 18.Heating / air conditioning controls.
Instruments and controls

Multifunction screens
44
Vehicle confi guration
Once the "Vehicle Configuration" menu has
been selected, you can activate or deactivate
the following equipment:
- wiper linked with reverse gear (refer to the"Visibility" section),
- guide-me-home lighting (refer to the"Visibility" section),
- parking sensors (refer to the "Driving"
section).
Options
Once the "Options" menu has been selected,
you can start diagnostics of the status of the
equipment (active, not active, faulty).
Display settings

Once the "Display settings" menu has been selected, you can gain access to the following settings:


- year,

- month,

- day,

- hour,

- minutes,

-
12 or 24 hour mode.
)
Once you have selected a setting, press
the "  " or "
" buttons to change its value.
)
Press the "
" or "
" buttons to switch
respectively to the previous or next setting.) Press the "OK"
button to save the change
and return to the normal displa
y or press
the "Back"button to cancel.
Setting the date and time)Press the MENUbutton.
)Select "Display settings" using the "
" or
" " button.)Press "OK"
to confirm the selection. )Select the "Year" function using the " " or " " button.)Press "OK"
to confirm the selection. )Choose the desired value, using the " " or
" " button.)Press "OK"
to confirm the selection. )Repeat the procedure to set the "Month",
"Day", " H our s", and " M inute s".

Multifunction screens
48
Example: setting of the duration of the guide-
me-home lighting) Press the "
" or "
" buttons, then the"OK"
button to select the menu required.
)
Press the "
" or "
" buttons, then the"OK"
button to select the "Guide-me-home
headlamps" line.
) Press the " " or " " buttons to set thevalue required (15, 30 or 60 seconds), then
press the "OK"button to confirm.
)Press the "
" or "
" buttons, then the "OK"button to select the "OK"
box and confirm or press the "Back"button to cancel.

"Personalisation-
Confi
guration" menu
Defi ne the vehicle parameters
Once this menu has been selected, you can activate or deactivate the following equipment:
- wiper linked to reverse gear (refer to the "Visibility" section),
- guide-me-home lighting and duration (see "Visibility" section),
- parking sensors (refer to the "Driving" section).
Once this menu has been selected, you can gain access to the following functions:
- define the vehicle parameters,
- display configuration,
- choice of language.

2
Multifunction screens
51

*
According to country.


System language

This menu allows you to select the language
used by the display: Deutsch, English,Espanol, Français, Italiano, Nederlands, Polski,
Portugues, Türkçe * .

Date and time
This menu allows you to set the date and time,
the format of the date and the format of the
time:)Press "SETUP"

. )Select the "Date and time" function andpress the knob to confirm. )Select the "Adjust date and time" function and press the knob to confirm. )Adjust the settings in turn using the
directional arrows, confirming with the knob.)Select the "Date format" function and press
the knob to confirm.)Confirm the desired format using the knob. )Select the "Time format" function andpress the knob to confirm. )Confirm the desired format using the knob.

Display
This menu allows you to set the brightness of
the screen, the screen colour scheme and the colour of the map (day/night or auto mode).
Vehicle
This menu allows you to activate or deactivate cer tain driving and comfort equipment:
- wiper linked with reverse gear (refer to the "Visibility" section),
- guide-me-home lighting and duration (refer
to the "Visibility" section),
- parking sensors (refer to the "Driving"section).


Units

This menu allows you to select the units:
temperature (°C or °F) and fuel consumption(km/l, l/100 or mpg).

System

This menu allows you to restore the factory configuration, display the software version and
activate scrolling text.

For safety reasons, configuration of the multifunction screen by the driver mustonly be done when stationary.

3
Comfort
53

If after an extended stop in sunshine, the interior temperature is veryhigh, first ventilate the passenger compartment for a few moments. Put the air flow control at a setting high enough to quickly change the air in the passenger compartment.
The air conditioning system does notcontain chlorine and does not present any danger to the ozone layer.

The condensation created by the air conditioning results in a dischargeof water under the vehicle which is perfectly normal.












Recommendations for ventilation and
air conditioning
In order for these systems to be fully effective, follow the operation and maintenance guidelines below: )
To obtain an even air distribution, take care not to obstruct the exterior air intake grilles located at the base of the windscreen, the nozzles, the vents and the air outlets, as wellas the air extractor located in the boot. )
Do not cover the sunshine sensor, located on the dashboard; this is used for regulation of the digital air conditioning system. )
Operate the air conditioning system for at least 5 to 10 minutes, once or twice a monthto keep it in perfect working order. )
Ensure that the passenger compar tment filter is in good condition and have the filter elements replaced regularly. We recommend the use of a combined passenger compartment filter. Thanks to its special active additive, it contributes to the purification of the air breathed by theoccupants and the cleanliness of the passenger compartment (reduction of allergic symptoms, bad odours and greasy deposits).)
To ensure correct operation of the air conditioning system, you are also advised to have it checked regularly as recommended in the MAINTENANCE AND WARR ANT Y
GUIDE. )
If the system does not produce cold air, switch it off and contact a CITRO

3
Comfort
65








Steering wheel adjustment
)
When stationary, pull the control lever to yrelease the adjustment mechanism.)
Adjust the height and reach to suit your driving position.)
Push the control lever to lock theadjustment mechanism.






Rear view mirror
Adjustable mirror providing a central rear ward
view.
Equipped with an anti-dazzle system, whichdarkens the mirror glass and reduces thenuisance to the driver caused by the sun, headlamps from other vehicles...


Adjustment
)Adjust the mirror so that the glass is
directed correctly in the "day" position.



Day / night position
)Pull the lever to change to the "night" anti-
dazzle position.
)Push the lever to change to the normal
"day" position.
Automatic day/night model
By means of a sensor, which measures the light from the rear of the vehicle, this system automatically and progressively changes
between the day and night uses.


Manual day/night model

As a safety measure, the mirrors should be adjusted to reduce the "blind spot".

In order to ensure optimum visibility during your manoeuvres, the mirror lightens automatically when reverse gear is engaged.


As a safety precaution, these
operations should only be carried out while the vehicle is stationary.

Visibility
82
Association with the automatic "Guide-me-home" lighting

Association with the automatic illumination of headlamps provides "guide-me-home" lighting
with the following additional options:


- selection of the lighting duration to 15, 30 or 60 seconds in the functions that can be set
in the vehicle configuration menu (except in
the case of the monochrome screen A, for
which the duration is set: 60 seconds),

- automatic activation of "guide-me-home"lighting when automatic illumination of headlamps is in operation.



Operating fault
In the event of a fault with the
sunshine sensor, the lighting
come on, this warning lamp is displayed in the
instrument panel and/or a message appears in
the screen, accompanied by an audible signal.
Contact a CITROËN dealer or a
qualified
workshop.
In fog or snow, the sunshine sensor may detect sufficient light. Therefore, thelighting will not come on automatically. Do not cover the sunshine sensor, coupled with the rain sensor andlocated in the centre of the windscreen behind the rear view mirror; the associated functions would no longer be controlled.

Automatic illumination of headlamps
Activation
)Turn ring to the "AUTO"
position. The automatic illumination of headlamps is accompanied by a message in the screen.

Deactivation
)Turn ring to a position other than "AUTO" . Deactivation is accompanied by a message in the screen.
The sidelamps and dipped beam headlamps
are switched on automatically, without any action on the par t of the driver, when a low level
of external light is detected or in certain cases
of activation of the windscreen wipers.
As soon as the brightness returns to a sufficient
level or after the windscreen wipers are switched
off, the lamps are switched off automatically.

Visibility
86

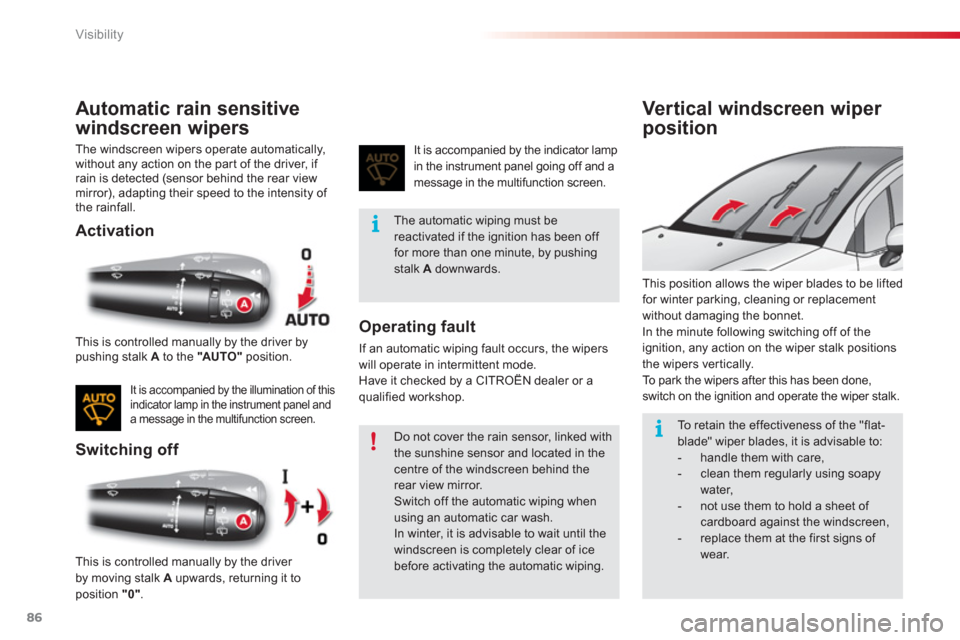

Automatic rain sensitive
w
indscreen wipers
The windscreen wipers operate automatically,
without any action on the par t of the driver, if rain is detected (sensor behind the rear view mirror), adapting their speed to the intensity of
the rainfall.
Activation
Switchin
g off
Operatin
g fault

If an automatic wiping fault occurs, the wipers
will operate in intermittent mode.
Have it checked by a CITROËN dealer or aqualified workshop.
Vertical windscreen wiper
position

This position allows the wiper blades to be lifted
for winter parking, cleaning or replacement
without damaging the bonnet.
In the minute following switching off of the ignition, any action on the wiper stalk positions
the wipers vertically.
To park the wipers after this has been done,switch on the ignition and operate the wiper stalk. This is controlled manuall
y by the driver bypushing stalk Ato the "AU TO "position.
This is controlled manually by the driver
by moving stalk Aupwards, returning it toposition "0"
. It is accompanied b
y the indicator lamp
in the instrument panel going off and a message in the multifunction screen.
It is accompanied by the illumination of this indicator lamp in the instrument panel anda message in the multifunction screen.
The automatic wiping must bereactivated if the ignition has been off for more than one minute, by pushing stalk A
downwards.
Do not cover the rain sensor, linked withthe sunshine sensor and located in thecentre of the windscreen behind therear view mirror. Switch off the automatic wiping whenusing an automatic car wash.
In winter, it is advisable to wait until thewindscreen is completely clear of icebefore activating the automatic wiping.

To retain the effectiveness of the "flat-blade" wiper blades, it is advisable to:


- handle them with care,

- clean them regularly using soapywater,

- not use them to hold a sheet of cardboard against the windscreen,

- replace them at the first signs of wear.
