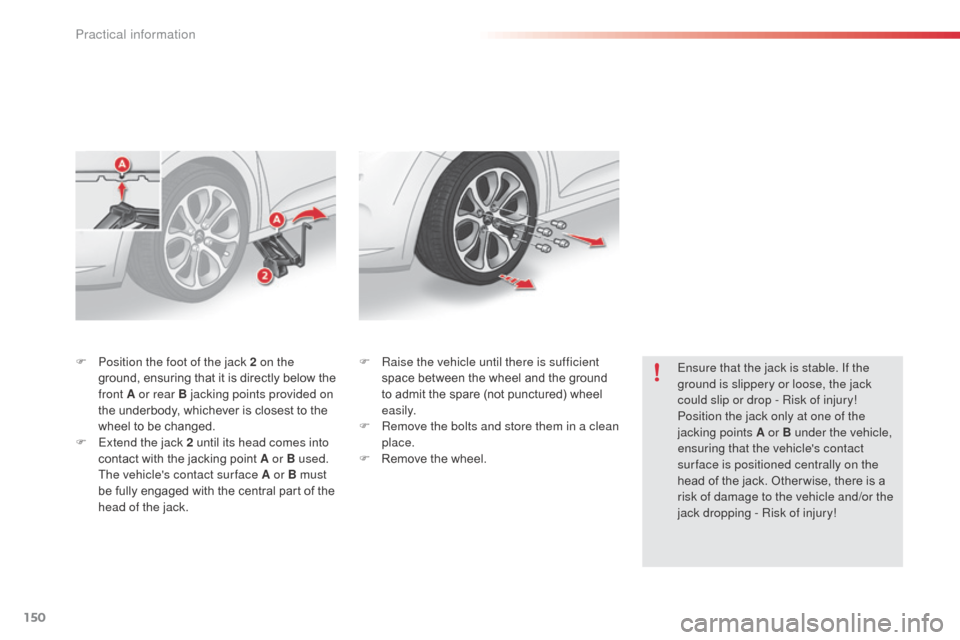

F Position the foot of the jack 2 on the ground, ensuring that it is directly below the
front A or rear B jacking points provided on
the underbody, whichever is closest to the
wheel to be changed.
F

E
xtend the jack 2 until its head comes into
contact with the jacking point A or B used.
The vehicle's contact sur face A or B must
be fully engaged with the central part of the
head of the jack. F
Ra ise the vehicle until there is sufficient
space between the wheel and the ground
to admit the spare (not punctured) wheel
easily.
F

R
emove the bolts and store them in a clean
place.
F

R
emove the wheel.Ensure that the jack is stable. If the
ground is slippery or loose, the jack
could slip or drop - Risk of injury!
Position the jack only at one of the
jacking points A or B under the vehicle,
ensuring that the vehicle's contact
sur face is positioned centrally on the
head of the jack. Other wise, there is a
risk of damage to the vehicle and/or the
jack dropping - Risk of injury!
