Changing direction indicator
bulbs
F Turn the bulb holder a quarter of a turn and extract it.
F

P
ull out the bulb and change it.
To refit, carry out these operations in reverse
o r d e r.
Changing dipped beam headlamp
bulbs
F Remove the protective cover by pulling the tab.
F
d
i
sconnect the bulb connector.
F

S
pread the springs to release the bulb.
F

P
ull the bulb out and change it.
To refit, carry out these operations in reverse
o r d e r.
Rapid flashing of the direction indicator
warning lamp (right or left) indicates the
failure of a bulb on that side.
When refitting, close the protective
cover carefully to preserve the sealing
of the headlamp.am
ber coloured bulbs, such as the
direction indicators, must be replaced
with bulbs of identical specifications
and colour.
11
Practical information

180
Changing main beam headlamp
bulbs
F Remove the protective cover by pulling on the tab.
F
d
i
sconnect the bulb connector.
F

S
pread the springs to release the bulb.
F

R
emove the bulb and change it.
To refit, carry out these operations in reverse
o r d e r.
Changing sidelamp bulbs
F Remove the protective cover by pulling on the tab.
F

P
ull the bulb holder pressing on the tabs on
both sides.
F

P
ull the bulb and change it.
To refit, carry out these operations in reverse
o r d e r.
Practical information

181

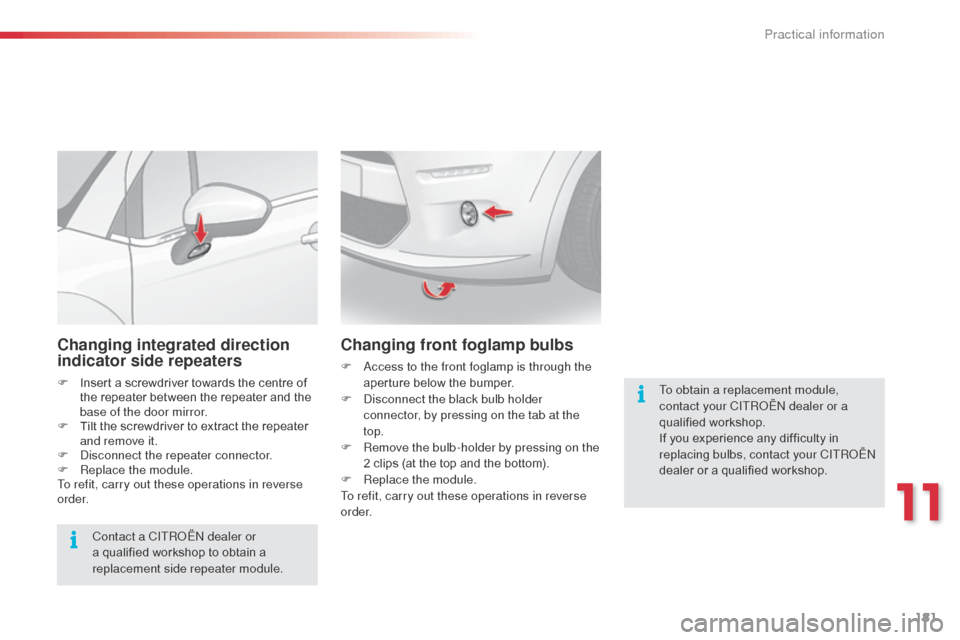

Changing integrated direction
indicator side repeaters
F Insert a screwdriver towards the centre of the repeater between the repeater and the
base of the door mirror.
F

T
ilt the screwdriver to extract the repeater
and remove it.
F
d
i
sconnect the repeater connector.
F

R
eplace the module.
To refit, carry out these operations in reverse
o r d e r.
Contact a CITR
oËn

dealer or
a qualified workshop to obtain a
replacement side repeater module.
Changing front foglamp bulbs
F access to the front foglamp is through the aperture below the bumper.
F
d
i
sconnect the black bulb holder
connector, by pressing on the tab at the
top.
F

R
emove the bulb-holder by pressing on the
2 clips (at the top and the bottom).
F

R
eplace the module.
To refit, carry out these operations in reverse
o r d e r. To obtain a replacement module,
contact your CITR
oËn

dealer or a
qualified workshop.
If you experience any difficulty in
replacing bulbs, contact your CITR
oËn


dealer or a qualified workshop.
11
Practical information

182
Rear lamps
1. Brake / sidelamps (P21/5W).
2. D irection indicators (PY21W amber).
3.
F

oglamp, right-hand side (PR21W red)
R

eversing lamp, left-hand side (P21W).Changing bulbs
These four bulbs are changed from inside the
boot: F

s
pread the four tabs and remove the bulb
h o l d e r,
F

t
urn the bulb a quarter of a turn and
change it.
To refit, carry out these operations in reverse
o r d e r.
Take care to engage the lamp unit in its guides,
while keeping it in line with the vehicle.
F

o
pen the boot,
F

r
emove the access flap from the
corresponding side trim panel,
F

u
nscrew the butter fly nut securing the lamp
unit,
F

u
nclip the lamp unit connector,
F

e
xtract the lamp unit carefully pulling in its
middle towards the outside,
am

ber or red bulbs, such as those
for the direction indicators and rear
foglamp, must be replaced by bulbs of
the same rating and colour.
The lamps on the tailgate are dummy
units. They are there for aesthetic
purposes only.
Practical information

183

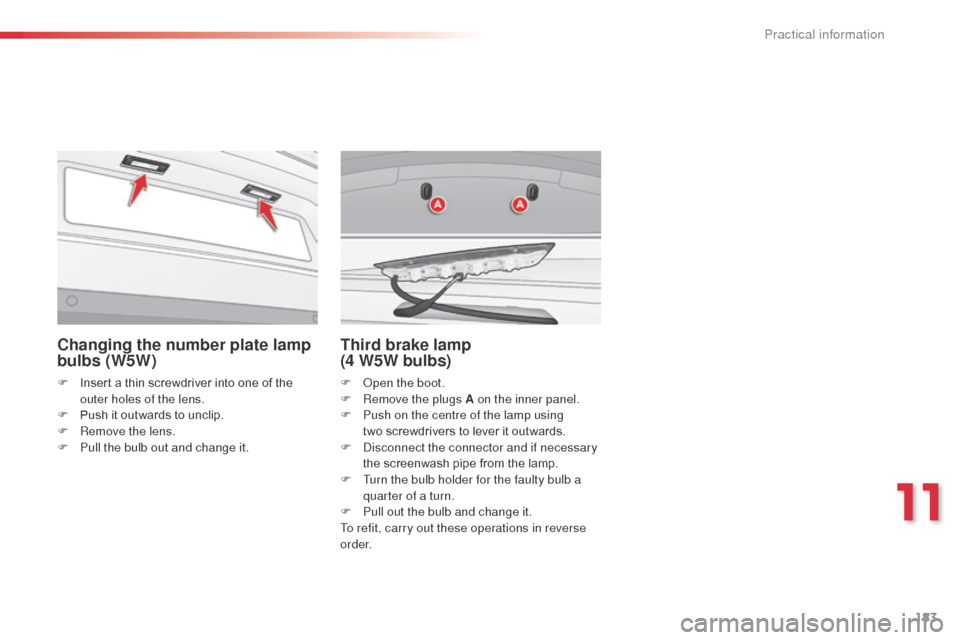

Changing the number plate lamp
bulbs (W5W)
F Insert a thin screwdriver into one of the outer holes of the lens.
F

P
ush it outwards to unclip.
F

R
emove the lens.
F

P
ull the bulb out and change it.
Third brake lamp
(4 W5W bulbs)
F open the boot.
F R emove the plugs A on the inner panel.
F

P
ush on the centre of the lamp using
two
screwdrivers to lever it outwards.
F
d
i
sconnect the connector and if necessary
the screenwash pipe from the lamp.
F

T
urn the bulb holder for the faulty bulb a
quarter of a turn.
F

P
ull out the bulb and change it.
To refit, carry out these operations in reverse
o r d e r.
11
Practical information

184
Interior lighting
Interior lamp (1 / W5W)
S ide reading lamps (2 / W5W) Central storage lamp (W5W)
Boot lamp (W5W)
Unclip the cover of the interior lamp 1 with a
thin screwdriver, close to the button, to access
the faulty bulb.
Unclip the cover of the reading lamp 2 with a
small screwdriver at the switch end for access
to the faulty bulb. Unclip the unit by pushing it from the rear.
Glove box lamps (W5W)
Unclip the lamp to access the bulb.Unclip the lamp to access the bulb.
Practical information

185

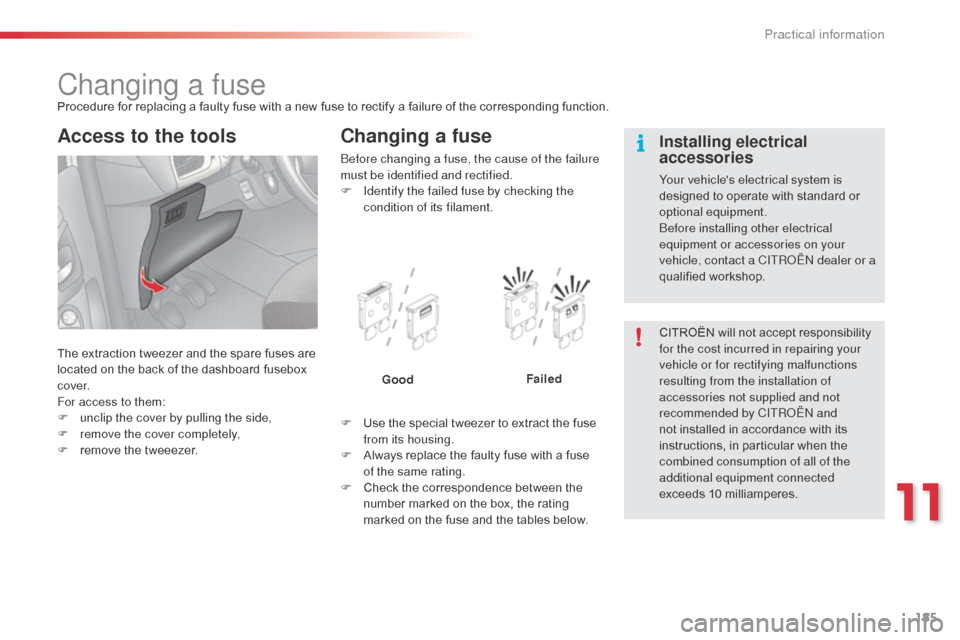

Changing a fuseProcedure for replacing a faulty fuse with a new fuse to rectify a failure of the corresponding function.
The extraction tweezer and the spare fuses are
located on the back of the dashboard fusebox
c ove r.
For access to them:
F
u
nclip the cover by pulling the side,
F

r
emove the cover completely,
F

r
emove the tweeezer.
Changing a fuse
before changing a fuse, the cause of the failure
must be identified and rectified.
F
I
dentify the failed fuse by checking the
condition of its filament.
F

U
se the special tweezer to extract the fuse
from its housing.
F

A
lways replace the faulty fuse with a fuse
of the same rating.
F

C
heck the correspondence between the
number marked on the box, the rating
marked on the fuse and the tables below. Good
FailedCITROËN will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying malfunctions
resulting from the installation of
accessories not supplied and not
recommended by CITR
oËn

and
not installed in accordance with its
instructions, in particular when the
combined consumption of all of the
additional equipment connected
exceeds 10 milliamperes.Installing electrical
accessories
Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
be

fore installing other electrical
equipment or accessories on your
vehicle, contact a CITR
oËn

dealer or a
qualified workshop.
Access to the tools
11
Practical information

186
Dashboard fusebox
The fusebox is located in the lower dashboard
(left-hand side).
Access to the fuses
F Refer to "access to the tools".
Fuse tables
Fuse N° Rating Functions
FH36 5 ATrailer relay unit.
FH37 -
no

t used.
FH38 20 AHi-Fi amplifier.
FH39 20 AHeated seats.
FH40 40 ATrailer relay unit.
Fuse N° Rating Functions
F1 -
no

t used.
F2 -
no

t used.
F3 5 A
ai

rbags and pretensioners control unit.
F4 10 AAir conditioning, clutch switch, electrochrome mirror, particle
filter pump (Diesel), diagnostic socket, air flow sensor (Diesel).
F5 30 AElectric windows panel, passenger's electric window control,
front electric window motor.
F6 30 ARear electric windows motors and driver's electric window
motor.
F7 5 ACourtesy lamp, glove box lighting, side reading lamps.
Practical information

187
Fuse N°Rating Functions
F8 20 AMultifunction screen, audio system, navigation and audio
system, instrument panel with clock, alarm control unit, alarm
siren, audio system (after-market), 12 V socket, portable
navigation carrier power supply.
F9 30 AMultifunction screen, audio system, navigation and audio
system, instrument panel with clock, alarm control unit, alarm
siren, audio system (after-market), 12 V socket, portable
navigation carrier power supply, locking.
F10 15 ASteering mounted controls.
F11 15 AIgnition, diagnostic socket, automatic gearbox control unit.
F12 15 ARain / sunshine sensor, trailer relay unit, driving school module.
F13 5 AMain stop switch, engine relay unit, gear lever for electronic
gearbox.
F14 15 AParking sensors control unit, airbag control unit, instrument
panel, digital air conditioning, USB Box, HiFi amplifier,
reversing camera.
F15 30 ALocking.
F16 -
no

t used.
F17 40 ARear screen and door mirrors demisting/defrosting.
SH -Transit and storage shunt.
11
Practical information

188

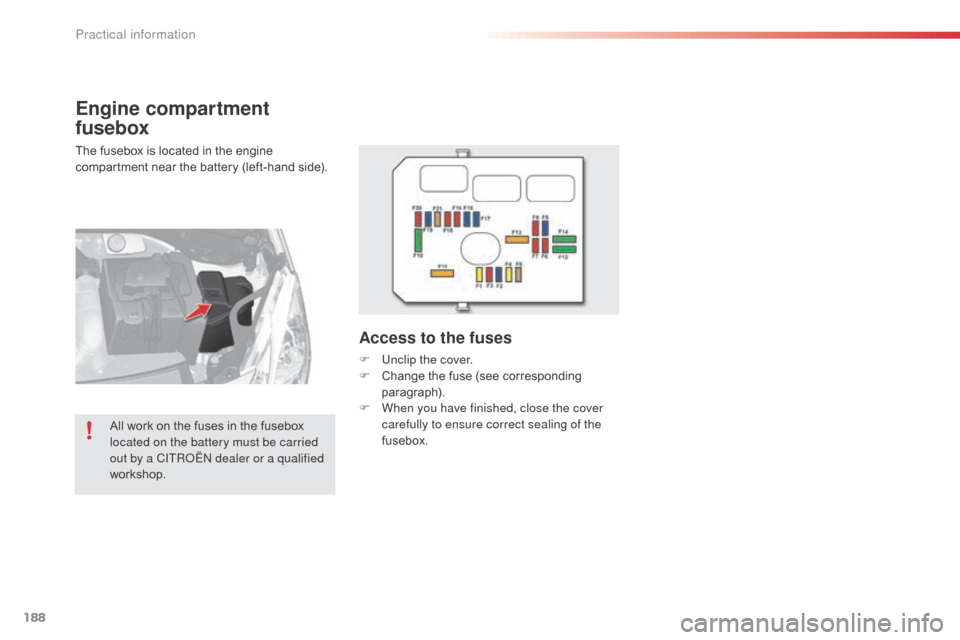

Engine compartment
fusebox
The fusebox is located in the engine
compartment near the battery (left-hand side).
Access to the fuses
F Unclip the cover.
F C hange the fuse (see corresponding
paragraph).
F

W
hen you have finished, close the cover
carefully to ensure correct sealing of the
fusebox.
All work on the fuses in the fusebox
located on the battery must be carried
out by a CITR
oËn

dealer or a qualified
workshop.
