49
B618_en_Chap01_Instruments-de-bord_ed01-2016

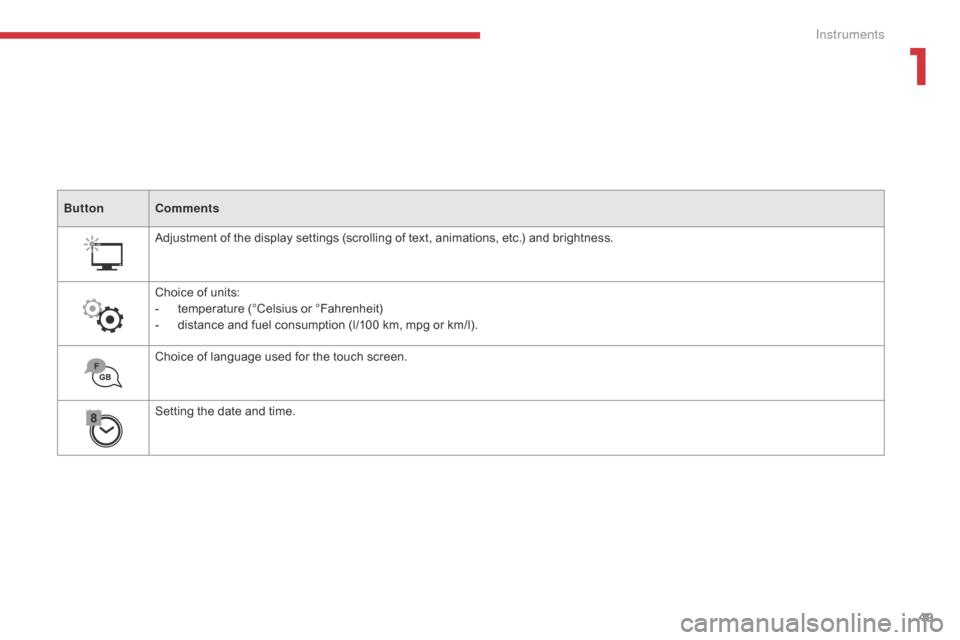

ButtonComments
Adjustment of the display settings (scrolling of text, animations, etc.) and brightness.
Choice of units:
-
t
emperature (°Celsius or °Fahrenheit)
-
d
istance and fuel consumption (l/100 km, mpg or km/l).
Choice of language used for the touch screen.
Setting the date and time.
1
Instruments
Page 52 of 450
50
Trip computer
System that gives you information on the current journey (range, fuel consumption…).
Display of information
These are displayed in turn:
- T rip distance.
-
Ra
nge.
-
C
urrent consumption.
-
A
verage speed.
-
S
top & Start time counter.
-
S
peed limit recognition information. F
P
ress the button on the end of the wiper
control stalk . F
P
ress the thumbwheel on the steering
wheel.
Instruments
Page 53 of 450
51
B618_en_Chap01_Instruments-de-bord_ed01-2016
Trip reset
F Press the button on the end of the wiper control stalk for more than two seconds. F
P ress the thumbwheel on the steering
wheel for more than two seconds. F
P ress this button for more than
two seconds.
The reset is carried out when the trip is displayed.
1
Instruments
Page 54 of 450
52
A few definitions…
Range
(miles or km)
This value may vary following a change
in the style of driving or the relief,
resulting in a significant change in the
current fuel consumption.
When the range falls below 20 miles (30 km),
dashes are displayed.
After filling with at least 5 litres of fuel, the
range is recalculated and is displayed if it
exceeds 60 miles (100 km). This function is only displayed from
20
mph (30 km/h).
Current fuel
consumption
(mpg or l/100 km or km/l)
Distance travelled
(miles or km)
Stop & Star t time counter
(minutes / seconds or hours /
minutes)
A time counter calculates the time spent in
STOP mode during a journey.
It resets to zero every time the ignition is
switched on.
Average fuel consumption
(mpg or l/100 km or km/l)
Calculated since the last trip computer reset.
If dashes are displayed continuously
while driving in place of the digits,
contact a CITROËN dealer or a
qualified workshop.
The distance which can still be travelled with
the fuel remaining in the tank (at the average
fuel consumption seen over the last few miles
(kilometres) travelled).
Calculated over the last few seconds.
Average speed
(mph or km/h)
Calculated since the last trip computer reset. Calculated since the last trip computer reset.
Instruments
Page 55 of 450
53
B618_en_Chap01_Instruments-de-bord_ed01-2016

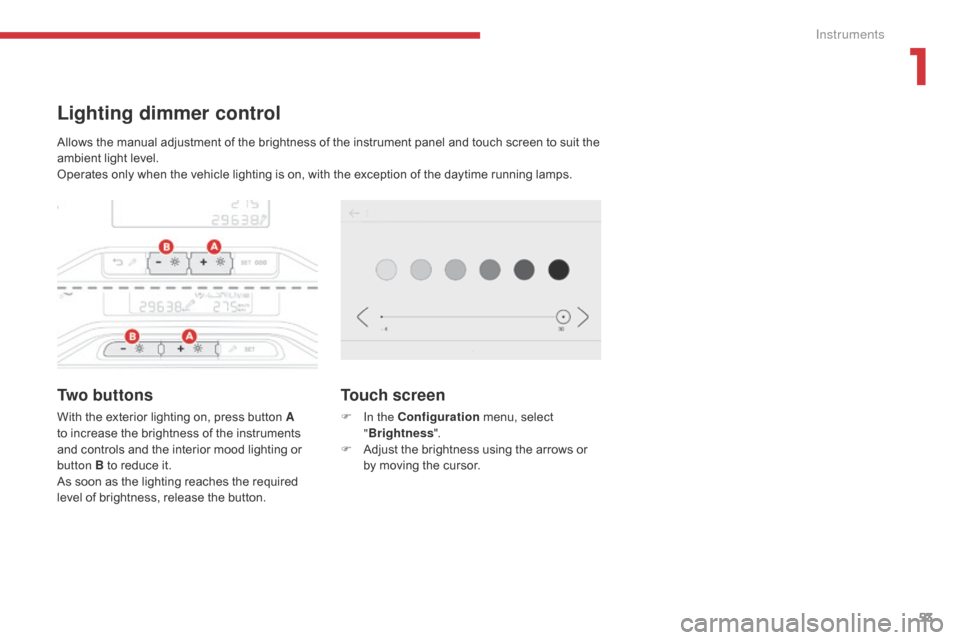

Lighting dimmer control
Tw o b u t t o n s
With the exterior lighting on, press button A
to increase the brightness of the instruments
and controls and the interior mood lighting or
button B to reduce it.
As soon as the lighting reaches the required
level of brightness, release the button.
Touch screen
F In the Configuration menu, select
" Brightness ".
F
A
djust the brightness using the arrows or
by moving the cursor.
Allows the manual adjustment of the brightness of the instrument panel and touch screen to suit the
ambient light level.
Operates only when the vehicle lighting is on, with the exception of the daytime running lamps.
1
Instruments
Page 56 of 450
54
Setting the date and time
With audio system
Without audio system
F Press the MENU button for access to the
main menu.
F
P
ress the " 7" or " 8" button to select the
"Personalisation-configuration" menu, then
the "OK" button.
F
P
ress the " 5" or " 6" button to select the
"Display configuration" menu, then the
"OK" button.
F
P
ress the " 5" or " 6" button to select the
"Date and time adjustment" line, then the
"OK" button.
F
P
ress the " 7" or " 8" button to select the
setting to change. Confirm by pressing the
"OK" button.
F
A
djust the settings one by one, confirming
by pressing the "OK" button.
F
P
ress the " 5" or " 6" button, then the "OK"
button to select the "OK" box and confirm
or press the "Back" button to cancel.
With CITROËN Connect
Radio
F Select the Settings menu.
F
Sel
ect " System configuration ".
You can set the date and time from the
instrument panel display. F
Sel
ect " Date " or "Time ".
F
C
hoose the display formats.
F
C
hange the date and/or the time using the
numeric keypad. F
Sel
ect "Date and time ".
F
P
ress this button to confirm.
F
P
ress and hold this button.
F
P
ress this button briefly to
confirm.
F
P
ress one of these buttons to
select the setting to change.
F
P
ress one of these buttons to
change the setting and confirm
again to save the change.
Instruments
Page 57 of 450
55
B618_en_Chap01_Instruments-de-bord_ed01-2016
F Select the Settings menu.
F
P
ress the " OPTIONS " button to go to the
secondary page.
The system does not automatically
manage the change between winter and
summer time (depending on country).
The change between winter and
summer time is done by changing the
time zone.
F
Sel
ect the " Date" or "Time " tab.
F
S
et the time or the date using the numeric
keypad. F
Sel
ect "Setting the time- date ".
F
P
ress this button to confirm.
With CITROËN Connect Nav
The date and time settings are only available
if the synchronisation with the GPS is
deactivated.Additional settings
You can choose to:
- c hange the date and time display format
(12hr / 24hr),
-
c
hange the time zone,
-
a
ctivate or deactivate the synchronisation
with the GPS (UTC).
1
Instruments
Page 58 of 450
56
B618_en_Chap02_ouvertures_ed01-2016
General points
Remote control
The remote control can be used for the
following functions, depending on version:
-
u
nlocking / locking / deadlocking of the
vehicle,
-
o
pening of the fuel tank cap,
-
r
emote switching on of the lighting,
-
a
ctivation / deactivation of the alarm,
-
l
ocating the vehicle,
-
v
ehicle immobiliser.
In normal operating conditions, it is preferable
to use the remote control. The key, integral with the remote control, can
be used for the following functions, depending
on version:
-
u
nlocking / locking / deadlocking of the
vehicle,
-
t
urning the child lock on or off,
-
a
ctivation / deactivation of the passenger's
front airbag,
-
b
ack-up door locking,
-
s
witching on the ignition and starting /
stopping the engine.
Back-up procedures allow the vehicle to be
locked or unlocked in the event of a failure of
the remote control, the central locking, the
batter y...
For more information on the Back-up
procedures , refer to the corresponding
section.
Ejecting the key
Version with Keyless Entr y and Star ting
F P ull on this button to remove the key from
the housing.
To return it to the housing, first pull on this
button. Version without Keyless Entr y and Star ting
F
P
ress this button; the key is ejected from its
housing.
To avoid damaging the mechanism, first press
this button to fold it.
Access
Page 59 of 450
57
B618_en_Chap02_ouvertures_ed01-2016
If one of the doors or the boot is not
fully closed, the locking does not take
place. However, if your vehicle has an
alarm, this will be fully activated after
about 45 seconds.
If the vehicle is unlocked inadvertently
and there is then no action on the doors
or boot, the vehicle will automatically
lock itself again after about 30 seconds.
If the alarm had been previously
activated, it will be reactivated
automatically.
F
P
ress the open padlock to unlock
the vehicle.
Unlocking the vehicle
When the unlocking button is pressed, the
flashing of the direction indicators for a
few
seconds signals:
-
u
nlocking of the vehicle for versions
without an alarm,
-
d
eactivation of the alarm for other versions.
Normal locking Deadlocking
F Press this button. F M ake a first press on this button.
F W ithin five seconds, press this
button again to deadlock the
vehicle.
When the locking button is pressed,
illumination of the direction indicators for a few
seconds signals:
-
l
ocking of the vehicle for versions without
an alarm,
-
a
ctivation of the alarm for other versions. For versions without alarm, deadlocking is
confirmed by illumination of the direction
indicators for few seconds on the second press
of the locking button.
Locking the vehicle
Deadlocking renders the interior door
controls inoperative.
It also deactivates the interior central
locking button on the dashboard.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
2
Access
Page 60 of 450
58
B618_en_Chap02_ouvertures_ed01-2016

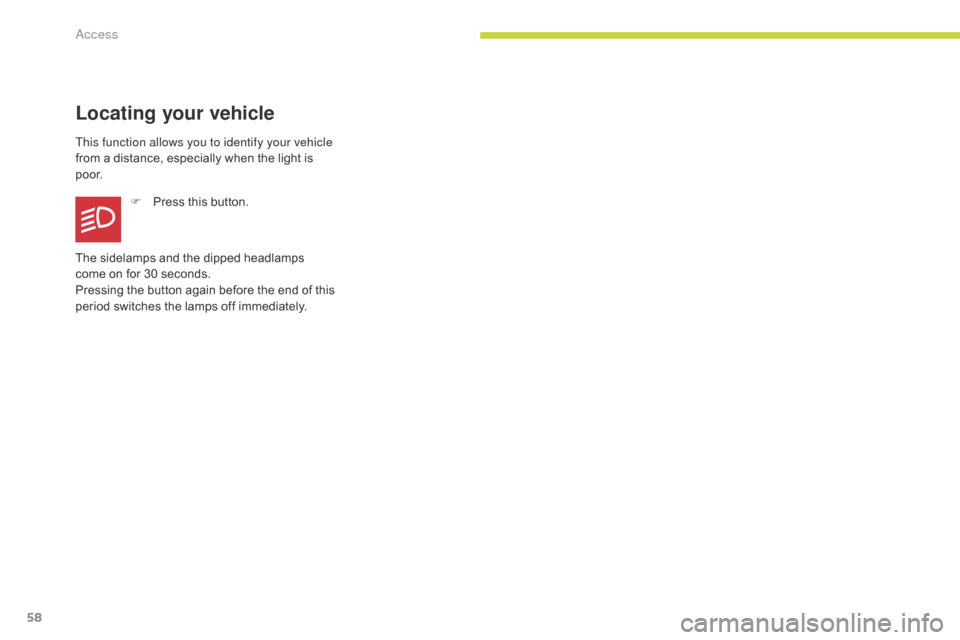

Locating your vehicle
This function allows you to identify your vehicle
from a distance, especially when the light is
p o o r.F
P
ress this button.
The sidelamps and the dipped headlamps
come on for 30 seconds.
Pressing the button again before the end of this
period switches the lamps off immediately.
Access
