Engine oil level indicator*
On versions fitted with an electric oil level
indicator, the state of the engine oil level is
displayed in the instrument panel for a few
seconds, after the servicing information.The level read will only be correct if
the vehicle is on level ground and the
engine has been off for more than
30
m

inutes.
Oil level correct
Oil level incorrect
This is indicated by the display of the message
"Oil level incorrect" in the instrument panel
screen, accompanied by the service warning
lamp and an audible signal.
If the low oil level is confirmed by a check using
the dipstick, the level must be topped up to
avoid damage to the engine.
Oil level indicator fault
This is signalled by the display of the message
"Oil level measurement invalid" in the
instrument panel.
Contact a CITROËN dealer or a qualified
workshop.
For more information on Checking
levels , refer to the corresponding
section.
* Depending on version. In the event of a fault with the electric indicator,
the oil level is no longer monitored.
If the system is faulty, you must check the
engine oil level using the manual dipstick
located under the bonnet.
For more information on Checking levels
,
refer to the corresponding section.
1
Instruments

36

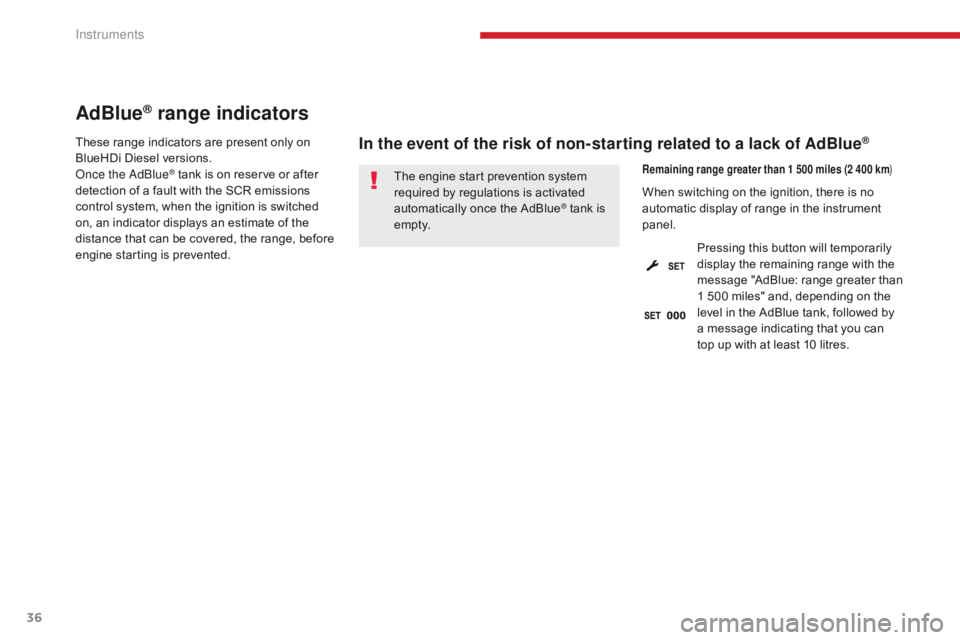

AdBlue® range indicators
These range indicators are present only on
BlueHDi Diesel versions.
Once the AdBlue
® tank is on reserve or after
detection of a fault with the SCR emissions
control system, when the ignition is switched
on, an indicator displays an estimate of the
distance that can be covered, the range, before
engine starting is prevented. Pressing this button will temporarily
display the remaining range with the
message "AdBlue: range greater than
1 500 miles" and, depending on the
level in the AdBlue tank, followed by
a message indicating that you can
top up with at least 10 litres.
The engine start prevention system
required by regulations is activated
automatically once the AdBlue
® tank is
e m pt y.
In the event of the risk of non-starting related to a lack of AdBlue®
Remaining range greater than 1 500 miles (2 400 km )
When switching on the ignition, there is no
automatic display of range in the instrument
panel.
Instruments

37
B618_en_Chap01_Instruments-de-bord_ed01-2016
Remaining range between 350 and 1 500 miles (600 and 2 400 km)Remaining range between 0 and 350 miles (0 and 600 km)
To be able to start the engine, it is
essential to add at least 4 litres of
AdBlue
® to the tank.
When switching on the ignition, the AdBlue
warning lamp comes on, accompanied by an
audible signal and the temporary display in
the instrument panel of "NO START IN" and
a distance, indicating the remaining range
expressed in miles or kilometres before
engine starting is prevented (e.g. "NO START
IN 900

miles" means that starting will be
prevented in 900 miles).
When driving, the message is displayed every
190 miles (300 km) until the AdBlue tank has
been topped up.
The reserve level has been reached; it is
recommended that the tank be topped up as
soon as possible.
It is recommended that no more than 10 litres
of AdBlue
® are added.
For more information on AdBlue® and the
SCR system , and in particular on topping up,
refer to the corresponding section. When switching on the ignition, the SERVICE
warning lamp comes on and the AdBlue
warning lamp flashes, accompanied by an
audible signal and the temporary display in
the instrument panel of "NO START IN" and
a distance, indicating the remaining range
expressed in miles or kilometres before
engine starting is prevented (e.g. "NO START
IN 180
miles" means that starting will be
prevented in 180 miles).
When driving, the message is displayed every
30 seconds until the AdBlue tank has been
topped up.
It is essential to top up the tank as soon
as possible before it is completely empty;
other wise, the engine may no longer start.
For more information on AdBlue
® and the SCR
system, and in particular on topping up, refer
to the corresponding section. When switching on the ignition, the SERVICE
warning lamp comes on and the AdBlue
warning lamp flashes, accompanied by an
audible signal and the temporary display in the
instrument panel of "NO START IN" and 0 km
or miles ("NO START IN 0 miles" means that
starting is prevented).
The AdBlue tank is empty: the system required
by regulations prevents engine starting. Breakdown related to a lack of AdBlue
®
For more information on
AdBlue® and the SCR
system, and in particular on topping up, refer
to the corresponding section.
1
Instruments

38
In the event of detection of a fault with the SCR emissions control system
In the event of detection of a faultDuring an authorised driving phase (between 650 miles and 0 miles) (1 100 km and 0 km)
A system that prevents engine starting is activated automatically 650 miles (1 100 km) after confirmation of a fault with the SCR emissions
control system. Have the system checked by a CITROËN dealer or a qualified workshop as soon as possible.
If it is a temporary fault, the alert
disappears during the next journey,
after a self-diagnostics test of the SCR
emissions control system.
The AdBlue, SERVICE and engine self-
diagnostics warning lamps come on,
accompanied by an audible signal and the
display of the message "Emissions fault".
The alert is triggered when driving, when
the fault is detected for the first time, then
when switching on the ignition for subsequent
journeys, while the fault persists.
If a fault with the SCR system is confirmed (after
30 miles (50 km) covered with the permanent
display of the message signalling a fault), the
SERVICE and engine self-diagnostics warning
lamps come on and the AdBlue warning lamp
flashes, accompanied by an audible signal and
the temporary display in the instrument panel
of "NO START IN" and a distance, indicating
the remaining range expressed in miles or
kilometres before engine starting is prevented
(e.g. "NO START IN 350
miles" means that
starting will be prevented in 350 miles).
While driving, this display appears every 30 seconds
while the fault with the SCR system persists.
The alert is repeated when switching on the
ignition.
You should go to a CITROËN dealer or a
qualified workshop as soon as possible.
Other wise, you will not be able to restart your
engine. Starting prevented
To be able to start the engine, you must call on
a CITROËN dealer or a qualified workshop.
You have exceeded the authorised
driving limit: the starting prevention
system inhibits engine starting.
Every time the ignition is switched on, the
SERVICE and engine self-diagnostics warning
lamps come on and the AdBlue warning lamp
flashes, accompanied by an audible signal and
the temporary display of "NO START IN" and
0 miles or kilometres ("NO START IN 0 miles"
means that starting is prevented).
Instruments

39
B618_en_Chap01_Instruments-de-bord_ed01-2016

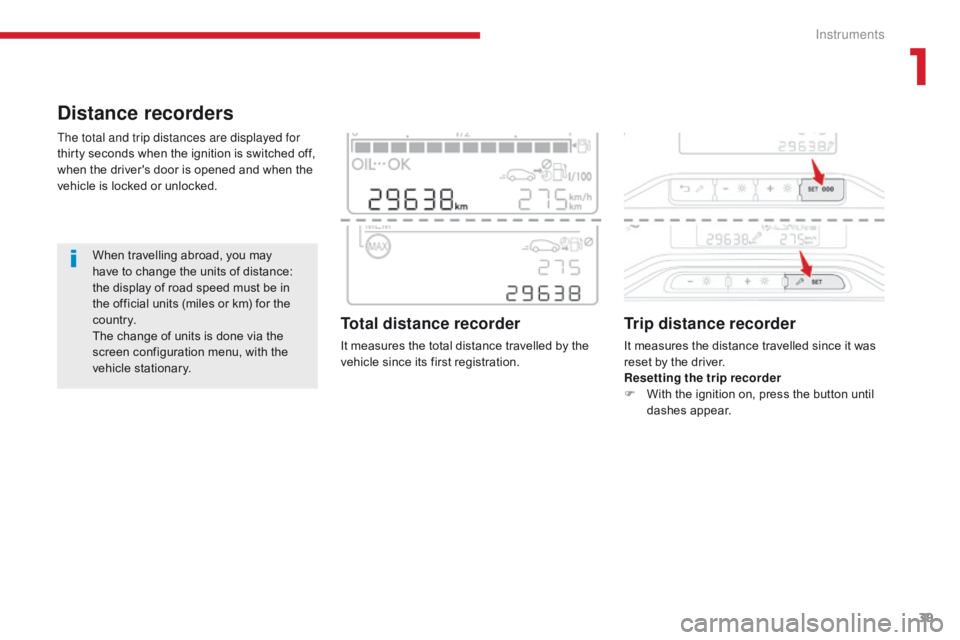

Distance recorders
The total and trip distances are displayed for
thirty seconds when the ignition is switched off,
when the driver's door is opened and when the
vehicle is locked or unlocked.
Total distance recorder
It measures the total distance travelled by the
vehicle since its first registration.
Trip distance recorder
It measures the distance travelled since it was
reset by the driver.
Resetting the trip recorder
F
W
ith the ignition on, press the button until
dashes appear.
When travelling abroad, you may
have to change the units of distance:
the display of road speed must be in
the official units (miles or km) for the
c o unt r y.
The change of units is done via the
screen configuration menu, with the
vehicle stationary.
1
Instruments

40
If your vehicle is not fitted with an audio system or a touch screen, you can still configure certain
equipment using the Text LCD instrument panel.
Configuration of the equipment on vehicles without a screen
Control buttons
A brief press on this button gives
access to the configuration menu, a
brief press confirms.
Display menus
- LIGHTING:
● D AYTIME LAMPS (Daytime running
lamps),
●

G
UIDE LAMPS (Guide-me-home
lighting),
●

W
ELCOME LAMPS (Welcome lighting).
-

D
RIVE ASSIST:
●

C
HK PRESSURES|REINITIALISE
(Reinitialisation of the tyre under-
inflation detection system),
●

V
IGILANCE ALT (Fatigue detection),
●

A
DVISED SPEED (Speed limit
recognition),
●

P
ARKING (Parking sensors).
For more information on one of these functions,
refer to the corresponding section.
A press on one of these buttons
scrolls through a menu, a list;
changes a value.
A press on this button goes back a
level or abandons the operation in
progress.
Instruments

41
B618_en_Chap01_Instruments-de-bord_ed01-2016
Monochrome screen C
This displays the following information:
- t ime,
-


date,
-

e
xterior temperature (this flashes if there is
a risk of ice),
-

g
raphic parking sensor information,
-

c
urrent audio source,
-

t
elephone or hands-free kit system
information,
-

a
lert messages,
-

s
ettings menus for the screen and the
vehicle equipment.
Displays in the screen
From the control panel of your audio system,
press:
F
the "MENU" button for access to the main
menu ,
F

t
he "5" or " 6" buttons to scroll through the
items on the screen,
F

t
he "7" or " 8" buttons to change a setting
value,
F
the "OK" button to confirm,
or
F
the "Back" button to abandon the
operation in progress.
Controls
F Press the "MENU" button for access to the
main menu :
-

"
Multimedia",
-


"Telephone",
-

"
Trip computer",
-


"Connections",
-
"

Personalisation-configuration",
F

P
ress the " 7" or " 8" buttons to select the
menu required, then confirm by pressing
the "OK" button.
Main menu
1
Instruments

42
"Multimedia" menu
"Telephone" menu"Trip computer" menu
Warning log
This summarises the warning messages for
systems, displaying them on the screen.
With the audio system switched on, this
menu allows you to activate or deactivate the
functions associated with use of the radio
(RDS, DAB

/

FM auto tracking, RadioText
(TXT) display) or to choose the media play
mode (Normal, Random, Random all, Repeat).
For more information on the "Multimedia"
application, refer to the "Audio and telematics"
supplement.
With the audio system switched on, this menu
allows you to make a call or view the various
telephone directories.
For more information on the "Telephone"
application, refer to the "Audio and telematics"
supplement. This menu allows you to view information on
the status of the vehicle.
"Connections" menu
With the audio system on, this menu allows
a Bluetooth device (telephone, media player)
to be paired and the connection mode to be
defined (hands-free, playing audio files).
For more information on the "Connections"
application, refer to the "Audio and telematics"
supplement.
Instruments

43
B618_en_Chap01_Instruments-de-bord_ed01-2016
As a safety measure, the driver must
only per form operations requiring
sustained attention when stationary.
"Personalisation-configuration" menu
Define the vehicle parameters
This menu permits activation / deactivation of
the following equipment, depending on version
and/or the country of sale:
-
"
Vehicle lighting" :
●

"
Daytime lights".
-

"
Interior lighting" :
●

"
Guide-me-home headlamps",
●

"
Welcome lighting".
-

"
Comfort" :
●

T
yre inflation,
●

F
atigue Detection System,
●
P

arking assistance.
-

"
Driving assistance" :
●
"

Speed recommendation",
●

"
Blind spot monitoring".
For more information on this equipment, refer
to the corresponding sections. This menu gives access to the following functions:
-
"
Define the vehicle parameters",
-
"
Display configuration".
Display configuration
Once this menu has been selected, you can
choose the language used by the display from
a pre-defined list.
This menu gives access to the following
settings:
-

"
Choice of units",
-

"
Date and time adjustment",
-
"

Display personalisation",
-

"
Choice of language".
1
Instruments

44
Touch screen
The touch screen gives access to:
- t he heating/air conditioning controls,
-

m
enus for adjusting settings for vehicle
functions and systems,
-

a
udio system and telephone controls and
the display of associated information,
For safety reasons, the driver
should only carr y out operations
that require close attention with the
vehicle stationary.
Some functions are not accessible
when driving.General operation
Recommendations
Use is possible in all temperatures.
Do not use pointed objects on the touch
screen.
Do not touch the touch screen with wet hands.
Uses a soft clean cloth to clean the touch
screen.
Use this button to confirm.
Use this button to return to the
previous page.
Principles
Use the buttons on either side of the touch
screen for access to the menus, then press the
virtual buttons in the touch screen.
Certain functions may be displayed over 1 or
2 pages.
To deactivate/activate a function, press OFF/
ON.
To modify a setting (lighting duration, etc.) or
access additional information, press the symbol
for the function.After a few moments with no action on
the secondary page, the primary page
is displayed automatically.
and, depending on equipment, allows:
-

t

he display of alert messages and the
visual parking sensors information,
-

t

he permanent display of the time and the
exterior temperature (a blue warning lamp
appears when there is a risk of ice),
-

a

ccess to the controls for the navigation
system and Internet services, and the
display of associated information.
Instruments
