headlamp CITROEN C3 2021 Owner's Manual

235
B618_en_Chap08_En-cas-de-panne_ed01-2016

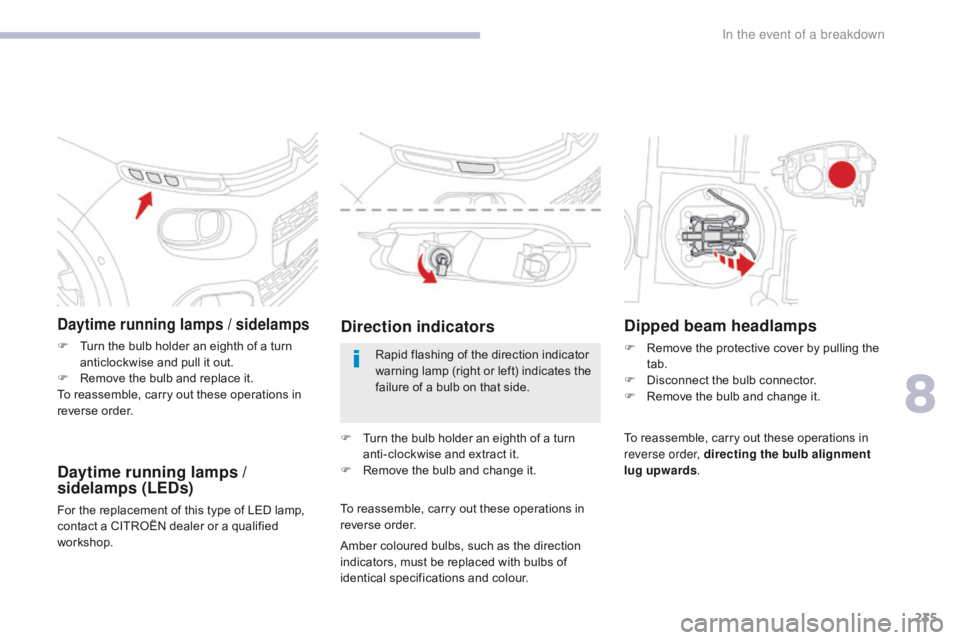

Daytime running lamps / sidelamps
F Turn the bulb holder an eighth of a turn anticlockwise and pull it out.
F

R
emove the bulb and replace it.
To reassemble, carry out these operations in
reverse order.
Daytime running lamps /
sidelamps (LEDs)
For the replacement of this type of LED lamp,
contact a CITROËN dealer or a qualified
workshop. Rapid flashing of the direction indicator
warning lamp (right or left) indicates the
failure of a bulb on that side.
Direction indicators
Amber coloured bulbs, such as the direction
indicators, must be replaced with bulbs of
identical specifications and colour. F

T
urn the bulb holder an eighth of a turn
anti-clockwise and extract it.
F
R
emove the bulb and change it.
To reassemble, carry out these operations in
reverse order.
Dipped beam headlamps
F Remove the protective cover by pulling the tab.
F

D
isconnect the bulb connector.
F

R
emove the bulb and change it.
To reassemble, carry out these operations in
reverse order, directing the bulb alignment
lug upwards .
8
In the event of a breakdown

236
B618_en_Chap08_En-cas-de-panne_ed01-2016

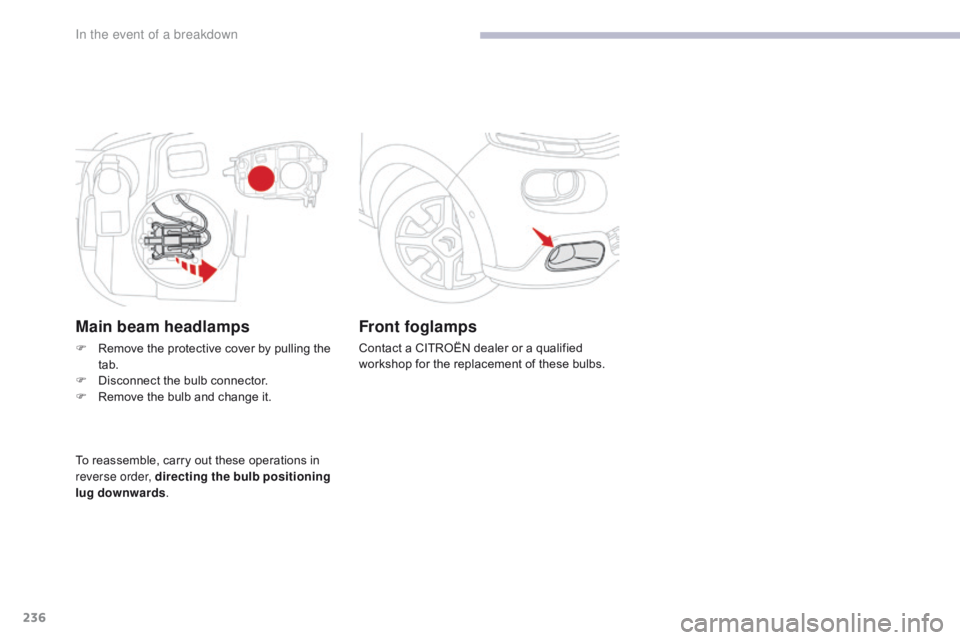

Front foglamps
Contact a CITROËN dealer or a qualified
workshop for the replacement of these bulbs.
Main beam headlamps
F Remove the protective cover by pulling the tab.
F

D
isconnect the bulb connector.
F

R
emove the bulb and change it.
To reassemble, carry out these operations in
reverse order, directing the bulb positioning
lug downwards .
In the event of a breakdown

245
B618_en_Chap08_En-cas-de-panne_ed01-2016
FuseN° Rating
(A) Functions
F24 5Parking sensors, rear camera, telematic screen.
F25 5Airbags control unit.
F29 20Audio-telematic system.
F31 15Audio system (accessory).
F32 15Front 12 V socket.
F35 5Headlamp height adjustment, diagnostic socket, additional
heating (depending on equipment).
F36 5Front map reading lamp.
F4 15Horn.
F6(+) -
F5(Gnd) 20
Front and rear screen wash pump.
F8 20Rear wiper.
F9 5Front courtesy lamp.
8
In the event of a breakdown

246
B618_en_Chap08_En-cas-de-panne_ed01-2016
Engine compartment fuses
Access to the fuses
F Unclip the cover.
F C hange the fuse.
F

W
hen you have finished, close the cover
carefully to ensure correct sealing of the
fusebox. Fuse
N° Rating
(A) Functions
F1 40Air conditioning.
F10 15Engine management.
F11 20Engine management.
F12 5Engine management.
F13 5Engine management.
F14 5Battery charge status unit (depending on engine).
F15 5Not used.
F16 20Front foglamp.
F17 5Engine management.
F18 10Right-hand main beam headlamp.
F19 10Left-hand main beam headlamp.
F2 60A B S / E S P.
F20 30Engine management.
F21 30Starter motor (depending on engine).
F22 30Not used.
F23 40Starter unit (with Stop & Start and depending on engine).
F24 40Passenger compartment fusebox.
The fusebox is placed in the engine
compartment near the battery.
In the event of a breakdown
