Reverse camera CITROEN C3 2021 Owners Manual

189
B618_en_Chap06_conduite_ed01-2016

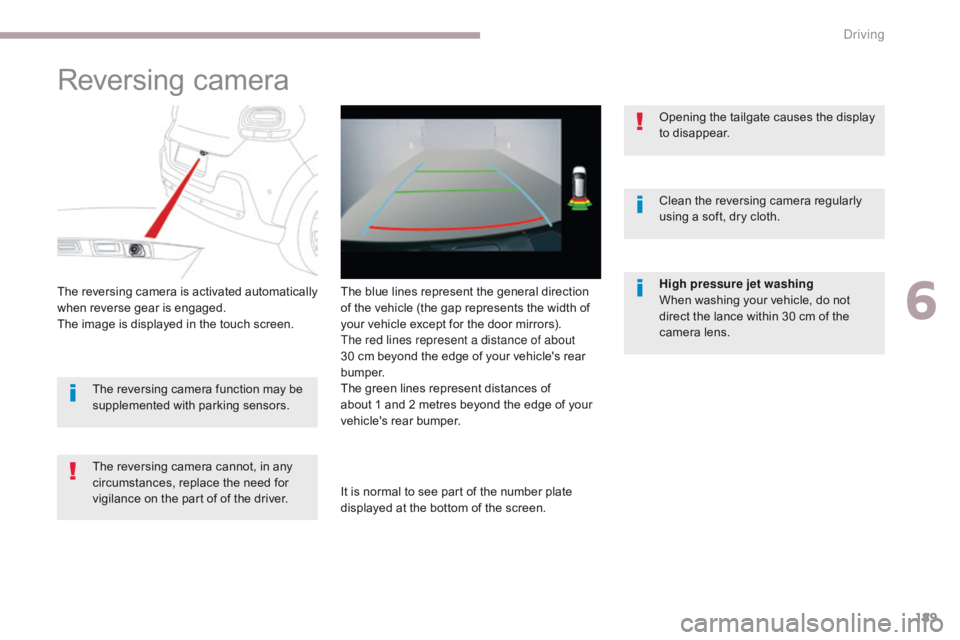

Reversing camera
The reversing camera is activated automatically
when reverse gear is engaged.
The image is displayed in the touch screen.The reversing camera cannot, in any
circumstances, replace the need for
vigilance on the part of of the driver. Opening the tailgate causes the display
to disappear.
The reversing camera function may be
supplemented with parking sensors. High pressure jet washing
When washing your vehicle, do not
direct the lance within 30 cm of the
camera lens. Clean the reversing camera regularly
using a soft, dry cloth.
The blue lines represent the general direction
of the vehicle (the gap represents the width of
your vehicle except for the door mirrors).
The red lines represent a distance of about
30 cm beyond the edge of your vehicle's rear
b u m p e r.
The green lines represent distances of
about 1 and 2 metres beyond the edge of your
vehicle's rear bumper.
It is normal to see part of the number plate
displayed at the bottom of the screen.
6
Driving
