Screen CITROEN C3 AIRCROSS 2022 Owners Manual

12
Indicates connection of the audio
steaming profile.
Indicates the hands-free telephone
profile.
Select a telephone.
Confirm with OK.
Then select and confirm:
- "Connect telephone "/
" Disconnect telephone ":
to connect/disconnect the
telephone or the hands-free kit
o n l y.
-
"Connect media player "/
" Disconnect media player ":
to connect/disconnect streaming
o n l y.
-
"Connect telephone + media
player "/ "Disconnect telephone
+ media player ":
to connect/disconnect the
telephone (hands-free kit and
streaming).
-
"Delete connection ": to delete
the pairing. When you delete a pairing in the system,
remember to delete it from your telephone
as well.
Confirm with OK.
Receiving a call
An incoming call is announced by a ring and a
superimposed display in the screen.
Select the " YES" tab in the screen
using the buttons.
Confirm with OK.
Press this button at the steering
mounted controls to accept the call.
Making a call
In the " Telephone " menu.
Select " Call".
Select " Dial".
Or
Select " Directory ". Or
Select "
Calls list ".
Confirm with OK.
Press this button for more than
two seconds for access to your
directory, then navigate using the
thumb wheel.
Ending a call
In the " Telephone " menu.
Select " End call".
Confirm with OK to end the call.
During a call, press one of the
buttons for more than two seconds.
The system accesses the telephone's
contacts directory, depending on its
compatibility, and while it is connected via
Bluetooth.
Bluetooth® audio system

17

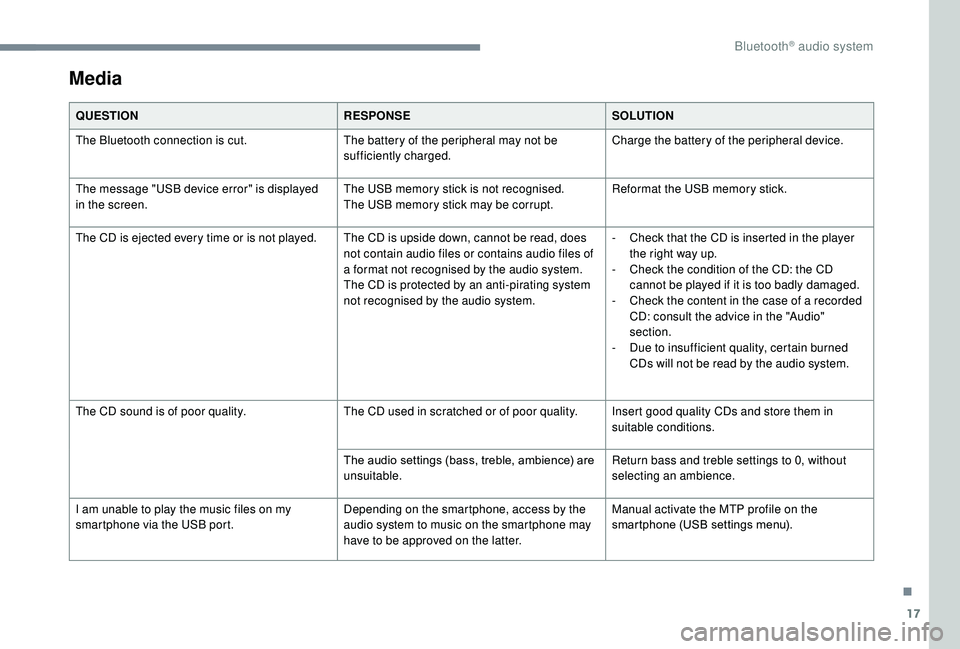

Media
QUESTIONRESPONSESOLUTION
The Bluetooth connection is cut. The battery of the peripheral may not be
sufficiently charged.Charge the battery of the peripheral device.
The message "USB device error" is displayed
in the screen. The USB memory stick is not recognised.
The USB memory stick may be corrupt.Reformat the USB memory stick.
The CD is ejected every time or is not played. The CD is upside down, cannot be read, does not contain audio files or contains audio files of
a format not recognised by the audio system.
The CD is protected by an anti-pirating system
not recognised by the audio system.-

C
heck that the CD is inserted in the player
the right way up.
-

C
heck the condition of the CD: the CD
cannot be played if it is too badly damaged.
-

C
heck the content in the case of a recorded
CD: consult the advice in the "Audio"
section.
-

D
ue to insufficient quality, certain burned
CDs will not be read by the audio system.
The CD sound is of poor quality. The CD used in scratched or of poor quality. Insert good quality CDs and store them in
suitable conditions.
The audio settings (bass, treble, ambience) are
unsuitable. Return bass and treble settings to 0, without
selecting an ambience.
I am unable to play the music files on my
smartphone via the USB port. Depending on the smartphone, access by the
audio system to music on the smartphone may
have to be approved on the latter.Manual activate the MTP profile on the
smartphone (USB settings menu).
.
Bluetooth® audio system

214
Defrosting ........................................................ 70
Defrosting, front .............................................. 69
Demisting, front
............................................... 69
D

emisting, rear

................................................ 63
Demisting, rear screen


...................................63
Dimensions
..............................

.....................210
Dipstick
................

............................. 28, 176 -17 7
Direction indicators


..............22, 81- 82 , 193 -195
Display, head-up
...............................

............132
Display screen, instrument panel


.................128
Distance alert ~ Collision Risk Alert
.............143
Doors


............................................................... 48
Driver’s attention warning


......................14 6 -147
Driving time warning


..................................... 14 6
Dynamic stability control (DSC)
.....15 -16 , 93-96
EEarth point, remote ....................................... 17 5
Economy mode ............................................. 17
2
Electronic brake force distribution (EBFD)
.....93
Electronic stability control (ESC)

...................15
E

mergency braking assistance (EBA) ............93
Emergency call


......................................... 91-92
Emergency switching off


...............................123
Emissions control
...............................

.............14
Energy economy mode
................................. 17

2
Engine


............................................................. 14
Engine, Diesel


....................................... 165, 18 4
Engine, petrol
...............................

.........165, 175
Engine compartment
.................................... 17

5
Engine fault


..................................................... 14
Engines


.................................................. 207-209
Engine self-diagnosis
..................................... 14
E

nvironment

.................................................... 45
FFatigue detection ................................... 14 6 -147
Filling the fuel tank ................................. 165 -167
Filter, air


........................................................ 179
Filter, Diesel fuel


........................................... 176
Filter, oil
................

......................................... 179
Filter, particle


......................................... 178 -179
Filter, passenger compartment


.....................179
Fitting a wheel
....................................... 19 0 -192
Fitting roof bars


...................................... 173 -174
Fittings, boot


................................................... 76
Fittings, interior
......................................... 71,

75
Fittings, rear


.................................................... 75
Flap, fuel filler


......................................... 166 -167
Floor, boot, adjustable


....................................77
Foglamp, rear


............................................ 21, 81
Foglamps, front


.......23, 80 - 81 , 85-86 , 193, 195
Foglamps, rear
................................................ 80
F

olding the rear seats

...............................60-62
Frequency (radio)
....................................... 21-22
Fuel ................................................................ 165
Fuel tank ........................................................ 167
Fusebox, dashboard


..................................... 201
Fusebox, engine compartment


.....................201
Fuses
...................................................... 1

97-2 01
G
Gauge, fuel............................................. 166 -167
Gearbox, automatic .......................125 -131, 18 0
Gearbox, manual


......71, 124 -125 , 12 9 -131, 179
Gear lever, manual gearbox


..................124 -125
Gear shift indicator ~ Gear efficiency indicator


..................................... 128
Glove box
........................................................ 71
G . P. S .


.............................................................. 12
Grab handles


.................................................. 75
Grip control
............................................... 95-96
HHazard warning lamps ....................................91Hazard warning lamps, automatic operation .......91Headlamps, automatic dipping ...........23, 83-85
Headlamps, automatic illumination ..........82- 83
Headlamps, dipped beam


.........23, 80 , 193 -19 4
Headlamps, main beam


............23, 80 , 193 -19 4
Head restraints, front
...................................... 59
Head restraints, rear
.................................60-62
Head-up display
..................................... 13

2-13 3
Heating
...................................................... 6

6- 67
Hill Assist Descent Control
................22, 97- 9 8
Hill start assist
............................................... 12 9
Hooks


.............................................................. 77
Horn ................................................................. 91
IIgnition .......................................69, 121 , 123 , 28
Immobiliser, electronic ............................45, 11 9
Indicator, AdBlue
® range ........................... 28-29
Indicator, coolant temperature ........................ 25
Indicator, engine oil level
................................ 28
Indicator lamps, operation
.............................. 11
I

ndicators, direction

................................ 81, 19 4
Inflating tyres and accessories (using the kit)

.............................. 18 4 -185, 187
Instrument panel


.......................................... 8 -10
Instrument panel, matrix
................................... 9
Internet browser
.............................................. 16
I

SOFIX mountings ......................................... 112
JJack .............................................18 8 -19 0, 23, 9
Jump starting ................................................ 202
Alphabetical index

215
KKey ...................................................... 41, 43-46
Key, electronic ........................................... 43-44
Keyless Entry and Starting ......43, 45, 11 9 , 121-12 2Key not recognised ....................................... 12 3
Key with remote control ................................11
9
Kit, hands-free
.................... 2

5 -26, 13 -14 , 1 0 -11
Kit, temporary puncture repair
...... 18

4 -185, 187
LLabels, identification ..................................... 2 11
Lamp, boot .............................................. 70, 197
Lamps, parking


............................................... 82
Lamps, rear


................................................... 195
Lane Departure Warning System (LDWS)
...148
LEDs – Light-emitting diodes
................. 8

2, 193
Level, brake fluid
........................................... 17 7
Level, Diesel additive


.................................... 178
Level, engine coolant


.......................25, 17 7-178
Level, engine oil
............................... 28, 176 -17 7
Level, screenwash fluid

................................17

8
Levels and checks

..............................
...175 -178
Light-emitting diodes – LEDs
......... 8

2, 193 , 197
Lighting, cornering


.......................................... 86
Lighting, directional


......................................... 85
Lighting, guide-me home


................................83
Lighting, interior
...............................

.........78 -79
Lighting, mood


................................................ 79
Lighting, welcome


........................................... 83
Load reduction mode


.................................... 172
Locating your vehicle


...................................... 42
Locking
...............................

.......................42, 45
Locking from the inside
...................................49
Low fuel level

......................................... 16

6 -167
MMap reading lamps .........................................78
M arkings, identification .................................2 11
Mat


............................................................ 71, 74
Memorising a speed

..............................13

3 -13 4
Menu


............................................................... 12
Menu, main
....................................................... 4
M

enus (audio) ........................................ 3-5, 4-5
Messages


........................................................ 28
Messages, quick
............................................. 28
M

irror, rear view .............................................. 64
Mirrors, door .................................... 63, 14 9 -15 0
Misfuel prevention


......................................... 167
Mountings, ISOFIX


....................................... 112
MP3 CD
............................................................. 9
NNet, storage..................................................... 75
Number plate lamps ...................................... 19 6
OOil, engine .............................................. 176 -17 7
Oil change .............................................. 17
6 -17 7
Oil consumption


..................................... 176 -17 7
On-board tools


........................................ 77, 185
Opening the bonnet


...............................174 -175
Opening the boot


..........................42- 43, 48-49
Opening the doors


..............................42- 43, 48
PPads, brake ................................................... 18 0
Paint colour code .......................................... 2 11
Parcel shelf, rear


............................................. 76
Park Assist

...............................
.....15 5 , 157 , 159
Parking brake


........................................ 124, 18 0
Parking sensors, front ...................................151
Parking sensors, rear .................................... 151
Plates, identification ...................................... 2 11
Player, Apple
® ..................................... 24, 10, 10
Player, MP3 CD ............................... ............23, 9
Player, USB

............................................. 23, 9, 7
Port, USB

.................................... 71, 73 , 23 , 9, 7
Pre-heater, Diesel


........................................... 21
Pressures, tyres


.................................... 188, 2 11
Pre-tensioning seat belts


.............................. 101
Priming the fuel system
................................ 18 4
Profiles


...................................................... 30, 16
Protecting children


....102-103 , 105 -107 , 111 -115
Puncture


........................................ 18 4 -185, 187
RRadio ......................................... 21, 24 , 6, 9, 4-5
Radio, digital (Digital Audio Broadcasting – DAB)
............................22, 8, 6
Range, AdBlue


.......................................... 28-29
RDS
................

....................................... 21-22, 7
Rear screen, demisting


...................................70
Recharging the battery


.........................203-204
Recirculation, air


....................................... 66-69
Reduction of electrical load


..........................172
Regeneration of the particle filter
.................179
Reinitialisation of the under- inflation detection system


....................162-163
Reinitialising the remote control
..................... 47
R

eminder, key in ignition
...............................12

1
Reminder, lighting on
...................................... 81
R

emote control

.......................................... 41- 4 5
Removing a wheel
................................ 19 0 -192
Removing the mat


........................................... 74
Replacing bulbs
.................................... 19

3, 195
Replacing fuses


..................................... 197-2 01
Replacing the air filter
................................... 17

9
Replacing the oil filter
................................... 17

9
.
Alphabetical index

216
Replacing the passenger compartment filter ....179Reservoir, screenwash .................................178
Resetting the service indicator .......................28
Resetting the trip recorder


........................3 0 - 31
Reversing camera
...............................

...15 4 -15 5
Roof bars


................................................ 173 -174
Running out of fuel (Diesel)
..........................18 4
SSafety, children .........102-103 , 105 -107 , 111 -115
SCR (Selective Catalytic Reduction) ............18 0
Screen, instrument panel


................................38
Screen, monochrome


...............................32-33
Screen, multifunction (with audio system)
........4
Screen menu map


........................................... 12
Screenwash, front


........................................... 88
Screenwash, rear


............................................ 87
Seat belts


......................................... 9 8 -101, 11 0
Seats, front
...............................

.................57- 5 8
Seats, heated


............................................ 59-60
Seats, rear


................................................. 60-62
Selector, gear


......................................... 125 -128
Serial number, vehicle


..................................2 11
Service indicator


....................................... 26, 28
Servicing
......................................................... 26
S

ettings, equipment

................................... 31- 3 6
Settings, system


........................................ 30, 16
Sidelamps
................................. 80,

82, 193 -195
Side repeater


................................................ 195
Snow chains


................................... 162, 167-168
Socket, 12
V accessory .......................71-72, 76
Socket, auxiliary
...................................... 23,

9, 8
Socket, Jack


............................................ 23, 9, 8
Sockets, audio
................................................ 73
Spe

ed limiter
.......................... 13

3 -13 4, 13 6 -13 9
Speed limit recognition
.......................... 13

4 -13 5
Stability control (ESC)...............................15, 93
Starting a Diesel engine ............................... 16
5
Starting the engine
....................................... 12

0
Starting the vehicle
......... 11

8, 120 -12 2 , 125 -128
Starting using another battery


..............123, 202
Station, radio
...............................

......21-22 , 6, 4
Stay, bonnet


........................................... 174 -175
Steering mounted controls, audio
........ 3,

3, 2-3
Steering wheel, adjustment
............................ 62
S

TOP (warning lamp)
...................................... 12
St

op & Start

..............................
22 , 39 , 66 , 69, 12 9 -131 , 166, 175, 179 , 205
Stopping the vehicle


.......11 8, 120 -12 2 , 125 -128
Storage


...................................................... 71, 75
Storage box


..................................................... 77
Storage wells


.................................................. 77
Stowing rings


.................................................. 75
Sunroof, panoramic
........................................ 53
S

un visor
...............................
..........................71
Switching off the engine


...............................120
Synchronising the remote control
...................47
TTables of fuses ....................................... 1 97-2 01
Ta n k , f u e l ................................................ 166 -167
Telephone
.......... 7

2-73, 25 -29 , 13 -16, 1 0 -11, 13
Telephone, Bluetooth with voice recognition ......14Temperature, coolant ...................................... 25
Three flashes (direction indicators) ................8
2
Time (setting)
........................... 32-33, 40, 31, 17
TMC (Traffic info)

............................................ 13
T

o o l s

........................... 77, 78, 188 -189, 188 -19 0
Total distance recorder


.............................3 0 - 31
Touch screen ....................... 33-36, 86, 13 5 , 1, 1
To w b a r
...............................

....................11 9, 171
Towbar with quickly detachable towball ...... 1 6 8 -171
Towed loads .................................................. 207
Towing another vehicle .........................205-206
Traction control (ASR)
...................15 -16, 93-95
Traffic information (TA)
.....................................5
Traffic information (TMC)
................................13
Tr a i l e r
...............

..................................... 11 9, 171
Trip computer


............................................. 37- 3 9
Trip distance recorder
............................... 3

0 - 31
Ty r e s


.............................................................. 2 11
Tyre under-inflation detection


.........15, 161 , 188
UUnder-inflation (detection) ............................161
Unlocking .................................................. 42- 43
Unlocking from the inside
...............................49
Updating the date
................................ 40,

31, 18
Updating the time
...............................

.40 , 31 , 17
USB


................................................... 23 -24, 9, 7
VVentilation ................................................. 64- 67
Voice commands ......................................... 5 -10
WWarning and indicator lamps .....................1 0 -11
Warning lamp, braking system .......................12
Warning lamp, Diesel engine pre-heater


.......21
Warning lamp, driver’s seat belt not fastened
...............................

....9 9 -10 0
Warning lamp, low fuel level
...........................17
Warning lamp, seat belts


........................9 9 -10 0
Warning lamp, Service ....................................20
Alphabetical index

217
Warning lamp, STOP ......................................12
We ights ............... ................................... 207-209
Wheel, spare
.......................... 18

5, 18 8 -19 0 , 2 11
Window controls


....................................... 55-56
Windscreen, heated


........................................ 70
Wiper, rear ................................................. 87- 8 8
Wiper blades (changing)


.........................88, 173
Wipers


..................................... 23 -24, 86, 88-89
Wipers, automatic rain sensitive


...............87- 8 9
.
Alphabetical index
