In the event of a breakdown

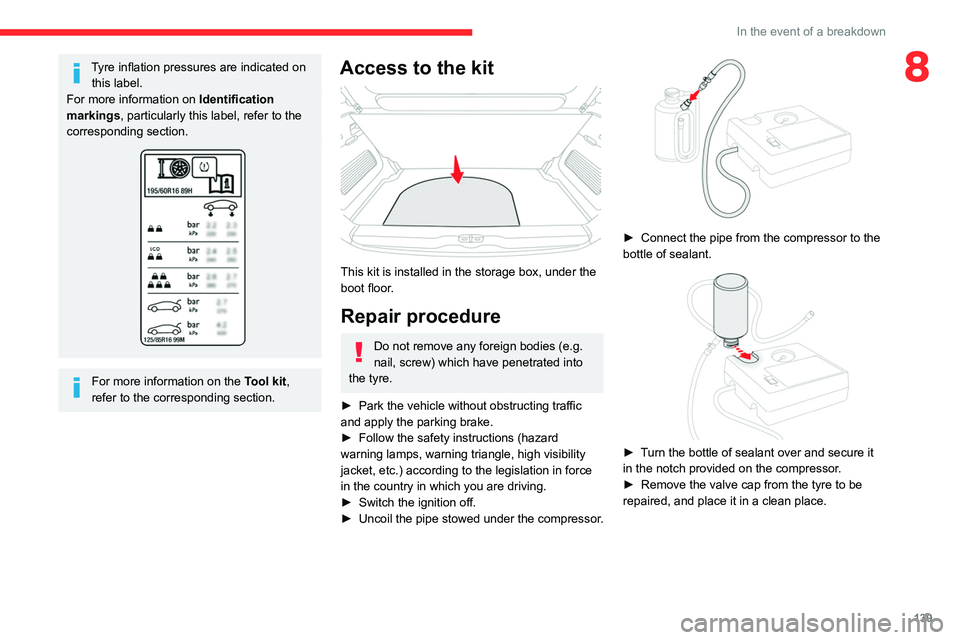

8Tyre inflation pressures are indicated on this label.
For more information on Identification
markings, particularly this label, refer to the
corresponding section.
For more information on the Tool kit,
refer to the corresponding section.
Access to the kit

This kit is installed in the storage box, under the
boot floor.
Repair procedure
Do not remove any foreign bodies (e.g.
nail, screw) which have penetrated into
the tyre.
►

Park the vehicle without obstructing traffic
and apply the parking brake.
►


Follow the safety instructions (hazard
warning lamps, warning triangle, high visibility
jacket, etc.) according to the legislation in force
in the country in which you are driving.
►


Switch the ignition off.
►


Uncoil
the pipe stowed under the compressor.


► Connect the pipe from the compressor to the
bottle of sealant.


► Turn the bottle of sealant over and secure it
in the notch provided on the compressor.
►

Remove the valve cap from the tyre to be
repaired, and place it in a clean place.

141
In the event of a breakdown
8Checking/adjusting tyre
pressures
The compressor can be used, without injecting
sealant, to check and, if necessary, adjust the
tyre pressures.
►

Remove the valve cap from the tyre and keep
it in a clean place.
►


Uncoil
the pipe stowed under the compressor.
►

Screw the pipe onto the valve and tighten
firmly

.
►

Check that the compressor switch is in
position " O

".
►

Fully uncoil the electric cable stowed under
the compressor

.
►

Connect the compressor's electric plug to the
vehicle's 12

V socket.
►

Switch the ignition on.
►


Start the compressor by placing the switch at
position " I

" and adjust the pressure to the value
shown on the vehicle's tyre pressure label. To
deflate: press the black button located on the
compressor pipe, near the valve connection.
If after 7 minutes the pressure of 2 bar is
not reached, the tyre is damaged;
contact a CITROËN dealer or a qualified
workshop for assistance.
►

Once the correct pressure is reached, put the
switch in position " O

".
►

Remove the kit and stow it.
►


Refit the cap on the valve.
Should the pressure of one or more tyres
be adjusted, it is necessary to reinitialise
the under-inflation detection system.
For more information on Tyre under-inflation
detection, refer to the corresponding section.
Spare wheel
Scan the QR Code on page 3 to view
explanatory videos.
For more information on the Tool kit,
refer to the corresponding section.
Accessing the spare wheel
The spare wheel is stored in the boot, under the
floor.
To access the spare wheel, first refer to the
Tool
kit
section.
Depending on version, the spare wheel
may be a standard steel or 'space-saver'
wheel.
Removing the spare wheel

► Unclip and remove the tool storage box or
remove the polystyrene cover (depending on
version).
►

Slacken the central nut.
►


Remove the fastening device (nut and bolt).
►


Lift the spare wheel towards you from the
rear

.
►

T
ake the wheel out of the boot.
Removing a wheel
Parking the vehicle
Immobilise the vehicle where it does
not obstruct traffic: the ground must be level,
stable and non-slippery.
With a manual gearbox, engage first gear
to lock the wheels, apply the parking brake,
unless it is set to automatic mode, and switch
off the ignition.

142
In the event of a breakdown

► Remove the bolts and store them in a clean
place.
► Remove the wheel.
Stowing the damaged wheel
► To stow an alloy wheel, first remove
the wheel trim from the centre of the wheel so
that the fastening device (nut and bolt) can be
put in place.
► In the case of a "space saver" type
spare wheel, the damaged wheel cannot be
stowed under the floor. It must be placed in
the boot; use a cover to protect the inside of
the boot.
With an automatic gearbox, select mode P
to lock the wheels, apply the parking brake,
unless it is set to automatic mode, and switch
off the ignition.
Check that the parking brake indicator lamps
on the instrument panel are on fixed.
The occupants must get out of the vehicle
and wait where they are safe.
If necessary, place a chock under the wheel
diagonally opposite the wheel to be changed.
Never go underneath a vehicle raised using a
jack; use an axle stand.
Wheel with wheel trim
When removing the wheel , first remove
the wheel trim by pulling at the valve aperture
using the wheelbrace.
When refitting the wheel , refit the wheel
trim, starting by placing its aperture in line
with the valve and then pushing it into place
all round its edge with the palm of your hand.


– If the vehicle has steel wheels, remove the
wheel trim.
–

If the vehicle has alloy wheels, remove the
central bolt cover using tool 7

.
–

If the vehicle is so equipped, fit security bolt
socket

2 to wheelbrace 5 to slacken the security
bolt.
–

Slacken the other bolts using the
wheelbrace


5
only.


► Place the foot of jack 6 on the ground and
ensure that it is directly below the front A or
rear
B jacking point on the underbody, whichever
is closest to the wheel to be changed.


► Extend jack 6 until its head comes into
contact with jacking point A or B; contact area A
or B on the vehicle must be properly inserted
into the central part of the head of the jack.
►

Raise the vehicle until there is sufficient
space between the wheel and the ground to
easily admit the spare (not punctured) wheel.
Ensure that the jack is stable. If the
ground is slippery or loose, the jack may
slip or collapse - risk of injury!
Take care to position the jack strictly at
one of the jacking points

A
or B under the
vehicle, ensuring that the head of the jack is
centred under the contact area on the vehicle.
Otherwise, there is a risk of damage to the
vehicle and/or of the jack collapsing - risk of
injury!

143
In the event of a breakdown
8

► Remove the bolts and store them in a clean
place.
►

Remove the wheel.
Stowing the damaged wheel
► T o stow an alloy wheel, first remove
the wheel trim from the centre of the wheel so
that the fastening device (nut and bolt) can be
put in place.
►

In the case of a
"space saver" type
spare wheel, the damaged wheel cannot be
stowed under the floor. It must be placed in
the boot; use a cover to protect the inside of
the boot.

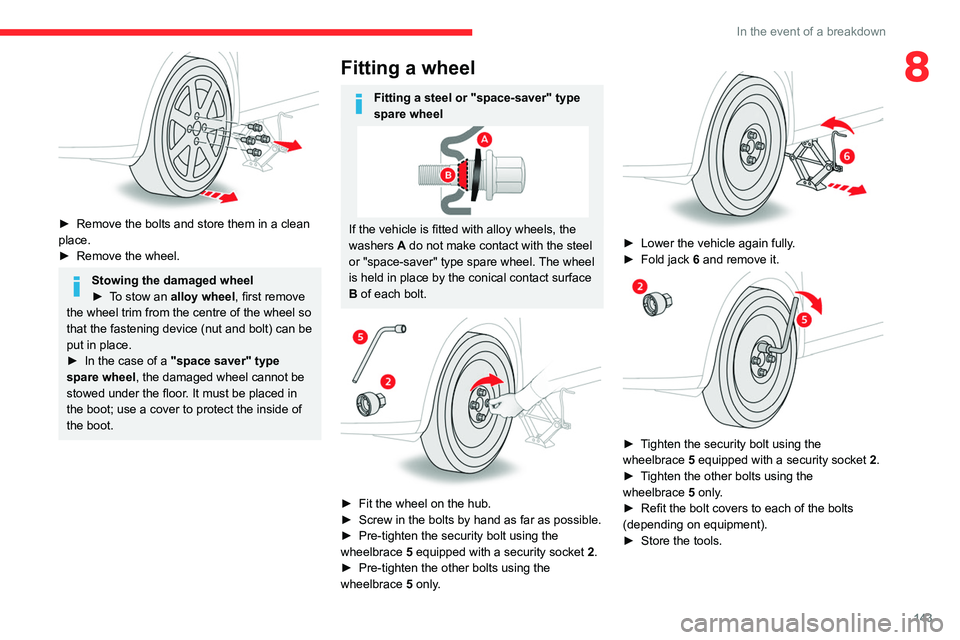

Fitting a wheel
Fitting a steel or "space-saver" type
spare wheel
If the vehicle is fitted with alloy wheels, the
washers A do not make contact with the steel
or "space-saver" type spare wheel. The wheel
is held in place by the conical contact surface
B of each bolt.


► Fit the wheel on the hub.
► Screw in the bolts by hand as far as possible.
►

Pre-tighten the security bolt using the
wheelbrace


5
equipped with a security socket
2
.
►

Pre-tighten the other bolts using the
wheelbrace


5
only.


► Lower the vehicle again fully .
► Fold jack 6 and remove it.


► Tighten the security bolt using the
wheelbrace 5 equipped with a security socket 2 .
►

T
ighten the other bolts using the
wheelbrace

5
only.
►

Refit the bolt covers to each of the bolts
(depending on equipment).
►


Store the tools.

144
In the event of a breakdown
Refitting the lamp units
Perform the operations in the reverse
order to dismantling.
Opening the bonnet/Accessing the
bulbs
Proceed with caution when the engine is hot -
risk of burns!
Take care with objects or clothing that could
be caught in the blades of the cooling fan -
risk of strangulation!
Halogen bulbs (Hx)
To ensure good quality lighting, check
that the bulb is correctly positioned in its
housing.
Light-emitting diode (LED)
headlamps and lamps
Depending on version, the affected types of
headlamps/lamps are:
– Front foglamps.
– Daytime running lamps/sidelamps.
– Dipped beam headlamps.
– Main beam headlamps.
– Direction indicator side repeaters.
– Third brake lamp.
– Number plate lamps.
Putting the spare wheel
back in place
The punctured wheel cannot be put
under the boot floor.


► Put the spare wheel back in place in its
housing.
►

Slacken the nut on the bolt by a few turns.
►


Position the fastening device (nut and bolt) in
the middle of the wheel.
►


T
ighten the central nut sufficiently to retain
the wheel correctly.
►

Stow the tools in the bag or storage box
(depending on equipment).
If there is no wheel in the well, the
fastening device (nut and bolt) cannot be
refitted.
After changing a wheel
With a "space-saver" type spare wheel
Deactivate certain driving aid functions
(Active Safety Brake, Adaptive cruise control,
etc.).
Do not exceed the maximum authorised
speed of 50 mph (80
km/h) or the maximum
distance of 50 miles (80 km).
Driving with more than one "space-saver"
type spare wheel is prohibited.
Visit a CITROËN dealer or a qualified
workshop.
Have the tightening of the spare wheel's bolts
and its tyre pressure checked.
Have the punctured tyre examined. After
inspection, the technician will advise you on
whether the tyre can be repaired or if it must
be replaced.
Changing a bulb
In some weather conditions (e.g. low
temperature or humidity), misting on the
internal surface of the glass of the headlamps
and rear lamps is normal, and will disappear
after the lamps have been on for a few
minutes.
The headlamps have polycarbonate lenses with a protective coating:
–

Do not clean them with a dry or abrasive
cloth, nor with detergent or solvent
products.
–


Use a sponge and soapy water or a pH
neutral product.
–


When using a high-pressure washer on
persistent marks, do not keep the lance
directed towards the headlamps, lamps or
their edges for too long, so as not to damage
their protective coating and seals.
Changing a bulb must only be done with
the ignition off and after the headlamp /
lamp has been switched off for several
minutes - risk of serious burns!
Do not touch the bulb directly with your
fingers; use a lint-free cloth.
It is essential only to use anti-ultraviolet
(UV) type bulbs, so as not to damage the
headlamp.
Always replace a failed bulb with a new bulb
of the same type and specification. To avoid
lighting imbalance, replace the bulbs in pairs.

146
In the event of a breakdown
► Fit the console back into place around the
courtesy lamp and clip it correctly.
Rear courtesy lamp

► Using a thin, flat blade screwdriver, unclip the
courtesy lamp.
► Remove the defective bulb and replace it.
► Fit the courtesy lamp back into place and clip
it correctly.
Boot (W5W)

► Unclip the cover using a small flat blade
screwdriver.
► Remove the bulb and replace it.
► Put the unit back in place.
Rear lamps
1.Brake lamps / Sidelamps (W21/5W)
2. Direction indicators (WY21W)
3. Reversing lamp or foglamp (P21W)
Replacing lamp units
These bulbs are changed from outside the boot.

► Identify the defective bulb then open the boot.
► Using a thin, flat blade screwdriver , unclip the
two plastic covers, then flip them down.
► Unscrew the two fixing screws located in the
openings.


► Unclip the lamp unit and carefully extract it
pulling straight towards the outside.
►

Hold the lamp unit and disconnect the
connector

.
►

T
urn the bulb holder of the faulty bulb a
quarter turn anti-clockwise and pull it out.
►

Remove the bulb and replace it.
Make sure to engage the lamp unit in its
guides while keeping it in line with the
vehicle.
Tighten sufficiently to ensure sealing, but
without damaging the lamp unit.
Reversing lamps and foglamp

Replacing bulbs
Contact a CITROËN dealer or a qualified
workshop.
Interior lighting
Courtesy lamps (W5W)Front courtesy lamp

► Using a thin, flat blade screwdriver , unclip the
entire console surrounding the courtesy lamp.
►

Remove the defective bulb and replace it.

147
In the event of a breakdown
8► Fit the console back into place around the
courtesy lamp and clip it correctly .
Rear courtesy lamp

► Using a thin, flat blade screwdriver , unclip the
courtesy lamp.
►

Remove the defective bulb and replace it.
►


Fit the courtesy lamp back into place and clip
it correctly

.
Boot (W5W)

► Unclip the cover using a small flat blade
screwdriver .
►

Remove the bulb and replace it.
►


Put the unit back in place.
Fuses
Changing a fuse
All work must be carried out only by a
CITROËN dealer or a qualified workshop
The replacement of a fuse by a third party
could cause a serious malfunction of the
vehicle.
Installing electrical accessories
The vehicle's electrical system is
designed to operate with standard or optional
equipment.
Before fitting other electrical equipment
or accessories to your vehicle, contact a
CITROËN dealer or a qualified workshop.
CITROËN accepts no responsibility for
the cost incurred in repairing the vehicle
or for rectifying malfunctions resulting from
the installation of accessories not supplied or
not recommended by CITROËN and not
installed in accordance with its
recommendations, in particular when the
combined power consumption of all of the
additional equipment connected exceeds 10
milliamperes.
12 V battery
Procedure for starting the engine using another
battery or for charging a discharged battery.
Lead-acid starter batteries
These batteries contain harmful substances (sulphuric acid and lead).
They must be disposed of in accordance
with regulations and must never under any
circumstances be discarded with household
waste.
Take used remote control batteries and
vehicle batteries to a special collection point.
Protect your eyes and face before
handling the battery.
All operations on the battery must be carried
out in a well ventilated area and away from
naked flames and sources of sparks, to avoid
any risk of explosion or fire.
Wash your hands afterwards.
Accessing the battery
The battery is located under the bonnet.

For access to the (+) terminal:

149
In the event of a breakdown
8Follow the instructions provided by the
manufacturer of the charger.
Never reverse polarities.
It is not necessary to disconnect the
battery.
►

Switch the ignition off.
►


Switch off all electrical consumers (audio
system, lighting, wipers, etc.).


► Switch off charger B before connecting
the cables to the battery, so as to avoid any
dangerous sparks.
►

Ensure that the charger cables are in good
condition.
►


Lift the plastic cover on the (+) terminal, if the
vehicle has one.
►


Connect the cables of charger B

as follows:
•

the positive (+) red cable to the (+) terminal
of battery

A,
•

the negative (-) black cable to earth point C


on the vehicle.
► At the end of the charging operation, switch
off charger B
before disconnecting the cables
from battery A.
If this label is present, use only a 12 V
charger to avoid causing irreversible
damage to the electrical components.
24V
12V
+
Never try to charge a frozen battery - risk
of explosion!
If the battery has frozen, have it checked by a
CITROËN dealer or by a qualified workshop
who will verify that the internal components
have not been damaged and that the case
has not cracked, which would mean a risk of
toxic and corrosive acid leaking.
Some functions, including Stop & Start,
are not available if the battery is not
sufficiently charged.
Disconnecting the battery
In order to maintain an adequate state of
charge for starting the engine, we recommend
disconnecting the battery if the vehicle is to be
unused for an extended period. Before disconnecting the battery:
►

Close all openings (doors, boot, windows,
roof).
►

Switch off all electricity-consuming devices
(audio system, wipers, lamps, etc.).
►

Switch off the ignition and wait for 4
minutes.
After accessing the battery, it is only necessary
to disconnect the (+) terminal.
Quick-release terminal clamp
Disconnecting the (+) terminal

► Depending on equipment, lift the plastic cover
on the (+) terminal.
►

Raise lever

A
fully to release clamp
B
.
►

Remove clamp

B
by lifting it off.

152
In the event of a breakdown
Accessing the tools

The tools are located in the boot. Depending
on version, they are stored under the floor or
behind the removable grille of the right-hand
compartment.
For access:
►
Open the boot.
►


Then, depending on version, lift up the floor
using the handle, remove it and remove the mat.
►


Or open the removable grille on the right by
pulling from the top.
For more information on the list of tools, refer to
the

Tool kit section.
Towing your vehicle

► On the front bumper , unclip the cover from
below using the flat blade screwdriver.
►

Screw the towing eye in fully
.
►

Install the towbar
.
►

With a manual gearbox, move the gear lever
into neutral.
►


With an automatic gearbox, move the gear
selector into position N

.
Failure to observe this instruction could
result in damage to certain components
(braking, transmission, etc.) and to the
absence of braking assistance the next time
the engine is started.
►

Unlock the steering and release the parking
brake.
►


Switch on the hazard warning lamps on both
vehicles.
►


Move off gently
, drive slowly and only for a
short distance.
Towing another vehicle

► On the rear bumper , unclip the cover from
below using the flat blade screwdriver.
►

Screw the towing eye in fully
.
►

Install the towbar
.
►

Switch on the hazard warning lamps on the
vehicle being towed.
►


Move off gently
, drive slowly and only for a
short distance.
If the vehicle is equipped with a BlueHDi
120 S&S EAT6 engine and a sunroof or
spare wheel, it is forbidden to tow another
vehicle.

2 11
Alphabetical index
180° rear vision 11 6
A
ABS 67
Accessories
64
Active Safety Brake

106–108
AdBlue®

15, 133
AdBlue® tank

134
Additive, Diesel

131–132
Adjusting headlamps

59
Adjusting head restraints

36
Adjusting seat

36–37
Adjusting the air distribution

45
Adjusting the air flow

44–45
Adjusting the date

18–19, 23, 182, 204
Adjusting the height and reach of
the steering wheel

41
Adjusting the seat angle

37
Adjusting the seat belt height

71
Adjusting the temperature

44–45
Adjusting the time

18–19, 23, 181, 205
Advice on care and maintenance

135
Advice on driving

7, 84–85
Airbags

73, 75, 77
Airbags, curtain

74–75
Airbags, front

74–75, 77
Airbags, lateral

74–75
Air conditioning

43–44
Air conditioning, automatic

44–45
Air conditioning, manual

44
Air intake 44–45
Air vents
42
Alarm

31–32
Android Auto connection

196
Anti-lock braking system (ABS)

67
Antitheft / Immobiliser

25
Apple CarPlay connection

178, 195
Applications

196
Armrest, front

50
Armrest, rear

51
Assistance call

65
Assistance, emergency braking

67, 108
Audible warning

65
Audio streaming (Bluetooth)

165, 177, 200
B
Battery, 12 V 127, 132, 147–149
Battery, charging
148–149
Battery, remote control

28
Blind

32–34
Blind spot sensors

111
Blinds, side

50
BlueHDi

15, 131, 137
Bluetooth (hands-free)

165–166, 179, 201
Bluetooth (telephone)

179–180, 201–202
Bodywork

136
Bonnet

128–129
Boot

30, 54
Brake discs

133
Brake lamps

146
Brakes 133
Braking assistance system
67
Braking, automatic emergency

106–108
Brightness

181
Bulbs

145
Bulbs (changing)

144–146
C
Cable, audio 199
Cable, Jack
199
Capacity, fuel tank

121–122
Cap, fuel filler

121–122
Care of the bodywork

136
CD

164
CD, MP3

164
Central locking

26, 30
Changing a bulb

144–146
Changing a fuse

147
Changing a wheel

137, 141
Changing a wiper blade

61–62
Changing the remote control battery

28
Charger, induction

48
Charger, wireless

48
Checking the engine oil level

15
Checking the levels

130–131
Checking tyre pressures
(using the kit)

138, 141
Checks

129, 132–133
Checks, routine

132–133
Child lock

83
