Citroen C3 DAG 2007.5 1.G Owner's Manual

IV
118
T A B L E O F F U S E S
D A S H B O A R D F U S E S
Ref.RatingFunction
35 AAirbags
410 ADiagnostic socket – Particle fi lter additive – Clutch switch – Steering angle sensor
530 ARear window – Sun roof
630 AScreen wash
820 ADigital clock – Controls at the steering wheel – Radio – Display
930 ACigar-lighter – Digital clock – Interior lamps – Vanity mirror
1015 AAlarm
1115 AIgnition switch – Diagnostic socket
1215 AAirbag ECU – Rain and brightness sensor
1415 AParking assistance – Instrument panel – Air conditioning – Blueto oth® telephone®
1530 A Central locking – Deadlocking
1740 AHeated rear screen
18SHUNTCUSTOMER PARK SHUNT

IV
119

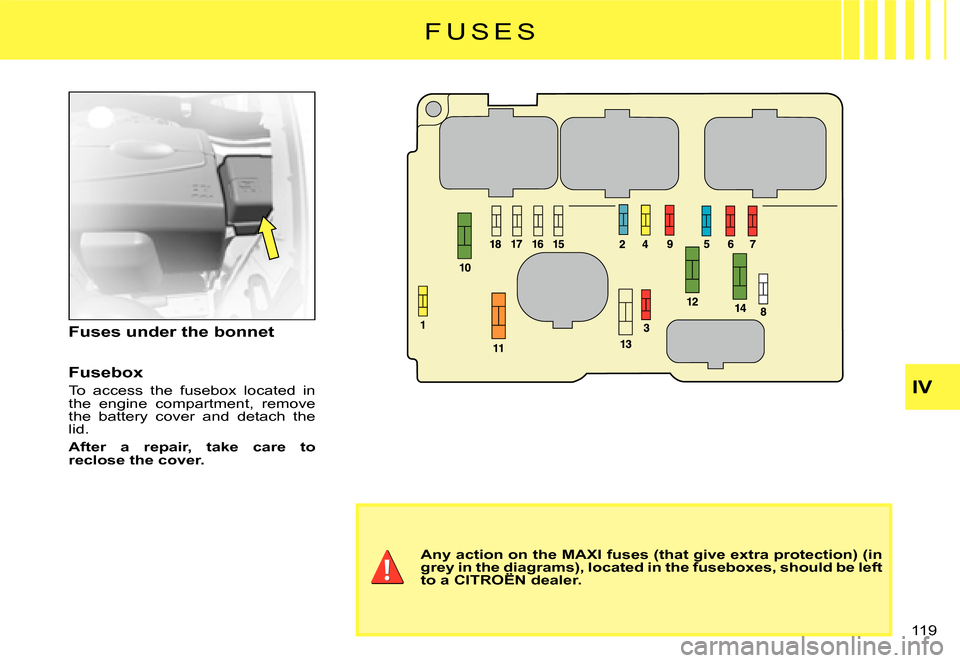

F U S E S
Fusebox
To access the fusebox located in the engine compartment, remove the battery cover and detach the lid.
After a repair, take care to reclose the cover.
Any action on the MAXI fuses (that give extra protection) (in grey in the diagrams), located in the fuseboxes, should be left to a CITROËN dealer.grey in the diagrams), lthe dia
Fuses under the bonnet

IV
120
T A B L E O F F U S E S
F U S E S U N D E R T H E B O N N E T
Ref.RatingFunction
120 AWater-in-diesel-fuel sensor
215 AHorn
310 AScreen wash
420 AHeadlamp wash
515 AFuel pump
610 APower steering
710 ACoolant level sensor
825 AStarter
910 AECUs (ABS, ESP)
1030 AEngine control actuators (Ignition coil, Electrovalve, Oxygen sensor, Injection) – Canister purge
1140 AAir blower
1230 AWindscreen wiper
1430 AAir pump (petrol version) – Diesel fuel heater

V
121

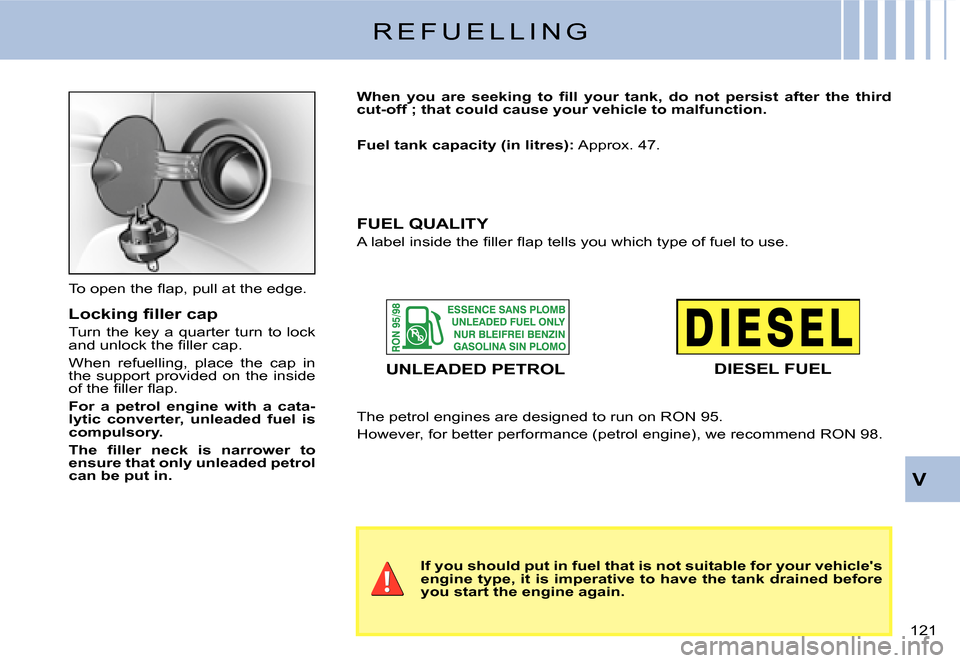

R E F U E L L I N G
To open the fl ap, pull at the edge.
Locking fi ller cap
Turn the key a quarter turn to lock and unlock the fi ller cap.
When refuelling, place the cap in the support provided on the inside of the fi ller fl ap.
For a petrol engine with a cata-lytic converter, unleaded fuel is compulsory.
The fi ller neck is narrower to ensure that only unleaded petrol can be put in.
When you are seeking to fi ll your tank, do not persist after the third cut-off ; that could cause your vehicle to malfunction.
Fuel tank capacity (in litres): Approx. 47.
If you should put in fuel that is not suitable for your vehicle's engine type, it is imperative to have the tank drained be fore you start the engine again.
FUEL QUALITY
A label inside the fi ller fl ap tells you which type of fuel to use.
UNLEADED PETROLDIESEL FUEL
The petrol engines are designed to run on RON 95.
However, for better performance (petrol engine), we recommend RON 98.

1
3
4
2
2
1
V
122

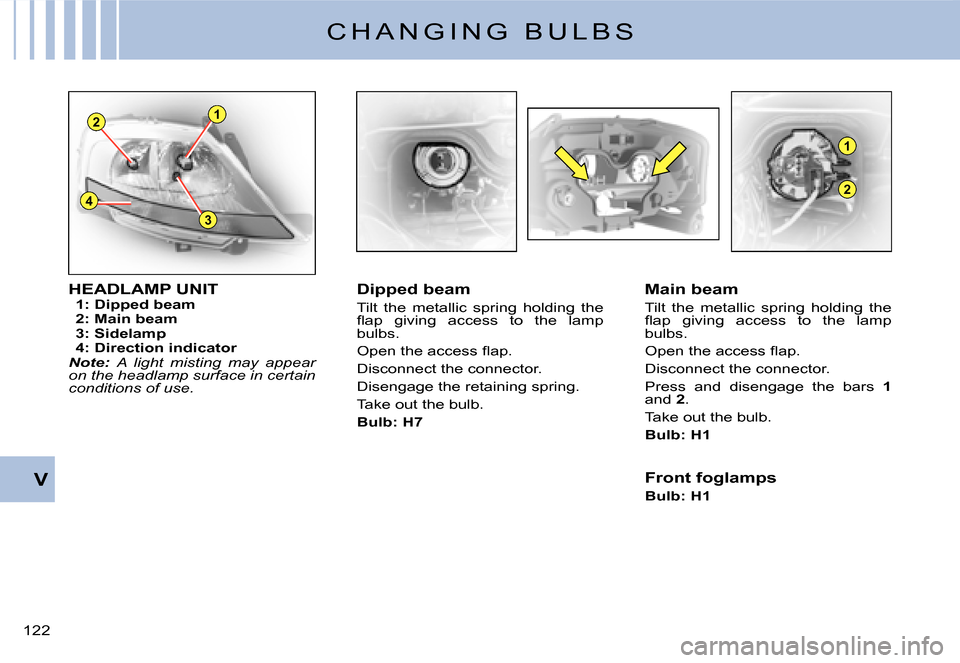

C H A N G I N G B U L B S
HEADLAMP UNIT1: Dipped beam2: Main beam3: Sidelamp4: Direction indicatorNote: A light misting may appear on the headlamp surface in certain conditions of use.
Dipped beam
Tilt the metallic spring holding the fl ap giving access to the lamp bulbs.
Open the access fl ap.
Disconnect the connector.
Disengage the retaining spring.
Take out the bulb.
Bulb: H7
Main beam
Tilt the metallic spring holding the fl ap giving access to the lamp bulbs.
Open the access fl ap.
Disconnect the connector.
Press and disengage the bars 1and 2.
Take out the bulb.
Bulb: H1
Front foglamps
Bulb: H1

V
123

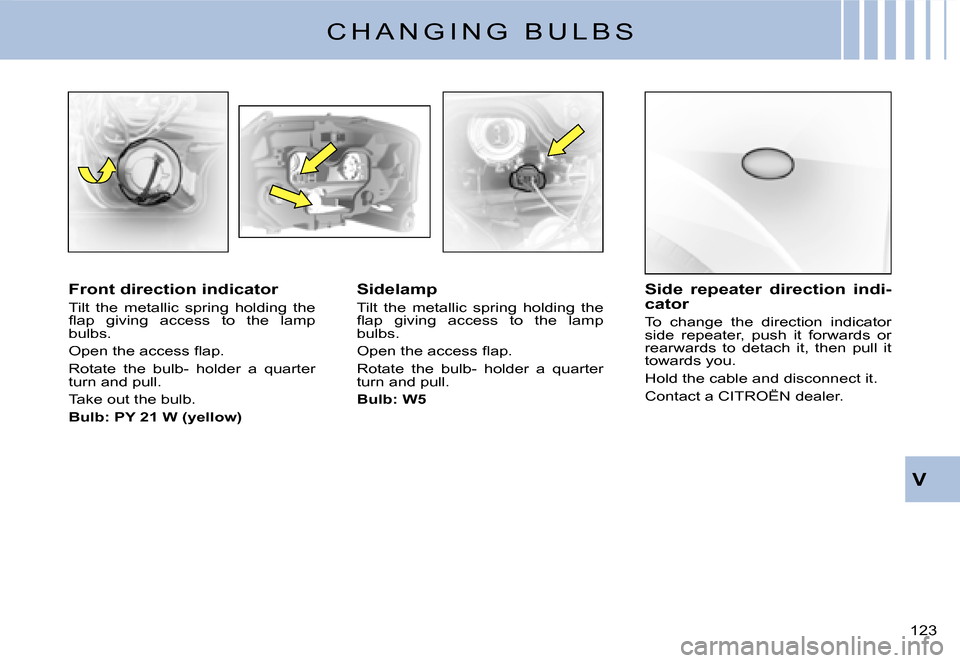

C H A N G I N G B U L B S
Front direction indicator
Tilt the metallic spring holding the fl ap giving access to the lamp bulbs.
Open the access fl ap.
Rotate the bulb- holder a quarter turn and pull.
Take out the bulb.
Bulb: PY 21 W (yellow)
Sidelamp
Tilt the metallic spring holding the fl ap giving access to the lamp bulbs.
Open the access fl ap.
Rotate the bulb- holder a quarter turn and pull.
Bulb: W5
Side repeater direction indi-cator
To change the direction indicator side repeater, push it forwards or rearwards to detach it, then pull it towards you.
Hold the cable and disconnect it.
Contact a CITROËN dealer.

V
124

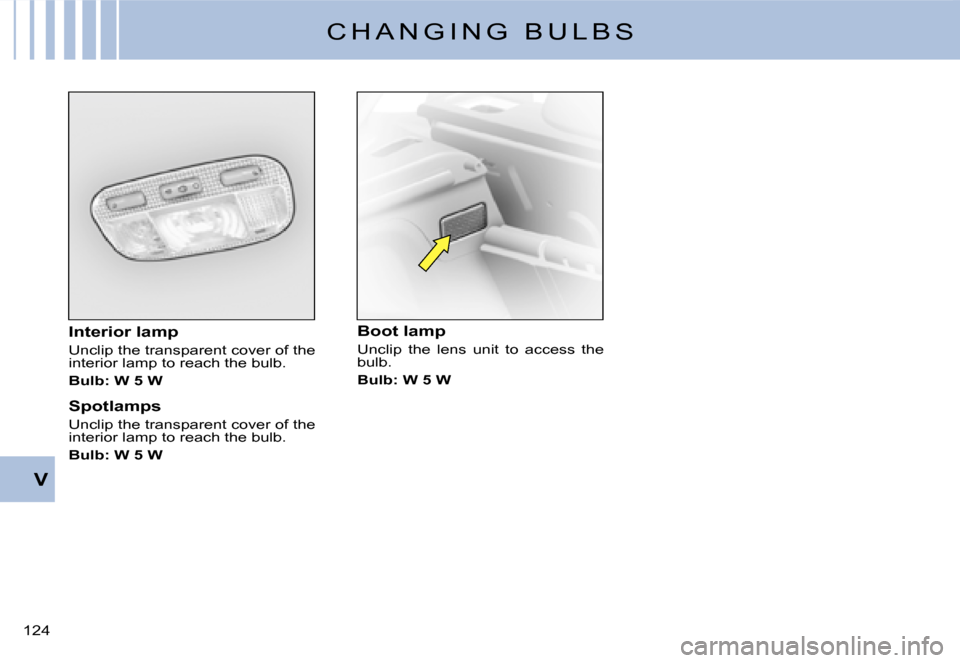

C H A N G I N G B U L B S
Interior lamp
Unclip the transparent cover of the interior lamp to reach the bulb.
Bulb: W 5 W
Spotlamps
Unclip the transparent cover of the interior lamp to reach the bulb.
Bulb: W 5 W
Boot lamp
Unclip the lens unit to access the bulb.
Bulb: W 5 W

4
3
1
2
V
125

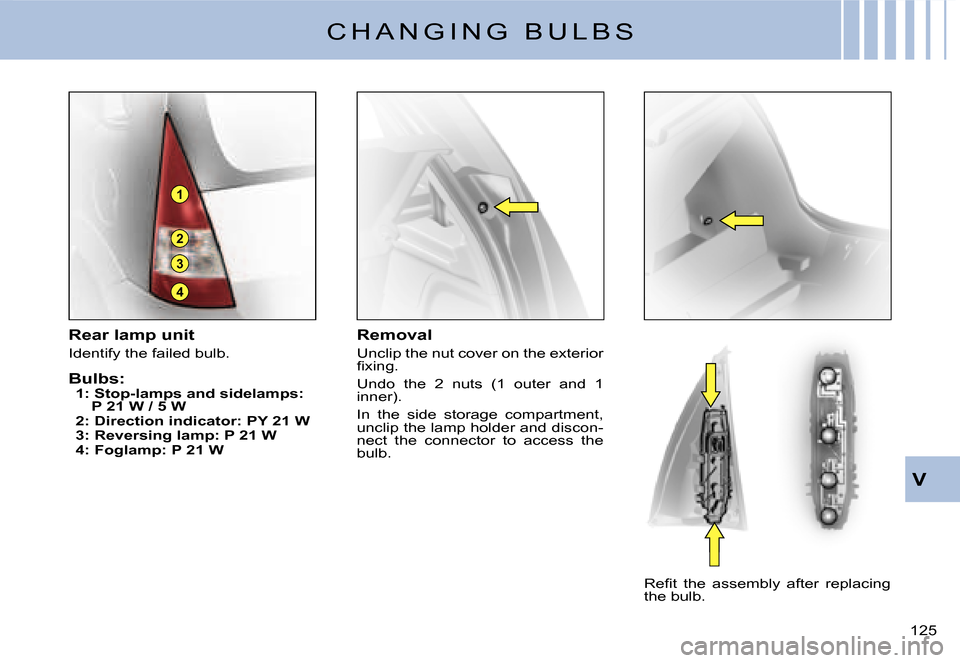

Rear lamp unit
Identify the failed bulb.
Bulbs:1: Stop-lamps and sidelamps: P 21 W / 5 W2: Direction indicator: PY 21 W3: Reversing lamp: P 21 W4: Foglamp: P 21 W
Removal
Unclip the nut cover on the exterior fi xing.
Undo the 2 nuts (1 outer and 1 inner).
In the side storage compartment, unclip the lamp holder and discon-nect the connector to access the bulb.
Refi t the assembly after replacing the bulb.
C H A N G I N G B U L B S

V
126

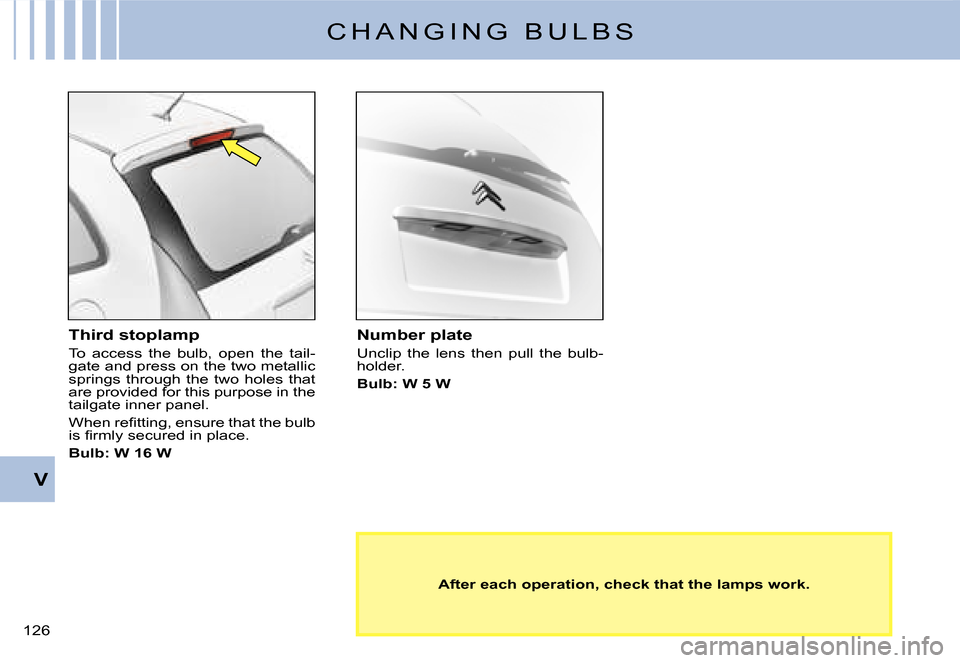

C H A N G I N G B U L B S
Third stoplamp
To access the bulb, open the tail-gate and press on the two metallic springs through the two holes that are provided for this purpose in the tailgate inner panel.
When refi tting, ensure that the bulb is fi rmly secured in place.
Bulb: W 16 W
Number plate
Unclip the lens then pull the bulb- holder.
Bulb: W 5 W
After each operation, check that the lamps work.

A
V
127
S A F E T Y R E C O M M E N D A T I O N S
Towbar
We recommend you to have this device fi tted by a CITROËN Dealer, who will be acquainted with your vehicle’s tow-ing capability and with the procedures necessary for installing a safety item of this kind.
Roof bars
For your safety and to avoid damage to the roof, you should u se roof bars that are tested and approved by AUTO-MOBILES CITROËN for the design of your particular vehicle.For your safety and to avoid damage to the roof, you should use safety and
Recommendations:Spread the load evenly, avoiding overloading on one side.
Position the heaviest weight as low down as possible.
Tie the load down securely and add warning signs if it is protruding.
Drive conservatively, as the vehicle will be more vulnerable to si de winds.
The stability of your vehicle may be altered.
Remove the roof rack or roof bars when you are not using them.
