Page 72 of 207

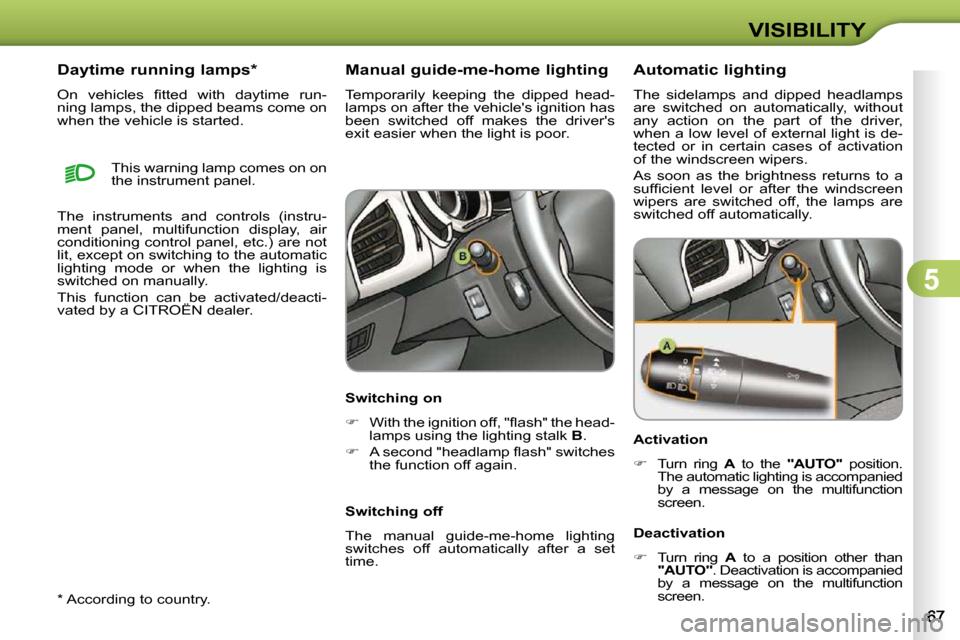

5
VISIBILITY
* According to country.
Daytime running lamps *
O n v e h i c l e s fi t t e d w i t h d a y t i m e r u n -
ning lamps, the dipped beams come on
when the vehicle is started.
Manual guide-me-home lighting
Temporarily keeping the dipped head-
lamps on after the vehicle's ignition has
been switched off makes the driver's
exit easier when the light is poor.
Switching on
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e h e a d -
lamps using the lighting stalk B .
A s e c o n d " h e a d l a m p fl a s h " s w i t c h e s
the function off again.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time. Automatic lighting
The sidelamps and dipped headlamps
are switched on automatically, without
any action on the part of the driver,
when a low level of external light is de-
tected or in certain cases of activation
of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lamps are
switched off automatically.
Activation
Turn ring A to the "AUTO" position.
The automatic lighting is accompanied
by a message on the multifunction
screen.
Deactivation
Turn ring A to a position other than
"AUTO" . Deactivation is accompanied
by a message on the multifunction
screen.
This warning lamp comes on on
the instrument panel.
The instruments and controls (instru-
ment panel, multifunction display, air
c o n d i t i o n i n g c o n t r o l p a n e l , e t c . ) a r e n o t
lit, except on switching to the automatic
lighting mode or when the lighting is
switched on manually.
This function can be activated/deacti-
vated by a CITROËN dealer.
Page 73 of 207
5
VISIBILITY To avoid causing a nuisance to other
road users, the height of the headlamps
should be adjusted in relation to the load
in the vehicle.
0 . 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
2. 5 people + maximum authorised load.
3. Driver + maximum authorised load.
The initial setting is position "0" .
HEADLAMP ADJUSTMENT Coupling with the automatic
"Guide-me-home" lighting
Association with the automatic lighting
provides "guide-me-home" lighting with
the following additional options:
- selection of the lighting duration to
15, 30 or 60 seconds in the vehicle
parameters on the multifunction
s c r e e n c o n fi g u r a t i o n m e n u ( e x c e p t
in the case of the monochrome
screen A, for which the duration is
s e t : 6 0 s e c o n d s ) ,
- automatic activation of "guide-me- home" lighting when automatic lighting
is in operation.
Operating fault In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t
light. Therefore, the lighting will
not come on automatically.
Do not cover the brightness sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the interior
mirror; the associated functions
would no longer be controlled.
In the event of a fault with
the brightness sensor,
the lighting come on, this
warning lamp is displayed
on the instrument panel and/or a mes-
sage appears on the multifunction screen,
accompanied by an audible signal.
Consult a CITROËN dealer.
Page 74 of 207
5
VISIBILITY To avoid causing a nuisance to other
road users, the height of the headlamps
should be adjusted in relation to the load
in the vehicle.
0 . 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
2. 5 people + maximum authorised load.
3. Driver + maximum authorised load.
The initial setting is position "0" .
HEADLAMP ADJUSTMENT Coupling with the automatic
"Guide-me-home" lighting
Association with the automatic lighting
provides "guide-me-home" lighting with
the following additional options:
- selection of the lighting duration to
15, 30 or 60 seconds in the vehicle
parameters on the multifunction
s c r e e n c o n fi g u r a t i o n m e n u ( e x c e p t
in the case of the monochrome
screen A, for which the duration is
s e t : 6 0 s e c o n d s ) ,
- automatic activation of "guide-me- home" lighting when automatic lighting
is in operation.
Operating fault In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t
light. Therefore, the lighting will
not come on automatically.
Do not cover the brightness sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the interior
mirror; the associated functions
would no longer be controlled.
In the event of a fault with
the brightness sensor,
the lighting come on, this
warning lamp is displayed
on the instrument panel and/or a mes-
sage appears on the multifunction screen,
accompanied by an audible signal.
Consult a CITROËN dealer.

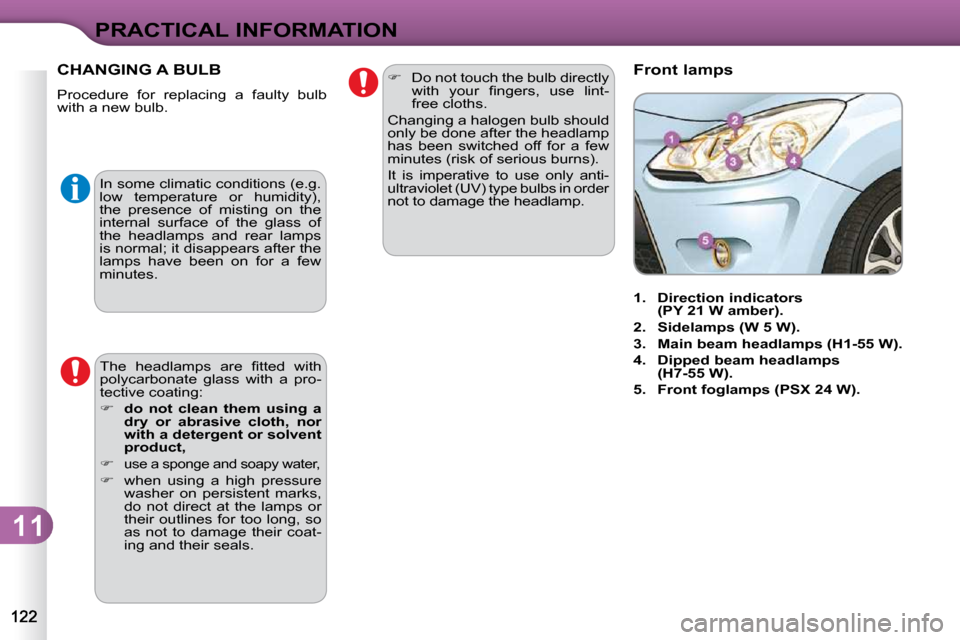

Page 134 of 207
11
PRACTICAL INFORMATION
In some climatic conditions (e.g.
l o w t e m p e r a t u r e o r h u m i d i t y ) ,
the presence of misting on the
internal surface of the glass of
the headlamps and rear lamps
is normal; it disappears after the
lamps have been on for a few
minutes. T h e h e a d l a m p s a r e fi t t e d w i t h
polycarbonate glass with a pro-
t e c t i v e c o a t i n g :
do not clean them using a
dry or abrasive cloth, nor
with a detergent or solvent
product,
use a sponge and soapy water,
when using a high pressure
washer on persistent marks,
do not direct at the lamps or
their outlines for too long, so
as not to damage their coat-
ing and their seals.
CHANGING A BULB
Procedure for replacing a faulty bulb
with a new bulb .
Do not touch the bulb directly
w i t h y o u r fi n g e r s , u s e l i n t -
free cloths.
Changing a halogen bulb should
only be done after the headlamp
has been switched off for a few
m i n u t e s ( r i s k o f s e r i o u s b u r n s ) .
It is imperative to use only anti-
u l t r a v i o l e t ( U V ) t y p e b u l b s i n o r d e r
not to damage the headlamp. Front lamps
1. Direction indicators
(PY 21 W amber).
2. Sidelamps (W 5 W).
3. Main beam headlamps (H1-55 W).
4. Dipped beam headlamps
(H7-55 W).
5. Front foglamps (PSX 24 W).

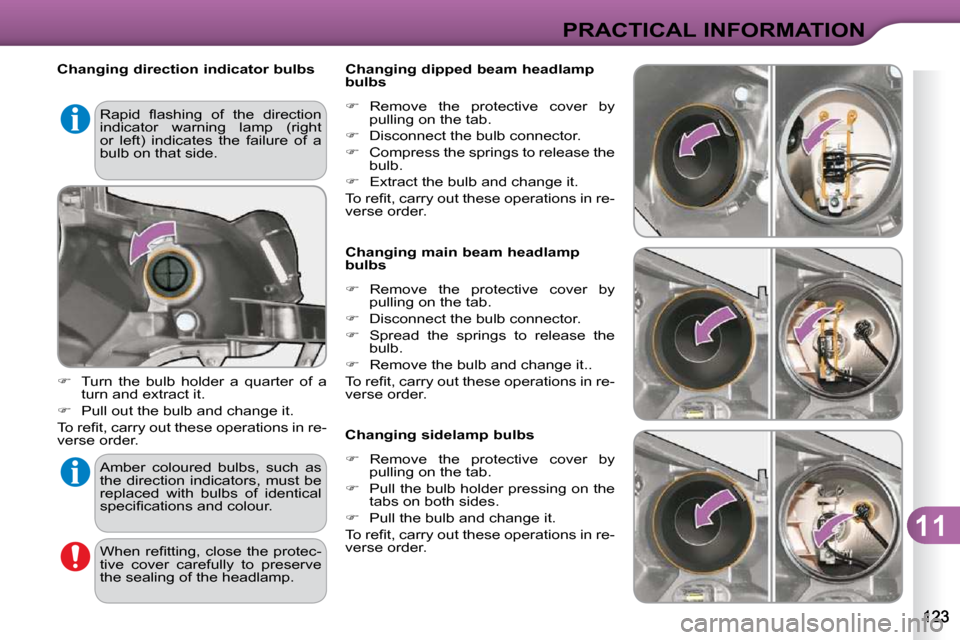

Page 135 of 207
11
PRACTICAL INFORMATION
Changing direction indicator bulbs
Turn the bulb holder a quarter of a
turn and extract it.
Pull out the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
W h e n r e fi t t i n g , c l o s e t h e p r o t e c -
tive cover carefully to preserve
the sealing of the headlamp.
R a p i d fl a s h i n g o f t h e d i r e c t i o n
indicator warning lamp (right
o r l e f t ) i n d i c a t e s t h e f a i l u r e o f a
bulb on that side.
Amber coloured bulbs, such as
the direction indicators, must be
replaced with bulbs of identical
s p e c i fi c a t i o n s a n d c o l o u r .
Changing dipped beam headlamp
bulbs
Remove the protective cover by
pulling on the tab.
Disconnect the bulb connector.
Compress the springs to release the
bulb.
Extract the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Changing main beam headlamp
bulbs
Remove the protective cover by
pulling on the tab.
Disconnect the bulb connector.
Spread the springs to release the
bulb.
Remove the bulb and change it. .
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Changing sidelamp bulbs
Remove the protective cover by
pulling on the tab.
Pull the bulb holder pressing on the
tabs on both sides.
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.

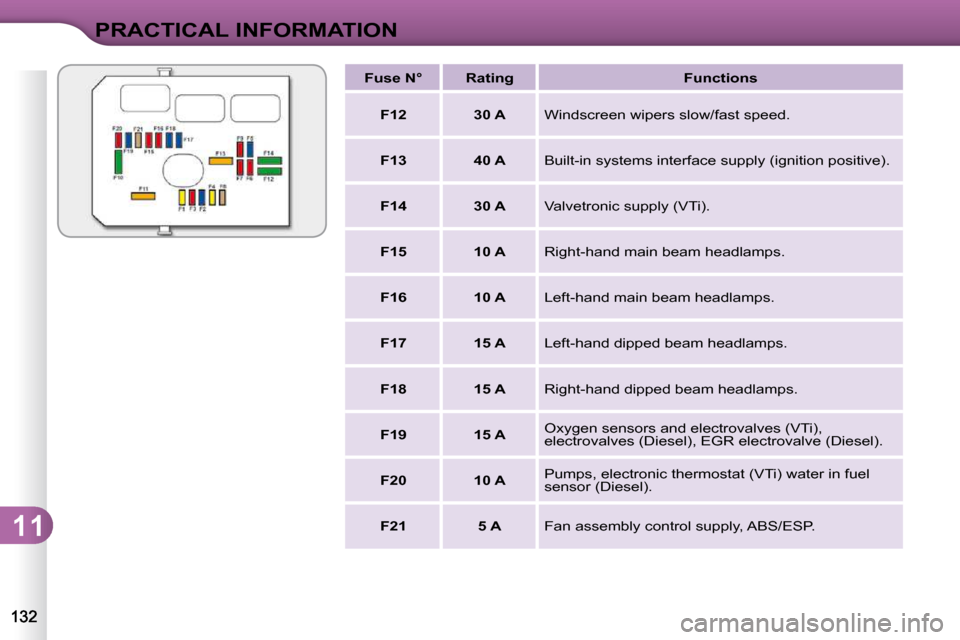

Page 144 of 207
11
PRACTICAL INFORMATION
Fuse N° Rating Functions
F12 30 A Windscreen wipers slow/fast speed.
F13 40 A B u i l t - i n s y s t e m s i n t e r f a c e s u p p l y ( i g n i t i o n p o s i t i v e ) .
F14 30 A V a l v e t r o n i c s u p p l y ( V T i ) .
F15 10 A Right-hand main beam headlamps.
F16 10 A Left-hand main beam headlamps.
F17 15 A Left-hand dipped beam headlamps.
F18 15 A Right-hand dipped beam headlamps.
F19 15 A O x y g e n s e n s o r s a n d e l e c t r o v a l v e s ( V T i ) ,
e l e c t r o v a l v e s ( D i e s e l ) , E G R e l e c t r o v a l v e ( D i e s e l ) .
F20 10 A P u m p s , e l e c t r o n i c t h e r m o s t a t ( V T i ) w a t e r i n f u e l
s e n s o r ( D i e s e l ) .
F21 5 A Fan assembly control supply, ABS/ESP.

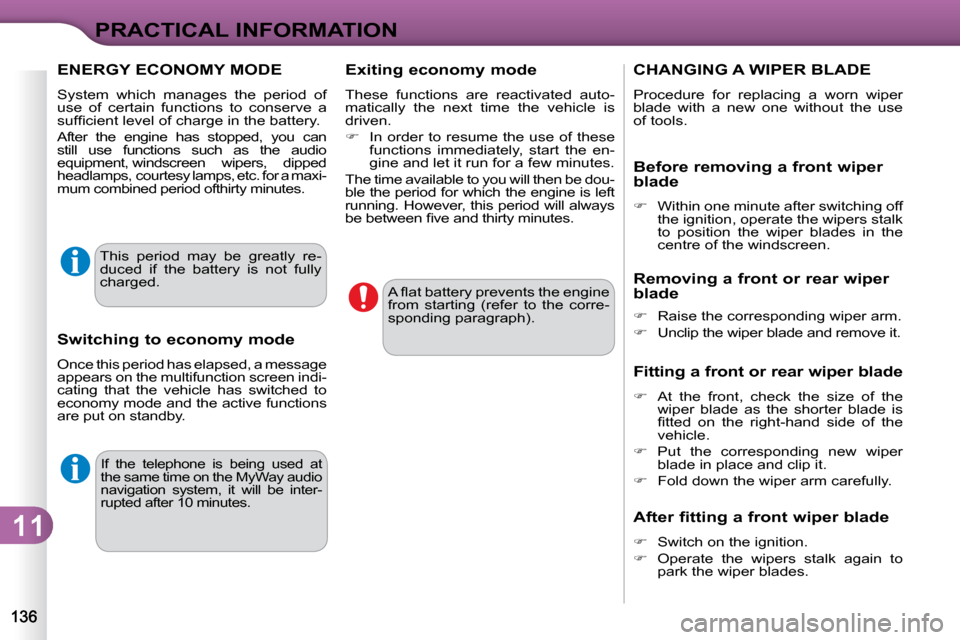

Page 149 of 207
11
PRACTICAL INFORMATION
If the telephone is being used at
the same time on the MyWay audio
navigation system, it will be inter-
rupted after 10 minutes.
A fl a t b a t t e r y p r e v e n t s t h e e n g i n e
from starting (refer to the corre-
s p o n d i n g p a r a g r a p h ) .
ENERGY ECONOMY MODE
System which manages the period of
use of certain functions to conserve a
s u f fi c i e n t l e v e l o f c h a r g e i n t h e b a t t e r y .
After the engine has stopped, you can
still use functions such as the audio
equipment, windscreen wipers, dipped
headlamps, courtesy lamps, etc. for a maxi-
mum combined period ofthirty minutes.
Switching to economy mode
Once this period has elapsed, a message
appears on the multifunction screen indi-
cating that the vehicle has switched to
economy mode and the active functions
are put on standby. Exiting economy mode
These functions are reactivated auto-
matically the next time the vehicle is
driven.
In order to resume the use of these
functions immediately, start the en-
gine and let it run for a few minutes.
The time available to you will then be dou-
ble the period for which the engine is left
running. However, this period will always
b e b e t w e e n fi v e a n d t h i r t y m i n u t e s .
CHANGING A WIPER BLADE
Procedure for replacing a worn wiper
blade with a new one without the use
of tools.
Before removing a front wiper
blade
Within one minute after switching off
the ignition, operate the wipers stalk
to position the wiper blades in the
centre of the windscreen.
Removing a front or rear wiper
blade
Raise the corresponding wiper arm.
Unclip the wiper blade and remove it.
Fitting a front or rear wiper blade
At the front, check the size of the
wiper blade as the shorter blade is
fi t t e d o n t h e r i g h t - h a n d s i d e o f t h e
vehicle.
Put the corresponding new wiper
blade in place and clip it.
Fold down the wiper arm carefully.
After fitting a front wiper blade
Switch on the ignition.
Operate the wipers stalk again to
park the wiper blades.
This period may be greatly re-
duced if the battery is not fully
charged.
