Page 20 of 207
1
INSTRUMENTS and CONTROLS
Warning lamps
When the engine is running or the ve-
hicle is being driven, the switching on
of one of the following warning lamps
indicates a fault which requires action
on the part of the driver. Any fault resulting in the switching on of a warni
ng lamp must be investigated
further by reading the associated message on the mu ltifunction screen.
If you encounter any problems, do not hesitate to contact a CITROËN dealer.
STOP
fi x e d , a s s o c i a t e d
with another warning
lamp and
accompanied by
an audible signal.
It is associated with the
braking system or the
engine coolant temperature. Stop as soon as it is safe to do so.
Park, switch off the ignition and call a CITROËN
dealer.
Service temporarily.
A minor fault has occurred
for which there is no
s p e c i fi c w a r n i n g l a m p . Identify the fault by reading the message shown
on the screen, such as, for example:
- the engine oil level,
- the screenwash level,
- the remote control battery,
- s a t u r a t i o n o f t h e p a r t i c l e e m i s s i o n fi l t e r ( D i e
s e l ) .
For any other faults, contact a CITROËN dealer.
fi x e d . A major fault has occurred
for which there is no
s p e c i fi c w a r n i n g l a m p . Identify the fault by reading the message shown
on the screen and contact a CITROËN dealer.
Braking fi x e d .
The braking system
fl u i d l e v e l h a s d r o p p e d
s i g n i fi c a n t l y . T o p u p w i t h b r a k e fl u i d r e c o m m e n d e d b y
CITROËN.
If the problem persists, have the system checked
by a CITROËN dealer.
+
fi x e d , a s s o c i a t e d with the ABS
warning lamp. The electronic brake force
distribution (EBFD) system
has a fault. Have it checked by a CITROËN dealer.
Warning lamp is on Cause Action/Observations
Page 21 of 207
1
INSTRUMENTS and CONTROLS
Anti-lock
Braking System (ABS) fi x e d .
The anti-lock braking
system has a fault. The vehicle retains conventional braking without
servo assistance.
Drive carefully at reduced speed and contact a
CITROËN dealer without delay.
Dynamic
stability control
(ESP/ASR) fl a s h i n g .
The ESP/ASR regulation is
active. The system optimises traction and improves the
directional stability of the vehicle.
fi x e d . Unless it has been
deactivated with the indicator
lamp on the button on, the
ESP/ASR system is faulty. Have it checked by a CITROËN dealer.
Engine
autodiagnosis system fi x e d .
The emission control
system has a fault.
This lamp should switch off when the engine is star
ted.
If it does not switch off, contact a CITROËN
dealer urgently.
fl a s h i n g . The engine management
system has a fault. Risk of destruction of the catalytic convertor.
Have it checked by a CITROËN dealer.
Low fuel level fi x e d w i t h
the last two segement bocks
fl a s h i n g . W h e n i t fi r s t c o m e s o n t h e r e
remains
approximately
5 litres of fuel in the tank. Refuel as soon as possible to avoid running out
of fuel.
This warning lamp wil come on every time the
i g n i t i o n i s s w i t c h e d o n , u n t i l a s u f fi c i e n t a d d i t i o n
of fuel is made.
Fuel tank capacity: approximately 50 litres
(petrol) or 45 litres (Diesel).
Never continue to drive until you run out of fuel,
this could damage the emission control and
injection systems.
Warning lamp is on Cause Action/Observations
Page 23 of 207
1
INSTRUMENTS and CONTROLS
Airbags temporarily.
This lamp comes on for
a few seconds when you
turn on the ignition, then
switches off. This lamp should switch off when the engine is
started.
If it does not switch off, contact a CITROËN
dealer.
fi x e d . One of the airbag or seat
belt pretensioner systems
has a fault. Have it checked by a CITROËN dealer.
Seat belt not
fastened/
unfastened fi x e d t h e n
fl a s h i n g
accompanied by an
increasing
audible signal. The driver and/or the front
passenger has not fastened
or has unfastened their seat
belt.
Pull the strap then insert the tongue in the
buckle.
Water in
Diesel fi x e d . T h e d i e s e l fi l t e r c o n t a i n s
water. Risk of damage to the injection system on Diesel
engines.
Contact a CITROËN dealer without delay.
Power
steering fi x e d . The power steering has a
fault. Drive carefully at reducd speed.
Have it checked by a CITROËN dealer.
+
Particle
emissions
fi l t e r ( D i e s e l )
fi x e d , a s s o c i a t e d
temporarily with lighting of the
service warning lamp. This indicates that the
p a r t i c l e e m i s s i o n s fi l t e r
is starting to become
saturated. As soon as driving conditions allow, regenerate th
e
fi l t e r b y d r i v i n g a t a s p e e d o f a t l e a s t 3 5 m p h
(60 km/h) until the service warning lamp switches o ff.
fi x e d , a s s o c i a t e d
temporarily with
lighting of the service warning lamp. This indicates the minimum
level for the Diesel fuel
additive reservoir. Have the reservoir topped up as soon as
possible by a CITROËN dealer.
Warning lamp is on Cause Action/Observations
Page 27 of 207
1
INSTRUMENTS and CONTROLS
The level read will only be cor-
rect if the vehicle is on level
ground and the engine has been
off for more than 15 minutes.
Engine oil level indicator
System which informs the driver whether
the engine oil level is correct or not.
This information is indicated for a few
seconds when the ignition is switched
on, after the service information.
Oil level correct
T h i s i s i n d i c a t e d b y t h e fl a s h i n g o f
"OIL" , linked with the service warning
lamp, accompanied by an audible sig-
nal and a message on the multifunction
screen.
I f t h e l a c k o f o i l i s c o n fi r m e d b y a c h e c k
using the dipstick, it is essential that the
level is topped up to prevent damage to
the engine.
Lack of oil
T h i s i s i n d i c a t e d b y t h e fl a s h i n g o f
"OIL--"
. Consult a CITROËN dealer.
Oil level indicator fault
Dipstick
There are 2 marks on the
dipstick:
- A = max; never exceed
this level (risk of dam-
age to the engine),
- B = min; top up the level
v i a t h e o i l fi l l e r c a p , u s -
ing the grade of oil suit-
ed to your engine.
Refer to the "Checks" section to locate
t h e d i p s t i c k a n d t h e o i l fi l l e r c a p o n y o u r
engine.
Page 101 of 207
8
SAFETY

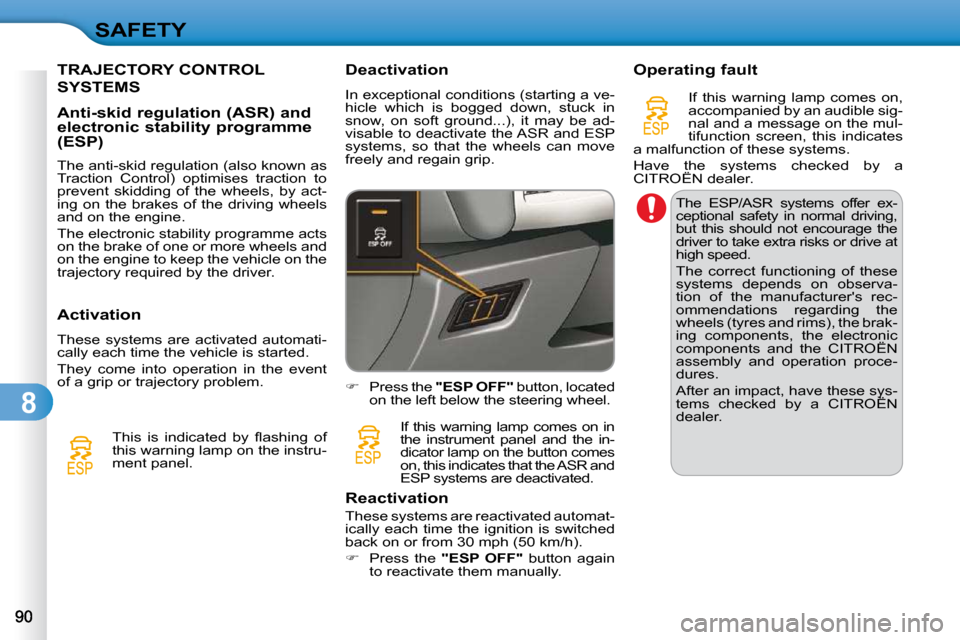

TRAJECTORY CONTROL
SYSTEMS
Anti-skid regulation (ASR) and
electronic stability programme
(ESP)
The anti-skid regulation (also known as
T r a c t i o n C o n t r o l ) o p t i m i s e s t r a c t i o n t o
p r e v e n t s k i d d i n g o f t h e w h e e l s , b y a c t -
ing on the brakes of the driving wheels
and on the engine.
T h e e l e c t r o n i c s t a b i l i t y p r o g r a m m e a c t s
on the brake of one or more wheels and
o n t h e e n g i n e t o k e e p t h e v e h i c l e o n t h e
trajectory required by the driver.
Activation
These systems are activated automati-
cally each time the vehicle is started.
T h e y c o m e i n t o o p e r a t i o n i n t h e e v e n t
o f a g r i p o r t r a j e c t o r y p r o b l e m . T h i s i s i n d i c a t e d b y fl a s h i n g o f
t h i s w a r n i n g l a m p o n t h e i n s t r u -
m e n t p a n e l . Deactivation
I n e x c e p t i o n a l c o n d i t i o n s ( s t a r t i n g a v e -
hicle which is bogged down, stuck in
snow, on soft ground...), it may be ad-
visable to deactivate the ASR and ESP
systems, so that the wheels can move
f r e e l y a n d r e g a i n g r i p .
Press the "ESP OFF" button, located
on the left below the steering wheel.
I f t h i s w a r n i n g l a m p c o m e s o n i n
t h e i n s t r u m e n t p a n e l a n d t h e i n -
d i c a t o r l a m p o n t h e b u t t o n c o m e s
on, this indicates that the ASR and
ESP systems are deactivated.
Reactivation
These systems are reactivated automat-
ically each time the ignition is switched
b a c k o n o r f r o m 3 0 m p h ( 5 0 k m / h ) .
Press the "ESP OFF" button again
to reactivate them manually. Operating fault
I f t h i s w a r n i n g l a m p c o m e s o n ,
a c c o m p a n i e d b y a n a u d i b l e s i g -
nal and a message on the mul-
tifunction screen, this indicates
a malfunction of these systems.
Have the systems checked by a
CITROËN dealer.
T h e E S P / A S R s y s t e m s o f f e r e x -
c e p t i o n a l s a f e t y i n n o r m a l d r i v i n g ,
but this should not encourage the
driver to take extra risks or drive at
h i g h s p e e d .
The correct functioning of these
s y s t e m s d e p e n d s o n o b s e r v a -
tion of the manufacturer's rec-
ommendations regarding the
wheels (tyres and rims), the brak-
i n g c o m p o n e n t s , t h e e l e c t r o n i c
c o m p o n e n t s a n d t h e C I T R O Ë N
a s s e m b l y a n d o p e r a t i o n p r o c e -
dures.
A f t e r a n i m p a c t , h a v e t h e s e s y s -
tems checked by a CITROËN
dealer.
Page 120 of 207
1 0
CHECKS
BONNET
Protects the components of the engine
and provides access for checking levels.
Opening
Open the front left door.
Pull the interior control A , located at
the bottom of the door aperture.
Push the exterior control B to the left
and raise the bonnet.
Unclip the bonnet stay C from its
housing, holding it by its foam pro-
tection.
Fix the strut in the notch to hold the
bonnet open.
The location of the interior
control prevents opening of the
bonnet while the front left door is
closed.
Closing
Take the stay out of the support
notch.
Clip the stay in its housing.
Lower the bonnet and release it at
the end of its travel.
Pull on the bonnet to check that it is
fully latched.
RUNNING OUT OF FUEL
(DIESEL)
I f y o u r v e h i c l e i s fi t t e d w i t h a n H D I e n -
gine, the fuel circuit must be reprimed if
you run out of fuel.
This system consists of a repriming
pump, a transparent pipe and a degas
screw under the bonnet.
HDi 90 and HDi 110 FAP engines
F i l l t h e f u e l t a n k w i t h a t l e a s t fi v e l i -
tres of diesel.
Open the bonnet.
Depending on version, unclip the
cover to gain access to the reprim-
ing pump.
Squeeze and release the repriming
pump until fuel appears in the trans-
parent pipe with the green connector.
Operate the starter until the engine
starts.
Depending on version, put the cover
back in position and clip it in place.
Close the bonnet.
If the engine does not start at the
fi r s t a t t e m p t , d o n o t t r y a g a i n .
Operate the repriming pump
again, then the starter.
When the engine is hot, handle
the exterior control and the stay
with care.
Page 121 of 207
1 0
CHECKS
* According to engine.
PETROL ENGINES
1. Screenwash reservoir.
2. Coolant reservoir.
3. A i r fi l t e r * .
4. B r a k e fl u i d r e s e r v o i r .
5. Battery.
6. Fuse box.
7. Engine oil dipstick.
8. E n g i n e o i l fi l l e r c a p .
Page 122 of 207
1 0
CHECKS
* According to engine.

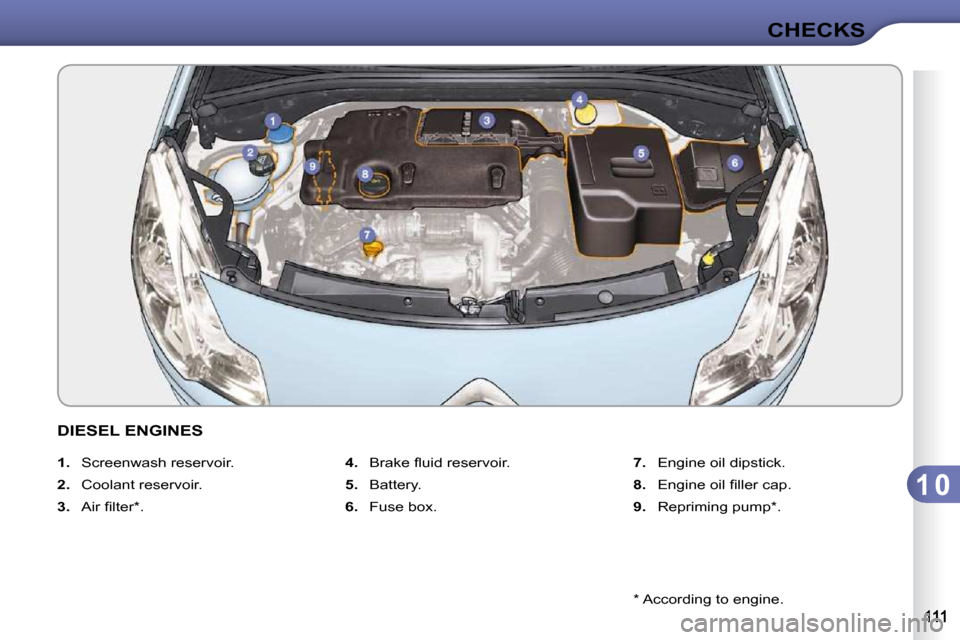

DIESEL ENGINES
1. Screenwash reservoir.
2. Coolant reservoir.
3. A i r fi l t e r * .
4. B r a k e fl u i d r e s e r v o i r .
5. Battery.
6. Fuse box.
7. Engine oil dipstick.
8. E n g i n e o i l fi l l e r c a p .
9. Repriming pump * .
Page 123 of 207
1 0
CHECKS
CHECKING LEVELS
Check all of these levels regularly and
top them up if necessary, unless other-
wise indicated.
I f a l e v e l d r o p s s i g n i fi c a n t l y , h a v e t h e
corresponding system checked by a
CITROËN dealer.
Oil level The reading will only be correct
if the vehicle is on level ground
and the engine has been off for
more than 15 minutes.
The check is carried out either
when the ignition is switched on using
the oil level indicator on the instrument
panel, or using the dipstick.
Between two oil changes, the consump-
tion should not exceed 0.5 litre per
600 miles (1,000 km).
Engine oil change
Refer to the Maintenance and Warranty
Guide for details of the interval for this
operation.
In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited.
Oil grade
The oil must be suitable for your engine
and conform to the manufacturer's rec-
ommendations. Brake fluid level
T h e b r a k e fl u i d l e v e l s h o u l d b e
close to the "MAX" mark. If it is
not, check the brake pad wear.
Changing the fluid
Refer to the Maintenance and Warranty
Guide for details of the interval for this
operation.
Fluid specification
T h e b r a k e fl u i d m u s t c o n f o r m t o t h e
manufacturer's recommendations and
meet the DOT4 standard.
Coolant level The coolant level should be
close to the "MAX" mark but
should never exceed it.
When the engine is warm, the
temperature of the coolant is regulated
by the fan. This can operate with the ig-
nition off.
O n v e h i c l e s w h i c h a r e fi t t e d w i t h a p a r -
t i c l e e m i s s i o n fi l t e r , t h e f a n m a y o p e r -
ate after the vehicle has been switched
o f f , e v e n i f t h e e n g i n e i s c o l d .
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work. To avoid any risk of scalding, unscrew
the cap by two turns to allow the pres-
sure to drop. When the pressure has
dropped, remove the cap and top up
the level.
Changing the coolant
The coolant does not have to be
changed.
Fluid specification
The coolant must conform to the manu-
facturer's recommendations.
Screenwash fluid level
Top up the level when necessary.
Fluid specification
For optimum cleaning and to avoid
f r e e z i n g , t h i s fl u i d m u s t n o t b e t o p p e d
up or replaced with water.
Take care when carrying out
checks under the bonnet as
some parts of the engine can be
very hot (risk of burns).
Page 124 of 207
1 0
CHECKS

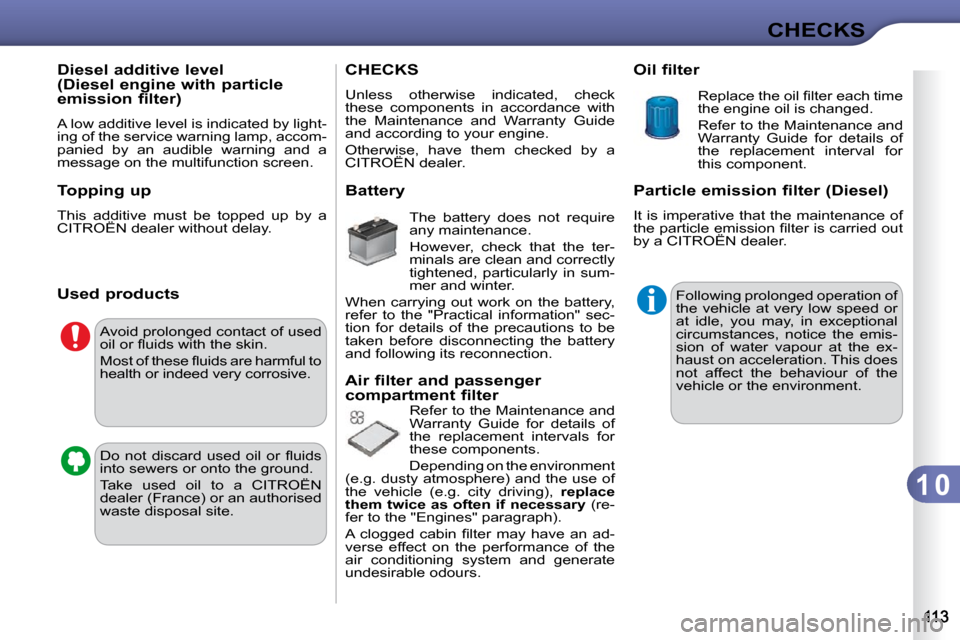

Diesel additive level
(Diesel engine with particle
emission filter)
A low additive level is indicated by light-
ing of the service warning lamp, accom-
panied by an audible warning and a
message on the multifunction screen.
Topping up
This additive must be topped up by a
CITROËN dealer without delay.
Used products Avoid prolonged contact of used
o i l o r fl u i d s w i t h t h e s k i n .
M o s t o f t h e s e fl u i d s a r e h a r m f u l t o
health or indeed very corrosive.
D o n o t d i s c a r d u s e d o i l o r fl u i d s
into sewers or onto the ground.
Take used oil to a CITROËN
dealer (France) or an authorised
waste disposal site. CHECKS
Unless otherwise indicated, check
these components in accordance with
the Maintenance and Warranty Guide
and according to your engine.
Otherwise, have them checked by a
CITROËN dealer.
B a t t e r y The battery does not require
any maintenance.
H o w e v e r , c h e c k t h a t t h e t e r -
minals are clean and correctly
tightened, particularly in sum-
mer and winter.
When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.
Air filter and passenger
compartment filter Refer to the Maintenance and
Warranty Guide for details of
the replacement intervals for
these components.
Depending on the environment
(e.g. dusty atmosphere) and the use of
the vehicle (e.g. city driving), replace
t h e m t w i c e a s o f t e n i f n e c e s s a r y (re-
fer to the "Engines" paragraph).
A c l o g g e d c a b i n fi l t e r m a y h a v e a n a d -
verse effect on the performance of the
air conditioning system and generate
undesirable odours. Oil filter
R e p l a c e t h e o i l fi l t e r e a c h t i m e
the engine oil is changed.
Refer to the Maintenance and
Warranty Guide for details of
the replacement interval for
this component.
Particle emission filter (Diesel)
It is imperative that the maintenance of
t h e p a r t i c l e e m i s s i o n fi l t e r i s c a r r i e d o u t
by a CITROËN dealer.
Following prolonged operation of
the vehicle at very low speed or
at idle, you may, in exceptional
circumstances, notice the emis-
sion of water vapour at the ex-
haust on acceleration. This does
not affect the behaviour of the
vehicle or the environment.
