FAMILIARISATION
Remote control key Fuel tank
1. O p e n i n g t h e f u e l fi l l e r fl a p .
2. O p e n i n g a n d h o o k i n g t h e f u e l fi l l e r
cap.
A. Unfolding/Folding the key.
B. Unlocking the vehicle.
55
64
A. Interior control.
B. Exterior control.
C. Bonnet strut.
109
Bonnet
OPEN
Other functions...
C. Normal locking of the vehicle
Vehicle location. Tank capacity:
- approximately 50 litres (petrol),
- approximately 45 litres (Diesel).
Page 120 of 207
1 0
CHECKS

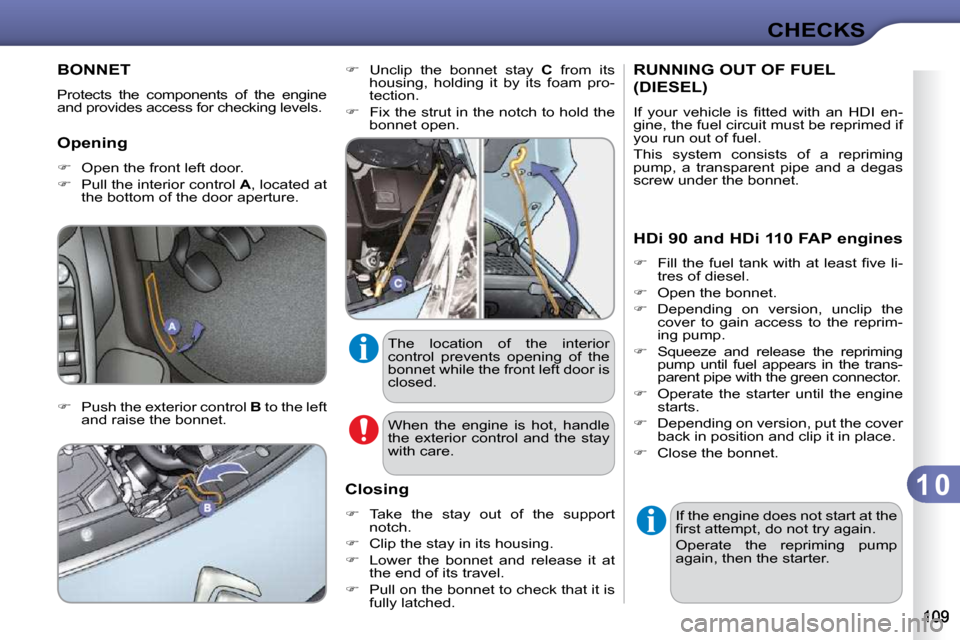

BONNET
Protects the components of the engine
and provides access for checking levels.
Opening
Open the front left door.
Pull the interior control A , located at
the bottom of the door aperture.
Push the exterior control B to the left
and raise the bonnet.
Unclip the bonnet stay C from its
housing, holding it by its foam pro-
tection.
Fix the strut in the notch to hold the
bonnet open.
The location of the interior
control prevents opening of the
bonnet while the front left door is
closed.
Closing
Take the stay out of the support
notch.
Clip the stay in its housing.
Lower the bonnet and release it at
the end of its travel.
Pull on the bonnet to check that it is
fully latched.
RUNNING OUT OF FUEL
(DIESEL)
I f y o u r v e h i c l e i s fi t t e d w i t h a n H D I e n -
gine, the fuel circuit must be reprimed if
you run out of fuel.
This system consists of a repriming
pump, a transparent pipe and a degas
screw under the bonnet.
HDi 90 and HDi 110 FAP engines
F i l l t h e f u e l t a n k w i t h a t l e a s t fi v e l i -
tres of diesel.
Open the bonnet.
Depending on version, unclip the
cover to gain access to the reprim-
ing pump.
Squeeze and release the repriming
pump until fuel appears in the trans-
parent pipe with the green connector.
Operate the starter until the engine
starts.
Depending on version, put the cover
back in position and clip it in place.
Close the bonnet.
If the engine does not start at the
fi r s t a t t e m p t , d o n o t t r y a g a i n .
Operate the repriming pump
again, then the starter.
When the engine is hot, handle
the exterior control and the stay
with care.
Page 146 of 207
11
PRACTICAL INFORMATION

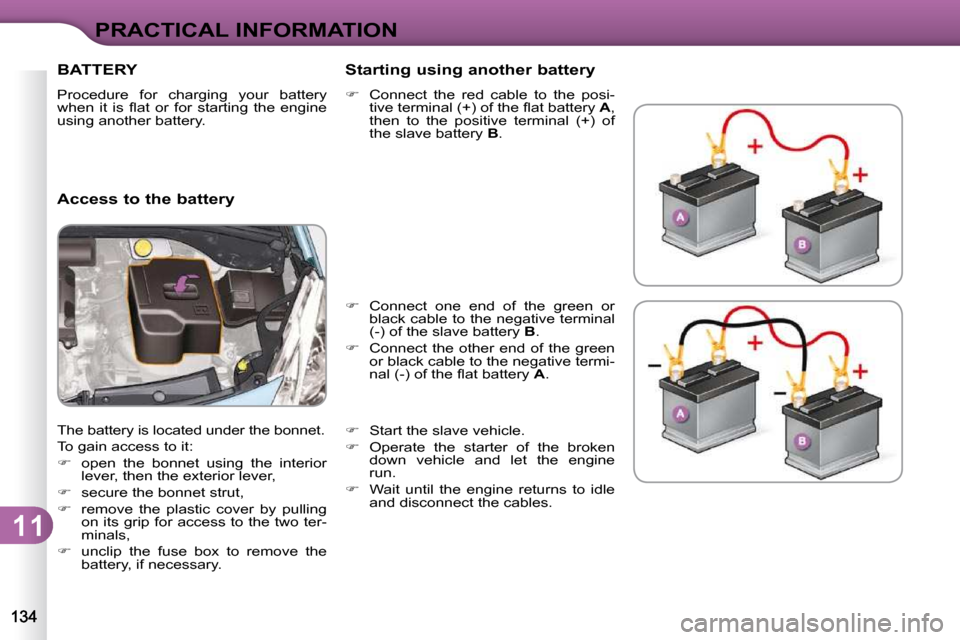

BATTERY
