Page 132 of 203
11
PRACTICAL INFORMATION

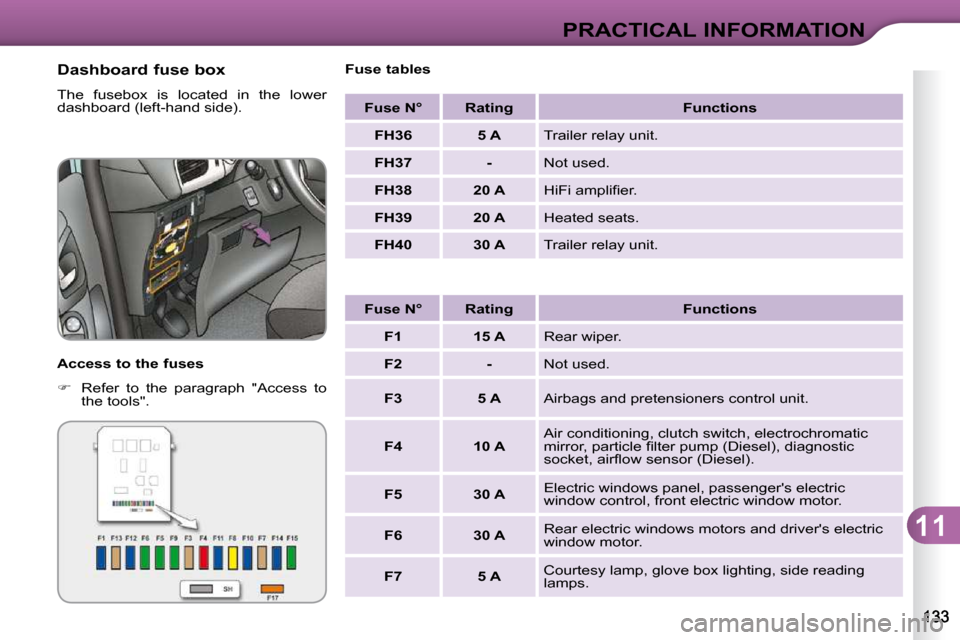

Dashboard fuse box
T h e f u s e b o x i s l o c a t e d i n t h e l o w e r
d a s h b o a r d ( l e f t - h a n d s i d e ) .
Access to the fuses
R e f e r t o t h e p a r a g r a p h " A c c e s s t o
t h e t o o l s " . Fuse tables
Fuse N° Rating Functions
FH36 5 A T r a i l e r r e l a y u n i t .
FH37 - N o t u s e d .
FH38 20 A H i F i a m p l i fi e r .
FH39 20 A H e a t e d s e a t s .
FH40 30 A T r a i l e r r e l a y u n i t .
Fuse N° Rating Functions
F1 15 A R e a r w i p e r .
F2 - N o t u s e d .
F3 5 A A i r b a g s a n d p r e t e n s i o n e r s c o n t r o l u n i t .
F4 10 A A i r c o n d i t i o n i n g , c l u t c h s w i t c h , e l e c t r o c h r o m a t i c
m i r r o r , p a r t i c l e fi l t e r p u m p ( D i e s e l ) , d i a g n o s t i c
s o c k e t , a i r fl o w s e n s o r ( D i e s e l ) .
F5 30 A E l e c t r i c w i n d o w s p a n e l , p a s s e n g e r ' s e l e c t r i c
w i n d o w c o n t r o l , f r o n t e l e c t r i c w i n d o w m o t o r .
F6 30 A R e a r e l e c t r i c w i n d o w s m o t o r s a n d d r i v e r ' s e l e c t r i c
w i n d o w m o t o r .
F7 5 A C o u r t e s y l a m p , g l o v e b o x l i g h t i n g , s i d e r e a d i n g
l a m p s .
Page 134 of 203
11
PRACTICAL INFORMATION

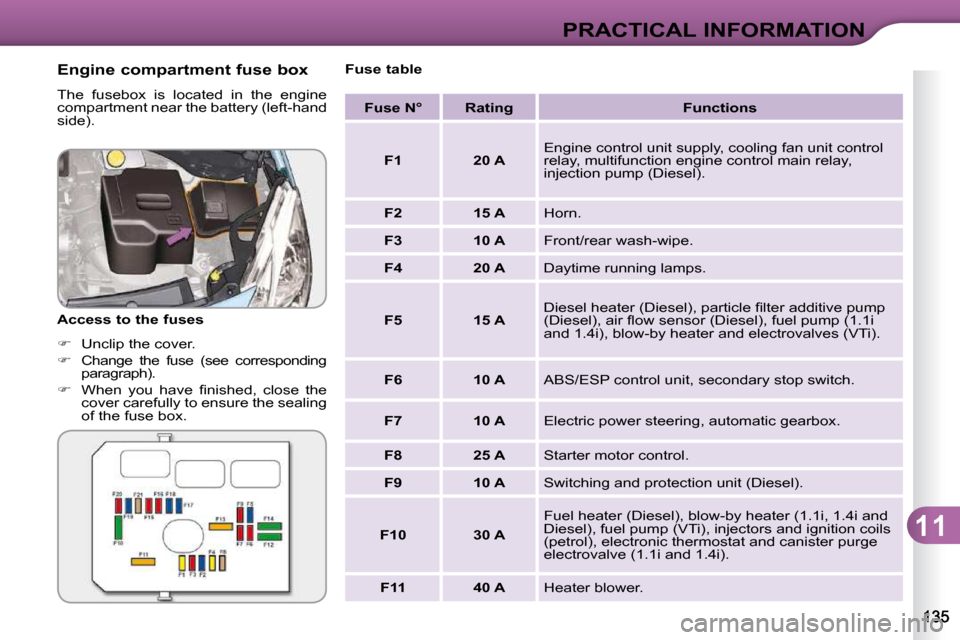

Engine compartment fuse box
T h e f u s e b o x i s l o c a t e d i n t h e e n g i n e
c o m p a r t m e n t n e a r t h e b a t t e r y ( l e f t - h a n d
s i d e ) .
Access to the fuses
U n c l i p t h e c o v e r .
C h a n g e t h e f u s e ( s e e c o r r e s p o n d i n g
p a r a g r a p h ) .
W h e n y o u h a v e fi n i s h e d , c l o s e t h e
c o v e r c a r e f u l l y t o e n s u r e t h e s e a l i n g
o f t h e f u s e b o x . Fuse table
Fuse N° Rating Functions
F1 20 A E n g i n e c o n t r o l u n i t s u p p l y , c o o l i n g f a n u n i t c o n t r o l
r e l a y , m u l t i f u n c t i o n e n g i n e c o n t r o l m a i n r e l a y ,
i n j e c t i o n p u m p ( D i e s e l ) .
F2 15 A H o r n .
F3 10 A F r o n t / r e a r w a s h - w i p e .
F4 20 A D a y t i m e r u n n i n g l a m p s .
F5 15 A D i e s e l h e a t e r ( D i e s e l ) , p a r t i c l e fi l t e r a d d i t i v e p u m p
( D i e s e l ) , a i r fl o w s e n s o r ( D i e s e l ) , f u e l p u m p ( 1 . 1 i
a n d 1 . 4 i ) , b l o w - b y h e a t e r a n d e l e c t r o v a l v e s ( V T i ) .
F6 10 A A B S / E S P c o n t r o l u n i t , s e c o n d a r y s t o p s w i t c h .
F7 10 A E l e c t r i c p o w e r s t e e r i n g , a u t o m a t i c g e a r b o x .
F8 25 A S t a r t e r m o t o r c o n t r o l .
F9 10 A S w i t c h i n g a n d p r o t e c t i o n u n i t ( D i e s e l ) .
F10 30 A F u e l h e a t e r ( D i e s e l ) , b l o w - b y h e a t e r ( 1 . 1 i , 1 . 4 i a n d
D i e s e l ) , f u e l p u m p ( V T i ) , i n j e c t o r s a n d i g n i t i o n c o i l s
( p e t r o l ) , e l e c t r o n i c t h e r m o s t a t a n d c a n i s t e r p u r g e
e l e c t r o v a l v e ( 1 . 1 i a n d 1 . 4 i ) .
F11 40 A H e a t e r b l o w e r .
