13
FAMILIARI
S
AT I
ON

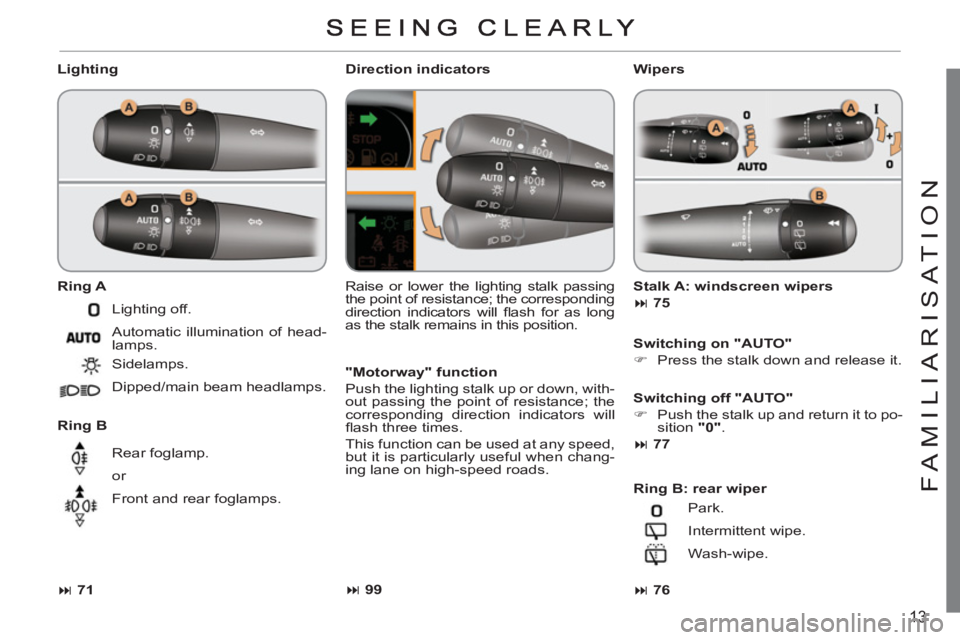

Lighting

Ring A


Ring B
Raise or lower the lighting stalk passing
the point of resistance; the corresponding
direction indicators will fl ash for as long
as the stalk remains in this position.
Direction indicators

Switching on "AUTO"



)
Press the stalk down and release it.

Ring B: rear wiper




71





76


Lighting off.
Automatic illumination of head-
lamps.
Sidelamps.
Dipped/main beam headlamps.
Rear foglamp.
or
Front and rear foglamps.
Park.
Intermittent wipe.
Wash-wipe.
Stalk A: windscreen wipers




75

Wipers

Switching off "AUTO"



)
Push the stalk up and return it to po-
sition "0"
.



77




99


"Motorway" function

Push the lighting stalk up or down, with-
out passing the point of resistance; the
corresponding direction indicators will
fl ash three times.
This function can be used at any speed,
but it is particularly useful when chang-
ing lane on high-speed roads.

11
142
PRACTICAL INFORMATION
CHANGING A BULB
Procedure for replacing a faulty bulb
with a new bulb.








1.
Direction indicators
(H21W amber).


2.
Dipped

beam

headlamps
(H7-55W).


3.
Main beam headlamps (H1-55W).


4.
Sidelamps

(W5W).


5.
Foglamps

(PSX24W).


The headlamps are fi tted with
polycarbonate glass with a pro-
tective coating:


)
do not clean them using a
dry or abrasive cloth, nor
with a detergent or solvent
product,


)

use a sponge and soapy water,


)
when using a high pressure
washer on persistent marks,
do not keep the lance direct-
ed towards the lamps or their
edges for too long, so as not
to damage their protective
coating and seals.


Front lamps




)
Do not touch the bulb directly
with your fi ngers, use lint-free
cloths.
Changing a bulb should only be
done after the headlamp has
been switched off for a few min-
utes (risk of serious burns).
It is imperative to use only anti-
ultraviolet (UV) type bulbs in order
not to damage the headlamp.
Always replace a failed bulb
with a new bulb with the same
type and specifi cation.
