19
MONITORING
Certain warning lamps may come
on in two different modes. Only by
relating the type of lighting to the
operating status of the vehicle can
it be ascertained whether the situ-
ation is normal or whether a fault
has occurred.
Indicator and warning lamps
Visual indicators informing the driver that a system is in operat
ion (operation or deactivation indicator lamps) or of the
occurrence of a fault (warning lamp).
Associated warnings
The switching on of certain warning lamps may be accompanied b y an audible
signal and a message on the multifunction screen.
T h e w a r n i n g l a m p s m a y c o m e o n c o n t i n u o u s l y ( fi x e d ) o r fl a s h .
Operation indicator lamps
I f o n e o f t h e f o l l o w i n g i n d i c a t o r l a m p s c o m e s o n , t h i s c o n fi r m s t h a t t h e c o r r e s p o n d i n g
system has come into operation.
When the ignition is switched on
Certain warning lamps come on for a few seconds wh
en the vehicle's ignition is switched on.
When the engine is started, these same warning lam ps should switch off.
If they remain on, before moving off, refer to the information on the warning lamp concerned.
Warning lamp is on Cause Action/Observations
Left-hand
direction
indicato
r fl a s h i n g w i t h
buzzer. The lighting stalk is pushed
down.
Right-hand
direction
indicator fl a s h i n g w i t h
buzzer. The lighting stalk is pushed
up.
Sidelamps fi x e d . The lighting stalk is in the
"Sidelamps" position.
Dipped beam
headlamps fi x e d . The lighting stalk is in the
"Dipped beam headlamps"
position.
Main beam
headlamps fi x e d . The lighting stalk is pulled
towards you. Pull the stalk to return to dipped beam headlamps.
Page 26 of 222
MONITORING
Total distance recorder
System which measures the total distance
travelled by the vehicle during its life. Lighting dimmer
System for manual adjustment of the
brightness of the instruments and con-
trols in relation to the exterior brightness.
The total and trip distances are displayed
for thirty seconds when the ignition is
switched off, when the driver's door is
opened and when the vehicle is locked
or unlocked.
Trip distance recorder
System which measures a distance
travelled during a day or other period
since it was reset to zero by the driver.
With the ignition on, press the but-
ton until zeros appear. Activation
When the lighting is on:
press the button to change the
brightness of the instruments and
controls,
when the level of brightness required
is reached, release the button.
Deactivation
When the lighting is off, or in day mode
o n v e h i c l e s fi t t e d w i t h d a y t i m e r u n n i n g
lamps, pressing the button does not
have any effect.
Page 28 of 222
!
i
31
MULTIFUNCTION SCREENS Once the fuel consumption unit has
been changed to l/100 km or km/l,
the information relating to speed
and distance also changes to kilo-
metres.
Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode.
Language
Once the "Language" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).
Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or
km/l).
Once you have selected a setting,
press the " " or " " buttons to
change its value.
Press the " " or " " buttons to
switch respectively to the previous
or next setting.
Press the "OK" button to record the
change and return to the normal dis-
play or press the "ESC" button to
cancel.
V e h i c l e c o n fi g u r a t i o n
Options
Once the "Options" menu has been se-
lected, you can start diagnostics of the
status of the equipment (active, not ac-
tive, faulty).
O n c e t h e " V e h i c l e C o n fi g u r a t i o n " m e n u
has been selected, you can activate or
deactivate the following equipment:
- wiper linked with reverse gear (refer
to the "Visibility" section),
- "guide-me-home" lighting (refer to the "Visibility" section).
F o r s a f e t y r e a s o n s , c o n fi g u r a t i o n
of the multifunction screen by the
driver must only be done when
stationary.
Page 42 of 222
ii
44
COMFORT When the engine is cold, to prevent
too great a distribution of cold air,
t h e a i r fl o w w i l l r e a c h i t s o p t i m u m
level gradually.
In cold weather, it favours the dis-
tribution of warm air to the wind-
screen, side windows and footwells
only. On entering the vehicle, if the inte-
rior temperature is much colder or
warmer than the comfort value, there
is no need to change the value dis-
played in order to obtain the comfort
required. The system corrects the
difference in temperature automati-
cally and as quickly as possible.
The air conditioning only operates when
the engine is running. The driver and front passenger
can each adjust the tempera-
ture to their requirements.
Turn control 2 or 3 to the left or to
the right respectively to decrease or
increase this value.
A setting around the value 21 provides
optimum comfort. However, depend-
ing on your requirements, a setting be-
tween 18 and 24 is normal.
You are advised to avoid a left/right set-
ting difference of more than 3. 4 . A u t o m a t i c v i s i b i l i t y p r o g r a m m e
The automatic comfort pro-
g r a m m e m a y n o t b e s u f fi c i e n t
to quickly demist or defrost
the windscreen and side win-
dows (humidity, several pas-
sengers, ice, etc.).
In this case, select the automatic
visibility programme.
The system automatically controls the
a i r c o n d i t i o n i n g , t h e a i r fl o w a n d t h e a i r
intake and provides optimum distribu-
tion of the ventilation to the windscreen
and side windows.
A u t o m a t i c o p e r a t i o n
Press the "AUTO" button.
The indicator lamp on the
button comes on. 2 . D r i v e r ' s s i d e a d j u s t m e n t
DUAL-ZONE DIGITAL AIR CONDITIONING
We recommend the use of this mode:
it permits automatic and optimised ad-
justment of all of the functions, passen-
g e r c o m p a r t m e n t t e m p e r a t u r e , a i r fl o w ,
air distribution and air recirculation, in
accordance with the comfort value that
you have chosen.
This system is designed to operate ef-
fectively in all seasons, with the windows
closed. The value indicated on the display cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.
To switch it off, press the " v i s i b i l i t y "
button again or press the "AUTO" but-
ton, the indicator lamp on the button
switches off and the indicator lamp on
the "AUTO" button comes on.
1 . A u t o m a t i c c o m f o r t p r o g r a m m e
3 . P a s s e n g e r s i d e a d j u s t m e n t
Page 60 of 222
i
i
i
57
ACCESS

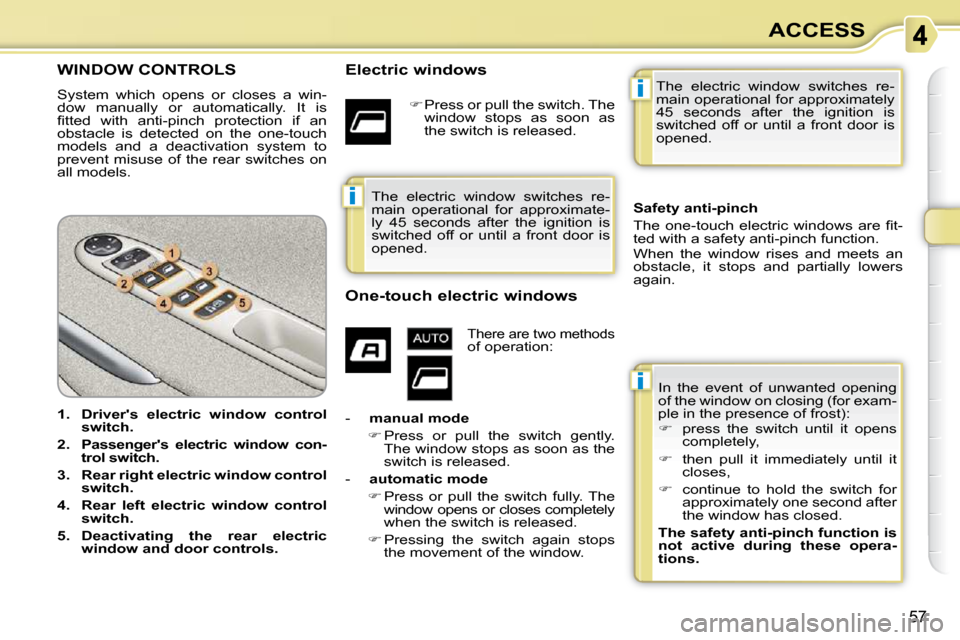

WINDOW CONTROLS
System which opens or closes a win-
dow manually or automatically. It is
fi t t e d w i t h a n t i - p i n c h p r o t e c t i o n i f a n
obstacle is detected on the one-touch
models and a deactivation system to
prevent misuse of the rear switches on
all models.
1. Driver's electric window control
switch.
2. Passenger's electric window con-
trol switch.
3. Rear right electric window control
switch.
4. Rear left electric window control
switch.
5. Deactivating the rear electric
window and door controls. In the event of unwanted opening
of the window on closing (for exam-
ple in the presence of frost):
press the switch until it opens
completely,
then pull it immediately until it
closes,
continue to hold the switch for
approximately one second after
the window has closed.
The safety anti-pinch function is
not active during these opera-
tions.
Safety anti-pinch
T h e o n e - t o u c h e l e c t r i c w i n d o w s a r e fi t -
ted with a safety anti-pinch function.
When the window rises and meets an
obstacle, it stops and partially lowers
again.
The electric window switches re-
main operational for approximate-
ly 45 seconds after the ignition is
switched off or until a front door is
opened.
Electric windows
Press or pull the switch. The
window stops as soon as
the switch is released.
One-touch electric windows
There are two methods of operation:
- manual mode
Press or pull the switch gently.
The window stops as soon as the
switch is released.
- automatic mode
Press or pull the switch fully. The
window opens or closes completely
when the switch is released.
Pressing the switch again stops
the movement of the window. The electric window switches re-
main operational for approximately
45 seconds after the ignition is
switched off or until a front door is
opened.
Page 71 of 222
!
i
66
VISIBILITY
Model with rear foglamp only Rear foglamp
To switch on the foglamp, turn the
ring C forwards.
When the lighting is switched off au-
t o m a t i c a l l y ( w i t h A U T O m o d e l ) , t h e
foglamp and the dipped beam head-
lamps will remain on.
To switch off all of the lighting, turn
the ring C rearwards. In good or rainy weather, by both
day and night, the front foglamps
and the rear foglamp are prohib-
ited. In these situations, the power
of their beams may dazzle other
drivers.
Do not forget to switch off the front
foglamps and the rear foglamp when
they are no longer necessary.
Lighting on audible warning
When the ignition is switched off,
all of the lamps switch off automati-
cally, unless guide-me-home ligh-
ting is activated.
If the lighting is switched on manu-
ally after switching off the ignition,
there is an audible signal when a
front door is opened to warn the
driver that they have forgotten to
switch off the vehicle's lighting, with
the ignition off.
Model with front foglamps
and a rear foglamp
Front and rear foglamps
Rotate and release the ring C :
f o r w a r d s a fi r s t t i m e t o s w i t c h o n t h e
front foglamps.
forwards a second time to switch on
the rear foglamp,
r e a r w a r d s a fi r s t t i m e t o s w i t c h o f f
the rear foglamp
rearwards a second time to switch
of the front fog lamps.
C. Foglamp selection ring.
The foglamps operate with the dipped
and main beam headlamps. When the lighting is switched off auto-
m a t i c a l l y ( w i t h A U T O m o d e l ) o r w h e n
the dipped headlamps are switched off
manually, the foglamps and sidelamps
will remain on.
Turn the ring rearwards to switch
off the foglamps, the sidelamps will
then switch off.
Page 80 of 222
i
72
VISIBILITY
COURTESY LAMPS
Selection and control of the various
passenger compartment lamps.
1. Front courtesy lamp
2. Map reading lamps
3. Rear courtesy lamp Front and rear courtesy lamps
Map reading lamps
With the ignition on, press the cor-
responding switch. In permanent lighting mode, differ-
ent lighting times are available:
- with the ignition off, approxi-
mately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
- with the engine running, unli- mited.
In this position, the courtesy
lamp comes on gradually:
Permanently off.
Permanent lighting.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.
- when the vehicle is unlocked,
- when the key is removed from the
ignition,
- when a door is opened,
- when the remote control locking button is pressed, in order to locate
your vehicle.
Footwell lighting
These lamps come on at the same time
as the courtesy lamps.
Page 81 of 222
i
i
73
VISIBILITY
The lighting time varies according
to the circumstances:
- when the ignition is off, approxi- mately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
- when the engine is running, no limit.
This comes on automatically when the
boot is opened and switches off auto-
matically when the boot is closed. Torch
This is a removable lamp, incorporated
in the boot wall, which can be used to
illuminate the boot or as a torch.
BOOT LAMP Use
Extract the torch from its location by
pulling it from the front.
Press the switch, located on the
back, to switch the torch on or off.
Unfold the support, located on the
back, to set down and raise the
torch; for example, when changing
a wheel.
Storing
Put the torch back in place in its lo-
cation starting with the rear.
If you have forgotten to switch off the torch, this switches it off auto-
matically.
It the torch is not engaged correctly, it
may not charge and may not come on
when the boot is opened.
Operation
This torch operates with NiMH type
power packs.
It has a battery life of approximately
45 minutes and charges while you are
driving.
O b s e r v e t h e p o l a r i t i e s w h e n fi t t i n g
the power packs.
Never replace the power packs
with batteries.
Page 106 of 222
i
i
92
DIRECTION INDICATORS
If you forget to cancel the direction in-
dicators for more than twenty seconds,
the volume of the audible signal will in-
crease if the speed is above 40 mph
(60 km/h).
HAZARD WARNING LAMPS
Press this button, the direction indi-
c a t o r s fl a s h .
They can operate with the ignition off.
Automatic operation of hazard warning lamps
When braking in an emergency, de-
pending on the deceleration, the hazard
warning lamps come on automatically.
T h e y s w i t c h o f f a u t o m a t i c a l l y t h e fi r s t
time you accelerate.
You can also switch them off by
pressing the button.
HORN
Press one of the spokes of the steering
wheel.
Use the horn moderately and only
in the following cases:
- immediate danger,
-
overtaking a cyclist or pedestrian,
- when approaching an area where there is no visibility.
Audible warning to alert other road users
to an imminent danger.
"Motorway" function
M o v e t h e s t a l k b r i e fl y u p w a r d s o r d o w n -
wards, without going beyond the point
of resistance; the corresponding direc-
t i o n i n d i c a t o r s w i l l fl a s h 3 t i m e s . A visual warning by means of the direc-
tion indicators to alert other road users to
a vehicle breakdown, towing or accident.
Lower the lighting control stalk fully
when moving to the left.
Raise the lighting control stalk fully
when moving to the right.
Page 119 of 222
!
104
DRIVING
GEAR EFFICIENCY INDICATOR *
System which reduces fuel consumption
by advising the driver to change up on
v e h i c l e s fi t t e d w i t h a m a n u a l g e a r b o x .
Operation
The system intervenes only when driv-
ing economically.
Depending on the driving situation and
your vehicle's equipment, the system
may advise you to skip one or more
gears. You can follow this instruc-
tion without engaging the intermediate
gears.
The gear engagement recommenda-
tions must not be considered compulso-
r y . I n f a c t , t h e c o n fi g u r a t i o n o f t h e r o a d ,
t h e a m o u n t o f t r a f fi c a n d s a f e t y r e m a i n
determining factors when choosing the
best gear. Therefore, the driver remains
responsible for deciding whether or not to
follow the advice given by the system.
This function cannot be deactivated. E x a m p l e :
- You are in third gear.
The information appears in the instru-
ment panel screen in the form of an
arrow accompanied by the suggested
gear.
In the case of driving which makes
particular demands on the perfor-
m a n c e o f t h e e n g i n e ( fi r m p r e s -
sure on the accelerator pedal, for
e x a m p l e , w h e n o v e r t a k i n g . . . ) , t h e
system will not recommend a gear
change.
T h e s y s t e m n e v e r s u g g e s t s :
- e n g a g i n g fi r s t g e a r ,
- engaging reverse gear,
- engaging a lower gear.
* According to engine. - You press the accelerator pedal
moderately.
- The system may suggest that you engage a higher gear, if appropriate.
