32
MULTIFUNCTION SCREENS
MONOCHROME SCREEN A ASSOCIATED
WITH THE MYWAY SATELLITE
NAVIGATION COLOUR SCREEN
Main menu
Displays in screen A
This displays the following information:
- a m b i e n t t e m p e r a t u r e ( t h i s fl a s h e s i f there is a risk of ice),
- trip computer (refer to the end of the section).
Warning messages or information mes-
sages may appear temporarily. These
can be cleared by pressing the "ESC"
button. Controls
There are three display control buttons:
- "ESC" to abandon the operation in
progress,
- "MENU" to scroll through the menus
or sub-menus,
- "OK" to select the menu or sub-
menu required.
Press the "MENU" button to scroll
through the various menus of the
main menu :
- v e h i c l e c o n fi g u r a t i o n ,
- options,
- language,
- units.
Press the "OK" button to select the
menu required.
V e h i c l e c o n fi g u r a t i o n
O n c e t h e " V e h i c l e c o n fi g u r a t i o n " m e n u
has been selected, you can activate or
deactivate the following systems:
- wiper linked with reverse gear (refer to the "Visibility" section),
- "guide-me-home" lighting (refer to the "Visibility" section).
Page 30 of 222
i
i
!
!
33
MULTIFUNCTION SCREENS
Options
Once the "Options" menu has been se-
lected, you can start diagnostics of the
status of the equipment (active, not ac-
tive, faulty).
Language
Once the "Language" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).
Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or km/l). Displays in the MyWay satellite
navigation colour screen
"SETUP" menu
Date and time
This menu allows you to adjust the date
and time, and their format (refer to the
"Audio and telematics section").
Display
This menu allows you to adjust the
brightness of the display, the display
contrast and the colour of the map (day/
night and auto mode).
System parameters
This menu allows you to restore the
factory settings, to display the software
version and to activate scrolling text.
This displays the following information:
- time,
- date,
- audio functions,
- navigation system information.
The chosen language will also be
used in the MyWay satellite navi-
gation colour screen.
Once the fuel consumption unit
has been changed to l/100 km or
km/l, the information relating to
speed and distance also changes
to kilometres.
F o r s a f e t y r e a s o n s , c o n fi g u r a t i o n
of the multifunction screen by the
driver must only be done when
stationary. F o r s a f e t y r e a s o n s , c o n fi g u r a t i o n
of the multifunction screen by the
driver must only be done when sta-
tionary.
Press the SETUP button to access the
"SETUP" menu. It gives you access to
the following functions:
- Date and time,
- Display,
- System parameters.
Page 150 of 222
1 3 5
PRACTICAL INFORMATION
Fuse N° Rating Functions
F8 20 A Multifunction screen, audio system, navigation
radio.
F9 30 A A u d i o s y s t e m ( fi t t e d a s a n o p t i o n ) , 1 2 V s o c k e t .
F10 15 A Steering mounted controls.
F11 15 A Ignition, diagnostic socket.
F12 15 A R a i n / b r i g h t n e s s s e n s o r , t r a i l e r r e l a y u n i t .
F13 5 A Main stop switch, engine relay unit.
F14 15 A Parking sensor control unit, seat belt unfastened
warning lamp, airbag control unit, instrument panel,
a i r c o n d i t i o n i n g , U S B B o x .
F15 30 A Locking.
F16 - Not used.
F17 40 A R e a r s c r e e n a n d e x t e r i o r m i r r o r s d e m i s t / d e f r o s t .
SH - PARC shunt.
Page 155 of 222
i
!
1 4 0
PRACTICAL INFORMATION Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without
d i s c o n n e c t i n g t h e t e r m i n a l s fi r s t .
Batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries
and vehicle batteries to a special
collection point.
Charging the battery using a
battery charger
Disconnect the battery from the
vehicle.
Follow the instructions for use
provided by the manufacturer of the
charger.
Reconnect starting with the nega-
t i v e t e r m i n a l ( - ) .
Check that the terminals and connec-
tors are clean. If they are covered with
s u l p h a t e ( w h i t i s h o r g r e e n i s h d e p o s i t ) ,
remove them and clean them.
LOAD REDUCTION MODE
System which manages the use of
certain functions according to the level
of charge remaining in the battery.
When the vehicle is being driven, the
load reduction function temporarily
deactivates certain functions, such as
the air conditioning, the heated rear
screen...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.
It is advisable to disconnect the
battery if the vehicle is to be left
unused for more than one month. Before disconnecting the
battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.
Following reconnection of
the battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit
initialisation of the electronic sys-
tems. However, if minor problems
persist following this operation,
contact a CITROËN dealer.
Referring to the corresponding
section, you should yourself reini-
tialise:
- the remote control key,
- the GPS satellite navigation
system.
Page 156 of 222
i
!
1 4 0
PRACTICAL INFORMATION Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without
d i s c o n n e c t i n g t h e t e r m i n a l s fi r s t .
Batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries
and vehicle batteries to a special
collection point.
Charging the battery using a
battery charger
Disconnect the battery from the
vehicle.
Follow the instructions for use
provided by the manufacturer of the
charger.
Reconnect starting with the nega-
t i v e t e r m i n a l ( - ) .
Check that the terminals and connec-
tors are clean. If they are covered with
s u l p h a t e ( w h i t i s h o r g r e e n i s h d e p o s i t ) ,
remove them and clean them.
LOAD REDUCTION MODE
System which manages the use of
certain functions according to the level
of charge remaining in the battery.
When the vehicle is being driven, the
load reduction function temporarily
deactivates certain functions, such as
the air conditioning, the heated rear
screen...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.
It is advisable to disconnect the
battery if the vehicle is to be left
unused for more than one month. Before disconnecting the
battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.
Following reconnection of
the battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit
initialisation of the electronic sys-
tems. However, if minor problems
persist following this operation,
contact a CITROËN dealer.
Referring to the corresponding
section, you should yourself reini-
tialise:
- the remote control key,
- the GPS satellite navigation
system.
Page 157 of 222
i
!
141
PRACTICAL INFORMATION
A fl a t b a t t e r y p r e v e n t s t h e e n g i n e
from starting (refer to the corre-
s p o n d i n g p a r a g r a p h ) .
If the telephone is being used at
the same time on the MyWay audio
navigation system, it will be inter-
r u p t e d a f t e r 1 0 m i n u t e s .
ENERGY ECONOMY MODE
System which manages the period of
use of certain functions to conserve a
s u f fi c i e n t l e v e l o f c h a r g e i n t h e b a t t e r y .
After the engine has stopped, you can
still use functions such as the audio
e q u i p m e n t , w i n d s c r e e n w i p e r s , d i p p e d
beam headlamps, courtesy lamps, etc.
f o r a m a x i m u m c o m b i n e d p e r i o d o f
thirty minutes.
This period may be greatly reduced if
the battery is not fully charged. Exiting economy mode
These functions are reactivated auto-
m a t i c a l l y t h e n e x t t i m e t h e v e h i c l e i s
driven.
In order to resume the use of these
functions immediately, start the en-
gine and let it run for a few minutes.
The time available to you will then be dou-
ble the period for which the engine is left
running. However, this period will always
b e b e t w e e n fi v e a n d t h i r t y m i n u t e s .
Switching to economy mode
Once this period has elapsed, a mes-
sage appears on the multifunction
screen indicating that the vehicle has
switched to economy mode and the
active functions are put on standby.
CHANGING A FRONT OR REAR WIPER BLADE
Procedure for replacing a worn wiper
blade with a new one without the use
of tools.
Removal
Raise the corresponding wiper arm.
Unclip the wiper blade and remove it.
Fitting
A t t h e f r o n t , c h e c k t h e s i z e o f t h e w i p e r
b l a d e a s t h e s h o r t e r b l a d e i s fi t t e d t o
the passenger side of the vehicle.
Put the corresponding new wiper
blade in place and clip it.
Fold down the wiper arm carefully.
Before removing a front wiper
blade
Within one minute after switching off
the ignition, operate the wiper stalk
to position the wiper blades in the
vertical position.
This position must be used in order to avoid
damaging the wiper blade and the bonnet.
After fitting a front wiper blade
Switch on the ignition.
Operate the wiper stalk again to
park the wiper blades.
Page 162 of 222
i!i
i
1 4 6
PRACTICAL INFORMATION
"Multimedia":
semi-integral navigation systems,
Bluetooth ®
hands free kit, audio sys-
t e m s , s p e a k e r s , D V D p l a y e r , U S B b o x ,
portable navigation systems, mapping
update CD, Hi-Fi module, speed camera
warning, Wi-Fi on board...
Depending on the legislation in
force in the country, it may be com-
pulsory to have a high visibility
safety vest, warning triangle and
spare bulbs and fuses available in
the vehicle. T h e fi t t i n g o f e l e c t r i c a l e q u i p m e n t
or accessories which are not rec-
ommended by CITROËN may
r e s u l t i n a f a i l u r e o f y o u r v e h i c l e ' s
e l e c t r o n i c s y s t e m a n d e x c e s s i v e
electrical consumption.
Please note this precaution. You
are advised to contact a CITROËN
representative to be shown the
r a n g e o f r e c o m m e n d e d e q u i p m e n t
and accessories.
Installation of radio
communication transmitters
Before installing any after-market ra-
dio communication transmitter, you
can contact a CITROËN dealer for
t h e s p e c i fi c a t i o n o f t r a n s m i t t e r s w h i c h
c a n b e fi t t e d ( f r e q u e n c y , m a x i m u m
p o w e r , a e r i a l p o s i t i o n , s p e c i fi c i n s t a l -
l a t i o n r e q u i r e m e n t s ) , i n l i n e w i t h t h e
Vehicle Electromagnetic Compatibility
D i r e c t i v e ( 2 0 0 4 / 1 0 4 / E C ) . By visiting a CITROËN dealer, you
can also obtain cleaning and main-
tenance products (interior and
e x t e r i o r ) , i n c l u d i n g t h e e c o l o g i c a l
products in the "TECHNATURE"
range, products for topping up
( s c r e e n w a s h fl u i d . . . ) , t o u c h - u p
p e n s a n d p a i n t a e r o s o l s t h e e x a c t
colour of your vehicle, recharges
(cartridge for the temporary punc-
t u r e r e p a i r k i t . . . ) .
Page 170 of 222
155
The MyWay is protected in such a way that it will only operate in your vehicle. If it is to be installed in another v e h i c l e , c o n t a c t a C I T R O Ë N d e a l e r f o r c o n fi g u r a t i o n o f operate in your vehicle. If it is to be installed in another operate in your vehicle. If it is to be installed in another
the system.
Certain functions described in this handbook will become available during the year.
MYWAY
For safety reasons, the driver must carry out operations which require prolonged attention while the vehicle is stationary.
When the engine is switched off and to prevent discharging of the battery, the MyWay switches off following the activation of the Energy Economy mode.
MULTIMEDIA AUDIO SYSTEM/BLUETOOTH TELEPHONE
SATELLITE NAVIGATION SYSTEM FOR EUROPE BY SD CARD
01 First steps
CONTENTS
02 Steering mounted controls
03 General operation
04 Navigation - Guidance
05 Traffic information
06 Radio
07 Music media players
08 Bluetooth telephone
09 Configuration
10 Trip computer p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
11 Screen menu map
Frequently asked questions p.
p. 156
157
158
161
169
171
172
175
177
178
179
183
Page 172 of 222
03
158
GENERAL OPERATION
For a detailed global view of the menus available, refer to the " S c r e e n m e n u m a p " s e c t i o n .
P r e s s t h e M O D E b u t t o n s e v e r a l t i m e s i n s u c c e s s i o n f o r a c c e s s t o t h e f o l l o w i n g m e n u s :
F o r c l e a n i n g t h e s c r e e n , t h e u s e o f a s o f t , n o n - a b r a s i v e c l o t h ( s p e c t a c l e s c l o t h ) i s r e c o m m e n d e d , w i t h n o a d d i t i o n a l p r o d u c t .
RADIO/MUSIC MEDIA PLAYERS
TELEPHONE
( I f a c o n v e r s a t i o n i s i n p r o g r e s s )
FULL SCREEN MAP
NAVIGATION
( I f g u i d a n c e i s i n p r o g r e s s )
SETUP:
system language * , date and time * , display, vehicle s e t t i n g s * , u n i t a n d s y s t e m s e t t i n g s , " D e m o m o d e " . TRAFFIC:
TMC information and messages.
* Available according to model.
TRIP COMPUTER
Page 178 of 222
04
4
3
2
1
7
6
5
164
NAVIGATION - GUIDANCE

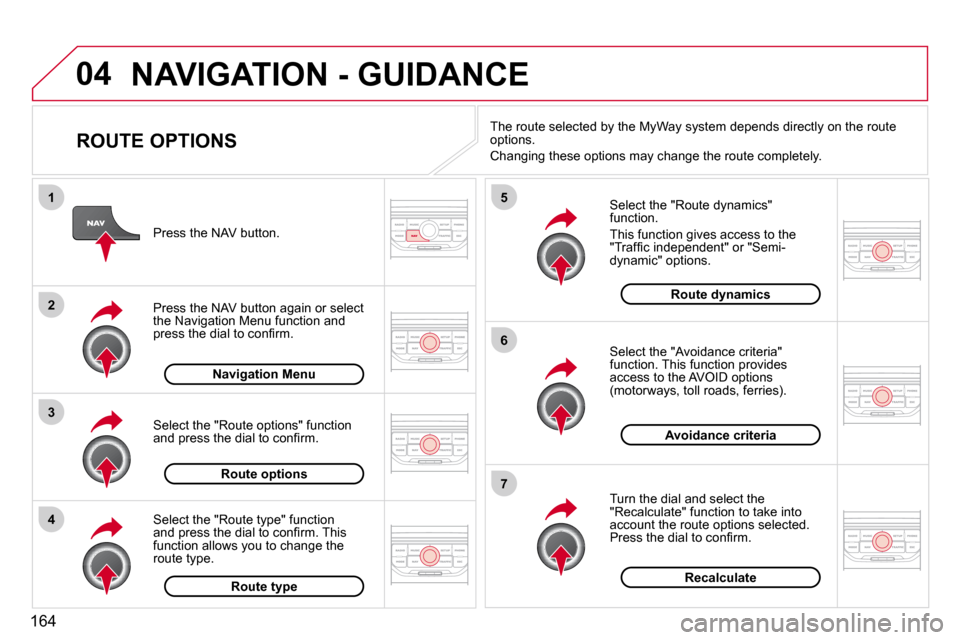

ROUTE OPTIONS
S e l e c t t h e " R o u t e d y n a m i c s " function.
This function gives access to the " T r a f fi c i n d e p e n d e n t " o r " S e m i -dynamic" options.
S e l e c t t h e " A v o i d a n c e c r i t e r i a " function. This function provides a c c e s s t o t h e A V O I D o p t i o n s ( m o t o r w a y s , t o l l r o a d s , f e r r i e s ) .
Turn the dial and select the "Recalculate" function to take into account the route options selected. P r e s s t h e d i a l t o c o n fi r m .
Press the NAV button.
Press the NAV button again or select the Navigation Menu function and p r e s s t h e d i a l t o c o n fi r m .
S e l e c t t h e " R o u t e t y p e " f u n c t i o n a n d p r e s s t h e d i a l t o c o n fi r m . T h i s function allows you to change the route type.
S e l e c t t h e " R o u t e o p t i o n s " f u n c t i o n a n d p r e s s t h e d i a l t o c o n fi r m .
Recalculate
Avoidance criteria
Route dynamics
Route type
Route options
Navigation Menu
The route selected by the MyWay system depends directly on the route options.
Changing these options may change the route completely.
