Page 4 of 244
2
CONTENTS
Instrument panel 22Indicator and warning lamps 23Indicators 31Adjustment buttons 34
Ventilation 45Rear screen demist/defrost 47Heating 47Manual air conditioning 47Dual-zone digital air conditioning 49Scented air freshener 51Front seats 52Rear seats 54Mirrors 56Steering wheel adjustment 57
3 - COMFORT 45 Î 57
Remote control key 58Window controls 62Doors 64Boot 66Panoramic sunroof 67Fuel tank 68Misfuel prevention (Diesel) 70
4 - ACCESS 58 Î 70
Lighting controls 71Headlamp adjustment 74Wiper controls 75Courtesy lamps 78Boot lamp 79
5 - VISIBILITY 71 Î79
Conventional child seats 90ISOFIX child seats 95Child lock 98
7 - CHILD
SAFETY 90 Î98
FAMILIARISATION 4 Î 19
1 - MONITORIN
G22 Î 34
Screens with audio equipment 35Trip computer 42
2 - MULTIFUNCTION
SCREENS 35 Î44
Front fi ttings 80Rear fi ttings 84Boot fi ttings 87
6 - FITTINGS 80 Î89 ECO-DRIVING 20
Î21

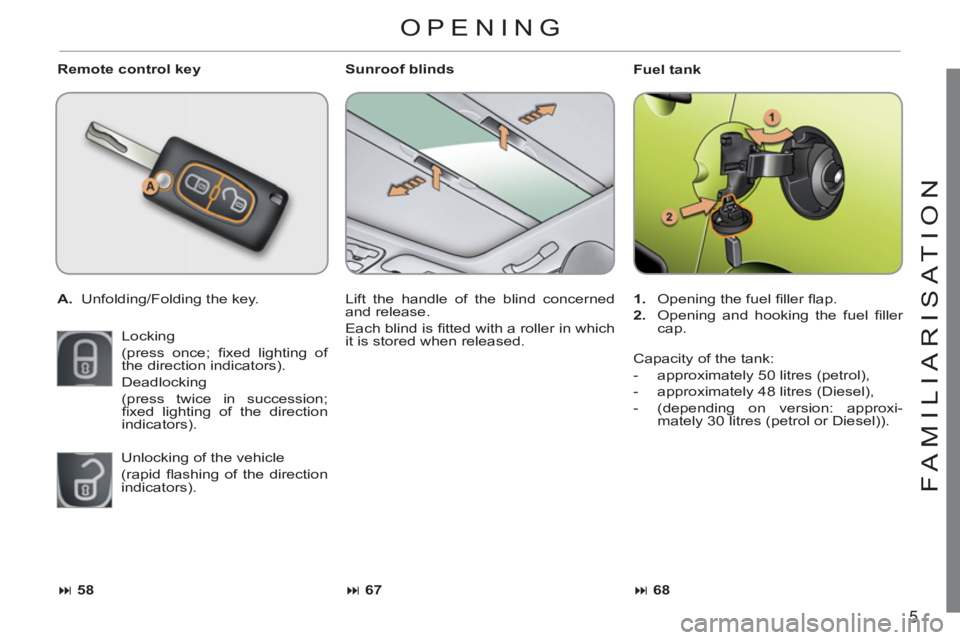

Page 7 of 244
5
FAMILIARI
S
AT I
ON
Remote control key
A.
Unfolding/Folding the key.
Locking
(press once; fi xed lighting of
the direction indicators).
Deadlocking
(press twice in succession;
fi xed lighting of the direction
indicators). Sunroof blinds
Lift the handle of the blind concerned
and release.
Each blind is fi tted with a roller in which
it is stored when released.
Unlocking of the vehicle
(rapid fl ashing of the direction
indicators).
58
67
Fuel tank
68
1.
Opening the fuel fi ller fl ap.
2.
Opening and hooking the fuel fi ller
cap.
OPENING
Capacity of the tank:
- approximately 50 litres (petrol),
- approximately 48 litres (Diesel),
- (depending on version: approxi-
mately 30 litres (petrol or Diesel)).
Page 29 of 244
1
MONITORING
Warning lamps
When the engine is running or the vehicle is
being driven, the illumination of one of the fol-
lowing warning lamps indicates a fault which
requires action on the part of the driver. Any fault resulting in the illumination of a warning lamp must be investigat-
ed further by reading the associated message in the multifunction screen.
If you encounter any problems, do not hesitate to contact a CITROËN dealer
or a qualifi ed workshop.
Warning lamp
is on
Cause
Action/Observations
STOP
fi xed, alone or
associated with
another warning
lamp, accompanied
by an audible signal
and a message on
the screen.
The illumination of this
warning lamp is related
to a serious fault with the
braking system, the power
steering, the engine oil
pressure or the engine
coolant temperature. Stop as soon as it is safe to do so, as the engine
may cut out while driving.
Park, switch off the ignition and call a CITROËN
dealer or a qualifi ed workshop.
Service
temporarily,
accompanied
by an audible
signal and a
message on the
multifunction
screen. A minor fault has occurred
for which there is no
specifi c warning lamp. Identify the fault by reading the message shown
on the screen, such as, for example:
- engine oil level,
- screenwash level,
- remote control battery,
- state of the bulbs,
- saturation of the particle emission fi lter
on Diesel vehicles (see Checks - Particle
Emissions Filter).
For any other faults, contact a CITROËN dealer
or a qualifi ed workshop.
fi xed, accompanied
by an audible signal
and a message on the
multifunction screen.
A major fault has occurred
for which there is no
specifi c warning lamp. Identify the fault by reading the message shown
on the screen and contact a CITROËN dealer or
a qualifi ed workshop.
Braking
fi xed, associated
with the STOP
warning lamp. The braking system fl uid
level is too low. You must stop as soon as it is safe to do so.
Top up with brake fl uid recommended by
CITROËN.
If the problem persists, have the system checked
by a CITROËN dealer or a qualifi ed workshop.
+
fi xed, associated
with the STOP and
ABS warning lamp. The electronic brake force
distribution (EBFD) system
has a fault. You must stop as soon as it is safe to do so.
Have it checked by a CITROËN or a qualifi ed
workshop.
Page 58 of 244
3
COMFORT
The objects observed are, in re-
ality, closer than they appear.
Take this into account in order
to correctly judge the distance
of vehicles approaching from
behind.
MIRRORS
Door mirrors
The mirror glass is electrically adjustable.
A lamp located under the mirror shell
provides lighting for the driver's and
front passenger's entry and exit.
This exterior lighting comes on when the
vehicle is unlocked or a door is opened
and stays on for a timed period.
Folding
)
From outside: lock the vehicle using
the remote control or the key.
)
From inside: with the ignition on, pull
the control A
in the central position
rearwards.
The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
CITROËN dealer or a qualifi ed
workshop.
Never fold or unfold the electric
folding mirrors manually.
Adjustment
Unfolding
)
From outside: unlock the vehicle us-
ing the remote control or the key.
)
From inside: with the ignition on, pull
the control A
in the central position
rearwards. If the mirrors are folded using
control A
, they will not unfold
when the vehicle is unlocked.
Pull again on control A
.
)
Move control A
to the right or to the left
to select the corresponding mirror.
)
Move control B
in all four directions
to adjust.
)
Return control A
to the central posi-
tion.
Page 60 of 244
4
58
ACCESS
REMOTE CONTROL KEY
System which permits central unlock-
ing or locking of the vehicle using the
lock or from a distance. It is also used to
locate and start the vehicle, as well as
providing protection against theft.
Unfolding the key
)
First press this button to unfold the
key.
Unlocking the vehicle
)
Press the open padlock to
unlock the vehicle.
Unlocking using the key
)
Turn the key to the right in the driv-
er’s door lock to unlock the vehicle.
Unlocking is confi rmed by rapid fl ashing
of the direction indicators for approxi-
mately two seconds.
According to version, the door mirrors
unfold at the same time.
Unlocking using the remote control
Locking the vehicle
)
Press the closed padlock
to lock the vehicle.
Locking using the key
)
Turn the key to the left in the driver’s
door lock to lock the vehicle com-
pletely.
Locking is confi rmed by fi xed lighting of
the direction indicators for approximate-
ly two seconds.
According to version, the door mirrors
fold at the same time.
Locking using the remote control
If one of the doors or the boot
is still open, the central locking
does not take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will re-
lock automatically after thirty sec-
onds unless a door or the boot is
open. The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
CITROËN dealer or a qualifi ed
workshop.
Deadlocking using the remotecontrol
)
Press the closed padlock to lock the
vehicle.
)
Press the closed padlock again
within fi ve seconds to deadlock the
vehicle.
Deadlocking using the key
)
Turn the key to the left in the driver’s
door lock to lock the vehicle com-
pletely.
)
Turn the key to the left again within
fi ve seconds to deadlock the vehicle.
Deadlocking is confi rmed by fi xed lighting
of the direction indicators for approximate-
ly two seconds.
According to version, the door mirrors
fold at the same time.
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual central
control button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.

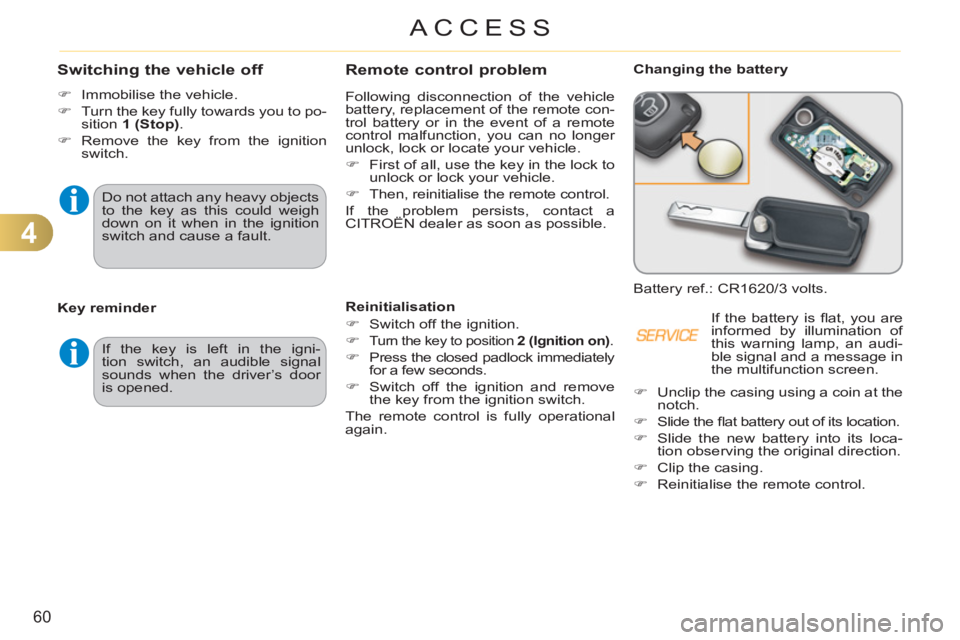

Page 62 of 244
4
60
ACCESS
Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.
)
First of all, use the key in the lock to
unlock or lock your vehicle.
)
Then, reinitialise the remote control.
If the problem persists, contact a
CITROËN dealer as soon as possible.
Changing the battery
Battery ref.: CR1620/3 volts.
Reinitialisation
)
Switch off the ignition.
)
Turn the key to position 2 (Ignition on)
.
)
Press the closed padlock immediately
for a few seconds.
)
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again. If the battery is fl at, you are
informed by illumination of
this warning lamp, an audi-
ble signal and a message in
the multifunction screen.
Key reminder
If the key is left in the igni-
tion switch, an audible signal
sounds when the driver’s door
is opened.
Switching the vehicle off
)
Immobilise the vehicle.
)
Turn the key fully towards you to po-
sition 1 (Stop)
.
)
Remove the key from the ignition
switch.
Do not attach any heavy objects
to the key as this could weigh
down on it when in the ignition
switch and cause a fault.
)
Unclip the casing using a coin at the
notch.
)
Slide the fl at battery out of its location.
)
Slide the new battery into its loca-
tion observing the original direction.
)
Clip the casing.
)
Reinitialise the remote control.
Page 63 of 244
4
61
ACCESS
Lost keys
Visit a CITROËN dealer with the vehicle's registration document, your
personal identifi cation documents and if possible the key code label.
The CITROËN dealer will be able to fi nd the key code and the transponder
code required to order a new key.
Do not throw the remote con-
trol batteries away, they contain
metals which are harmful to the
environment.
Take them to an approved col-
lection point.
Remote control
The high frequency remote control is a sensitive system; do not operate
it while it is in your pocket as there is a possibility that it may unlock the
vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and
the remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition switch,
even when the ignition is switched off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart-
ment by the emergency services more diffi cult in an emergency.
As a safety precaution (with children on board), remove the key from the
ignition switch when you leave the vehicle, even for a short time.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobiliser system;
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the pairing of all of the keys in your possession checked by a
CITROËN dealer, to ensure that only your keys can be used to open and
start the vehicle.
Page 66 of 244
4
64
ACCESS
DOORS
)
After unlocking the vehicle using the
remote control or the key, pull the
door handle.
From inside
)
Pull the front door control to open
the door; this unlocks the vehicle
completely.
)
Pull the rear door control to open
the door; this unlocks only the door
opened.
Closing
When a door is not closed correctly:
- when the engine is running
,
this warning lamp comes on,
accompanied by a message
in the multifunction screen for
a few seconds,
- when the vehicle is moving
(speed
higher than 6 mph (10 km/h)), this
warning lamp comes on, accom-
panied by an audible signal and a
message in the multifunction screen
for a few seconds.
Opening
From outside
Page 67 of 244
4
65
ACCESS
If the vehicle is locked from the
outside, the red indicator lamp
fl ashes and button A
is inactive.
)
In this case, use the remote
control or the key to unlock
the vehicle.
If one of the doors is open, the
automatic central locking does
not take place.
If the boot is open, the automatic
central locking of the doors is
active. Manual centralised control
System which provides full manual
locking or unlocking of the doors from
the inside.
Locking
)
Press button A
to lock the vehicle.
The red indicator lamp on the button
comes on.
Automatic centralised control
System which provides full automatic
locking or unlocking of the doors and
the boot while driving.
You can activate or deactivate this
function.
Activation
)
Press button A
for more than
two seconds.
A confi rmation message appears on the
multifunction screen, accompanied by
an audible signal.
Unlocking
)
Above 6 mph (10 km/h), press but-
ton A
to unlock the doors and the
boot temporarily.
If one of the doors is open, cen-
tral locking from the inside does
not take place.
Unlocking
)
Press button A
again to unlock the
vehicle.
The red indicator lamp on the button
switches off.
Locking
When the speed exceeds 6 mph
(10 km/h), the doors and the boot lock
automatically.
Deactivation
)
Press button A
again for more than
two seconds.
A confi rmation message appears on the
multifunction screen, accompanied by
an audible signal.
Page 68 of 244
4
66
ACCESS
Emergency control
System which locks or unlocks the
doors mechanically in the event of a
malfunction of the battery or of the cen-
tral locking.
)
Insert the key in the lock, located
on the edge of the door, then turn it
one eighth of a turn
.
Opening
)
After unlocking the vehicle using the
remote control or the key, pull the
handle and raise the tailgate.
BOOT
- when the engine is running
,
this warning lamp comes on,
accompanied by a message
on the multifunction screen for
a few seconds,
- when the vehicle is moving
(speed
above 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied
by an audible signal and a message
on the multifunction screen for a
few seconds.
Tailgate release
System for mechanical unlocking of the
boot in the event of a battery or central
locking malfunction.
Unlocking
)
Fold back the rear benchseat to
gain access to the lock from inside
the boot.
)
Insert a small screwdriver into hole A
of the lock to unlock the tailgate.
Locking the driver’s door
)
Insert the key in the lock, then turn it
to the left.
Unlocking the driver’s door
)
Insert the key in the lock, then turn it
to the right.
Locking the front and rear
passenger doors
Unlocking the front and rear
passenger doors
)
Pull the interior door opening control.
Closing
)
Lower the tailgate using the interior
grab handle. If the tailgate is not closed correctly:
In the event of a failure with
the central locking system, you
should disconnect the battery to
lock the boot and so ensure the
complete locking of the vehicle.
