3
CONTENTS
Direction indicators 99Hazard warning lamps 99Horn 99Emergency or assistance call 100Braking assistance systems 100Trajectory control systems 101Front seat belts 102Airbags 106
8 - SAFETY 99 Î 109
Parking brake 1106-speed manual gearbox 110Gear effi ciency indicator 1116-speed electronic gearbox system 112Hill start assist 115Stop & Start 116Speed limiter 119Cruise control 121Rear parking sensors 123
9 - DRIVING 110 Î 124
Bonnet 126Running out of fuel (Diesel) 126Petrol engines 128Diesel engines 129Checking levels 130Checks 131
10 - CHECKS125 Î132
Temporary puncture repair kit 133Changing a wheel 138Changing a bulb 142Changing a fuse 148Battery 155Energy economy mode 157Changing a wiper blade 157Towing the vehicle 158Towing a trailer 160Fitting roof bars 161Accessories 162
11 - PRACTICAL
INFORMATION 133 Î163
Petrol engines 164Petrol weights 165LPG engines 166LPG weights 167Diesel engines 168Diesel weights 169Dimensions 170Identifi cation markings 171
12 - TECHNICAL DATA164AÎ171
AUDIOandTELEMATICS172Î 228
ALPHABETICAL INDEX 229 Î 232
Emergency or assistance 173MyWay 175Audio system 207

9
FAMILIARI
S
AT I
ON


1.
Steering wheel adjustment control.

2.
Cruise control/speed limiter
switches.

3.
Lighting and direction indicator
control stalk.

4.
Central adjustable air vents.

5.
Storage tray.
Scented air freshener.

6.
Sunshine sensor.

7.
Passenger’s airbag.

8.
Side adjustable air vent.

9.
Glove box.
Fusebox.

10.
Bonnet release.

11 .
Dynamic stability control
(ESP/ASR) switch.
Parking sensors switch.
Central locking switch.
Hazard warning lamps switch.
Electric child lock switch.
Stop & Start switch.

12.
Heating/air conditioning controls.

13.
Audio system.

14.
Emergency or assistance call.

15.
12 V socket (100 W max).

16.
USB port/auxiliary socket.

17.
Cup holder.

18.
Parking brake.



INSTRUMENTS AND CONTROLS

3
COMFORT
As a safety precaution, do not
carry out any action on the car-
tridge while driving.
Do not dismantle the cartridges.
Do not attempt to refi ll the fra-
grance diffuser or the cartridges.
Avoid all contact with the skin
and eyes.
Keep out of reach of children
and animals.
Leave the central vents open.
The intensity of diffusion of the fra-
grance may depend on the ventila-
tion or air conditioning settings.
SCENTED AIR FRESHENER

System permitting the diffusion of a fra-
grance in the passenger compartment
in accordance with your requirements,
by means of the adjustment dial and the
various fragrance cartridges available.

Fitting the cartridge


)
Remove the cartridge from the sealing
case.

)
Install the cartridge (fl ower at top
right).

)
Press the dial and turn it a quarter of
a turn clockwise.



This dial is located on the dashboard or
in the upper glove box.
It allows you to adjust the intensity of
diffusion of the fragrance.


)
Turn the dial to the right to permit
diffusion of the fragrance.

)
Turn the dial to the left to stop diffu-
sion of the fragrance.
Fragrance cartridge

This cartridge can be removed easily.
You can change it at any time and store
it in the sealed case which keeps it
closed once it has been opened.
You can obtain different fragrance car-
tridges from a CITROËN dealer or a
qualifi ed workshop.
Removing the cartridge


)
Press the dial and turn it a quarter of
a turn anti-clockwise.

)
Remove the cartridge.

)
Refi t its sealing case.

Do not discard the original car-
tridge as this serves as a plug
when no fragrance cartridge is
in use.
In order to preserve the service
life of the cartridge, turn the dial
to the left when you no longer
wish to diffuse the fragrance in
the passenger compartment.

6
FITTINGS
FRONT INTERIOR FITTINGS



1.
Sun visor.

2.
Child surveillance mirror.

3.
Grab handle with coat hook.

4.
Upper storage box.
Scented air freshener adjustment.

5.
Storage compartments.

6.
Glove box.
Fusebox.

7.
Storage pockets.

8.
Ticket holder.

9.
12 volt socket (100 W max).

10.
USB port/auxiliary socket.

11 .
Cup holder.

6
81
FITTINGS
CHILD SURVEILLANCE MIRRORSUN VISOR
Component which protects against sun-
light from the front or the side.
The sun visors are fi tted with a courtesy
mirror with concealing fl ap and a ticket
holder.
GLOVE BOX
This permits access to the fuse box.


)
To open the glove box, pull the han-
dle towards you.
A child surveillance mirror is installed
above the interior rear view mirror. This
allows you to monitor the vehicle’s rear
passengers, or it can facilitate conver-
sation between the front and rear pas-
sengers without the need to move the
rear view mirror. It can be folded away
to eliminate dazzle.

10
CHECKS
PETROL ENGINES


1.
Screenwash fl uid reservoir.

2.
Coolant header tank.

3.
Air fi lter.
4.
Brake fl uid reservoir.

5.
Battery.

6.
Fusebox.
7.
Engine oil dipstick.

8.
Engine oil fi ller cap.

10
CHECKS
DIESEL ENGINES


1.
Screenwash fl uid reservoir.

2.
Coolant header tank.

3.
Air fi lter.
4.
Brake fl uid reservoir.

5.
Battery.

6.
Fusebox.
7.
Engine oil dipstick.

8.
Engine oil fi ller cap.

9.
Priming pump (on fuel fi lter).

11
PRACTICAL INFORMATION
CITROËN will not accept respon-
sibility for the cost incurred in
repairing your vehicle or for recti-
fying malfunctions resulting from
the installation of accessories not
supplied and not recommended
by CITROËN and not installed in
accordance with its instructions,
in particular when the combined
consumption of all of the addition-
al equipment connected exceeds
10 milliamperes.

Installing electrical
accessories
Your vehicle’s electrical sys-
tem is designed to operate with
standard or optional equipment.
Before installing other elec-
trical equipment or accesso-
ries on your vehicle, contact a
CITROËN dealer or a qualifi ed
workshop.

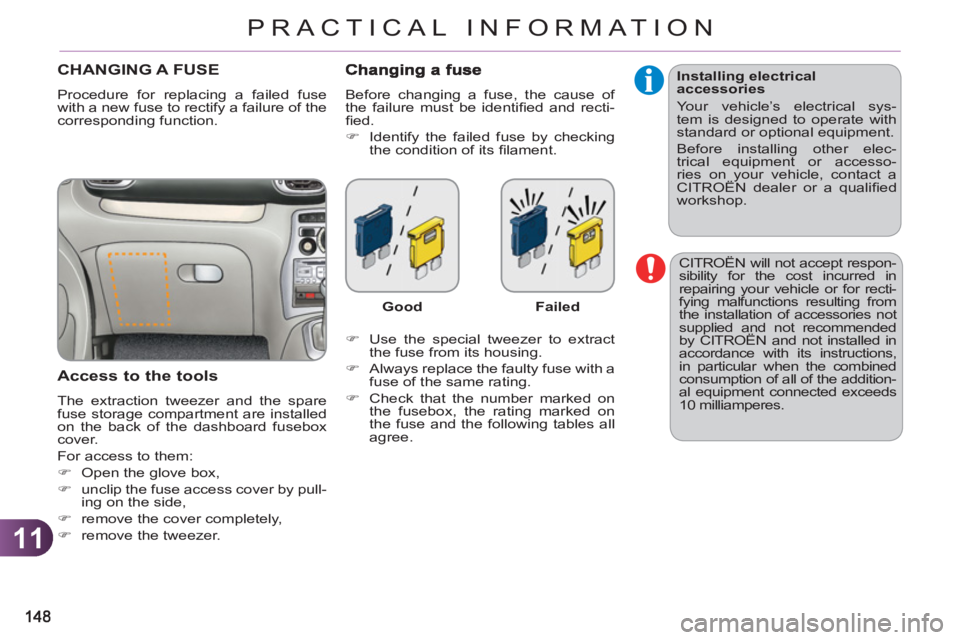

CHANGING A FUSE
Procedure for replacing a failed fuse
with a new fuse to rectify a failure of the
corresponding function.

Access to the tools

The extraction tweezer and the spare
fuse storage compartment are installed
on the back of the dashboard fusebox
cover.
For access to them:


)
Open the glove box,

)
unclip the fuse access cover by pull-
ing on the side,

)
remove the cover completely,

)
remove the tweezer.


Before changing a fuse, the cause of
the failure must be identifi ed and recti-
fi ed.


)
Identify the failed fuse by checking
the condition of its fi lament.


)
Use the special tweezer to extract
the fuse from its housing.

)
Always replace the faulty fuse with a
fuse of the same rating.

)
Check that the number marked on
the fusebox, the rating marked on
the fuse and the following tables all
agree.
Good

Failed

11
149
PRACTICAL INFORMATION

Dashboard fuses

The fusebox is located in the glove box.

Access to the fuses


)
refer to the paragraph "Access to
the tools".

Fuse tables


Fuse N°



Rating


Functions



FH36



5 A

Trailer relay unit.


FH37



15 A

Trailer accessories socket supply.


FH38



20 A

Navigation.


FH39



-

Not used.


FH40



30 A

Trailer relay unit.


Fuse N°



Rating


Functions



F1



15 A

Rear wiper.


F2



-

Not used.


F3



5 A

Airbags and pretensioners control unit.


F4



10 A

Steering wheel angle sensor, air conditioning,
clutch switch, particle fi lter pump, diagnostic
socket, airfl ow meter.


F5



30 A

Electric windows panel, passenger’s electric
window control, front electric windows motor.


F6



30 A

Rear electric windows motor and driver’s electric
window motor.


F7



5 A

Courtesy and front map reading lamps, torch, rear
reading lamps.

11
150
PRACTICAL INFORMATION

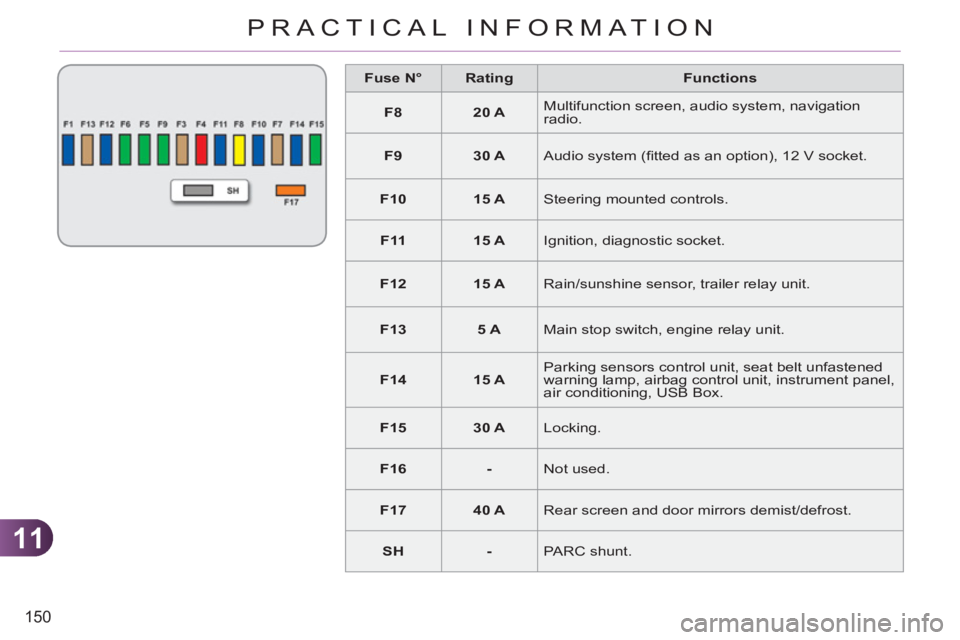

Fuse N°



Rating


Functions



F8



20 A

Multifunction screen, audio system, navigation
radio.


F9



30 A

Audio system (fi tted as an option), 12 V socket.


F10



15 A

Steering mounted controls.


F11



15 A

Ignition, diagnostic socket.


F12



15 A

Rain/sunshine sensor, trailer relay unit.


F13



5 A

Main stop switch, engine relay unit.


F14



15 A

Parking sensors control unit, seat belt unfastened
warning lamp, airbag control unit, instrument panel,
air conditioning, USB Box.


F15



30 A

Locking.


F16



-

Not used.


F17



40 A

Rear screen and door mirrors demist/defrost.


SH



-

PARC shunt.
