1
22
MONITORING

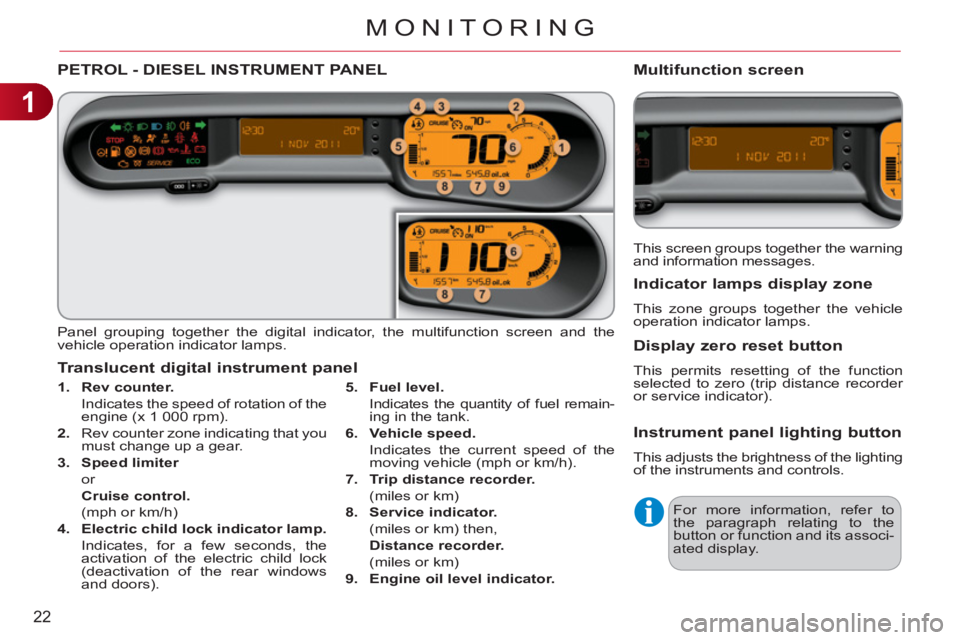

PETROL - DIESEL INSTRUMENT PANEL
Panel grouping together the digital indicator, the multifunction screen and the
vehicle operation indicator lamps.


1.
Rev counter.


Indicates the speed of rotation of the
engine (x 1 000 rpm).

2.
Rev counter zone indicating that you
must change up a gear.

3.
Speed limiter


or
Cruise control.


(mph or km/h)

4.
Electric child lock indicator lamp.


Indicates, for a few seconds, the
activation of the electric child lock
(deactivation of the rear windows
and doors).

Translucent digital instrument panel

This screen groups together the warning
and information messages.


Multifunction screen

Indicator lamps displa
y zone

This zone groups together the vehicle
operation indicator lamps.


Display zero reset button

This permits resetting of the function
selected to zero (trip distance recorder
or service indicator).


Instrument panel lighting button

This adjusts the brightness of the lighting
of the instruments and controls.
For more information, refer to
the paragraph relating to the
button or function and its associ-
ated display.
5.
Fuel level.


Indicates the quantity of fuel remain-
ing in the tank.

6.
Vehicle speed.


Indicates the current speed of the
moving vehicle (mph or km/h).

7.
Trip distance recorder.


(miles or km)

8.
Service indicator.


(miles or km) then,
Distance recorder.


(miles or km)

9.
Engine oil level indicator.

1
MONITORING

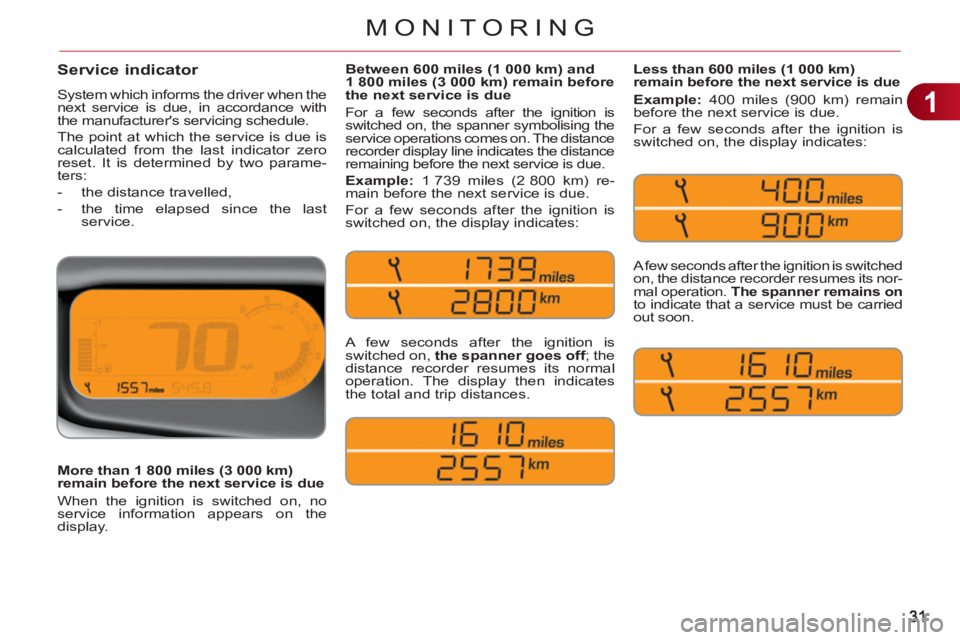

Service indicator
System which informs the driver when the
next service is due, in accordance with
the manufacturer's servicing schedule.
The point at which the service is due is
calculated from the last indicator zero
reset. It is determined by two parame-
ters:


- the distance travelled,

- the time elapsed since the last
service.
A few seconds after the ignition is
switched on, the spanner goes off
; the
distance recorder resumes its normal
operation. The display then indicates
the total and trip distances.
Less than 600 miles (1 000 km)
remain before the next service is due

Example:
400 miles (900 km) remain
before the next service is due.
For a few seconds after the ignition is
switched on, the display indicates:
A few seconds after the ignition is switched
on, the distance recorder resumes its nor-
mal operation. The spanner remains on

to indicate that a service must be carried
out soon.
Between 600 miles (1 000 km) and
1 800 miles (3 000 km) remain before
the next service is due
For a few seconds after the ignition is
switched on, the spanner symbolising the
service operations comes on. The distance
recorder display line indicates the distance
remaining before the next service is due.

Example:
1 739 miles (2 800 km) re-
main before the next service is due.
For a few seconds after the ignition is
switched on, the display indicates:

More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no
service information appears on the
display.

1
MONITORING
Following this operation, if you
wish to disconnect the battery,
lock the vehicle and wait at least
fi ve minutes for the zero reset to
be taken into account.

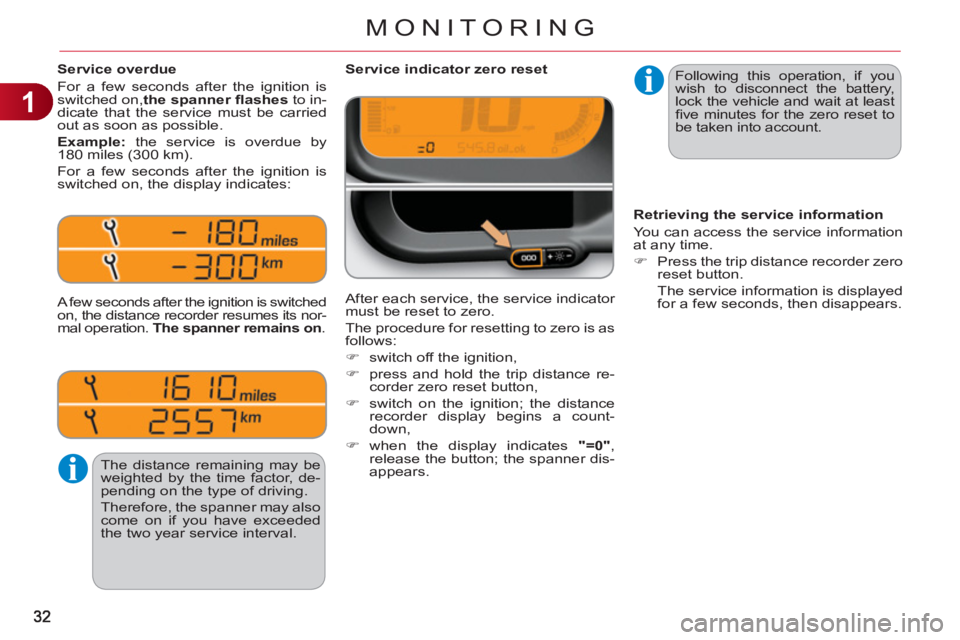

Service indicator zero reset
After each service, the service indicator
must be reset to zero.
The procedure for resetting to zero is as
follows:


)
switch off the ignition,

)
press and hold the trip distance re-
corder zero reset button,

)
switch on the ignition; the distance
recorder display begins a count-
down,

)
when the display indicates "=0"
,
release the button; the spanner dis-
appears. The distance remaining may be
weighted by the time factor, de-
pending on the type of driving.
Therefore, the spanner may also
come on if you have exceeded
the two year service interval.

Service overdue
For a few seconds after the ignition is
switched on, the spanner fl ashes
to in-
dicate that the service must be carried
out as soon as possible.

Example:
the service is overdue by
180 miles (300 km).
For a few seconds after the ignition is
switched on, the display indicates:
A few seconds after the ignition is switched
on, the distance recorder resumes its nor-
mal operation. The spanner remains on
.
Retrieving the service information
You can access the service information
at any time.


)
Press the trip distance recorder zero
reset button.
The service information is displayed
for a few seconds, then disappears.

1
33
MONITORING
The level shown will only be
correct if the vehicle is on level
ground and the engine has been
off for more than 30 minutes.
Engine oil level indicator
System which informs the driver wheth-
er the engine oil level is correct or not.
This information is indicated for a
few seconds when the ignition is switched
on, after the service information.
Oil level correct

Oil level low
Oil level indicator fault

Dipstick
This is indicated by the fl ashing of
"OIL"
, linked with the service warning
lamp, accompanied by an audible sig-
nal and a message in the multifunction
screen.
If the low oil level is confi rmed by a
check using the dipstick, the level must
be topped up to prevent damage to the
engine. This is indicated by the fl ashing of
"OIL--"
. Contact a CITROËN dealer or
a qualifi ed workshop.
Refer to the "Checks" section to locate
the dipstick and the oil fi ller cap on your
engine.
There are 2 marks on the
dipstick:


- A
= max; never exceed
this level (risk of damage
to the engine),

- B
= min; top up the level
via the oil fi ller cap, using
the grade of oil suited to
your engine.

9
124
DRIVING

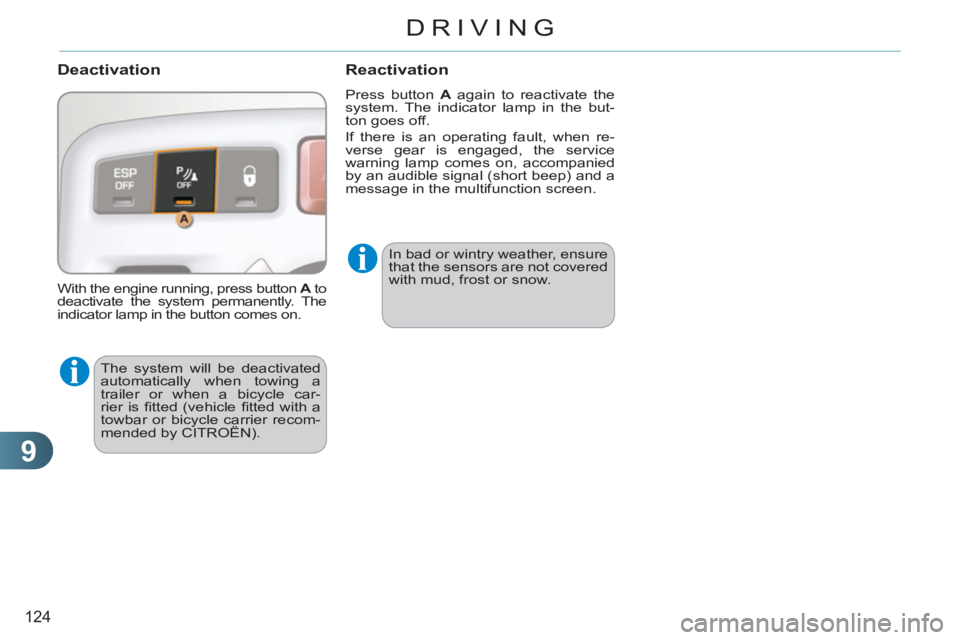

Deactivation

The system will be deactivated
automatically when towing a
trailer or when a bicycle car-
rier is fi tted (vehicle fi tted with a
towbar or bicycle carrier recom-
mended by CITROËN).
Reactivation

Press button A
again to reactivate the
system. The indicator lamp in the but-
ton goes off.
If there is an operating fault, when re-
verse gear is engaged, the service
warning lamp comes on, accompanied
by an audible signal (short beep) and a
message in the multifunction screen.
With the engine running, press button A
to
deactivate the system permanently. The
indicator lamp in the button comes on. In bad or wintry weather, ensure
that the sensors are not covered
with mud, frost or snow.

10
130
CHECKS
CHECKING LEVELS
Brake fluid level

Oil level
The reading will only be correct if the
vehicle is on level ground and the
engine has been off for more than
30 minutes.
The check is carried out either when the ignition
is switched on using the oil level indicator in the
instrument panel, or using the dipstick.
The brake fl uid level should be
close to the "MAX" mark. If it is
not, check the brake pad wear.

Changing the fl uid
Refer to the servicing booklet for details
of the interval for this operation.
Coolant level

The coolant level should be
close to the "MAX" mark but
should never exceed it.
When the engine is warm, the
temperature of the coolant is regulated
by the fan. This can operate with the
ignition off.

On vehicles which are fi tted with a par-
ticle emission fi lter, the fan may operate
after the vehicle has been switched off,
even if the engine is cold.
Fluid specifi cation
For optimum cleaning and to avoid
freezing, this fl uid must not be topped
up or replaced with plain water.


Engine oil change
Refer to the servicing booklet for details
of the interval for this operation.
In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited.
Oil grade
The oil must be suitable for your engine
and conform to the manufacturer's
recommendations.


Fluid specifi cation
The brake fl uid must conform to the
manufacturer's recommendations and
meet the DOT4 standard.

Fluid specifi cation
The coolant must conform to the manu-
facturer's recommendations.

Changing the coolant

The coolant does not have to be changed.


Screenwash fluid level

Check all of these levels regularly and
top them up if necessary, unless other-
wise indicated.
If a level drops signifi cantly, have the
corresponding system checked by a
CITROËN dealer or a qualifi ed work-
shop. In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work.
To avoid any risk of scalding, unscrew
the cap by two turns to allow the pres-
sure to drop. When the pressure has
dropped, remove the cap and top up
the level.
Top up the level when necessary.
Take care when carrying out
checks under the bonnet as
some parts of the engine can be
very hot (risk of burns).


It is normal to top up the engine oil
between services. CITROËN rec-
ommends that you check the oil
level and top up if necessary, every
3 000 miles (5 000 kilometres).

231
ALPHABETICAL INDEX
P Paint colour code .......................171
Panoramic glass sunroof ..............67
Parking brake ..................... 110, 132
Parking sensors, rear .................123
Particle emission fi lter ........131, 132
Passenger compartment
fi lter ..........................................131
Player, CD MP3 ..................193, 213
Port, USB .....................80, 214, 216
Priming the fuel system ..............127
Protecting
children ................. 90-98, 105, 107
Puncture .....................................133
R Radio .................................. 191, 211
Reading lamps, rear .....................78
Rear foglamp ..............................145
Rear parcel shelf ....................87, 89
Rear screen (demisting) ...............47
Recharging the battery ...............156
Reduction of electrical load ........156
Reinitialising the electric
windows .....................................63
Reinitialising the remote
control ........................................60
Remote control .......................58, 61
Removing a wheel ......................140
Removing the mat ........................83
Repair kit, puncture ....................133
Replacing bulbs ..........................142
Replacing fuses ..........................148
Replacing the air fi lter ................131
Replacing the oil fi lter .................131
Replacing the particle
emission fi lter ...........................132R Replacing the passenger
compartment fi lter ....................131
Replacing wiper blades ........77, 157
Resetting the service indicator .....32
Resetting the trip recorder ............34
Rev counter ..................................22
Reversing lamp ..........................145
Risk areas (update) ....................188
Roof bars ....................................161
Roof blind .....................................67
Routine checks ...................131, 132
Running out of fuel (Diesel) ........127
S Safety for children .... 90-98, 105, 107
Scented air freshener ...................51
Screen, colour 16/9 ............178, 199
Screen,
monochrome ............210, 222, 224
Screen, multifunction (with audio
equipment) .....................35, 37, 39
Screen-wash reservoir ...............130
Screen menu map ......199, 222, 224
Screenwash .................................76
Screenwash fl uid level ...............130
Seat, rear bench ...........................54
Seat adjustment .....................52, 54
Seat back storage pockets ...........84
Seat belts ............................102-105
Serial number, vehicle ................171
Service indicator ...........................31
Servicing ......................................20
Setting the clock ...36, 198, 220, 221
Short-cut menus .................179, 180
Sidelamps ....................71, 143, 145
Side repeater ..............................143 L Localised emergency call ...........174
Locating your vehicle ...................59
Locking from the inside ................65
Long objects, transporting ............86
Low fuel level ...............................68
M Main beam ...........................71, 143
Maintenance .................................20
Map reading lamps ...............78, 147
Markings, identifi cation ...............171
Mat ...............................................83
Menu, main ................................210
Mirror, rear view ...........................57
Mirrors, door .................................56
Misfuel prevention ........................70
Motorway function
(direction indicators) ...................99
Mountings
for ISOFIX seats .........................95
MP3 CD ..............................193, 213
Music media players ..........192, 213
MyWay ................................175-206
N Navigation ..................................181
Number plate lamps ...................145
O Oil fi lter .......................................131
Oil level ................................33, 130
Opening the bonnet ....................126
Opening the boot ....................58, 66
Opening the doors ..................58, 64
Opening the fuel fi ller fl ap ............68
Operation indicator lamps .......23-30
