headlamp Citroen C3 PICASSO 2014 1.G User Guide

73
C3Picasso_en_Chap05_visibilite_ed01-2014
Linked with the Guide-me-home
lighting
Association with the automatic illumination
of headlamps provides the guide-me-home
lighting with the following additional options:
-
a
utomatic activation of guide-me-home
lighting when automatic illumination of
headlamps is switched on (in the vehicle
parameters of the multifunction screen
configuration menu),
-

s
election of the duration of maintaining of
the lighting for 15, 30 or 60 seconds in the
vehicle parameters of the multifunction
screen configuration menu (except for
monochrome screen A where this is
preset).
Operating fault
In the event of a malfunction of the
sunshine sensor, the lamps come
on, this warning lamp is displayed
in the instrument panel and/or a message appears
in the multifunction screen, accompanied by an
audible signal.
Contact a CITROËN dealer or a qualified workshop.
In fog or snow, the sunshine
sensor may detect sufficient light.
Therefore, the lamps will not come on
automatically.
do n

ot cover the sunshine sensor,
linked with the rain sensor and located
in the centre of the windscreen behind
the rear view mirror; the associated
functions would no longer be controlled.
Automatic illumination of
headlamps
The sidelamps and dipped beam headlamps are
switched on automatically, without any action on the part
of the driver, when a low level of external light is detected
or in certain cases of activation of the windscreen wipers.
as s

oon as the brightness returns to a sufficient level or
after the windscreen wipers are switched off, the lamps
are switched off automatically.
Activation
F Turn ring A to the "AUTO" position. The automatic
illumination of headlamps is accompanied by a
message in the multifunction screen.
Deactivation
F Turn ring A to a position other than "AUTO" .
de activation is accompanied by a
message in the multifunction screen.
5
Visibility

74
C3Picasso_en_Chap05_visibilite_ed01-2014
LEd lamps
on starting the vehicle, in daylight the LEd
lamps come on automatically, if the lighting
stalk is in position "0" or "AUTO".
If the sidelamps and headlamps are switched
on manually or automatically, the LE
d

lamps
switch off.
Programming
For countries where exterior lighting by day is
not a legal requirement, you can activate or
deactivate the function via the multifunction
screen configuration menu. In countries where daytime lamps
are a legal requirement:
-
t his function is activated by default;
it cannot be deactivated,
-

i
n daylight, the sidelamps and
number plate lamps also come on,
-

I
f the sidelamps or headlamps
are switched on manually or
automatically, the LE
d

lamps
switch off.
In these countries, for versions
not fitted with LED lamps, it is the
dipped beam headlamps that come
on automatically on starting the
vehicle .
Allowing the signature of the vehicle to be identified, this daytime external lighting comprises two sets of six light emitting diodes(LEDs), located below
each front lamp unit.
Visibility

76
C3Picasso_en_Chap05_visibilite_ed01-2014
Headlamp
adjustment
To avoid causing a nuisance to other road
users, the height of the halogen headlamps
should be adjusted according the load in the
vehicle.
0.
1 o
r 2 people in the front seats.
-.
L

ess than 5 people.
1.
5

people.
-.
5 p

eople + maximum authorised load.
2 - 3.

D
river + maximum authorised load.
The initial setting is position "0" .
Travelling abroad
If using your vehicle in a country that
drives on the other side of the road, the
headlamps must be adjusted to avoid
dazzling on-coming drivers.
Contact a CITR
oËn

dealer or a
qualified workshop.
Visibility

163
C3Picasso_en_Chap11_informations-pratiques_ed01-2014
Changing a bulbProcedure for replacing a faulty bulb with a new bulb.1.
D
irection indicators (H21W amber).
2.
D

ipped beam headlamps (H7-55W).
3.
M

ain beam headlamps (H1-55W).
4.
S

idelamps (W5W).
5.
F

oglamps (PSX24W).
6.
L

ED daytime running lamps.
Front lampsThe headlamps are fitted with
polycarbonate glass with a protective
coating:
F
d
o not clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F

u
se a sponge and soapy water or a
pH neutral product,
F

w
hen using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals. Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F

D
o not touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-
ultraviolet (UV) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.
11
Practical information

164
C3Picasso_en_Chap11_informations-pratiques_ed01-2014
Changing direction indicator
bulbs
F Remove the plastic protective cover.
F P ull the bulb-holder and replace the bulb.
To refit, carry out these operations in reverse
o r d e r.
Changing dipped headlamp
bulbs
F Remove the protective plastic cover by pulling on the tab.
F

T
urn the bulb-holder by a quarter turn.
F

R
emove the bulb and change it.
To refit, carry out these operations in reverse
o r d e r.
If either of the direction indicator
warning lamps is flashing quickly, one
of the bulbs is faulty.
When refitting, close the plastic cover
carefully to ensure the sealing of the
headlamp.am
ber coloured bulbs, such as the
direction indicators, must be replaced
with bulbs of identical specifications
and colour.
Practical information

165
C3Picasso_en_Chap11_informations-pratiques_ed01-2014
Changing main beam headlamp bulbs
F Remove the protective plastic cover by pulling on the tab.
F
d
i
sconnect the bulb connector.
F

M
ove the springs to release the bulb.
F

R
emove the bulb and change it.
To refit, carry out these operations in reverse
o r d e r.
Changing sidelamp bulbs
F Remove the protective plastic cover by pulling on the tab.
F

P
ull the bulb-holder.
F

R
emove the bulb and replace it.
To refit, carry out these operations in reverse
o r d e r.
11
Practical information

177
C3Picasso_en_Chap11_informations-pratiques_ed01-2014

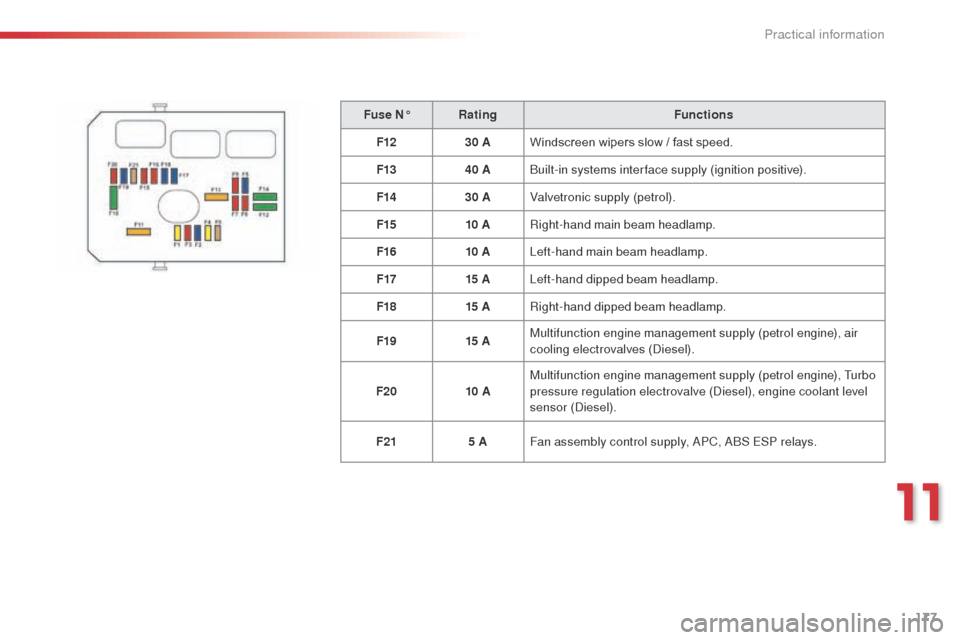

Fuse N°Rating Functions
F12 30 AWindscreen wipers slow / fast speed.
F13 40 A
bu

ilt-in systems inter face supply (ignition positive).
F14 30 AValvetronic supply (petrol).
F15 10 ARight-hand main beam headlamp.
F16 10 ALeft-hand main beam headlamp.
F17 15 ALeft-hand dipped beam headlamp.
F18 15 ARight-hand dipped beam headlamp.
F19 15 AMultifunction engine management supply (petrol engine), air
cooling electrovalves (
die

sel).
F20 10 AMultifunction engine management supply (petrol engine), Turbo
pressure regulation electrovalve (
di

esel), engine coolant level
sensor (
di

esel).
F21 5 AFan assembly control supply,
a
P
C, ab
S E
SP relays.
11
Practical information

182
C3Picasso_en_Chap11_informations-pratiques_ed01-2014
Load reduction mode
System which manages the use of certain
functions according to the level of charge
remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air conditioning,
the heated rear screen...
The deactivated functions are reactivated
automatically as soon as conditions permit.
Energy economy mode
Exiting economy mode
These functions are reactivated automatically
the next time the vehicle is driven.
F
I
n order to resume the use of these
functions immediately, start the engine and
let it run for a few minutes.
The time available to you will then be double
the period for which the engine is left running.
However, this period will always be between
five and thirty minutes.
Switching to economy mode
once this period has elapsed, a message
appears on the multifunction screen indicating
that the vehicle has switched to economy mode
and the active functions are put on standby.
a

flat battery prevents the engine from
starting (refer to the corresponding
paragraph).
If the telephone is being used at the
same time on the eMyWay audio
navigation system, it will be interrupted
after 10 minutes.
System which manages the period of use of certain functions to conserve a sufficient level of
charge in the battery.
After the engine has stopped, you can still use functions such as the audio equipment,
windscreen
wipers, dipped beam headlamps, courtesy lamps, etc. for a maximum combined period of
thirty

minutes.
This period may be greatly reduced if the battery is not fully charged.
Practical information

10
243
C3Picasso_en_Chap13b_RT6-2-8_ed01-2014
CONFIGURATION
Press SETUP to display the
"Configuration" menu. Select "Choose colour" and confirm to
select the screen colour harmony and
the map presentation mode:
-
day mode,
- night mode,
-

automatic day/night mode,
according to whether the
headlamps are on.
Select "

Adjust luminosity" and confirm
to adjust the screen brightness.
Press "OK" to save the changes.
The settings for day and night are
independent.
Select "Display configuration
" and
confirm.
Display configuration

276
