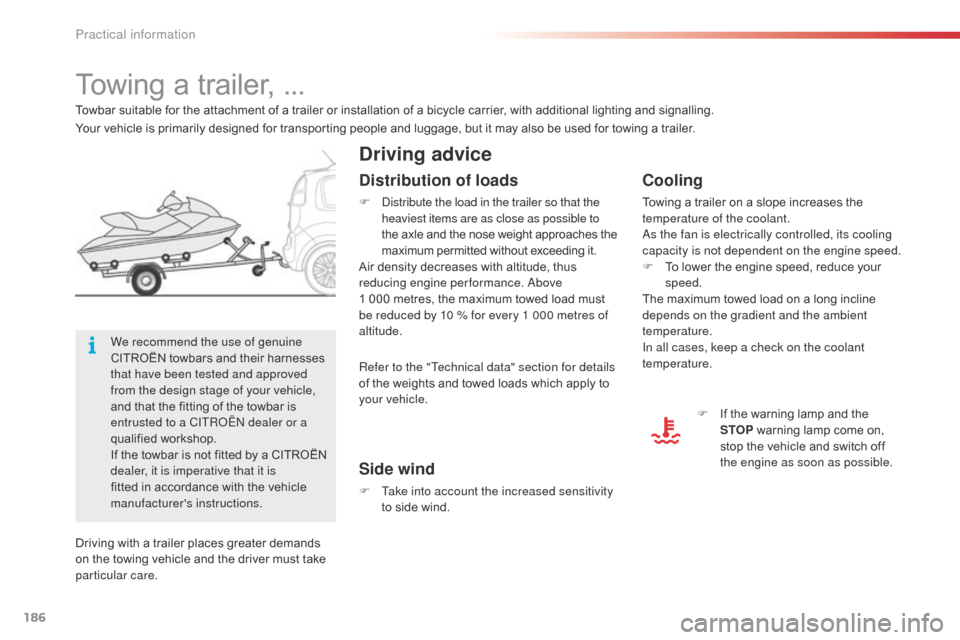

Towing a trailer, ...
Driving advice
Cooling
Towing a trailer on a slope increases the
temperature of the coolant.
as t
he fan is electrically controlled, its cooling
capacity is not dependent on the engine speed.
F

T
o lower the engine speed, reduce your
speed.
The maximum towed load on a long incline
depends on the gradient and the ambient
temperature.
In all cases, keep a check on the coolant
temperature.
Side wind
F Take into account the increased sensitivity to side wind. F

I
f the warning lamp and the
STOP warning lamp come on,
stop the vehicle and switch off
the engine as soon as possible.
Towbar suitable for the attachment of a trailer or installation of a bicycle carrier, with additional lighting and signalling.
Distribution of loads
F distribute the load in the trailer so that the
heaviest items are as close as possible to
the axle and the nose weight approaches the
maximum permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance.
a
b
ove
1
000 metres, the maximum towed load must
be reduced by 10
% for every 1 000 metres of
altitude.
We recommend the use of genuine
CITROËN towbars and their harnesses
that have been tested and approved
from the design stage of your vehicle,
and that the fitting of the towbar is
entrusted to a CITR
oËn

dealer or a
qualified workshop.
If the towbar is not fitted by a CITROËN
dealer, it is imperative that it is
fitted in accordance with the vehicle
manufacturer's instructions.
Driving with a trailer places greater demands
on the towing vehicle and the driver must take
particular care. Your vehicle is primarily designed for transporting people and luggage, but it may also be used for towing a trailer.
Refer to the "Technical data" section for details
of the weights and towed loads which apply to
your vehicle.
Practical information

190
C3Picasso_en_Chap12_caracteristiques-techniques_ed01-2014
* For Russia only.
** T he maximum power quoted is the type approved value obtained on a test bed, under the conditions defined in European legislation (directive
1999/99/CE).
PETROL ENGINES
VTi 95V T i 115* V Ti 120 V T i 115 * V Ti 120
Model codes:
SH... 8FP0
5FJ0* 5FS0 5FJ8/P * 5FS8/P
Cubic capacity (cc) 1 3971 598 1 598
Bore x stroke (mm) 77 x 7577 x 85.8 77 x 85.8
Max power: EU standard (kW)** 7084* 8884* 88
Max power engine speed (rpm) 6 0005 200* 6 0005 200* 6 000
Max torque: EU standard (Nm) 13 6160 160
Max torque engine speed (rpm) 4 0004 250 4 250
Fuel UnleadedUnleaded Unleaded
Catalytic converter yesyes yes
GEARBOXES Manual
(5-speed) Manual
(5-speed) Electronic gearbox system
(6-speed)
OIL CAPACITIES (in litres)
Engine (with filter replacement) 4.254.25 4.25
Engines and gearboxes
Technical data

191
C3Picasso_en_Chap12_caracteristiques-techniques_ed01-2014
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load. * For Russia only.
**
T
he weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
PETROL ENGINES
VTi 95V T i 115* V Ti 120 V T i 115 * V Ti 120
Gearboxes ManualManualElectronic gearbox system (6-speed)
Model codes:
SH... 8FP0
5FJ0* 5FS05FJ8/P * 5FS8/P
-
U
nladen weight
1 2011 204 1 205
-
K
erb weight
1 2761 279 1 280
-

Payload
546549 564
-
G
ross vehicle weight (GV W)
1 7471 753 1 769
-
G
ross train weight (GTW)
o

n a 12% gradient
2 597
2 603 2 619
-
B
raked trailer (within GTW limit)
o

n a 10% or 12% gradient
850
850 850
-
B
raked trailer** (with load transfer within the
GTW limit) 1 10 0
1 10 0 1 10 0
-
U
nbraked trailer
635635 640
-
R
ecommended nose weight
5454 54
Weights and towed loads (kg)
12
Technical data

192
C3Picasso_en_Chap12_caracteristiques-techniques_ed01-2014
LPG ENGINEVTi 95
Model codes:
SH... 8FN0/GPL
Cubic capacity (cc) 1 397
Bore x stroke (mm) 77 x 75
Max. power: EU standard (kW)* 70
Max. power speed (rpm) 6 000
Max torque: EU standard (Nm) 13 6
Max. torque speed (rpm) 4 000
Fuel LPG / Unleaded
Catalytic converter Ye s
GEARBOX Manual
(5-speed)
OIL CAPACITY (in litres)
Engine (with filter replacement) 4.25
*

T
he maximum power quoted is the type approved value obtained on a test bed, under the conditions defined in European legislation
(directive


1999/99/CE).
Engine and gearbox
Technical data

193
C3Picasso_en_Chap12_caracteristiques-techniques_ed01-2014
LPG ENGINEVTi 95
Gearbox Manual
Model codes:
SH... 8FN0/GPL
-

U
nladen weight 1 301
-

K
erb weight 1 376
-


Payload 446
-

G
ross vehicle weight (GV W) 1 747
-

G
ross train weight (GTW)
o

n a 12 % slope 2 597
-

B
raked trailer (within GTW limit)
o

n a 12 % slope 850
-

B
raked trailer* (with load transfer within the
GTW limit) 1 10 0
-
U

nbraked trailer 650
-

R
ecommended nose weight 54
*

T
he weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load..
Weights and towed loads (kg)
12
Technical data

194
C3Picasso_en_Chap12_caracteristiques-techniques_ed01-2014
DIESEL ENGINESHDi 90 PEFe- HDi 90 PEF HDi 115 PEF
Model codes:
SH... 9HP0
9HP8/P/S 9HD8
Cubic capacity (cc) 1 5601 5601 560
Bore x stroke (mm) 75 x 88.375 x 88.375 x 88.3
Max power: EU standard (kW)* 686884
Max power engine speed (rpm) 4 0004 000 3 600
Max torque: EU standard (Nm) 230230 270
Max torque engine speed (rpm) 1 7501 7501 750
Fuel
die

sel
die
sel
die
sel
Catalytic converter yesyesyes
Particle emission filter yesyesyes
GEARBOXES Manual (5-speed)Electronic gearbox system
(6-speed) Manual (6-speed)
OIL CAPACITIES (in litres)
Engine (with filter replacement) 3.753.753.75
.../S : e-HDi model fitted with Stop & Start.
Engines and gearboxes
* The maximum power quoted is the type approved value obtained on a test bed, under the conditions defined in European legislation
(directive 1999/99/CE).
Technical data

195
C3Picasso_en_Chap12_caracteristiques-techniques_ed01-2014
* The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
DIESEL ENGINES
HDi 90 PEFe- HDi 90 PEF HDi 115 PEF
Gearboxes ManualElectronic gearbox system Manual
Model codes:
SH... 9HP0
9HP8/P/S 9HD8
-
U
nladen weight
1 2771 3131 318
-
K
erb weight
1 3521 388 1 393
-

Payload
502498 489
-
G
ross vehicle weight (GV W)
1 7791 8 111 807
-
G
ross train weight (GTW)
o

n a 12% gradient
2 979
3 0 112 757
-
B
raked trailer (within GTW limit)
o

n a 10% or 12% gradient
1 200
1 200 950
-
B
raked trailer* (with load transfer with the
GTW limit) 1 200
1 2001 200
-
U
nbraked trailer
675675675
-
R
ecommended nose weight
545454
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
Weights and towed loads (kg)
12
Technical data

196
C3Picasso_en_Chap12_caracteristiques-techniques_ed01-2014
dimensions (in mm)
Technical data

197
C3Picasso_en_Chap12_caracteristiques-techniques_ed01-2014
Identification markingsVarious visible markings for the identification of your vehicle.
A.
V
ehicle Identification Number (VIN) on
the front right door pillar.
T

his number is engraved on the bodywork
near the hinge.
F

or access to it, open the right-hand door. B.
V

IN on the windscreen lower
crossmember.
T

he number is on a self-adhesive label
which is visible through the windscreen. C.
M

anufacturer's label.
T

his number is indicated on a self-
destroying label affixed to the centre pillar,
on the left-hand side.
The inflation pressures must be
checked when the tyres are cold, at
least once a month.
If the inflation pressures are too low,
this increases fuel consumption.
D.
T

yre/paint label.
T

his label is affixed to the centre pillar, on
the left-hand side.
It bears the following information:
-

t
he tyre pressures, laden and unladen,
-

t
he tyre sizes (including the load index and
speed rating for the tyre),
-

t
he tyre pressure for the spare wheel,
-

t
he paint colour code.
12
Technical data
