fuel cap Citroen C3 PICASSO 2016 1.G Owner's Manual

17
C3Picasso_en_Chap01_controle-de-marche_ed01-2015
Low fuel levelfixed. When it first comes on there remains
approximately 5 litres of fuel in the
tank. You must refuel as soon as possible to avoid running
out of fuel.
This warning lamp will come on every time the ignition
is switched on, until a sufficient addition of fuel is
made.
Fuel tank capacity: approximately 50 litres (petrol) or
48 litres (Diesel); depending on version: approximately
30 litres (petrol or Diesel).
Never continue to drive until you run out of fuel as
this could damage the emission control and injection
systems.
Warning
/indicator lampis on Cause Action / Observations
Maximum
coolant
temperature fixed.
The temperature of the cooling
system is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down before topping
up the level, if necessary.
If the problem persists, contact a CITROËN dealer or
qualified workshop.
Engine oil
pressure fixed.
There is a fault with the engine
lubrication system. You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a CITROËN
dealer or a qualified workshop.
Battery charge fixed. The battery charging circuit has a
fault (dirty or loose terminals, slack or
cut alternator belt, ...). The warning lamp should go off when the engine is
started.
If it does not go off, contact a CITROËN dealer or a
qualified workshop.
1
Monitoring

69
C3Picasso_en_Chap04_ouverture_ed01-2015
Fuel tank
Low fuel levelFilling
A label affixed to the inside of the flap reminds
you of the type of fuel to be used depending on
your engine.
When the low fuel level is reached
this warning lamp comes on in the
instrument panel. When it first comes
on there remains approximately
5

litres of fuel in the tank. To fill the tank safely:
F

t
he engine must be switched off,
F

o
pen the fuel filler flap,
F

i
nsert the key in the cap, then turn it to the
left,
F

r
emove the cap and hook it onto the clip
located on the inside of the flap,
F

f
ill the tank, but do not continue after the
3rd cut- off of the pump ; this could cause
malfunctions.
When you have filled the tank:
F

p
ut the cap back in place,
F

t
urn the key to the right, then remove it
from the cap,
F

c
lose the flap.
Additions of fuel must be of at least
5

litres to be registered by the fuel
gauge.
The key cannot be removed from the
lock until the cap is refitted.
Opening the filler cap may create a
noise caused by an inrush of air. This
vacuum is entirely normal and results
from the sealing of the fuel system.
Fuel tank capacity: approximately 50 litres
(petrol) or 48 litres (Diesel); (Depending on
version: approximately 30 litres (petrol or
Diesel)).
You must refuel as soon as possible to avoid
running out of fuel.
If you run out of fuel (Diesel), refer also to the
"Checks" section.
4
Access

71
C3Picasso_en_Chap04_ouverture_ed01-2015
Misfuel prevention (Diesel)*
Operation
When a petrol filler nozzle is introduced into the
fuel filler neck of your Diesel vehicle, it comes
into contact with the flap. The system remains
closed and prevents filling.
Do not persist but introduce a Diesel type
filler nozzle.It remains possible to use a fuel can to
fill the tank.
In order to ensure a good flow of fuel,
do not place the nozzle of the fuel can
in direct contact with the flap of the
misfuel prevention device and pour
s l ow l y.Travelling abroad
As Diesel fuel pump nozzles may
be different in other countries, the
presence of the misfuel prevention
device may make refuelling impossible.
Before travelling abroad, we
recommend that you check with the
CITROËN dealer network, whether your
vehicle is suitable for the fuel pumps in
the country in which you want to travel.
Mechanical device which prevents filling the tank of a Diesel vehicle with petrol. It avoids the risk of
engine damage that can result from filling with the wrong fuel.
Located in the filler neck, the misfuel prevention device appears when the filler cap is removed.
* Depending on the country of sale.
4
Access

144
C3Picasso_en_Chap10_verification_ed01-2015
Diesel engine
1. Screenwash fluid reservoir.
2. Coolant header tank.
3.
A

i r f i l t e r.
4.
B

rake fluid reservoir.
5.


Battery.
6.
F

usebox.
7.
E

ngine oil dipstick.
8.
E

ngine oil filler cap.The Diesel fuel system operates under
high pressure:
-

N
ever carry out any work on this
system yourself.
-

H
Di engines make use of advanced
technology.
All maintenance and repairs require
specially trained staff, which only a
CITROËN dealer can provide.
To avoid damaging the electrical units,
never use a high pressure jet wash in
the engine compartment.
Checks

163
C3Picasso_en_Chap11_informations-pratiques_ed01-2015
AdBlue® additive and SCR system
for BlueHDi Diesel engines
To assure respect for the environment and
conformity with the new Euro 6 emissions
standard, without adversely affecting the
per formance or fuel consumption of Diesel
engines, CITROËN has taken the decision to
equip its vehicles with an effective system that
associates SCR (Selective Catalytic Reduction)
with a particle filter (FAP) for the treatment of
exhaust gases.
Presentation of the SCR system
Using an additive called AdBlue® containing
urea, a catalytic converter turns up to 85%
of nitrous oxides (NOx) into nitrogen and
water, which are harmless to health and the
environment. Once the AdBlue
® tank is empty, a
s
ystem required by regulations prevents
starting of the engine.
If the SCR is faulty, the level of
emissions from your vehicle will no
longer meet the Euro 6 standard: your
vehicle becomes polluting.
In the event of a confirmed fault
with the SCR system, you must go
to a CITROËN dealer or a qualified
workshop as soon as possible: after
a running distance of 650 miles
(1

100 km), a system will be triggered
automatically to prevent engine starting.
The AdBlue® additive is held in a special
tank located under the boot at the rear of
the vehicle. It has a capacity of 17 litres: this
provides a driving range of about 12 500 miles
(20 000 km), after which an alert is triggered
warning you when the reserve remaining is
enough for just 1 500 miles (2 400 km).
During each scheduled service of your vehicle
by a CITROËN dealer or a qualified workshop,
the AdBlue
® additive tank is refilled in order to
allow normal operation of the SCR system.
If the estimated mileage between two services
is greater than 12 500 miles (20 000 km), we
recommend that you go to a CITROËN dealer
or a qualified workshop to have the necessary
top-up carried out.
11
Practical information

167
C3Picasso_en_Chap11_informations-pratiques_ed01-2015

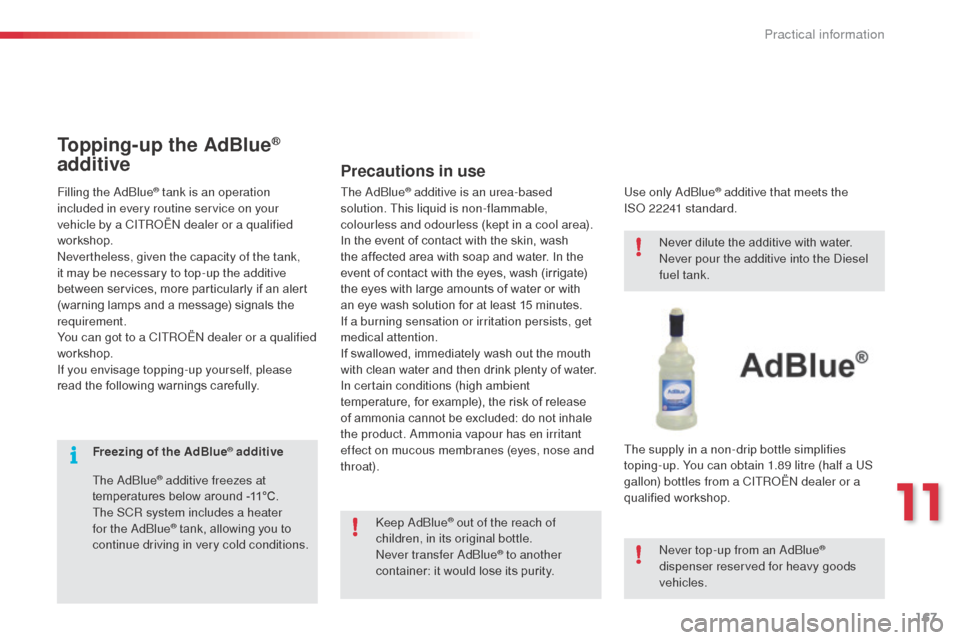

Freezing of the AdBlue® additive
The AdBlue
® additive freezes at
temperatures below around -11°C.
The SCR system includes a heater
for the AdBlue
® tank, allowing you to
continue driving in very cold conditions.
Filling the AdBlue
® tank is an operation
included in every routine service on your
vehicle by a CITROËN dealer or a qualified
workshop.
Nevertheless, given the capacity of the tank,
it may be necessary to top-up the additive
between services, more particularly if an alert
(warning lamps and a message) signals the
requirement.
You can got to a CITROËN dealer or a qualified
workshop.
If you envisage topping-up yourself, please
read the following warnings carefully.
Topping-up the AdBlue®
additive
The AdBlue® additive is an urea-based
solution. This liquid is non-flammable,
colourless and odourless (kept in a cool area).
In the event of contact with the skin, wash
the affected area with soap and water. In the
event of contact with the eyes, wash (irrigate)
the eyes with large amounts of water or with
an eye wash solution for at least 15 minutes.
If a burning sensation or irritation persists, get
medical attention.
If swallowed, immediately wash out the mouth
with clean water and then drink plenty of water.
In certain conditions (high ambient
temperature, for example), the risk of release
of ammonia cannot be excluded: do not inhale
the product. Ammonia vapour has en irritant
effect on mucous membranes (eyes, nose and
throat).
Precautions in use
Keep AdBlue® out of the reach of
children, in its original bottle.
Never transfer AdBlue
® to another
container: it would lose its purity. Use only AdBlue
® additive that meets the
ISO 22241 standard.
Never dilute the additive with water.
Never pour the additive into the Diesel
fuel tank.
Never top-up from an AdBlue
®
dispenser reserved for heavy goods
vehicles.
The supply in a non-drip bottle simplifies
toping-up. You can obtain 1.89 litre (half a US
gallon) bottles from a CITROËN

dealer or a
qualified workshop.
11
Practical information

195
C3Picasso_en_Chap12_caracteristiques-techniques_ed01-2015
* For Russia only.
** T he maximum power quoted is the type approved value obtained on a test bed, under the conditions defined in European legislation
(directive 1999/99/CE).
PETROL ENGINE
VTi 95PureTech 110 V T i 115*
Gearbox Manual (5-speed) Manual (5-speed) Manual (5-speed) Electronic (6-speed)
Model code:
SH... 8FP0
8FP6
HNZ6
5 FJ 05 FJ 8 / P
Cubic capacity (cc) 1 3971 19 9 1 598
Bore x stroke (mm) 77 x 7575 x 90.5 77 x 85.8
Max power: EU standard (kW)** 7081 84
Max power engine speed (rpm) 6 0005 500 5 200
Max torque: EU standard (Nm) 13 6205 160
Max torque engine speed (rpm) 4 0001 500 4 250
Fuel UnleadedUnleaded Unleaded
Catalytic converter yesyes yes
Engine oil capacity (with filter replacement) 4.253,5 4.25
Engines and gearboxes
12
Technical data

197
C3Picasso_en_Chap12_caracteristiques-techniques_ed01-2015
DIESEL ENGINEBlueHDi 100
Gearbox Manual (5-speed)
Model code:
SH... BHY6
Cubic capacity (cc) 1 560
Bore x stroke (mm) 75 x 88.3
Max power: EU standard (kW)* 73
Max power engine speed (rpm) 3 750
Max torque: EU standard (Nm) 254
Max torque engine speed (rpm) 1 750
Fuel Diesel
Catalytic converter yes
Particle filter yes
Engine oil capacity (with filter replacement) 3.75
Engines and gearboxes
* The maximum power quoted is the type approved value obtained on a test bed, under the conditions defined in European legislation
(directive 1999/99/CE).
12
Technical data

280
C3Picasso_en_Chap15_index-alpha_ed01-2015
ABS and EBFD systems .............................11 3
Accessories ................................................ 193
Accessory socket, 12V
...........................84, 86
Additive, AdBlue


.................................... 20, 163
Additive, Diesel


........................................... 148
Adjusting headlamps


.................................... 78
Adjusting head restraints
............................................... 53,

55
Adjusting seats


........................................ 52, 55
Adjusting the height and reach of the steering wheel
..................................58
Adjusting the seat belt height
...............

......................................... 115
Advice on care and maintenance
..................................... 14

3, 14 4
Advice on driving


........................................ 123
Airbags


.................................................. 18, 11 9
Airbags, curtain
................................... 12

1, 12 2
Airbags, front ....................................... 11 9, 12 2
Airbags, lateral


.................................... 121, 12 2
Air conditioning


............................................... 8
Air conditioning, digital


...........................44, 48
Air conditioning, manual


.........................44, 46
Air vents


........................................................ 43
Anti-lock braking system (ABS)

............................................ 11

3
Anti-pinch


...................................................... 63
Anti-theft


............................................... 61, 124
Armrest, front
................................................ 53
Audible warning


.......................................... 109
Audio streaming (Bluetooth)
..............................

..........240, 267
Audio system
............................................... 255Capacity, fuel tank
..............................

..........69
Cartridge, fragrance


.....................................51
CD


.......................................................237, 260
CD, MP3
.............................................. 2

37, 261
Central locking


........................................59, 65
Changing a bulb


...................................170 -17 7
Changing a fuse


...................................178 -18 4
Changing a wheel
................................15 5 -161
Changing a wiper blade
........................81, 188
Changing the date


.............................28, 30, 39
Changing the remote control battery


............60
Changing the time


.............................28, 30, 39Checking the engine oil level
................
25, 145
Checking the levels ..............................145 -147
Checking tyre pressures (using the kit)
......153
Checks
...............

..................................143-149
Checks, routine


...................................148, 149
Child lock
...............................

......................107
Children
...............................

...94-107, 118, 120
Child seats

.............94

-96, 10 0 , 101, 10 6 , 118
Child seats, conventional


............................10 0
Child seats, ISOFIX

....................................10

4
Child surveillance mirror
............................... 85
C

losing the boot ......................................59, 67
Closing the doors


....................................59, 64
Configuration, vehicle


......................28, 30, 33, 38, 268, 272
Control, electric windows
..............................62
Control, emergency boot release


.................67
Control, emergency door


..............................66
Control, heated seats


....................................54
Control stalk, lighting
............................... 7

2-75
Control stalk, wipers
...............................79 - 81
Cornering lamps
..............................

.............77
Courtesy lamps
.....................................82, 17 7
Cover, load space
.........................................91
Cruise control
.............................................. 13

5
Cup holder

...............................
................84, 88
A
C
Battery ................................................. 148, 185
Battery, charging ......................................... 18 6
Battery, remote control
........................... 60,

61
Blind, panoramic roof


.................................... 68
Blinds, side


.................................................... 89
BlueHDi


................................................. 22, 163
Bluetooth (hands-free)
........................ 2

24, 265
Bluetooth (telephone)


..........................224, 265
Bonnet


......................................................... 141
Boot


............................................................... 67
Boot floor, adjustable


..............................91, 92
Brake discs
.................................................. 14

9
Brake lamps
...............................

.................175
Brake


........................................................... 149
Braking assistance system

.........................11

3
Bulbs (changing)
...............................

..........170
B
Daytime running lamps, LED ................76, 174
Deactivating the passenger airbag .............120
Deactivating the rear windows


.....................63
D
Alphabetical index
