Charging the battery using
a battery charger
F Follow the instructions for use provided by the manufacturer of the charger. Protect your eyes and face before
handling the battery.
All operations on the battery must be
carried out in a well ventilated area
away from naked flames and sources
of sparks, so as to avoid the risk of
explosion and fire.
Do not try to charge a frozen battery;
the battery must first be thawed out to
avoid the risk of explosion. If the battery
has been frozen, before charging have
it checked by a CITROËN dealer or a
qualified workshop who will check that
the internal components have not been
damaged and the casing is not cracked,
which could cause a leak of toxic and
corrosive acid.
Do not reverse the polarity and use only
a 12 V charger.
Do not disconnect the terminals while
the engine is running.
Do not charge the batteries without
disconnecting the terminals first.
Wash your hands after wards.
Batteries contain harmful substances such
as sulphuric acid and lead. They must be
disposed of in accordance with regulations
and must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries and
vehicle batteries to a special collection
point.
Practical information

187
C3Picasso_en_Chap11_informations-pratiques_ed01-2015
Load reduction mode
System which manages the use of certain
functions according to the level of charge
remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air conditioning,
the heated rear screen...
The deactivated functions are reactivated
automatically as soon as conditions permit.
Energy economy mode
Exiting economy mode
These functions are reactivated automatically
the next time the vehicle is driven.
F
I
n order to resume the use of these
functions immediately, start the engine and
let it run for a few minutes.
The time available to you will then be double
the period for which the engine is left running.
However, this period will always be between
five and thirty minutes.
Switching to economy mode
Once this period has elapsed, a message
appears on the multifunction screen indicating
that the vehicle has switched to economy mode
and the active functions are put on standby.
A flat battery prevents the engine from
starting (refer to the corresponding
paragraph).
If the telephone is being used at the
same time on the eMyWay audio
navigation system, it will be interrupted
after 10 minutes.
System which manages the period of use of certain functions to conserve a sufficient level of
charge in the battery.
After the engine has stopped, you can still use functions such as the audio equipment,
windscreen
wipers, dipped beam headlamps, courtesy lamps, etc. for a maximum combined period of
thirty

minutes.
This period may be greatly reduced if the battery is not fully charged.
11
Practical information

189
C3Picasso_en_Chap11_informations-pratiques_ed01-2015

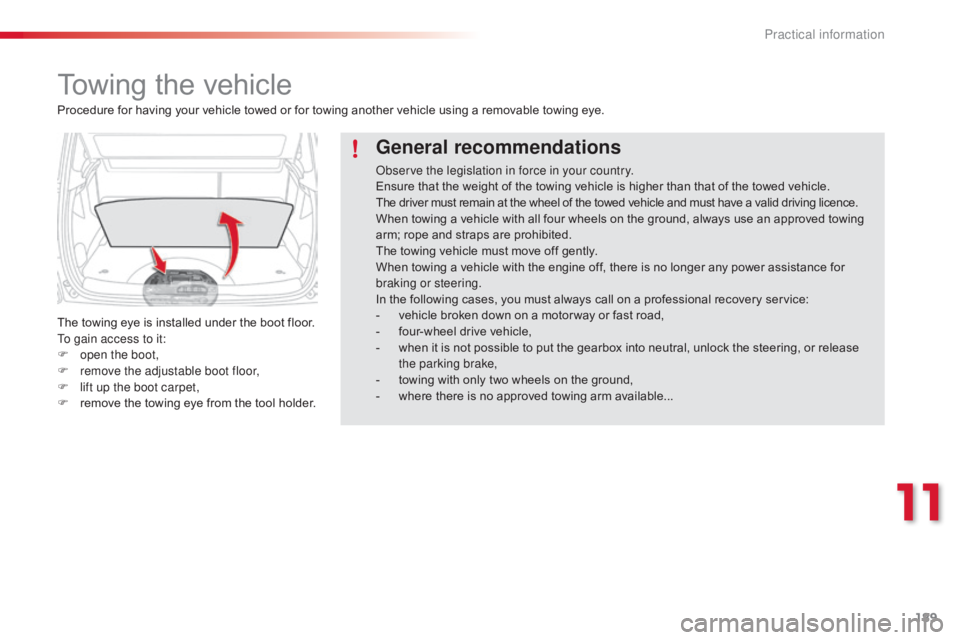

Towing the vehicle
The towing eye is installed under the boot floor.
To gain access to it:
F
o
pen the boot,
F

r
emove the adjustable boot floor,
F

l
ift up the boot carpet,
F

r
emove the towing eye from the tool holder.
Procedure for having your vehicle towed or for towing another vehicle using a removable towing eye.
General recommendations
Observe the legislation in force in your country.
Ensure that the weight of the towing vehicle is higher than that of the towed vehicle.
The driver must remain at the wheel of the towed vehicle and must have a valid driving licence.
When towing a vehicle with all four wheels on the ground, always use an approved towing
arm; rope and straps are prohibited.
The towing vehicle must move off gently.
When towing a vehicle with the engine off, there is no longer any power assistance for
braking or steering.
In the following cases, you must always call on a professional recovery service:
-

v
ehicle broken down on a motor way or fast road,
-

f
our-wheel drive vehicle,
-

w
hen it is not possible to put the gearbox into neutral, unlock the steering, or release
the parking brake,
-

t
owing with only two wheels on the ground,
-

w
here there is no approved towing arm available...
11
Practical information

190
C3Picasso_en_Chap11_informations-pratiques_ed01-2015
Towing your vehicle
F On the front bumper, passenger's side,
remove the protective access cover located
alongside the front fog lamp, using the flat
end of the towing eye. F
O n the rear bumper, unclip the cover by
pressing at the bottom.
F

S
crew the towing eye in fully.
F

I
nstall the towing arm.
F

S
witch on the hazard warning lamps on the
towed vehicle.
Towing another vehicle
Failure to observe this special condition
could result in damage to certain
braking components and the absence
of braking assistance the next time the
engine is started.
When removing the protective access
cover, take care to avoid damaging the
paintwork with the towing eye. F

S

crew the towing eye in fully.
F

I

nstall the towing arm.
F

S

witch on the hazard warning lamps on the
towed vehicle.
F

P

lace the gear lever in neutral.
Practical information

191
C3Picasso_en_Chap11_informations-pratiques_ed01-2015
Towing a trailer, ...
Driving advice
Cooling
Towing a trailer on a slope increases the
temperature of the coolant.
As the fan is electrically controlled, its cooling
capacity is not dependent on the engine speed.
F
T
o lower the engine speed, reduce your
speed.
The maximum towed load on a long incline
depends on the gradient and the ambient
temperature.
In all cases, keep a check on the coolant
temperature.
Side wind
F Take into account the increased sensitivity to side wind.
F If the warning lamp and the STOP
warning lamp come on, stop the
vehicle and switch off the engine
as soon as possible.
Towbar suitable for the attachment of a trailer or installation of a bicycle carrier, with additional lighting and signalling.
Distribution of loads
F Distribute the load in the trailer so that the heaviest items are as close as possible to
the axle and the nose weight approaches the
maximum permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1
000 metres, the maximum towed load must
be reduced by 10
% for every 1 000 metres of
altitude.
We recommend the use of genuine
CITROËN towbars and their harnesses
that have been tested and approved
from the design stage of your vehicle,
and that the fitting of the towbar is
entrusted to a CITROËN dealer or a
qualified workshop.
If the towbar is not fitted by a CITROËN
dealer, it is imperative that it is
fitted in accordance with the vehicle
manufacturer's instructions.
Driving with a trailer places greater demands
on the towing vehicle and the driver must take
particular care. Your vehicle is primarily designed for transporting people and luggage, but it may also be used for towing a trailer.
Refer to the "Technical data" section for details
of the weights and towed loads which apply to
your vehicle.
11
Practical information

192
C3Picasso_en_Chap11_informations-pratiques_ed01-2015
Fitting roof bars
To fit longitudinal and/or transverse roof bars, visit your CITROËN dealer or a qualified workshop.Maximum authorised weight on the roof rack: 60 kg.
If the height exceeds 40 cm, adapt the speed of the vehicle to the profile of the road to avoid
damaging the roof bars and the fixings on the roof.
Be sure to refer to national legislation in order to comply with the regulations for transporting
objects which are longer than the vehicle.
Braking
Towing a trailer increases the braking distance.
To avoid overheating of the brakes on a long
mountain type of descent, the use of engine
braking is recommended.
Ty r e s
F Check the tyre pressures of the towing vehicle and of the trailer, observing the
recommended pressures.
Lighting
F Check the electrical lighting and signalling on the trailer.
The rear parking sensors will be
deactivated automatically if a genuine
CITROËN towbar is used.
Practical information

195
C3Picasso_en_Chap12_caracteristiques-techniques_ed01-2015
* For Russia only.
** T he maximum power quoted is the type approved value obtained on a test bed, under the conditions defined in European legislation
(directive 1999/99/CE).
PETROL ENGINE
VTi 95PureTech 110 V T i 115*
Gearbox Manual (5-speed) Manual (5-speed) Manual (5-speed) Electronic (6-speed)
Model code:
SH... 8FP0
8FP6
HNZ6
5 FJ 05 FJ 8 / P
Cubic capacity (cc) 1 3971 19 9 1 598
Bore x stroke (mm) 77 x 7575 x 90.5 77 x 85.8
Max power: EU standard (kW)** 7081 84
Max power engine speed (rpm) 6 0005 500 5 200
Max torque: EU standard (Nm) 13 6205 160
Max torque engine speed (rpm) 4 0001 500 4 250
Fuel UnleadedUnleaded Unleaded
Catalytic converter yesyes yes
Engine oil capacity (with filter replacement) 4.253,5 4.25
Engines and gearboxes
12
Technical data

196
C3Picasso_en_Chap12_caracteristiques-techniques_ed01-2015
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
When towing, you must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load. * For Russia only.
**
T
he weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
PETROL ENGINE
VTi 95PureTech 110 V T i 115*
Gearbox Manual
(5-speed) Manual
(5-speed) Manual
(5-speed) Electronic
(6-speed)
Model code:
SH... 8FP0
8FP6
HNZ6
5 FJ 05 FJ 8 / P
-
U
nladen weight
1 2461 205 1 204 1 205
-
K
erb weight
1 3211 280 1 2791 280
-

Payload
501555 549564
-
G
ross vehicle weight (GV W)
1 7471 760 1 7531 769
-
G
ross train weight (GTW)
o

n a 12% gradient
2 597
2 6102 603 2 619
-
B
raked trailer (within GTW limit)
o

n a 10% or 12% gradient
850
850850850
-
B
raked trailer** (with load transfer within the
GTW limit) 1 10 0
1 10 01 10 01 10 0
-
U
nbraked trailer
650620635 640
-
R
ecommended nose weight
543654 54
Weights and towed loads (kg)
Technical data

197
C3Picasso_en_Chap12_caracteristiques-techniques_ed01-2015
DIESEL ENGINEBlueHDi 100
Gearbox Manual (5-speed)
Model code:
SH... BHY6
Cubic capacity (cc) 1 560
Bore x stroke (mm) 75 x 88.3
Max power: EU standard (kW)* 73
Max power engine speed (rpm) 3 750
Max torque: EU standard (Nm) 254
Max torque engine speed (rpm) 1 750
Fuel Diesel
Catalytic converter yes
Particle filter yes
Engine oil capacity (with filter replacement) 3.75
Engines and gearboxes
* The maximum power quoted is the type approved value obtained on a test bed, under the conditions defined in European legislation
(directive 1999/99/CE).
12
Technical data

198
C3Picasso_en_Chap12_caracteristiques-techniques_ed01-2015
* The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
DIESEL ENGINE
BlueHDi 100
Gearbox Manual (5-speed)
Model code:
SH... BHY6
-
U
nladen weight
1 240
-
K
erb weight
1 315
-

Payload
560
-
G
ross vehicle weight (GV W)
1 800
-
G
ross train weight (GTW)

o
n a 12% gradient
2 700
-
B
raked trailer (within GTW limit)

o
n a 10% or 12% gradient
900
-
B
raked trailer* (with load transfer with the
GTW limit) 900
-
U
nbraked trailer
650
-
R
ecommended nose weight
36
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
When towing you must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
Weights and towed loads (kg)
Technical data
