PRACTICAL INFORMATION

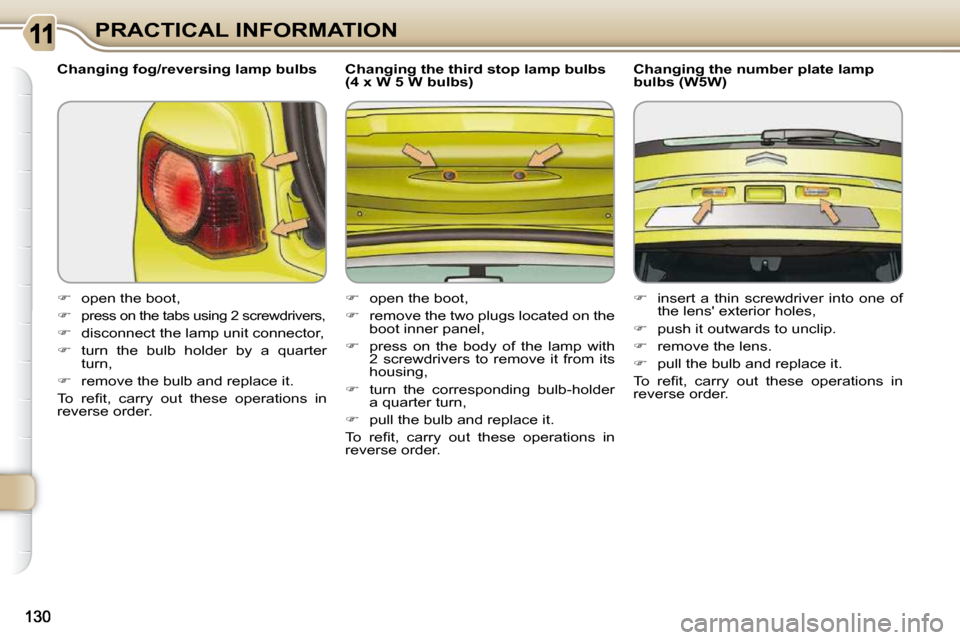

Changing fog/reversing lamp bulbs
open the boot,
press on the tabs using 2 screwdrivers,
disconnect the lamp unit connector,
t u r n t h e b u l b h o l d e r b y a q u a r t e r
turn,
remove the bulb and replace it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order. Changing the third stop lamp bulbs
(4 x W 5 W bulbs)
open the boot,
remove the two plugs located on the
boot inner panel,
press on the body of the lamp with
2 screwdrivers to remove it from its
housing,
turn the corresponding bulb-holder
a q u a r t e r t u r n ,
pull the bulb and replace it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order. Changing the number plate lamp
bulbs (W5W)
insert a thin screwdriver into one of
t h e l e n s ' e x t e r i o r h o l e s ,
push it outwards to unclip.
remove the lens.
pull the bulb and replace it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
Page 135 of 200
i
!
132
PRACTICAL INFORMATION CITROËN will not accept respon-
sibility for the cost incurred in
repairing your vehicle or for recti-
fying malfunctions resulting from
the installation of accessories not
supplied and not recommended
by CITROËN and not installed in
accordance with its instructions,
in particular when the combined
consumption of all of the addition-
a l e q u i p m e n t c o n n e c t e d e x c e e d s
10 milliamperes.
Installing electrical accessories
Your vehicle's electrical system is
designed to operate with standard
o r o p t i o n a l e q u i p m e n t .
Before installing other electrical
e q u i p m e n t o r a c c e s s o r i e s o n y o u r
vehicle, contact a CITROËN dealer.
CHANGING A FUSE
Procedure for replacing a faulty fuse
with a new fuse to rectify a failure of the
corresponding function.
Access to tools
T h e e x t r a c t i o n p l i e r s a n d t h e s p a r e
fuse storage compartment are installed
o n t h e b a c k o f t h e d a s h b o a r d f u s e b o x
cover.
F o r a c c e s s t o t h e m :
unclip the cover by pulling on the
side,
remove the cover completely,
remove the pliers. Changing a fuse
Before changing a fuse, the cause of
t h e f a i l u r e m u s t b e i d e n t i fi e d a n d r e c t i -
fi e d .
Identify the faulty fuse by checking
t h e c o n d i t i o n o f i t s fi l a m e n t .
U s e t h e s p e c i a l p l i e r s t o e x t r a c t t h e
fuse from its housing.
Always replace the faulty fuse with a
fuse of the same rating.
Check the correspondence between
t h e n u m b e r e t c h e d o n t h e b o x , t h e
rating etched on the fuse and the
tables below.
Correct Incorrect
Page 138 of 200
135
PRACTICAL INFORMATION
Engine compartment fuses
T h e f u s e b o x i s p l a c e d i n t h e e n g i n e
compartment near the battery (left-hand
s i d e ) .
Access to fuses
Unclip the cover.
Change the fuse (see corresponding
p a r a g r a p h ) .
W h e n y o u h a v e fi n i s h e d , c l o s e t h e
cover carefully to ensure the sealing
o f t h e f u s e b o x . Fuse table
Fuse N° Rating Functions
F1 20 A Engine control unit supply, cooling fan unit control,
multifunction engine control main relay.
F2 15 A Horn.
F3 10 A Front/rear wash-wipe.
F4 20 A Daytime running lamps.
F5 15 A D i e s e l h e a t e r ( D i e s e l e n g i n e ) , f u e l p u m p
( p e t r o l e n g i n e ) .
F6 10 A ABS/ESP control unit, ABS/ESP cut-off relay,
secondary stop switch.
F7 10 A Electric power steering.
F8 25 A Starter motor control.
F9 10 A S w i t c h i n g a n d p r o t e c t i o n u n i t ( D i e s e l ) .
F10 30 A Diesel engine injection pump valve, injectors and
i g n i t i o n c o i l s ( p e t r o l e n g i n e ) .
F11 40 A Air conditioning blower.
Page 139 of 200
136
PRACTICAL INFORMATION
Fuse N° Rating Functions
F12 30 A Windscreen wipers slow/fast speed.
F13 40 A B u i l t - i n s y s t e m s i n t e r f a c e s u p p l y ( i g n i t i o n p o s i t i v e ) .
F14 30 A V a l v e t r o n i c s u p p l y ( p e t r o l ) .
F15 10 A Right-hand main beam headlamp.
F16 10 A Left-hand main beam headlamp.
F17 15 A Left-hand dipped beam headlamp.
F18 15 A Right-hand dipped beam headlamp.
F19 15 A Multifunction engine management supply
( p e t r o l e n g i n e ) , a i r c o o l i n g e l e c t r o v a l v e s ( D i e s e l ) .
F20 10 A Multifunction engine management supply (petrol
e n g i n e ) , T u r b o p r e s s u r e r e g u l a t i o n e l e c t r o v a l v e
( D i e s e l ) , e n g i n e c o o l a n t l e v e l s e n s o r ( D i e s e l ) .
F21 5 A Fan assembly control supply, APC, ABS ESP
relays.
Page 140 of 200
137
PRACTICAL INFORMATION
Table of maxi-fuses
Fuse N° Rating
Functions
MF1 * 60 A Fan assembly.
MF2 * 30 A ABS/ESP control unit.
MF3 * 30 A ABS/ESP control unit.
MF4 * 60 A B u i l t - i n S y s t e m s I n t e r f a c e ( B S I ) s u p p l y .
MF5 * 60 A B u i l t - i n S y s t e m s I n t e r f a c e ( B S I ) s u p p l y .
MF6 * - Not used.
MF7 * - P a s s e n g e r c o m p a r t m e n t f u s e b o x .
MF8 * - Not used.
* T h e m a x i - f u s e s p r o v i d e a d d i t i o n a l p r o t e c t i o n f o r t h e e l e c t r i c a l s y s t e m s . A l l w o r k o n t h e m a x i - f u s e s m u s t b e c a r r i e d o u t b y a
CITROËN dealer.
Page 142 of 200
i
!
139
PRACTICAL INFORMATION
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without
d i s c o n n e c t i n g t h e t e r m i n a l s fi r s t .
Batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries
and vehicle batteries to a special
collection point.
Charging the battery using a
battery charger
Disconnect the battery from the
vehicle.
Follow the instructions for use
provided by the manufacturer of the
charger.
Reconnect starting with the nega-
t i v e t e r m i n a l ( - ) .
Check that the terminals and con-
nectors are clean. If they are covered
with sulphate (whitish or greenish
d e p o s i t ) , r e m o v e t h e m a n d c l e a n
them.
LOAD REDUCTION MODE
System which manages the use of
certain functions according to the level
of charge remaining in the battery.
When the vehicle is being driven, the
load reduction function temporarily de-
activates certain functions, such as
the air conditioning, the heated rear
screen...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.
It is advisable to disconnect the
battery if the vehicle is to be left
unused for more than one month. Before disconnecting the
battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.
Following reconnection of the
battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit
initialisation of the electronic sys-
tems. However, if minor problems
persist following this operation,
contact a CITROËN dealer.
Referring to the corresponding
section, you should yourself reini-
t i a l i s e :
- the remote control key,
- the GPS satellite navigation
system.
Page 143 of 200
i
!
139
PRACTICAL INFORMATION
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without
d i s c o n n e c t i n g t h e t e r m i n a l s fi r s t .
Batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries
and vehicle batteries to a special
collection point.
Charging the battery using a
battery charger
Disconnect the battery from the
vehicle.
Follow the instructions for use
provided by the manufacturer of the
charger.
Reconnect starting with the nega-
t i v e t e r m i n a l ( - ) .
Check that the terminals and con-
nectors are clean. If they are covered
with sulphate (whitish or greenish
d e p o s i t ) , r e m o v e t h e m a n d c l e a n
them.
LOAD REDUCTION MODE
System which manages the use of
certain functions according to the level
of charge remaining in the battery.
When the vehicle is being driven, the
load reduction function temporarily de-
activates certain functions, such as
the air conditioning, the heated rear
screen...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.
It is advisable to disconnect the
battery if the vehicle is to be left
unused for more than one month. Before disconnecting the
battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.
Following reconnection of the
battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit
initialisation of the electronic sys-
tems. However, if minor problems
persist following this operation,
contact a CITROËN dealer.
Referring to the corresponding
section, you should yourself reini-
t i a l i s e :
- the remote control key,
- the GPS satellite navigation
system.
Page 144 of 200
i
!
140
PRACTICAL INFORMATION A fl a t b a t t e r y p r e v e n t s t h e e n g i n e
from starting (refer to the corre-
s p o n d i n g p a r a g r a p h ) .
If the telephone is being used at
the same time on the MyWay audio
navigation system, it will be inter-
rupted after 10 minutes.
ENERGY ECONOMY MODE
System which manages the period of
use of certain functions to conserve a
s u f fi c i e n t l e v e l o f c h a r g e i n t h e b a t t e r y .
After the engine has stopped, you can
still use functions such as the audio
e q u i p m e n t , w i n d s c r e e n w i p e r s , d i p p e d
beam headlamps, courtesy lamps, etc.
f o r a m a x i m u m c o m b i n e d p e r i o d o f
thirty minutes.
This period may be greatly reduced if
the battery is not fully charged. Exiting economy mode
These functions are reactivated auto-
m a t i c a l l y t h e n e x t t i m e t h e v e h i c l e i s
driven.
In order to resume the use of these
functions immediately, start the en-
gine and let it run for a few minutes.
The time available to you will then be dou-
ble the period for which the engine is left
running. However, this period will always
b e b e t w e e n fi v e a n d t h i r t y m i n u t e s .
Switching to economy mode
Once this period has elapsed, a mes-
sage appears on the multifunction
screen indicating that the vehicle has
switched to economy mode and the ac-
tive functions are put on standby.
CHANGING A FRONT OR REAR WIPER BLADE
Procedure for replacing a worn wiper
blade with a new one without the use
of tools.
Removal
Raise the corresponding wiper arm.
Unclip the wiper blade and remove it.
Fitting
At the front, check the size of the wiper
b l a d e a s t h e s h o r t e r b l a d e i s fi t t e d t o
the passenger side of the vehicle.
Put the corresponding new wiper
blade in place and clip it.
Fold down the wiper arm carefully.
Before removing a front wiper
blade
Within one minute after switching off
the ignition, operate the wiper stalk
to position the wiper blades in the
vertical position.
This position must be used in order to avoid
damaging the wiper blade and the bonnet.
After fitting a front wiper blade
Switch on the ignition.
Operate the wiper stalk again to
park the wiper blades.
Page 196 of 200
192
1
2
2
2
2
1
2
2
1
2
3
3
1
2
2
2
2
2
2
1
2
2
2
2
2
2
2
2
1
2
2
123
23
0 8
1
1
1
1
1
1
1
1
R A D I O - C D D I S P L A Y A D J U S T
Y E A R
M O N T H
D A Y
H O U R
MINUTES
1 2 H / 2 4 H M O D E
S C R E E N M E N U M A P S
M A I N F U N C T I O N
* T h e p a r a m e t e r s v a r y a c c o r d i n g t o v e h i c l e .
C H O I C E A C h o i c e A 1 C h o i c e A 2 C H O I C E B . . .
L A N G U A G E
F R A N C A I S
ITALIANO
N E D E R L A N D S
P O R T U G U E S
P O R T U G U E S - B R A S I L
D E U T S C H
E N G L I S H
ESPANOL
P r e s s t h e O K d i a l f o r a c c e s s t o s h o r t - c u t m e n u s a c c o r d i n g t o t h e d i s p l a y o n t h e screen:
m o n o c h r o m e A m o n o c h r o m e C
R A D I O
a c t i v a t e / d e a c t i v a t e R D S
a c t i v a t e / d e a c t i v a t e R E G m o d e
a c t i v a t e / d e a c t i v a t e r a d i o t e x t
R A N D O M P L A Y
R D S S E A R C H
R E G M O D E
C D R E P E A T
V E H I C L E C O N F I G *
R E V W I P E A C T
G U I D E L A M P S
OPTIONS
D I A G N O S T I C S
c o n s u l t
a b a n d o n
UNITS
T E M P E R A T U R E : ° C E L S I U S / ° F A H R E N H E I T
F U E L C O N S U M P T I O N : K M / L - L / 1 0 0 - M P G
C D / M P 3 C D
a c t i v a t e / d e a c t i v a t e I n t r o
a c t i v a t e / d e a c t i v a t e t r a c k r e p e a t ( t h e e n t i r e c u r r e n t f o l d e r f o r M P 3 C D )
a c t i v a t e / d e a c t i v a t e r a n d o m p l a y ( t h e e n t i r e c u r r e n t f o l d e r f o r M P 3 C D )
U S B
a c t i v a t e / d e a c t i v a t e t r a c k r e p e a t ( o f t h e c u r r e n t f o l d e r / a r t i s t / g e n r e / p l a y l i s t )
a c t i v a t e / d e a c t i v a t e r a n d o m p l a y ( o f t h e c u r r e n t f o l d e r / a r t i s t / g e n r e / p l a y l i s t )
Page 197 of 200
192
1
2
2
2
2
1
2
2
1
2
3
3
1
2
2
2
2
2
2
1
2
2
2
2
2
2
2
2
1
2
2
123
23
0 8
1
1
1
1
1
1
1
1
R A D I O - C D D I S P L A Y A D J U S T
Y E A R
M O N T H
D A Y
H O U R
MINUTES
1 2 H / 2 4 H M O D E
S C R E E N M E N U M A P S
M A I N F U N C T I O N
* T h e p a r a m e t e r s v a r y a c c o r d i n g t o v e h i c l e .
C H O I C E A C h o i c e A 1 C h o i c e A 2 C H O I C E B . . .
L A N G U A G E
F R A N C A I S
ITALIANO
N E D E R L A N D S
P O R T U G U E S
P O R T U G U E S - B R A S I L
D E U T S C H
E N G L I S H
ESPANOL
P r e s s t h e O K d i a l f o r a c c e s s t o s h o r t - c u t m e n u s a c c o r d i n g t o t h e d i s p l a y o n t h e screen:
m o n o c h r o m e A m o n o c h r o m e C
R A D I O
a c t i v a t e / d e a c t i v a t e R D S
a c t i v a t e / d e a c t i v a t e R E G m o d e
a c t i v a t e / d e a c t i v a t e r a d i o t e x t
R A N D O M P L A Y
R D S S E A R C H
R E G M O D E
C D R E P E A T
V E H I C L E C O N F I G *
R E V W I P E A C T
G U I D E L A M P S
OPTIONS
D I A G N O S T I C S
c o n s u l t
a b a n d o n
UNITS
T E M P E R A T U R E : ° C E L S I U S / ° F A H R E N H E I T
F U E L C O N S U M P T I O N : K M / L - L / 1 0 0 - M P G
C D / M P 3 C D
a c t i v a t e / d e a c t i v a t e I n t r o
a c t i v a t e / d e a c t i v a t e t r a c k r e p e a t ( t h e e n t i r e c u r r e n t f o l d e r f o r M P 3 C D )
a c t i v a t e / d e a c t i v a t e r a n d o m p l a y ( t h e e n t i r e c u r r e n t f o l d e r f o r M P 3 C D )
U S B
a c t i v a t e / d e a c t i v a t e t r a c k r e p e a t ( o f t h e c u r r e n t f o l d e r / a r t i s t / g e n r e / p l a y l i s t )
a c t i v a t e / d e a c t i v a t e r a n d o m p l a y ( o f t h e c u r r e n t f o l d e r / a r t i s t / g e n r e / p l a y l i s t )
