Page 43 of 200
i
i
55
ACCESS
REMOTE CONTROL KEY
System which permits central unlock-
ing or locking of the vehicle using the
lock or from a distance. It is also used to
locate and start the vehicle, as well as
providing protection against theft.
Unfolding the key
First press button A to unfold the
key.
Unlocking the vehicle
Press the open padlock to
unlock the vehicle. Unlocking using the key
Turn the key to the left in the driver's
door lock to unlock the vehicle.
U n l o c k i n g i s c o n fi r m e d b y r a p i d fl a s h i n g
of the direction indicators for approxi-
mately two seconds.
According to version, the door mirrors
unfold at the same time.
Unlocking using the remote control Locking the vehicle
Press the closed padlock to
lock the vehicle.
Locking using the key
Turn the key to the right in the driver's
door lock to lock the vehicle com-
pletely.
L o c k i n g i s c o n fi r m e d b y fi x e d l i g h t i n g o f
the direction indicators for approximately
two seconds.
According to version, the door mirrors
fold at the same time.
Locking using the remote control
If one of the doors or the boot is still
open, the central locking does not
take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will relock
automatically after thirty seconds
unless a door or the boot is open.
The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
CITROËN dealer.

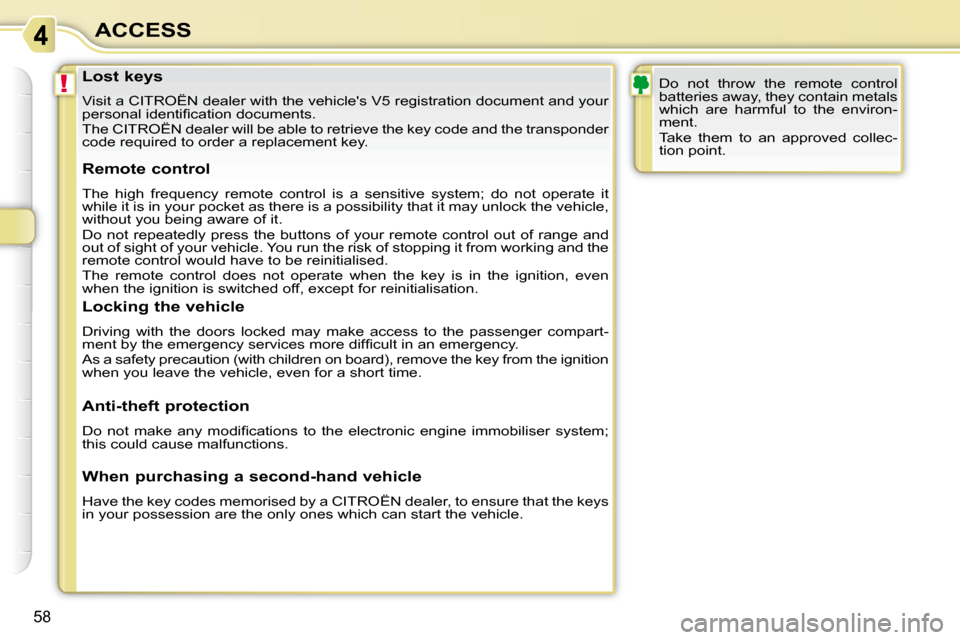

Page 46 of 200
!
58
ACCESS
Lost keys
Visit a CITROËN dealer with the vehicle's V5 registration do cument and your
p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The CITROËN dealer will be able to retrieve the key code a nd the transponder
code required to order a replacement key. Do not throw the remote control
batteries away, they contain metals
which are harmful to the environ-
ment.
Take them to an approved collec-
tion point.
Remote control
The high frequency remote control is a sensitive system; do not o perate it
while it is in your pocket as there is a possibility that it ma y unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even
when the ignition is switched off, except for reinitialisat ion.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart -
m e n t b y t h e e m e r g e n c y s e r v i c e s m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children on board), r emove the key from the ignition
when you leave the vehicle, even for a short time.
Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m ;
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a CITROËN dealer, to ensure tha t the keys
in your possession are the only ones which can start the vehicle.
Page 48 of 200
!
58
ACCESS
Lost keys
Visit a CITROËN dealer with the vehicle's V5 registration do cument and your
p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The CITROËN dealer will be able to retrieve the key code a nd the transponder
code required to order a replacement key. Do not throw the remote control
batteries away, they contain metals
which are harmful to the environ-
ment.
Take them to an approved collec-
tion point.
Remote control
The high frequency remote control is a sensitive system; do not o perate it
while it is in your pocket as there is a possibility that it ma y unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even
when the ignition is switched off, except for reinitialisat ion.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart -
m e n t b y t h e e m e r g e n c y s e r v i c e s m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children on board), r emove the key from the ignition
when you leave the vehicle, even for a short time.
Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m ;
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a CITROËN dealer, to ensure tha t the keys
in your possession are the only ones which can start the vehicle.
Page 142 of 200
i
!
139
PRACTICAL INFORMATION
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without
d i s c o n n e c t i n g t h e t e r m i n a l s fi r s t .
Batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries
and vehicle batteries to a special
collection point.
Charging the battery using a
battery charger
Disconnect the battery from the
vehicle.
Follow the instructions for use
provided by the manufacturer of the
charger.
Reconnect starting with the nega-
t i v e t e r m i n a l ( - ) .
Check that the terminals and con-
nectors are clean. If they are covered
with sulphate (whitish or greenish
d e p o s i t ) , r e m o v e t h e m a n d c l e a n
them.
LOAD REDUCTION MODE
System which manages the use of
certain functions according to the level
of charge remaining in the battery.
When the vehicle is being driven, the
load reduction function temporarily de-
activates certain functions, such as
the air conditioning, the heated rear
screen...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.
It is advisable to disconnect the
battery if the vehicle is to be left
unused for more than one month. Before disconnecting the
battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.
Following reconnection of the
battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit
initialisation of the electronic sys-
tems. However, if minor problems
persist following this operation,
contact a CITROËN dealer.
Referring to the corresponding
section, you should yourself reini-
t i a l i s e :
- the remote control key,
- the GPS satellite navigation
system.
Page 143 of 200
i
!
139
PRACTICAL INFORMATION
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without
d i s c o n n e c t i n g t h e t e r m i n a l s fi r s t .
Batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries
and vehicle batteries to a special
collection point.
Charging the battery using a
battery charger
Disconnect the battery from the
vehicle.
Follow the instructions for use
provided by the manufacturer of the
charger.
Reconnect starting with the nega-
t i v e t e r m i n a l ( - ) .
Check that the terminals and con-
nectors are clean. If they are covered
with sulphate (whitish or greenish
d e p o s i t ) , r e m o v e t h e m a n d c l e a n
them.
LOAD REDUCTION MODE
System which manages the use of
certain functions according to the level
of charge remaining in the battery.
When the vehicle is being driven, the
load reduction function temporarily de-
activates certain functions, such as
the air conditioning, the heated rear
screen...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.
It is advisable to disconnect the
battery if the vehicle is to be left
unused for more than one month. Before disconnecting the
battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.
Following reconnection of the
battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit
initialisation of the electronic sys-
tems. However, if minor problems
persist following this operation,
contact a CITROËN dealer.
Referring to the corresponding
section, you should yourself reini-
t i a l i s e :
- the remote control key,
- the GPS satellite navigation
system.
