Page 27 of 224
30
MULTIFUNCTION SCREENS
Displays on the screen
This displays the following information:
- time,
- date,
- a m b i e n t t e m p e r a t u r e ( t h i s fl a s h e s i f there is a risk of ice),
-
state of the openings (doors, boot, etc.),
- trip computer (refer to the end of the section).
Warning messages or information mes-
sages may appear temporarily. These
can be cleared by pressing the "ESC"
button.
MONOCHROME SCREEN A
(WITHOUT AUDIO EQUIPMENT)
Controls Main menu
There are three display control buttons:
- "ESC" to abandon the operation in
progress,
- "MENU" to scroll through the menus
or sub-menus,
- "OK" to select the menu or sub-
menu required.
Press the "MENU" button to scroll
through the various menus of the
main
menu :
- v e h i c l e c o n fi g u r a t i o n ,
- options,
- display settings,
- language,
- units.
Press the "OK" button to select the
menu required.
Page 29 of 224
32
MULTIFUNCTION SCREENS
MONOCHROME SCREEN A Controls
Displays on the screen
This displays the following information:
- time,
- date,
- a m b i e n t t e m p e r a t u r e ( t h i s fl a s h e s i f there is a risk of ice),
- state of the openings (doors, boot...),
- audio sources (radio, CD...),
- trip computer (refer to the end of the section).
Warning messages or information mes-
sages may appear temporarily. These
can be cleared by pressing the "ESC"
button. Main menu
Press the "MENU" button for access
to the main menu , then press the
" " or " " buttons to scroll through
the various menus:
- radio-CD,
- v e h i c l e c o n fi g u r a t i o n ,
- options,
- display settings,
- language,
- units.
Press the "OK" button to select the
menu required.
From the audio equipment control panel,
you can:
press the "MENU" button for access
to the main menu ,
press the " " or " " buttons to scroll
through the items on the screen,
press the "MODE" button to change
the permanent application (trip com-
puter, audio source...),
press the " " or " " buttons to
change a setting value,
press the "OK" b u t t o n t o c o n fi r m ,
or
press the "ESC" button to abandon
the operation in progress. Radio-CD
With the audio equipment switched on,
once the "Radio-CD" menu has been
selected you can activate or deactivate
the functions linked with use of the
radio (RDS, REG) or the CD (introscan,
s h u f fl e , C D r e p e a t ) .
For more information on the "Radio-
CD" application, refer to the Audio sys-
tem part of the "Audio and Telematics"
section.
Page 30 of 224
!
i
33
MULTIFUNCTION SCREENS Once the fuel consumption unit has
been changed to mpg, the informa-
tion relating to speed and distance
also changes to miles.
D i s p l a y s e t t i n g s
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode.
L a n g u a g e
Once the "Language" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).
Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:
- temperature (°C or °F),
- fuel consumption (l/100km, mpg or
km/l).
Once you have selected a setting,
press the " " or " " buttons to
change its value.
Press the " " or " " buttons to
switch respectively to the previous
or next setting.
Press the "OK" button to record the
change and return to the normal dis-
play or press the "ESC" button to
cancel.
V e h i c l e c o n fi g u r a t i o n
Options
Once the "Options" menu has been
selected, you can start diagnostics of
the status of the equipment (active, not
active, faulty).
O n c e t h e " V e h i c l e C o n fi g u r a t i o n " m e n u
has been selected, you can activate or
deactivate the following equipment:
- wiper linked with reverse gear (refer
to the "Visibility" section),
- "guide-me-home" lighting (refer to the "Visibility" section).
F o r s a f e t y r e a s o n s , c o n fi g u r a t i o n
of the multifunction screen by the
driver must only be done when
stationary.
Page 31 of 224
34
MULTIFUNCTION SCREENS
MONOCHROME SCREEN A
ASSOCIATED WITH THE
MYWAY COLOUR SCREEN
Main menu
Displays on screen A
This displays the following information:
- a m b i e n t t e m p e r a t u r e ( t h i s fl a s h e s i f there is a risk of ice),
- trip computer (refer to the end of the section).
Warning messages or information mes-
sages may appear temporarily. These
can be cleared by pressing the "ESC"
button. Controls
There are three display control buttons:
- "ESC" to abandon the operation in
progress,
- "MENU" to scroll through the menus
or sub-menus,
- "OK" to select the menu or sub-
menu required.
Press the "MENU" button to scroll
through the various menus of the
main menu :
- v e h i c l e c o n fi g u r a t i o n ,
- options,
- language,
- units.
Press the "OK" button to select the
menu required.
V e h i c l e c o n fi g u r a t i o n
O n c e t h e " V e h i c l e c o n fi g u r a t i o n " m e n u
has been selected, you can activate or
deactivate the following equipment:
- wiper linked with reverse gear (refer to the "Visibility" section),
- "guide-me-home" lighting (refer to the "Visibility" section),
Page 33 of 224
36
MULTIFUNCTION SCREENS
Displays on the screen
This displays the following information:
- time,
- date,
- a m b i e n t t e m p e r a t u r e ( t h i s fl a s h e s i f there is a risk of ice),
- state of the openings (doors, boot, etc.),
- audio sources (radio, CD, USB port, etc.),
- trip computer (refer to the end of the section).
Warning messages or information mes-
sages may appear temporarily. These
can be cleared by pressing the "ESC"
button. From the audio equipment control panel,
you can:
press the "MENU" button for access
to the main menu ,
press the " " or " " buttons to scroll
through the items on the screen,
press the "MODE" button to change
the permanent application (trip com-
puter, audio source...),
press the " " or " " buttons to
change a setting value,
press the "OK" b u t t o n t o c o n fi r m ,
or
press the "ESC" button to abandon
the operation in progress. Main menu
Press the "MENU" button for ac-
cess to the main menu :
- audio functions,
- trip computer (refer to the end of the section),
- p e r s o n a l i s a t i o n - c o n fi g u r a t i o n ,
- telephone (hands-free kit).
Press the " " or " " buttons to se-
l e c t t h e m e n u r e q u i r e d , t h e n c o n fi r m
by pressing the "OK" button.
MONOCHROME SCREEN C Controls
"Audio functions" menu
With the audio equipment switched on,
once this menu has been selected you
can activate or deactivate the functions
linked with use of the radio (RDS, REG,
R a d i o T e x t ) , t h e C D ( i n t r o s c a n , s h u f fl e ,
CD repeat) or the MP3 player (USB
port).
For more information on the "Audio func-
tions" application, refer to the Audio sys-
tems part of the "Audio and Telematics"
section.
Page 35 of 224
!
i
38
MULTIFUNCTION SCREENS
D i s p l a y c o n fi g u r a t i o n
Once this menu has been selected, you
can gain access to the following settings:
- brightness-video setting,
- date and time setting,
- selection of the units.
Example: setting of the duration of the
guide-me-home lighting
Press the " " or " " buttons, then
the "OK" button to select the menu
required.
Press the " " or " " buttons,
then the "OK" button to select the
"Guide-me-home headlamps" line.
Press the " " or " " buttons to set
the value required (15, 30 or 60 sec-
onds), then press the "OK" button
t o c o n fi r m .
Press the " " or " " buttons, then
the "OK" button to select the "OK"
b o x a n d c o n fi r m o r p r e s s t h e "ESC"
button to cancel.
F o r s a f e t y r e a s o n s , c o n fi g u r a t i o n
of the multifunction screen by the
driver must only be done when sta-
tionary.
C h o i c e o f l a n g u a g e
Once this menu has been selected,
you can change the language used by
the display (Deutsch, English, Espanol,
Français, Italiano, Nederlands, Portugues, Türkçe, Portugues-Brasil). Once the fuel consumption unit has
been changed to mpg, the informa-
tion relating to speed and distance
also changes to miles. Telephone menu
With the Audio system on and this
m e n u s e l e c t e d , y o u c a n c o n fi g u r e y o u r
Bluetooth hands-free system (pairing),
view the various telephone directories
(calls log, services...) and manage your
calls (call, hang up, double call, secret
mode...).
For more information on the "Telephone"
application, refer to the Audio system
section in "Audio et Telematics".
Page 57 of 224
!
58
ACCESS
Lost keys
Visit a CITROËN dealer with the vehicle's V5 registration do cument and your
p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The CITROËN dealer will be able to retrieve the key code a nd the transponder
code required to order a replacement key. Do not throw the remote control
batteries away, they contain metals
which are harmful to the environ-
ment.
Take them to an approved collec-
tion point.
Remote control
The high frequency remote control is a sensitive system; do not o perate it
while it is in your pocket as there is a possibility that it ma y unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even
when the ignition is switched off, except for reinitialisat ion.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart -
m e n t b y t h e e m e r g e n c y s e r v i c e s m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children on board), r emove the key from the ignition
when you leave the vehicle, even for a short time.
Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m ;
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a CITROËN dealer, to ensure tha t the keys
in your possession are the only ones which can start the vehicle.
Page 59 of 224
!
58
ACCESS
Lost keys
Visit a CITROËN dealer with the vehicle's V5 registration do cument and your
p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The CITROËN dealer will be able to retrieve the key code a nd the transponder
code required to order a replacement key. Do not throw the remote control
batteries away, they contain metals
which are harmful to the environ-
ment.
Take them to an approved collec-
tion point.
Remote control
The high frequency remote control is a sensitive system; do not o perate it
while it is in your pocket as there is a possibility that it ma y unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even
when the ignition is switched off, except for reinitialisat ion.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart -
m e n t b y t h e e m e r g e n c y s e r v i c e s m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children on board), r emove the key from the ignition
when you leave the vehicle, even for a short time.
Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m ;
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a CITROËN dealer, to ensure tha t the keys
in your possession are the only ones which can start the vehicle.
Page 173 of 224
158
01
1
55
1010
22
334466
1313
1111
99
14141515
778812121616

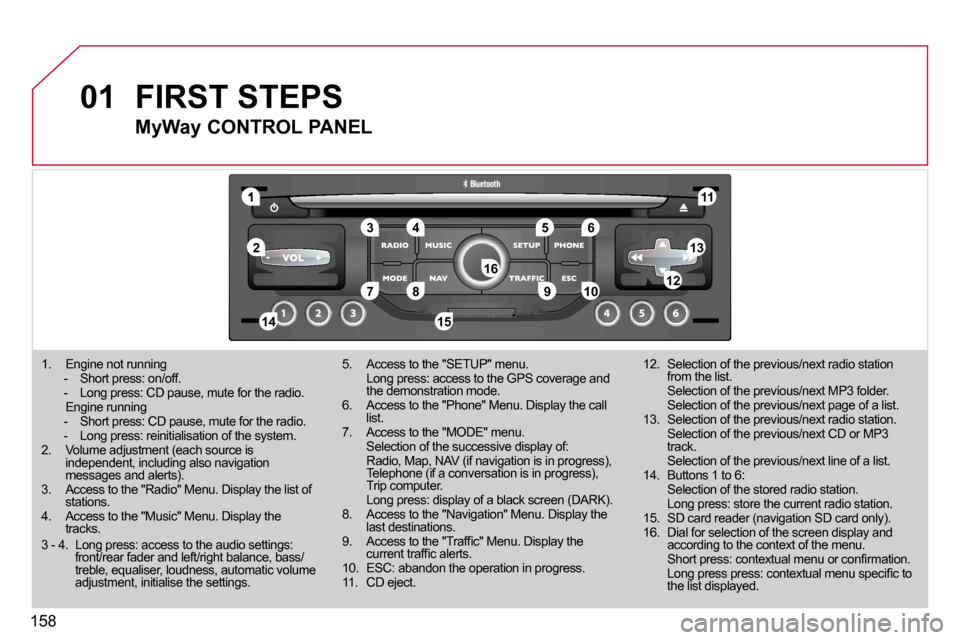

1 . E n g i n e n o t r u n n i n g - Short press: on/off. - L o n g p r e s s : C D p a u s e , m u t e f o r t h e r a d i o . E n g i n e r u n n i n g - S h o r t p r e s s : C D p a u s e , m u t e f o r t h e r a d i o . - L o n g p r e s s : r e i n i t i a l i s a t i o n o f t h e s y s t e m . 2. Volume adjustment (each source is i n d e p e n d e n t , i n c l u d i n g a l s o n a v i g a t i o n m e s s a g e s a n d a l e r t s ) . 3 . A c c e s s t o t h e " R a d i o " M e n u . D i s p l a y t h e l i s t o f stations. 4 . A c c e s s t o t h e " M u s i c " M e n u . D i s p l a y t h e tracks.
5 . A c c e s s t o t h e " S E T U P " m e n u . L o n g p r e s s : a c c e s s t o t h e G P S c o v e r a g e a n d the demonstration mode. 6 . A c c e s s t o t h e " P h o n e " M e n u . D i s p l a y t h e c a l l list. 7 . A c c e s s t o t h e " M O D E " m e n u . Selection of the successive display of: R a d i o , M a p , N A V ( i f n a v i g a t i o n i s i n p r o g r e s s ) , T e l e p h o n e ( i f a c o n v e r s a t i o n i s i n p r o g r e s s ) , Trip computer. L o n g p r e s s : d i s p l a y o f a b l a c k s c r e e n ( D A R K ) . 8 . A c c e s s t o t h e " N a v i g a t i o n " M e n u . D i s p l a y t h e last destinations. 9 . A c c e s s t o t h e " T r a f fi c " M e n u . D i s p l a y t h e c u r r e n t t r a f fi c a l e r t s . 1 0 . E S C : a b a n d o n t h e o p e r a t i o n i n p r o g r e s s . 1 1 . C D e j e c t .
12. Selection of the previous/next radio station from the list. S e l e c t i o n o f t h e p r e v i o u s / n e x t M P 3 f o l d e r . S e l e c t i o n o f t h e p r e v i o u s / n e x t p a g e o f a l i s t . 13. Selection of the previous/next radio station. S e l e c t i o n o f t h e p r e v i o u s / n e x t C D o r M P 3 track. Selection of the previous/next line of a list. 14. Buttons 1 to 6: Selection of the stored radio station. L o n g p r e s s : s t o r e t h e c u r r e n t r a d i o s t a t i o n . 1 5 . S D c a r d r e a d e r ( n a v i g a t i o n S D c a r d o n l y ) . 1 6 . D i a l f o r s e l e c t i o n o f t h e s c r e e n d i s p l a y a n d a c c o r d i n g t o t h e c o n t e x t o f t h e m e n u . S h o r t p r e s s : c o n t e x t u a l m e n u o r c o n fi r m a t i o n . L o n g p r e s s p r e s s : c o n t e x t u a l m e n u s p e c i fi c t o the list displayed.
FIRST STEPS
MyWay CONTROL PANEL
3 - 4 . L o n g p r e s s : a c c e s s t o t h e a u d i o s e t t i n g s : f r o n t / r e a r f a d e r a n d l e f t / r i g h t b a l a n c e , b a s s /treble, equaliser, loudness, automatic volume a d j u s t m e n t , i n i t i a l i s e t h e s e t t i n g s .
Page 174 of 224
159

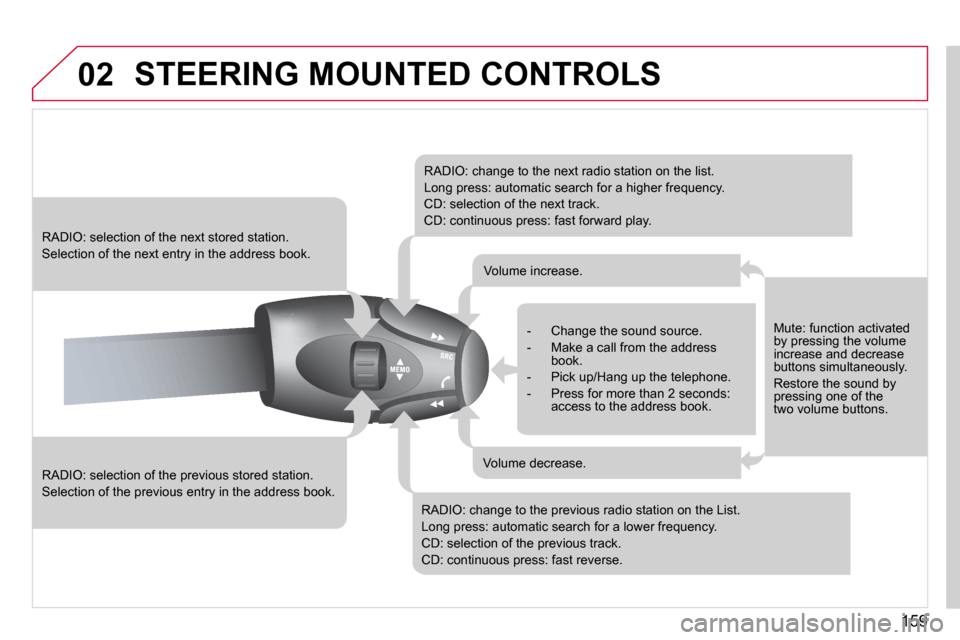

02 STEERING MOUNTED CONTROLS
R A D I O : s e l e c t i o n o f t h e p r e v i o u s s t o r e d s t a t i o n .
Selection of the previous entry in the address book.
R A D I O : s e l e c t i o n o f t h e n e x t s t o r e d s t a t i o n .
Selection of the next entry in the address book.
R A D I O : c h a n g e t o t h e n e x t r a d i o s t a t i o n o n t h e l i s t .
L o n g p r e s s : a u t o m a t i c s e a r c h f o r a h i g h e r f r e q u e n c y .
C D : s e l e c t i o n o f t h e n e x t t r a c k .
C D : c o n t i n u o u s p r e s s : f a s t f o r w a r d p l a y .
R A D I O : c h a n g e t o t h e p r e v i o u s r a d i o s t a t i o n o n t h e L i s t .
L o n g p r e s s : a u t o m a t i c s e a r c h f o r a l o w e r f r e q u e n c y .
C D : s e l e c t i o n o f t h e p r e v i o u s t r a c k .
C D : c o n t i n u o u s p r e s s : f a s t r e v e r s e .
- C h a n g e t h e s o u n d s o u r c e .
- Make a call from the address book.
- P i c k u p / H a n g u p t h e t e l e p h o n e .
- P r e s s f o r m o r e t h a n 2 s e c o n d s : access to the address book.
Volume increase.
Volume decrease.
Mute: function activated b y p r e s s i n g t h e v o l u m e increase and decrease buttons simultaneously.
Restore the sound by p r e s s i n g o n e o f t h e two volume buttons.
