Page 49 of 224
!
COMFORT

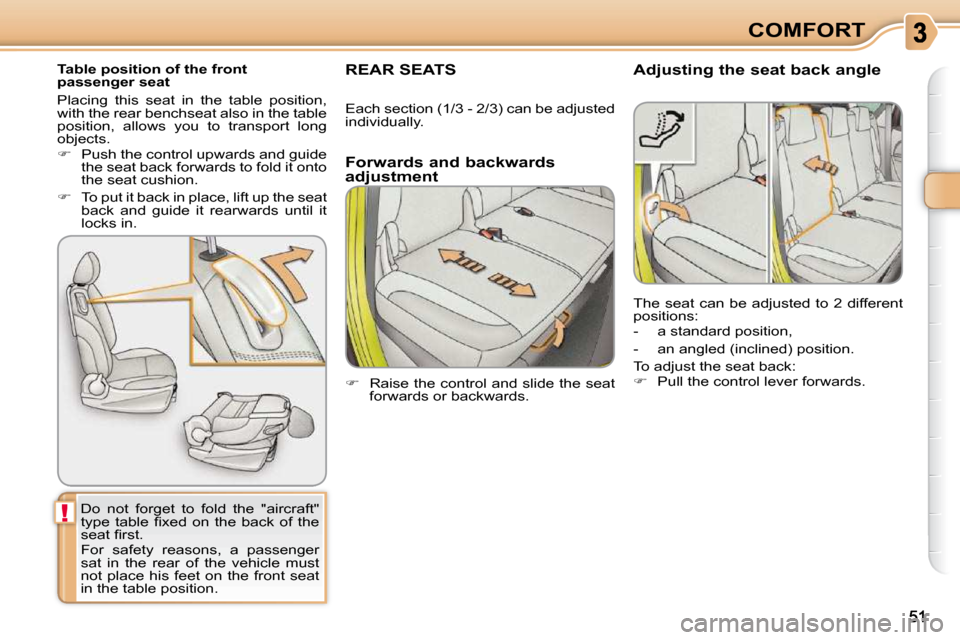

Table position of the front
passenger seat
D o n o t f o r g e t t o f o l d t h e " a i r c r a f t "
t y p e t a b l e fi x e d o n t h e b a c k o f t h e
s e a t fi r s t .
For safety reasons, a passenger
sat in the rear of the vehicle must
not place his feet on the front seat
in the table position.
Placing this seat in the table position,
with the rear benchseat also in the table
position, allows you to transport long
objects.
Push the control upwards and guide
the seat back forwards to fold it onto
the seat cushion.
To put it back in place, lift up the seat
back and guide it rearwards until it
locks in.
REAR SEATS
Forwards and backwards
a d j u s t m e n t A d j u s t i n g t h e s e a t b a c k a n g l e
Raise the control and slide the seat
forwards or backwards.
Each section (1/3 - 2/3) can be adjusted
individually.
The seat can be adjusted to 2 different
positions:
- a standard position,
- an angled (inclined) position.
To adjust the seat back:
Pull the control lever forwards.
Page 50 of 224
!
COMFORT
Table position of the front
passenger seat
D o n o t f o r g e t t o f o l d t h e " a i r c r a f t "
t y p e t a b l e fi x e d o n t h e b a c k o f t h e
s e a t fi r s t .
For safety reasons, a passenger
sat in the rear of the vehicle must
not place his feet on the front seat
in the table position.
Placing this seat in the table position,
with the rear benchseat also in the table
position, allows you to transport long
objects.
Push the control upwards and guide
the seat back forwards to fold it onto
the seat cushion.
To put it back in place, lift up the seat
back and guide it rearwards until it
locks in.
REAR SEATS
Forwards and backwards
a d j u s t m e n t A d j u s t i n g t h e s e a t b a c k a n g l e
Raise the control and slide the seat
forwards or backwards.
Each section (1/3 - 2/3) can be adjusted
individually.
The seat can be adjusted to 2 different
positions:
- a standard position,
- an angled (inclined) position.
To adjust the seat back:
Pull the control lever forwards.
Page 51 of 224
i
i
i
52

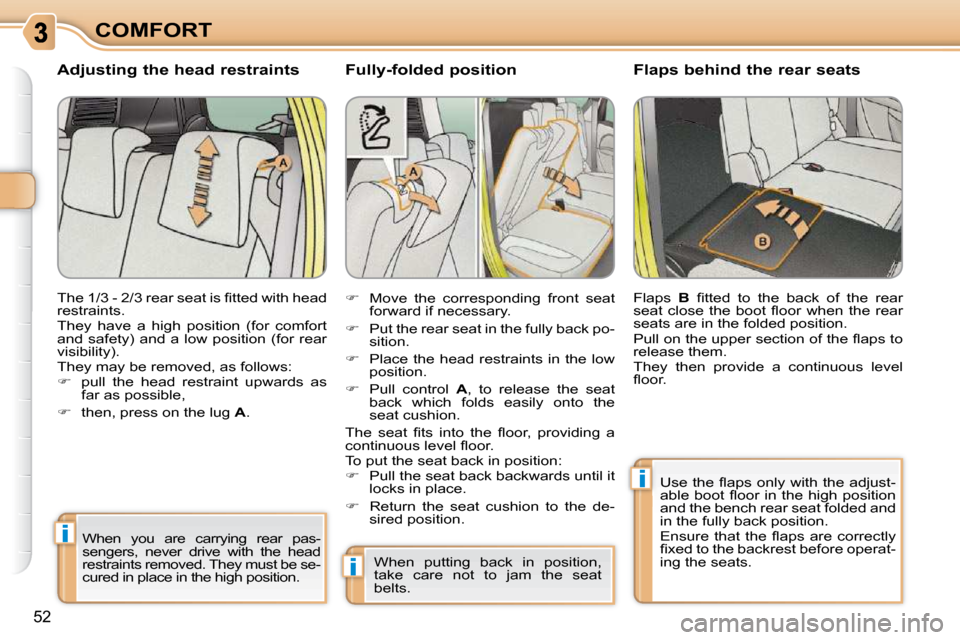

COMFORT F u l l y - f o l d e d p o s i t i o n Flaps behind the rear seats
Move the corresponding front seat
forward if necessary.
Put the rear seat in the fully back po-
sition.
Place the head restraints in the low
position.
Pull control A , to release the seat
back which folds easily onto the
seat cushion.
T h e s e a t fi t s i n t o t h e fl o o r , p r o v i d i n g a
c o n t i n u o u s l e v e l fl o o r .
To put the seat back in position:
Pull the seat back backwards until it
locks in place.
Return the seat cushion to the de-
sired position. Flaps
B fi t t e d t o t h e b a c k o f t h e r e a r
s e a t c l o s e t h e b o o t fl o o r w h e n t h e r e a r
seats are in the folded position.
P u l l o n t h e u p p e r s e c t i o n o f t h e fl a p s t o
release them.
They then provide a continuous level
fl o o r .
A d j u s t i n g t h e h e a d r e s t r a i n t s
T h e 1 / 3 - 2 / 3 r e a r s e a t i s fi t t e d w i t h h e a d
restraints.
They have a high position (for comfort
and safety) and a low position (for rear
visibility).
They may be removed, as follows:
pull the head restraint upwards as
far as possible,
then, press on the lug A .
When you are carrying rear pas-
sengers, never drive with the head
restraints removed. They must be se-
cured in place in the high position. When putting back in position,
take care not to jam the seat
belts. U s e t h e fl a p s o n l y w i t h t h e a d j u s t -
a b l e b o o t fl o o r i n t h e h i g h p o s i t i o n
and the bench rear seat folded and
in the fully back position.
E n s u r e t h a t t h e fl a p s a r e c o r r e c t l y
fi x e d t o t h e b a c k r e s t b e f o r e o p e r a t -
ing the seats.
Page 91 of 224
!
81
FITTINGS

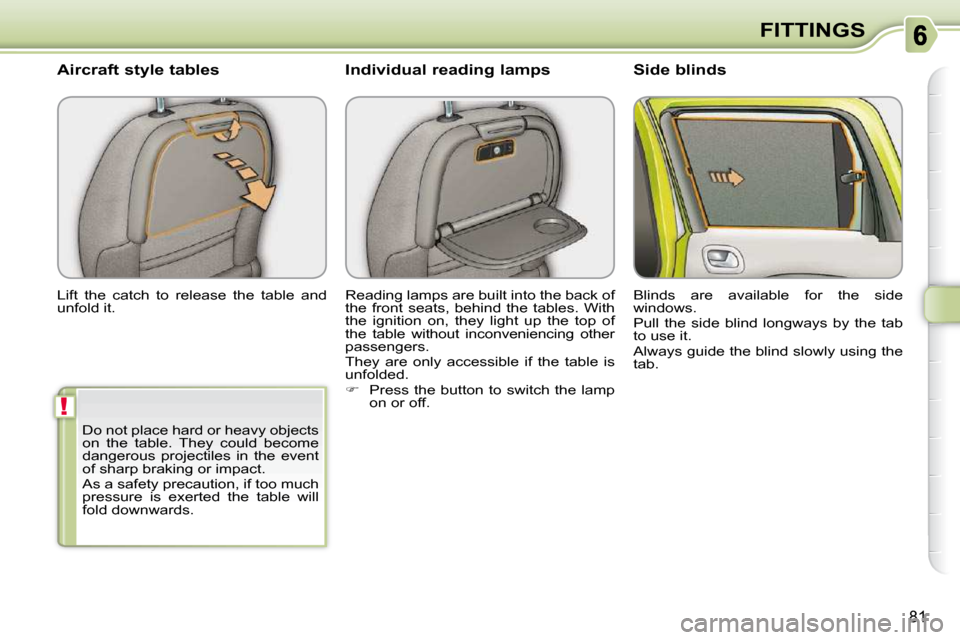

Lift the catch to release the table and
unfold it.
Aircraft style tables
Reading lamps are built into the back of
the front seats, behind the tables. With
the ignition on, they light up the top of
the table without inconveniencing other
passengers.
They are only accessible if the table is
unfolded.
Press the button to switch the lamp
on or off.
Individual reading lamps
Do not place hard or heavy objects
on the table. They could become
dangerous projectiles in the event
of sharp braking or impact.
As a safety precaution, if too much
pressure is exerted the table will
fold downwards. Side blinds
Blinds are available for the side
windows.
Pull the side blind longways by the tab
to use it.
Always guide the blind slowly using the
tab.
Page 93 of 224
!
81
FITTINGS
Lift the catch to release the table and
unfold it.
Aircraft style tables
Reading lamps are built into the back of
the front seats, behind the tables. With
the ignition on, they light up the top of
the table without inconveniencing other
passengers.
They are only accessible if the table is
unfolded.
Press the button to switch the lamp
on or off.
Individual reading lamps
Do not place hard or heavy objects
on the table. They could become
dangerous projectiles in the event
of sharp braking or impact.
As a safety precaution, if too much
pressure is exerted the table will
fold downwards. Side blinds
Blinds are available for the side
windows.
Pull the side blind longways by the tab
to use it.
Always guide the blind slowly using the
tab.
Page 96 of 224
i
84
FITTINGS

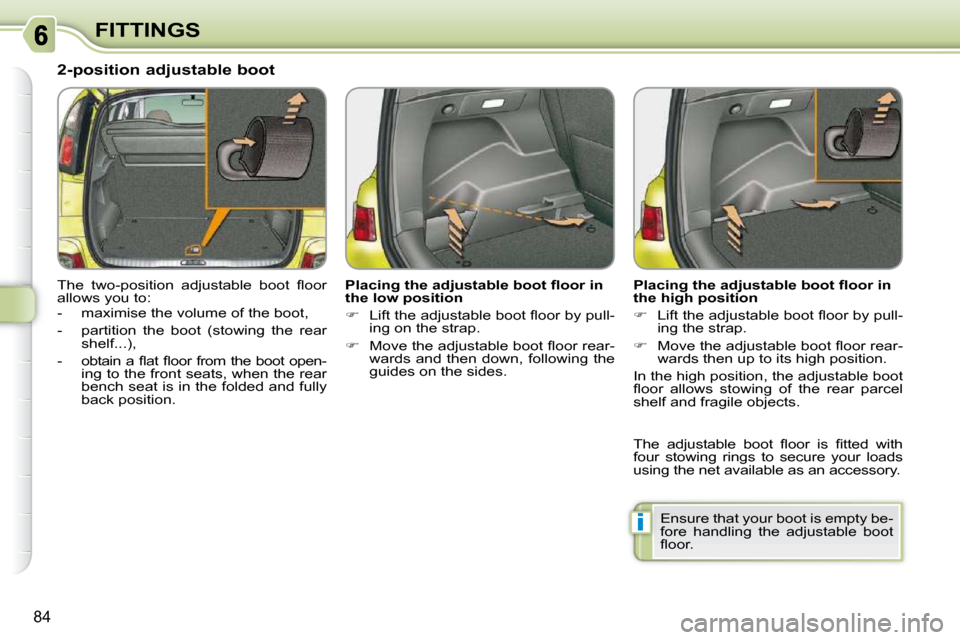

2-position adjustable boot
T h e t w o - p o s i t i o n a d j u s t a b l e b o o t fl o o r
allows you to:
- maximise the volume of the boot,
- partition the boot (stowing the rear shelf...),
- o b t a i n a fl a t fl o o r f r o m t h e b o o t o p e n - ing to the front seats, when the rear
bench seat is in the folded and fully
back position. P l a c i n g t h e a d j u s t a b l e b o o t fl o o r i n
the low position
L i f t t h e a d j u s t a b l e b o o t fl o o r b y p u l l -
ing on the strap.
M o v e t h e a d j u s t a b l e b o o t fl o o r r e a r -
wards and then down, following the
guides on the sides. P l a c i n g t h e a d j u s t a b l e b o o t fl o o r i n
the high position
L i f t t h e a d j u s t a b l e b o o t fl o o r b y p u l l -
ing the strap.
M o v e t h e a d j u s t a b l e b o o t fl o o r r e a r -
wards then up to its high position.
In the high position, the adjustable boot
fl o o r a l l o w s s t o w i n g o f t h e r e a r p a r c e l
shelf and fragile objects.
T h e a d j u s t a b l e b o o t fl o o r i s fi t t e d w i t h
four stowing rings to secure your loads
using the net available as an accessory.
Ensure that your boot is empty be-
fore handling the adjustable boot
fl o o r .
