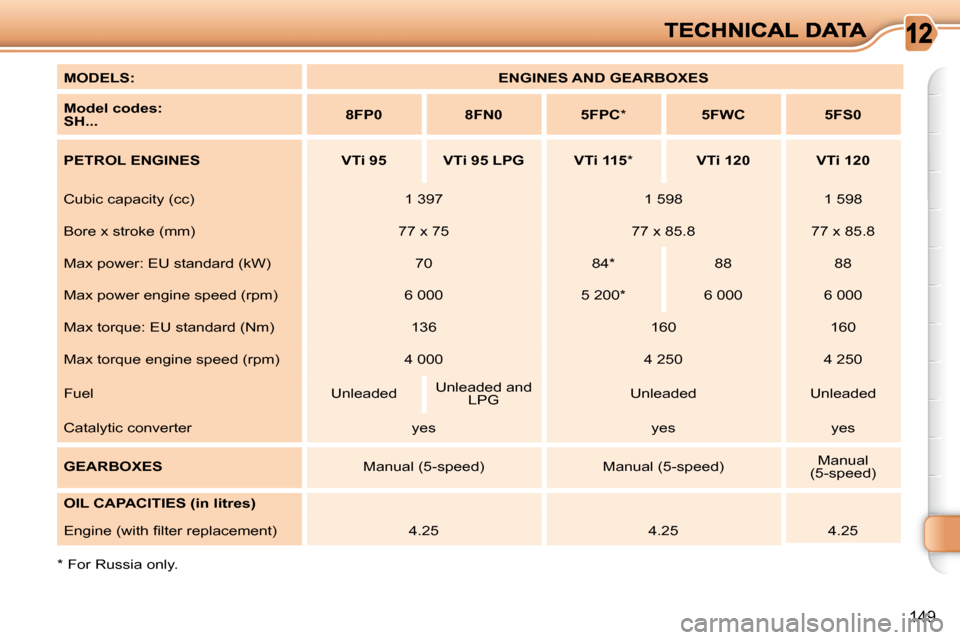

torque Citroen C3 PICASSO DAG 2010.5 1.G Owner's Manual

149
* For Russia only.
MODELS:
ENGINES AND GEARBOXES

Model codes:

SH...
8FP0 8FN0 5FPC * 5FWC 5FS0

PETROL ENGINES VTi 95 VTi 95 LPG VTi 115 * VTi 120 VTi 120
Cubic capacity (cc) 1 397 1 598 1 598
Bore x stroke (mm) 77 x 75 77 x 85.8 77 x 85.8
Max power: EU standard (kW) 70 84 * 88 88
Max power engine speed (rpm) 6 000 5 200 * 6 000 6 000
Max torque: EU standard (Nm) 136 160 160
Max torque engine speed (rpm) 4 000 4 250 4 250
Fuel Unleaded Unleaded and
LPG Unleaded Unleaded
Catalytic converter yes yes yes

GEARBOXES Manual (5-speed) Manual (5-speed) Manual
(5-speed)

OIL CAPACITIES (in litres)

Engine (with fi lter replacement) 4.25 4.25 4.25

151

MODELS:
ENGINES AND GEARBOXES

Model codes:
SH...
9HXC 9HP0 9HR8

DIESEL ENGINES HDi 90 HDi 90 PEF HDi 110 PEF
Cubic capacity (cc) 1 560 1 560 1 560
Bore x stroke (mm) 75 x 88.3 75 x 88.3 75 x 88.3
Max power: EU standard (kW) 66.2 68 82
Max power engine speed (rpm) 4 000 4 000 3 600
Max torque: EU standard (Nm) 215 230 270
Max torque engine speed (rpm) 1 750 1 750 1 750
Fuel Diesel Diesel Diesel
Catalytic converter yes yes yes
Particle emission fi lter no yes yes

GEARBOXES Manual (5-speed) Manual (5-speed) Manual (6-speed)

OIL CAPACITIES (in litres)

Engine (with fi lter replacement) 3.75 3.75 3.75
