Citroen C3 PICASSO RHD 2011.5 1.G Owner's Manual
Manufacturer: CITROEN, Model Year: 2011.5, Model line: C3 PICASSO RHD, Model: Citroen C3 PICASSO RHD 2011.5 1.GPages: 244, PDF Size: 8.29 MB
Page 141 of 244
11
PRACTICAL INFORMATION
Fitting the steel or "space-saver"
type spare wheel
If your vehicle is fi tted with alloy
wheels, it is normal to notice,
when tightening the bolts on fi t-
ting, that the washers do not
come into contact with the steel
or "space-saver" type spare
wheel. The wheel is secured by
the conical contact of each bolt.
Access to the spare wheel
The spare wheel is installed in the boot
under the fl oor.
According to country, the spare wheel may be steel or of the "space-saver" type.
For access to it, refer to the paragraph
"Access to tools" on the previous page.
Taking out the wheel
)
Unscrew the yellow central bolt, and
remove it.
)
Raise the spare wheel towards you
from the rear.
)
Take the wheel out of the boot.
Putting the wheel back in place
)
Put the wheel back in its housing.
)
Refi t the yellow central bolt in the
centre of the wheel.
)
Tighten fully until the central bolt
clicks to retain the wheel correctly.
)
Put the polystyrene storage box
back in place.
)
Put the box back in place and clip it.
Page 142 of 244
11
PRACTICAL INFORMATION

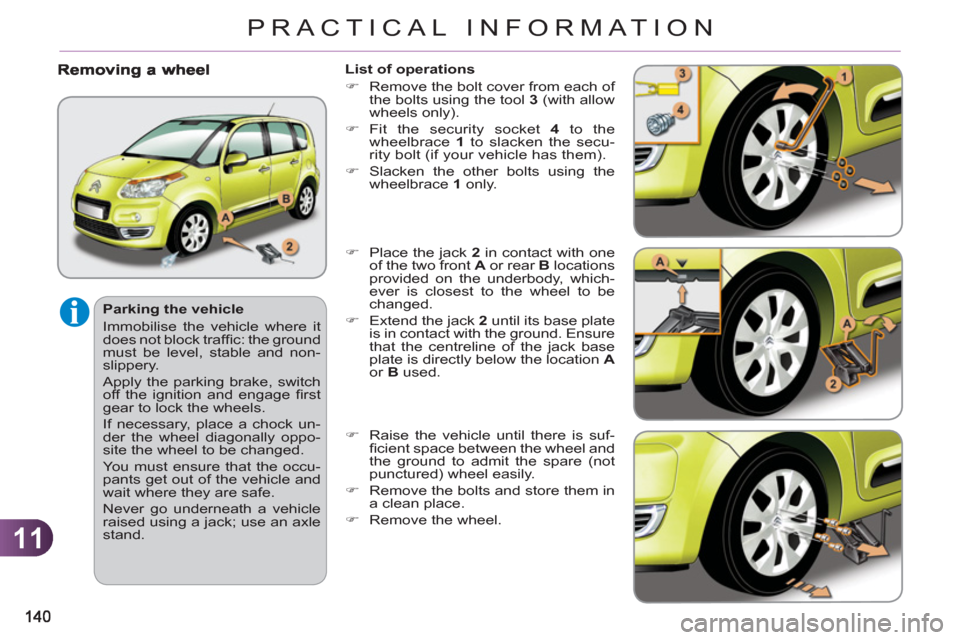

Parking the vehicle
Immobilise the vehicle where it
does not block traffi c: the ground
must be level, stable and non-
slippery.
Apply the parking brake, switch
off the ignition and engage fi rst
gear to lock the wheels.
If necessary, place a chock un-
der the wheel diagonally oppo-
site the wheel to be changed.
You must ensure that the occu-
pants get out of the vehicle and
wait where they are safe.
Never go underneath a vehicle
raised using a jack; use an axle
stand.
List of operations
)
Remove the bolt cover from each of
the bolts using the tool 3
(with allow
wheels only).
)
Fit the security socket 4
to the
wheelbrace 1
to slacken the secu-
rity bolt (if your vehicle has them).
)
Slacken the other bolts using the
wheelbrace 1
only.
)
Place the jack 2
in contact with one
of the two front A
or rear B
locations
provided on the underbody, which-
ever is closest to the wheel to be
changed.
)
Extend the jack 2
until its base plate
is in contact with the ground. Ensure
that the centreline of the jack base
plate is directly below the location A
or B
used.
)
Raise the vehicle until there is suf-
fi cient space between the wheel and
the ground to admit the spare (not
punctured) wheel easily.
)
Remove the bolts and store them in
a clean place.
)
Remove the wheel.
Page 143 of 244
11
PRACTICAL INFORMATION

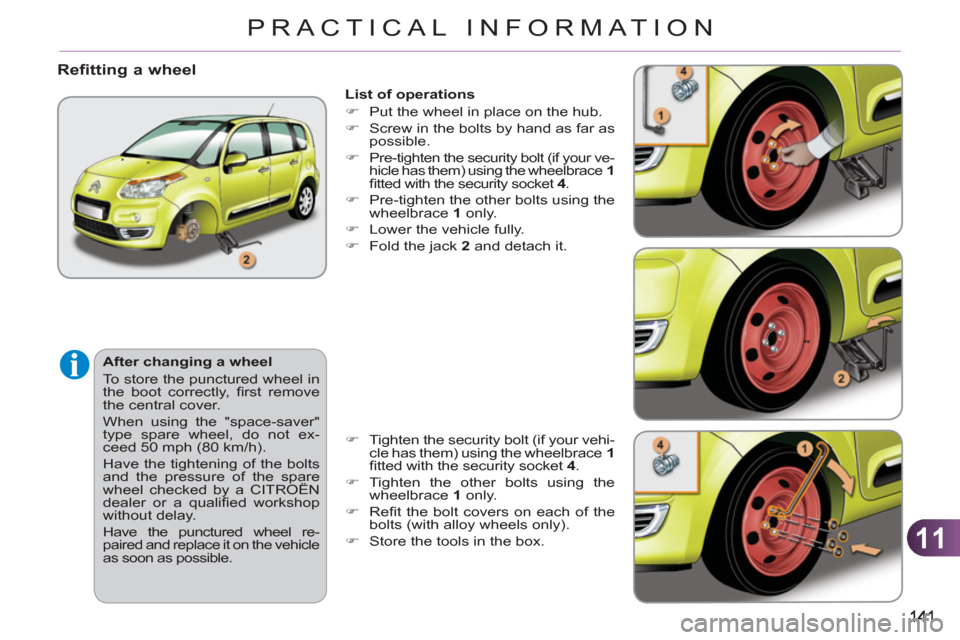

List of operations
)
Put the wheel in place on the hub.
)
Screw in the bolts by hand as far as
possible.
)
Pre-tighten the security bolt (if your ve-
hicle has them) using the wheelbrace 1
fi tted with the security socket 4
.
)
Pre-tighten the other bolts using the
wheelbrace 1
only.
)
Lower the vehicle fully.
)
Fold the jack 2
and detach it.
After changing a wheel
To store the punctured wheel in
the boot correctly, fi rst remove
the central cover.
When using the "space-saver"
type spare wheel, do not ex-
ceed 50 mph (80 km/h).
Have the tightening of the bolts
and the pressure of the spare
wheel checked by a CITROËN
dealer or a qualifi ed workshop
without delay.
Have the punctured wheel re-
paired and replace it on the vehicle
as soon as possible.
Refitting a wheel
)
Tighten the security bolt (if your vehi-
cle has them) using the wheelbrace 1
fi tted with the security socket 4
.
)
Tighten the other bolts using the
wheelbrace 1
only.
)
Refi t the bolt covers on each of the
bolts (with alloy wheels only).
)
Store the tools in the box.
Page 144 of 244
11
142
PRACTICAL INFORMATION
CHANGING A BULB
Procedure for replacing a faulty bulb
with a new bulb.
1.
Direction indicators
(H21W amber).
2.
Dipped
beam
headlamps
(H7-55W).
3.
Main beam headlamps (H1-55W).
4.
Sidelamps
(W5W).
5.
Foglamps
(PSX24W).
The headlamps are fi tted with
polycarbonate glass with a pro-
tective coating:
)
do not clean them using a
dry or abrasive cloth, nor
with a detergent or solvent
product,
)
use a sponge and soapy water,
)
when using a high pressure
washer on persistent marks,
do not keep the lance direct-
ed towards the lamps or their
edges for too long, so as not
to damage their protective
coating and seals.
Front lamps
)
Do not touch the bulb directly
with your fi ngers, use lint-free
cloths.
Changing a bulb should only be
done after the headlamp has
been switched off for a few min-
utes (risk of serious burns).
It is imperative to use only anti-
ultraviolet (UV) type bulbs in order
not to damage the headlamp.
Always replace a failed bulb
with a new bulb with the same
type and specifi cation.
Page 145 of 244
11
143
PRACTICAL INFORMATION
Changing direction indicator bulbs
Amber coloured bulbs, such as
the direction indicators, must be
replaced with bulbs of identical
specifi cations and colour.
)
Remove the plastic protective cover.
)
Pull the bulb-holder and replace the
bulb.
To r efi t, carry out these operations in
reverse order.
When refi tting, close the plastic
cover carefully to ensure the
sealing of the headlamp.
If either of the direction indicator
warning lamps is fl ashing quickly,
one of the bulbs is faulty.
Changing main beam headlamp
bulbs
)
Remove the protective plastic cover
by pulling on the tab.
)
Disconnect the bulb connector.
)
Move the springs to release the
bulb.
)
Remove the bulb and change it.
To r efi t, carry out these operations in
reverse order.
Changing sidelamp bulbs
)
Remove the protective plastic cover
by pulling on the tab.
)
Pull the bulb-holder.
)
Remove the bulb and replace it.
To r efi t, carry out these operations in
reverse order.
Changing dipped headlamp bulbs
)
Remove the protective plastic cover
by pulling on the tab.
)
Turn the bulb-holder by a quarter
turn.
)
Remove the bulb and change it.
To r efi t, carry out these operations in
reverse order.
Page 146 of 244
11
144
PRACTICAL INFORMATION

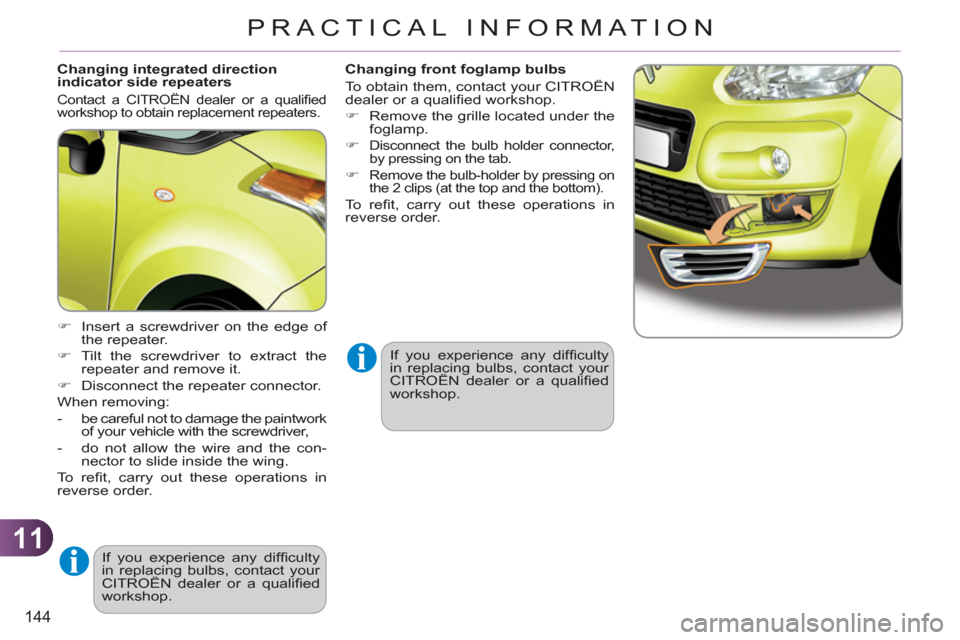

Changing integrated direction
indicator side repeaters
Contact a CITROËN dealer or a qualifi ed
workshop to obtain replacement repeaters.
)
Insert a screwdriver on the edge of
the repeater.
)
Tilt the screwdriver to extract the
repeater and remove it.
)
Disconnect the repeater connector.
When removing:
- be careful not to damage the paintwork
of your vehicle with the screwdriver,
- do not allow the wire and the con-
nector to slide inside the wing.
To r efi t, carry out these operations in
reverse order.
If you experience any diffi culty
in replacing bulbs, contact your
CITROËN dealer or a qualifi ed
workshop.
Changing front foglamp bulbs
To obtain them, contact your CITROËN
dealer or a qualifi ed workshop.
)
Remove the grille located under the
foglamp.
)
Disconnect the bulb holder connector,
by pressing on the tab.
)
Remove the bulb-holder by pressing on
the 2 clips (at the top and the bottom).
To r efi t, carry out these operations in
reverse order.
If you experience any diffi culty
in replacing bulbs, contact your
CITROËN dealer or a qualifi ed
workshop.
Page 147 of 244
11
145
PRACTICAL INFORMATION

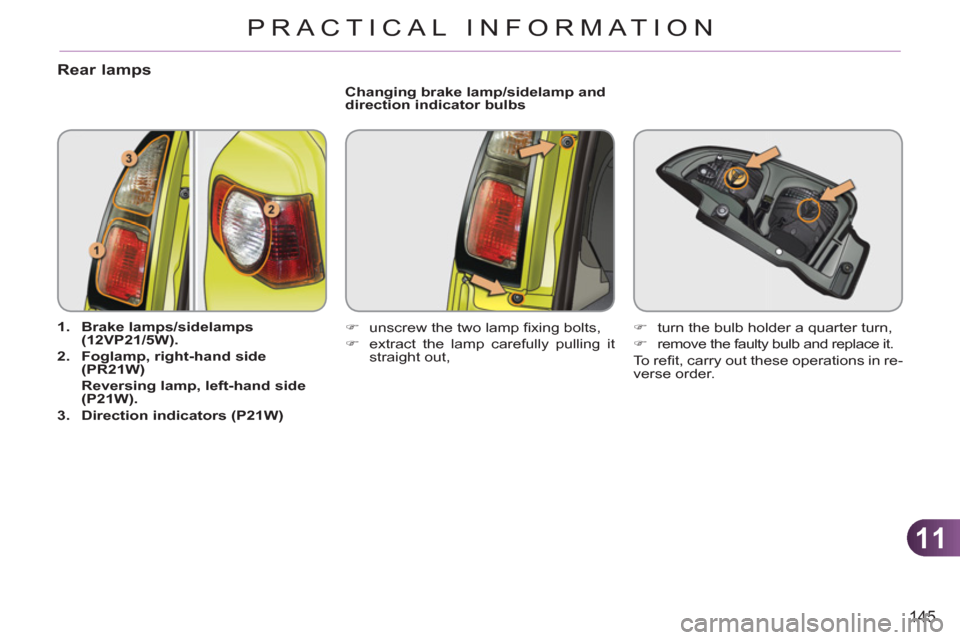

Rear lamps
1.
Brake lamps/sidelamps
(12VP21/5W).
2.
Foglamp, right-hand side
(PR21W)
Reversing lamp, left-hand side
(P21W).
3.
Direction indicators (P21W)
Changing brake lamp/sidelamp and
direction indicator bulbs
)
unscrew the two lamp fi xing bolts,
)
extract the lamp carefully pulling it
straight out,
)
turn the bulb holder a quarter turn,
)
remove the faulty bulb and replace it.
To r efi t, carry out these operations in re-
verse order.
Page 148 of 244
11
146
PRACTICAL INFORMATION
Changing foglamp/reversing lamp
bulbs
)
open the boot,
)
press on the tabs using 2 screwdrivers,
)
disconnect the lamp connector,
)
turn the bulb holder by a quarter
turn,
)
remove the bulb and replace it.
To r efi t, carry out these operations in re-
verse order.
Changing the third brake lamp bulbs
(4 W5W bulbs)
)
open the boot,
)
remove the two plugs located on the
boot inner panel,
)
press on the body of the lamp with
2 screwdrivers to remove it from its
housing,
)
turn the corresponding bulb-holder
a quarter turn,
)
pull the bulb and replace it.
To r efi t, carry out these operations in re-
verse order.
Changing the number plate lamp
bulbs (W5W)
)
insert a thin screwdriver into one of
the lens’ exterior holes,
)
push it outwards to unclip,
)
remove the lens,
)
pull the bulb and replace it.
To r efi t, carry out these operations in re-
verse order.
Page 149 of 244
11
PRACTICAL INFORMATION

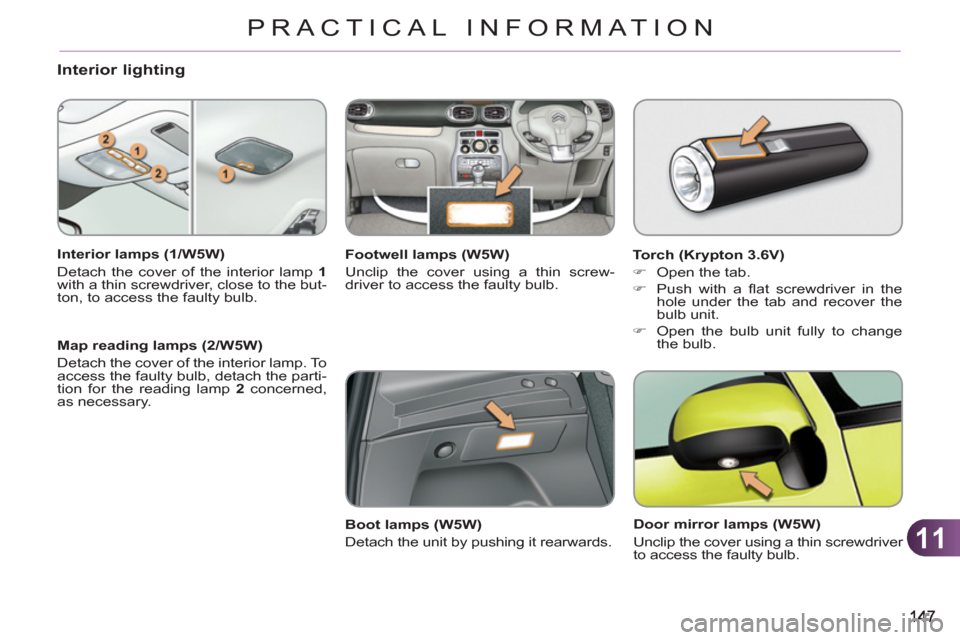

Interior lighting
Interior lamps (1/W5W)
Detach the cover of the interior lamp 1
with a thin screwdriver, close to the but-
ton, to access the faulty bulb.
Map reading lamps (2/W5W)
Detach the cover of the interior lamp. To
access the faulty bulb, detach the parti-
tion for the reading lamp 2
concerned,
as necessary.
Footwell lamps (W5W)
Unclip the cover using a thin screw-
driver to access the faulty bulb.
Boot lamps (W5W)
Detach the unit by pushing it rearwards.
Torch (Krypton 3.6V)
)
Open the tab.
)
Push with a fl at screwdriver in the
hole under the tab and recover the
bulb unit.
)
Open the bulb unit fully to change
the bulb.
Door mirror lamps (W5W)
Unclip the cover using a thin screwdriver
to access the faulty bulb.
Page 150 of 244
11
PRACTICAL INFORMATION
CITROËN will not accept respon-
sibility for the cost incurred in
repairing your vehicle or for recti-
fying malfunctions resulting from
the installation of accessories not
supplied and not recommended
by CITROËN and not installed in
accordance with its instructions,
in particular when the combined
consumption of all of the addition-
al equipment connected exceeds
10 milliamperes.
Installing electrical
accessories
Your vehicle’s electrical sys-
tem is designed to operate with
standard or optional equipment.
Before installing other elec-
trical equipment or accesso-
ries on your vehicle, contact a
CITROËN dealer or a qualifi ed
workshop.
CHANGING A FUSE
Procedure for replacing a failed fuse
with a new fuse to rectify a failure of the
corresponding function.
Access to the tools
The extraction tweezer and the spare
fuse storage compartment are installed
on the back of the dashboard fusebox
cover.
For access to them:
)
Open the glove box,
)
unclip the fuse access cover by pull-
ing on the side,
)
remove the cover completely,
)
remove the tweezer.
Before changing a fuse, the cause of
the failure must be identifi ed and recti-
fi ed.
)
Identify the failed fuse by checking
the condition of its fi lament.
)
Use the special tweezer to extract
the fuse from its housing.
)
Always replace the faulty fuse with a
fuse of the same rating.
)
Check that the number marked on
the fusebox, the rating marked on
the fuse and the following tables all
agree.
Good
Failed
