INSTRUMENTS AND CONTROLS
Page 12 of 244
10
Driver’s seat adjustment
Forwards-backwards
52
Seat back angle
Height
SITTING COMFORTABLY
Page 13 of 244
11
FAMILIARI
S
AT I
ON
Steering wheel adjustment
1.
Release the adjustment mechanism.
2.
Adjust for height and reach.
3.
Lock the adjustment mechanism.
Front seat additional adjustments
Head restraint height
57
Armrest
A.
Releasing the armrest.
B.
Adjusting the armrest.
SITTING COMFORTABLY
Page 14 of 244
12
Door mirror adjustment
This operates with the ignition on.
From the driver’s seat, select the mirror
by moving the control 1
, to the left or to
the right, then adjust the mirror in the
four directions by moving the control 2
.
The demisting - defrosting of the mirrors
is linked with that of the rear screen.
Rear view mirror adjustment
1.
Selection of the "day" position of the
mirror.
2.
Mirror adjustment.
Front seat belt
1.
Fastening.
2.
Height adjustment.
57
102
Folding the mirrors
When parking, the mirrors can be folded
manually or electrically.
56
SITTING COMFORTABLY
Page 54 of 244
3
52
COMFORT

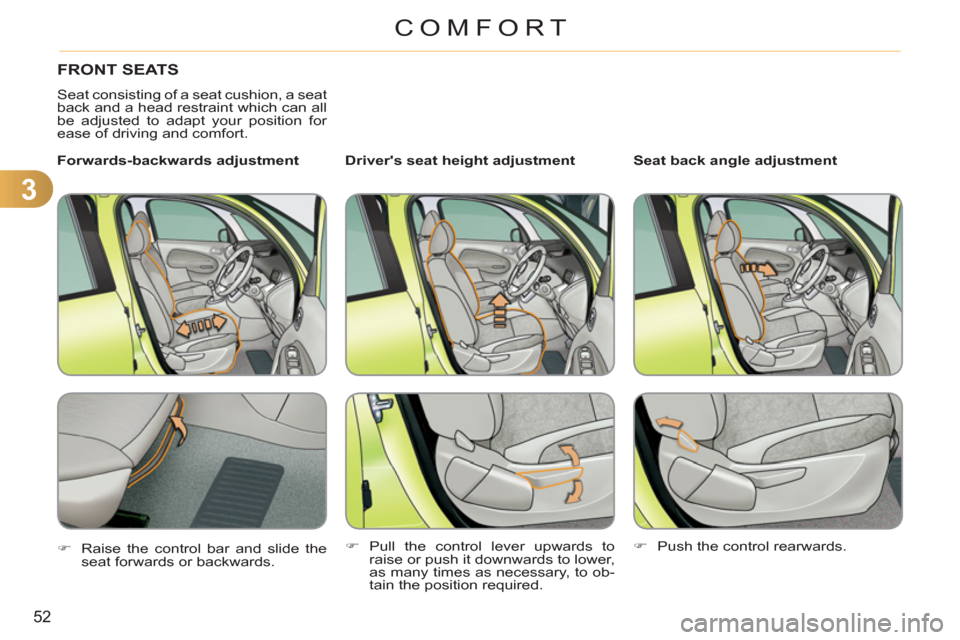

FRONT SEATS
Seat consisting of a seat cushion, a seat
back and a head restraint which can all
be adjusted to adapt your position for
ease of driving and comfort.
Driver's seat height adjustment
Seat back angle adjustment
Forwards-backwards adjustment
)
Raise the control bar and slide the
seat forwards or backwards.
)
Pull the control lever upwards to
raise or push it downwards to lower,
as many times as necessary, to ob-
tain the position required.
)
Push the control rearwards.
Page 55 of 244
3
53
COMFORT
)
Press the control located under the
front end of the armrest to release it.
)
Move it to the low position.
)
Raise it notch by notch to reach the
desired position.
To place the armrest in the vertical po-
sition, raise it and push it backwards
beyond the point of resistance.
Head restraint height adjustment
)
To raise the head restraint, pull it up-
wards.
)
To remove the head restraint, press
the lug A
and pull the head restraint
upwards.
)
To put the head restraint back in
place, engage the head restraint
stems in the openings keeping them
in line with the seat back.
)
To lower the head restraint, press
the lug A
and the head restraint at
the same time. The head restraint is fi tted with
a frame with notches which pre-
vents it from lowering; this is a
safety device in case of impact.
The adjustment is correct
when the upper edge of the
head restraint is level with the
top of the head.
Never drive with the head re-
straints removed; they must be
in place and adjusted correctly.
Adjusting the armrest
Additional adjustments
Page 59 of 244
3
57
COMFORT
Adjustment
)
Adjust the mirror so that the glass is
directed correctly in the "day" posi-
tion.
As a safety precaution, the mir-
rors must be adjusted to reduce
the "blind spot".
The mirror is fi tted with a night-time anti-
dazzle device.
Day/night position
)
Pull the lever to change to the "night"
anti-dazzle position.
)
Push the lever to change to the normal
"day" position.
Rear view mirror
Adjustable mirror providing a central
rearward view.
STEERING WHEEL ADJUSTMENT
)
When stationary
, pull the control
lever to release the adjustment
mechanism.
)
Adjust the height and reach to suit
your driving position.
)
Push the control lever to lock the ad-
justment mechanism.
As a safety precaution, these
operations should only be car-
ried out while the vehicle is sta-
tionary.
Page 76 of 244
5
74
VISIBILITY
In fog or snow, the sunshine
sensor may detect suffi cient
light. Therefore, the lamps will
not come on automatically.
Do not cover the sunshine sen-
sor, linked with the rain sensor
and located in the centre of the
windscreen behind the rear view
mirror; the associated functions
would no longer be controlled.
Linked with the Guide-me-home
lighting
Association with the automatic illumina-
tion of headlamps provides the guide-me-
home lighting with the following additional
options:
- automatic activation of guide-me-
home lighting when automatic illu-
mination of headlamps is switched
on (in the vehicle parameters of the
multifunction screen confi guration
menu),
-
selection of the duration of maintaining
of the lighting for 15, 30 or 60 seconds
in the vehicle parameters of the mul-
tifunction screen confi guration menu
(except for monochrome screen A
where this is preset).
Operating fault
In the event of a malfunction
of the sunshine sensor, the
lamps come on, this warn-
ing lamp is displayed in the
instrument panel and/or a message ap-
pears in the multifunction screen, ac-
companied by an audible signal.
Contact a CITROËN dealer or a quali-
fi ed workshop.
HEADLAMP ADJUSTMENT
The initial setting is position "0"
. To avoid causing a nuisance to other
road users, the height of the halogen
headlamps should be adjusted accord-
ing the load in the vehicle.
0.
1 or 2 people in the front seats.
-.
Less than 5 people.
1.
5 people.
-.
5 people + maximum authorised load.
2 - 3.
Driver + maximum authorised load.
Page 104 of 244
8
102
SAFETY
Height adjustment
Seat belt not fastened/unfastened
warning lamp
Fastening
)
Pull the strap, then insert the tongue
in the buckle.
)
Check that the seat belt is fastened
correctly by pulling the strap.
)
To lower the attachment point,
squeeze the control A
and slide it
downwards.
)
To raise the attachment point, slide
the control A
upwards.
When the ignition is switched
on, this warning lamp comes on,
either on the instrument panel
or on the seat belt and passen-
ger’s front airbag warning lamp display,
if the driver and/or the front passenger
has not fastened their seat belt.
From approximately 12 mph (20 km/h)
this warning lamp fl ashes for two mi-
nutes accompanied by an audible sig-
nal. Once these two minutes have
elapsed, this warning lamp remains on
until the driver and/or the front passen-
ger fastens their seat belt.
Unfastening
)
Press the red button on the buckle.
)
Guide the seat belt as it rolls up.
SEAT BELTS
Front seat belts
The front seat belts are fi tted with a pre-
tensioning and force limiting system.
This system improves safety in the front
seats in the event of a front or side im-
pact. Depending on the severity of the
impact, the pretensioning system in-
stantly tightens the seat belts against
the body of the occupants.
The pretensioning seat belts are active
when the ignition is on.
The force limiter reduces the pressure
of the seat belt on the chest of the occu-
pant, so improving their protection.
Page 105 of 244
8
103
SAFETY
1.
Front and/or rear seat belts not
fastened/unfastened warning lamp.
2.
Front left seat belt warning lamp.
3.
Front right seat belt warning lamp.
4.
Rear right seat belt warning lamp.
5.
Rear centre seat belt warning lamp.
6.
Rear left seat belt warning lamp.
Seat belt not fastened/unfastened
warning lamp display
Rear seat belts
The rear seats are each fi tted with a
three-point inertia reel seat belt with
force limiter (with the exception of the
rear centre seat).
Locking
When the rear side side belts are not being
used, you can lock them in place. To do so:
)
Raise the grip A
to its maximum
height.
Fastening
)
Pull the strap, then insert the tongue
in the buckle.
)
Check that the seat belt is fastened
correctly by pulling the strap.
Unfastening
)
Press the red button on the buckle.
)
Guide the seat belt as it rolls up.
The corresponding warning lamp 2
or 3
comes on in red on the seat belt and
passenger’s front airbag warning lamp
display if the seat belt is not fastened or
is unfastened.
Seat belt unfastened warning lamp
This warning lamp comes on,
either on the instrument panel
or on the seat belt and passen-
ger’s front airbag warning lamp
display, when one or more rear passen-
gers unfasten their seat belt.
From approximately 12 mph (20 km/h), this
warning lamp fl ashes for two minutes accom-
panied by an audible signal of increasing vol-
ume. Once these two minutes have elapsed,
this warning lamp remains on until the one or
more rear passengers fasten their seat belt.
Seat belt unfastened warning lamp
display
When the ignition is switched on, the cor-
responding warning lamps 4
, 5
and 6
come
on in red for approximately 30 seconds, if
the seat belt is not fastened.
When the engine is running or the vehicle
is moving, the corresponding warning lamp
4
, 5
or 6
comes on in red, accompanied
by an audible signal and a message on the
multifunction screen, if a rear passenger
has unfastened their seat belt.
