warning lights Citroen C3 PICASSO RHD 2011.5 1.G Owner's Manual

1
24
MONITORING


Warning lamp



is on



Cause



Action/Observations






Front
foglamps


fi xed. The front foglamps are
switched on. Turn the ring on the stalk rearwards twice to
switch off the front foglamps.




Rear
foglamps


fi xed. The rear foglamps are
switched on. Turn the ring on the stalk rearwards to switch off
the rear foglamps.




Diesel engine
pre-heating


fi xed. The ignition switch is at the
2nd position (ignition on).
Wait until the warning lamp has switched off before starting.
The duration for which the warning lamp is on is
determined by the climatic conditions.





Parking brake


fi xed. The parking brake is
applied or not properly
released. Release the parking brake to switch off the warning
lamp, keeping your foot on the brake pedal.
Observe the safety recommendations.
For further information on the parking brake, refer
to the "Driving" section.




Engine
coolant
temperature


fi xed blue
. On starting the engine, it
indicates that the engine is
cold. After a few minutes driving, it swiches off to
indicate that the engine temperature is normal.
In order to protect your engine, avoid driving too
hard until the warning lamp has switched off.



Stop & Start


fi xed. When the vehicle stops
(red lights, traffi c jams, ...)
the Stop & Start system has
put the engine into STOP
mode. The warning lamp goes off and the engine
restarts automatically in START mode, as soon
as you want to move off.

fl ashes for a
few seconds,
then goes off. STOP mode is temporarily
unavailable.
or
START mode is invoked
automatically. Refer to "Driving - § Stop & Start" for special
cases with STOP mode and START mode.

4
63

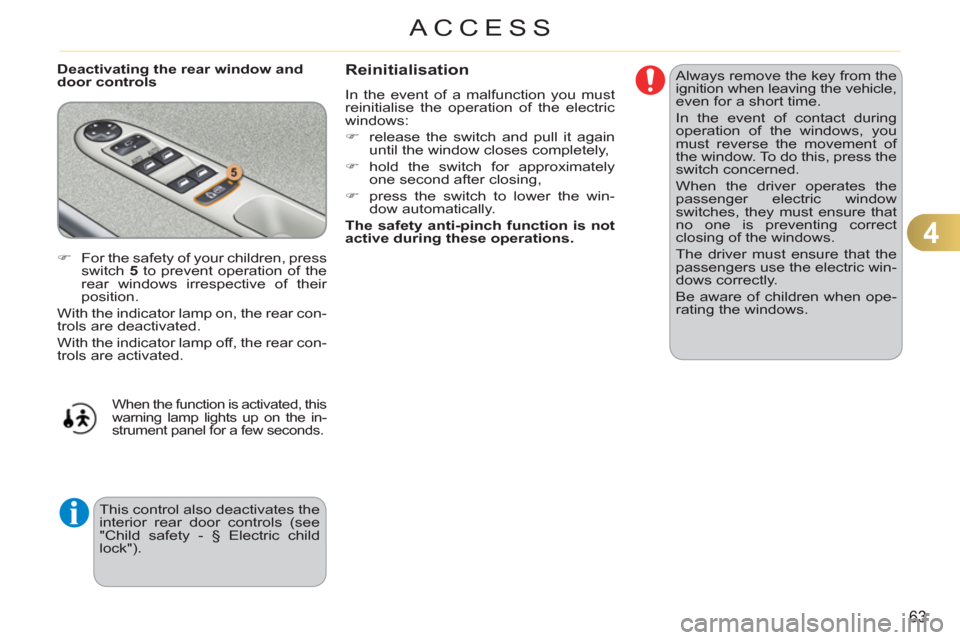

ACCESS

Deactivating the rear window and
door controls Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of contact during
operation of the windows, you
must reverse the movement of
the window. To do this, press the
switch concerned.
When the driver operates the
passenger electric window
switches, they must ensure that
no one is preventing correct
closing of the windows.
The driver must ensure that the
passengers use the electric win-
dows correctly.
Be aware of children when ope-
rating the windows. Reinitialisation

In the event of a malfunction you must
reinitialise the operation of the electric
windows:


)
release the switch and pull it again
until the window closes completely,

)
hold the switch for approximately
one second after closing,

)
press the switch to lower the win-
dow automatically.

The safety anti-pinch function is not
active during these operations.



)
For the safety of your children, press
switch 5
to prevent operation of the
rear windows irrespective of their
position.
With the indicator lamp on, the rear con-
trols are deactivated.
With the indicator lamp off, the rear con-
trols are activated.
When the function is activated, this
warning lamp lights up on the in-
strument panel for a few seconds.
This control also deactivates the
interior rear door controls (see
"Child safety - § Electric child
lock").

9
116

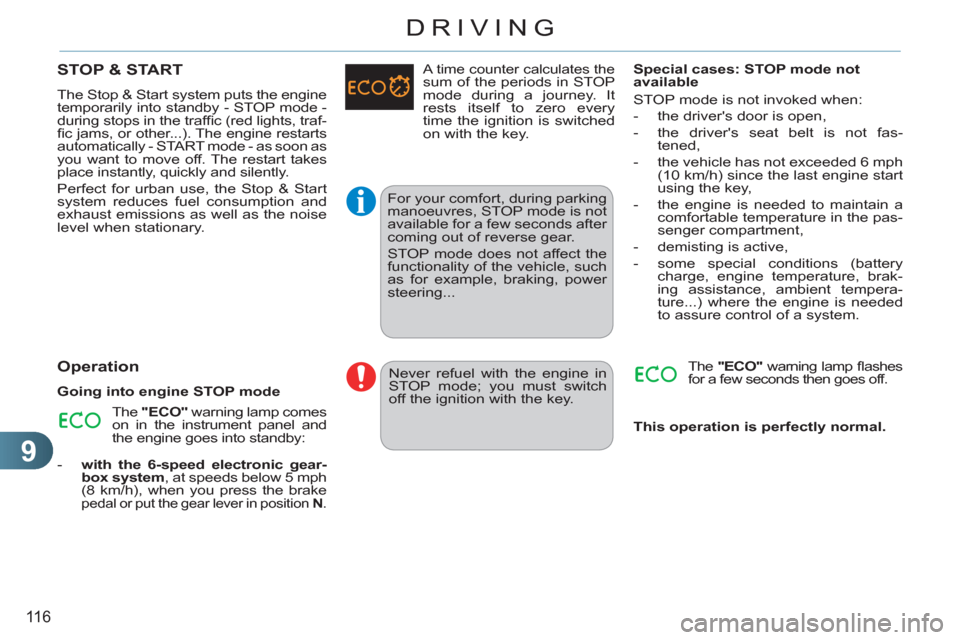

DRIVING
STOP & START
The Stop & Start system puts the engine
temporarily into standby - STOP mode -
during stops in the traffi c (red lights, traf-
fi c jams, or other...). The engine restarts
automatically - START mode - as soon as
you want to move off. The restart takes
place instantly, quickly and silently.
Perfect for urban use, the Stop & Start
system reduces fuel consumption and
exhaust emissions as well as the noise
level when stationary.

Operation


Going into engine STOP mode
The "ECO"
warning lamp comes
on in the instrument panel and
the engine goes into standby:


- with the 6-speed electronic gear-
box system
, at speeds below 5 mph
(8 km/h), when you press the brake
pedal or put the gear lever in position N
.


For your comfort, during parking
manoeuvres, STOP mode is not
available for a few seconds after
coming out of reverse gear.
STOP mode does not affect the
functionality of the vehicle, such
as for example, braking, power
steering...

A time counter calculates the sum of the periods in STOP
mode during a journey. It
rests itself to zero every
time the ignition is switched
on with the key.

Never refuel with the engine in
STOP mode; you must switch
off the ignition with the key.
Special cases: STOP mode not
available
STOP mode is not invoked when:


- the driver's door is open,

- the driver's seat belt is not fas-
tened,

- the vehicle has not exceeded 6 mph
(10 km/h) since the last engine start
using the key,

- the engine is needed to maintain a
comfortable temperature in the pas-
senger compartment,

- demisting is active,

- some special conditions (battery
charge, engine temperature, brak-
ing assistance, ambient tempera-
ture...) where the engine is needed
to assure control of a system.
The "ECO"
warning lamp fl ashes
for a few seconds then goes off.

This operation is perfectly normal.
