weight Citroen C3 PICASSO RHD 2011.5 1.G Owner's Manual

3
CONTENTS
Direction indicators 99Hazard warning lamps 99Horn 99Emergency or assistance call 100Braking assistance systems 100Trajectory control systems 101Front seat belts 102Airbags 106
8 - SAFETY 99 Î 109
Parking brake 1106-speed manual gearbox 110Gear effi ciency indicator 1116-speed electronic gearbox system 112Hill start assist 115Stop & Start 116Speed limiter 119Cruise control 121Rear parking sensors 123
9 - DRIVING 110 Î 124
Bonnet 126Running out of fuel (Diesel) 126Petrol engines 128Diesel engines 129Checking levels 130Checks 131
10 - CHECKS125 Î132
Temporary puncture repair kit 133Changing a wheel 138Changing a bulb 142Changing a fuse 148Battery 155Energy economy mode 157Changing a wiper blade 157Towing the vehicle 158Towing a trailer 160Fitting roof bars 161Accessories 162
11 - PRACTICAL
INFORMATION 133 Î163
Petrol engines 164Petrol weights 165LPG engines 166LPG weights 167Diesel engines 168Diesel weights 169Dimensions 170Identifi cation markings 171
12 - TECHNICAL DATA164AÎ171
AUDIOandTELEMATICS172Î 228
ALPHABETICAL INDEX 229 Î 232
Emergency or assistance 173MyWay 175Audio system 207

1
MONITORING
Following this operation, if you
wish to disconnect the battery,
lock the vehicle and wait at least
fi ve minutes for the zero reset to
be taken into account.






Service indicator zero reset
After each service, the service indicator
must be reset to zero.
The procedure for resetting to zero is as
follows:


)
switch off the ignition,

)
press and hold the trip distance re-
corder zero reset button,

)
switch on the ignition; the distance
recorder display begins a count-
down,

)
when the display indicates "=0"
,
release the button; the spanner dis-
appears. The distance remaining may be
weighted by the time factor, de-
pending on the type of driving.
Therefore, the spanner may also
come on if you have exceeded
the two year service interval.

Service overdue
For a few seconds after the ignition is
switched on, the spanner fl ashes
to in-
dicate that the service must be carried
out as soon as possible.

Example:
the service is overdue by
180 miles (300 km).
For a few seconds after the ignition is
switched on, the display indicates:
A few seconds after the ignition is switched
on, the distance recorder resumes its nor-
mal operation. The spanner remains on
.
Retrieving the service information
You can access the service information
at any time.


)
Press the trip distance recorder zero
reset button.
The service information is displayed
for a few seconds, then disappears.

7
90

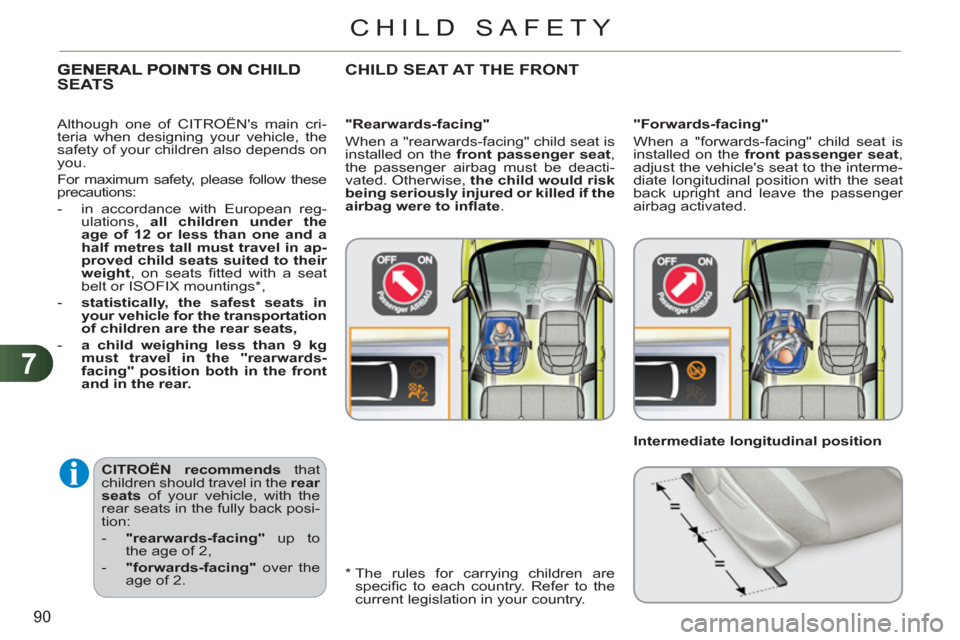

CHILD SAFETY

CITROËN recommends
that
children should travel in the rear
seats
of your vehicle, with the
rear seats in the fully back posi-
tion:


- "rearwards-facing"
up to
the age of 2,

- "forwards-facing"
over the
age of 2.
SEATS


"Forwards-facing"
When a "forwards-facing" child seat is
installed on the front passenger seat
,
adjust the vehicle's seat to the interme-
diate longitudinal position with the seat
back upright and leave the passenger
airbag activated.
"Rearwards-facing"
When a "rearwards-facing" child seat is
installed on the front passenger seat
,
the passenger airbag must be deacti-
vated. Otherwise, the child would risk
being seriously injured or killed if the
airbag were to infl ate.


*
The rules for carrying children are
specifi c to each country. Refer to the
current legislation in your country. Although one of CITROËN's main cri-
teria when designing your vehicle, the
safety of your children also depends on
you.
For maximum safety, please follow these
precautions:


- in accordance with European reg-
ulations, all children under the
age of 12 or less than one and a
half metres tall must travel in ap-
proved child seats suited to their
weight
, on seats fi tted with a seat
belt or ISOFIX mountings * ,

- statistically, the safest seats in
your vehicle for the transportation
of children are the rear seats,


- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the front
and in the rear.


CHILD SEAT AT THE FRONT


Intermediate longitudinal position

7
93
CHILD SAFETY

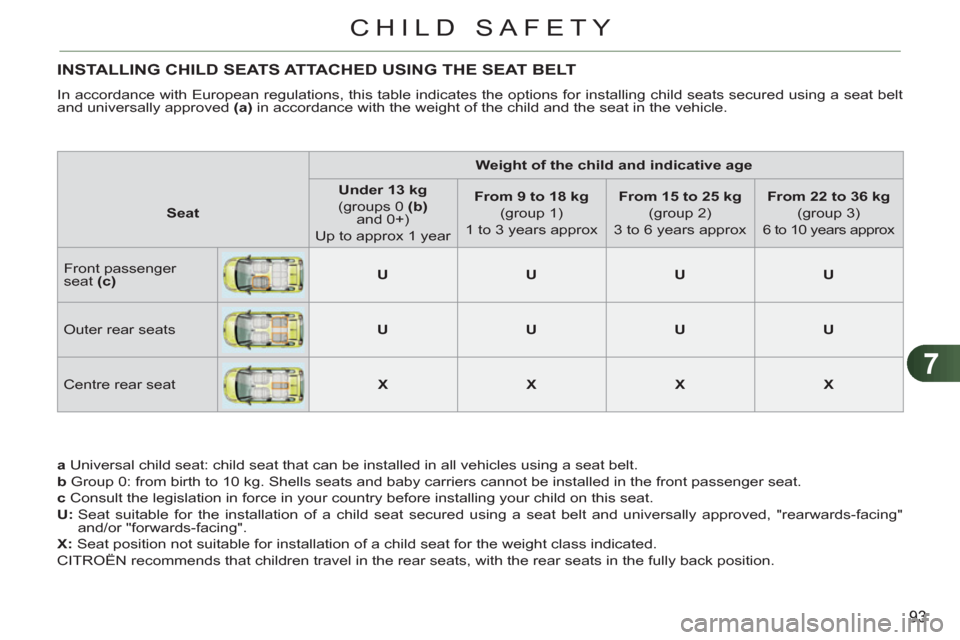

INSTALLING CHILD SEATS ATTACHED USING THE SEAT BELT
In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt
and universally approved (a)
in accordance with the weight of the child and the seat in the vehicle.

a
Universal child seat: child seat that can be installed in all vehicles using a seat belt.

b
Group 0: from birth to 10 kg. Shells seats and baby carriers cannot be installed in the front passenger seat.

c
Consult the legislation in force in your country before installing your child on this seat.

U:
Seat suitable for the installation of a child seat secured using a seat belt and universally approved, "rearwards-facing"
and/or "forwards-facing".

X:
Seat position not suitable for installation of a child seat for the weight class indicated.
CITROËN recommends that children travel in the rear seats, with the rear seats in the fully back position.

Weight of the child and indicative age




Seat



Under 13 kg


(groups 0 ( b )
and 0+)
Up to approx 1 year

From 9 to 18 kg


(group 1)
1 to 3 years approx

From 15 to 25 kg


(group 2)
3 to 6 years approx

From 22 to 36 kg


(group 3)
6 to 10 years approx
Front passenger
seat ( c )

U



U



U



U


Outer rear seats

U



U



U



U


Centre rear seat

X



X



X



X

7
97
CHILD SAFETY

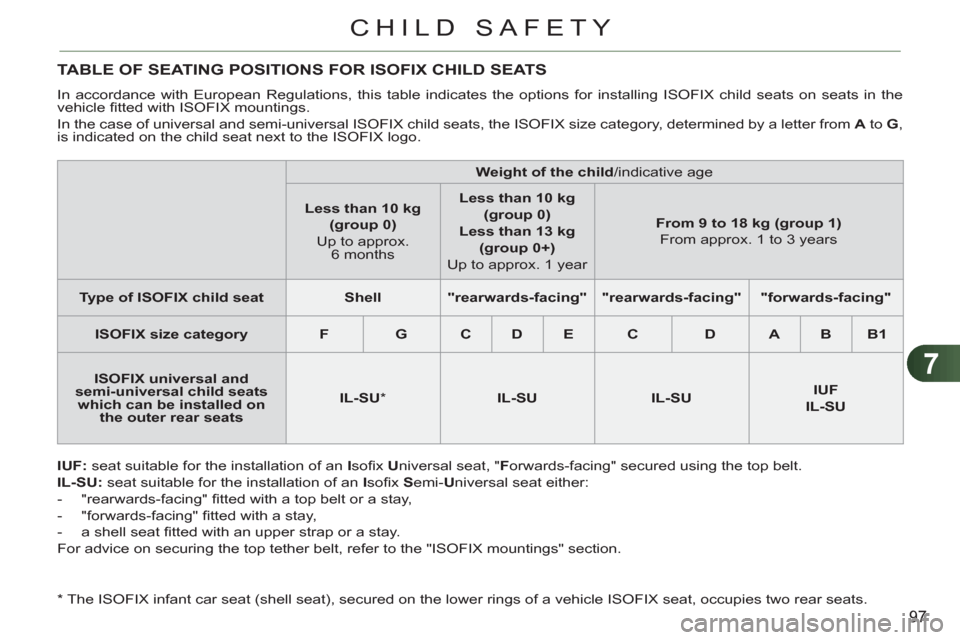

TABLE OF SEATING POSITIONS FOR ISOFIX CHILD SEATS
In accordance with European Regulations, this table indicates the options for installing ISOFIX child seats on seats in the
vehicle fi tted with ISOFIX mountings.
In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter from A
to G
,
is indicated on the child seat next to the ISOFIX logo.

IUF:
seat suitable for the installation of an I
sofi x U
niversal seat, " F
orwards-facing" secured using the top belt.

IL-SU:
seat suitable for the installation of an I
sofi x S
emi- U
niversal seat either:


- "rearwards-facing" fi tted with a top belt or a stay,

- "forwards-facing" fi tted with a stay,

- a shell seat fi tted with an upper strap or a stay.
For advice on securing the top tether belt, refer to the "ISOFIX mountings" section.

* The ISOFIX infant car seat (shell seat), secured on the lower rings of a vehicle ISOFIX seat, occupies two rear seats.



Weight of the child
/indicative age


Less than 10 kg
(group 0)


Up to approx.
6 months

Less than 10 kg


(group 0)
Less than 13 kg


(group 0+)


Up to approx. 1 year

From 9 to 18 kg (group 1)


From approx. 1 to 3 years


Type of ISOFIX child seat



Shell



"rearwards-facing"



"rearwards-facing"



"forwards-facing"




ISOFIX size category



F


G


C



D



E



C



D



A



B



B1




ISOFIX universal and
semi-universal child seats
which can be installed on
the

outer

rear

seats



IL-SU

*


IL-SU



IL-SU



IUF


IL-SU

11
158
PRACTICAL INFORMATION
TOWING THE VEHICLE

Access to the tools

The towing eye is installed under the
boot fl oor.
To gain access to it:


)
open the boot,

)
remove the adjustable boot fl oor,

)
lift up the boot carpet,

)
remove the towing eye from the tool
holder.



General recommendations

Observe the legislation in force in your country.
Ensure that the weight of the towing vehicle is higher than that of the towed
vehicle.
The driver must stay at the wheel of the towed vehicle.
Driving on motorways and fast roads is prohibited when towing.
When towing a vehicle with all four wheels on the ground, always use an
approved towing bar; rope and straps are prohibited.
When towing a vehicle with the engine off, there is no longer any power
assistance for braking or steering.
In the following cases, you must always call on a professional recovery
service:


- vehicle broken down on a motorway or fast road,

- when it is not possible to put the gearbox into neutral, unlock the steering,
or release the parking brake,

- towing with only two wheels on the ground,

- where there is no approved towing bar available...
Procedure for having your vehicle towed
or for towing another vehicle using a re-
movable towing eye.

11
160
PRACTICAL INFORMATION
TOWING A TRAILER, ...
Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer.
Driving advice
The maximum towed load on a long in-
cline depends on the gradient and the
ambient temperature.
In all cases, keep a check on the coolant
temperature.

Side wind


)
Take into account the increased
sensitivity to side wind.


Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.


)
To lower the engine speed, reduce
your speed.
Braking
Towing a trailer increases the braking
distance.
To avoid overheating of the brakes on a
long mountain type of descent, the use
of engine braking is recommended.

Tyres


)

Check the tyre pressures of the towing
vehicle and of the trailer, observing the
recommended pressures.



Lighting


)
Check the electrical lighting and sig-
nalling on the trailer.
The rear parking sensors will
be deactivated automatically if
a genuine CITROËN towbar is
used.


)
If the warning lamp and the
STOP
warning lamp come
on, stop the vehicle and
switch off the engine as
soon as possible.

Towbar suitable for the attachment of a
trailer with additional lighting and sig-
nalling.

Distribution of loads


)
Distribute the load in the trailer so
that the heaviest items are as close
as possible to the axle and the nose
weight approaches the maximum
permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towed load
must be reduced by 10 % for every
1 000 metres of altitude.
Refer to the "Technical Data" section for
details of the weights and towed loads
which apply to your vehicle. Driving with a trailer places greater de-
mands on the towing vehicle and the
driver must take particular care.
We recommend the use of gen-
uine CITROËN towbars and
their harnesses that have been
tested and approved from the
design stage of your vehicle,
and that the fi tting of the tow-
bar is entrusted to a CITROËN
dealer or a qualifi ed workshop.
If the towbar is not fi tted by a
CITROËN dealer, it is impera-
tive that it is fi tted in accordance
with the vehicle manufacturer's
instructions.

11
161
PRACTICAL INFORMATION

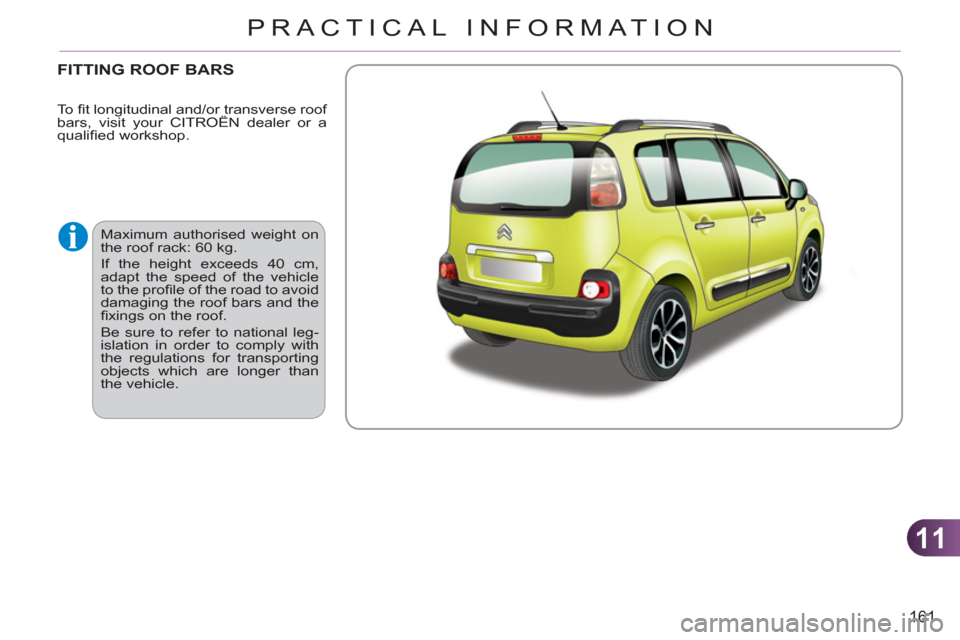

FITTING ROOF BARS
Maximum authorised weight on
the roof rack: 60 kg.
If the height exceeds 40 cm,
adapt the speed of the vehicle
to the profi le of the road to avoid
damaging the roof bars and the
fi xings on the roof.
Be sure to refer to national leg-
islation in order to comply with
the regulations for transporting
objects which are longer than
the vehicle. To fi t longitudinal and/or transverse roof
bars, visit your CITROËN dealer or a
qualifi ed workshop.

12
165
TECHNICAL DATA
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10% for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load. *
For Russia only.

**
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

WEIGHTS AND TOWED LOADS (in kg)



Petrol engines


VTi 95



VTi 115

*


VTi 120



VTi 115 *



VTi 120



Gearboxes


Manual



Manual



Electronic gearbox system
(6-speed)



Model codes:
SH...


8FP0



5FJ0 *



5FS0



5FJ8/P *



5FS8/P




- Unladen weight
1 201
1 204
1 205


- Kerb weight
1 276
1 279
1 280


- Payload
546
549
564


- Gross vehicle weight (GVW)
1 747
1 753
1 769


- Gross train weight (GTW)
on a 12 % gradient
2 597
2 603
2 619


- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
850
850
850


- Braked trailer ** (with load transfer within
the GTW limit)
1 100
1 100
1 100


- Unbraked trailer
635
635
640


- Recommended nose weight
54
54
54

12
167
TECHNICAL DATA


WEIGHTS AND TOWED LOADS (in kg)



LPG engines


VTi 95



Gearbox


Manual



Model codes:
SH...


8FN0/GPL




- Unladen weight
1 301


- Kerb weight
1 376


- Payload
446


- Gross vehicle weight (GVW)
1 747


- Gross train weight (GTW)
on a 12 % slope
2 597


- Braked trailer (within GTW limit)
on a 12 % slope
850


- Braked trailer * (with load transfer within
the GTW limit)
1 100


- Unbraked trailer
650


- Recommended nose weight
54

*

The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
