wipers Citroen C3 PICASSO RHD 2011.5 1.G Owner's Manual

8


1.
Steering lock and ignition.

2.
Audio system steering mounted
controls.

3.
Wipers/screenwash/trip computer
control stalk.

4.
Instrument panel.

5.
Driver’s airbag.
Horn.

6.
Gear lever.

7.
Open storage compartment.

8.
Door mirror controls.
Electric window controls.
Rear electric windows and doors
deactivation control.

9.
Passenger’s airbag deactivation.

10.
Manual headlamp height
adjustment.

11 .
Front side window demisting vent.

12.
Windscreen demisting vent.

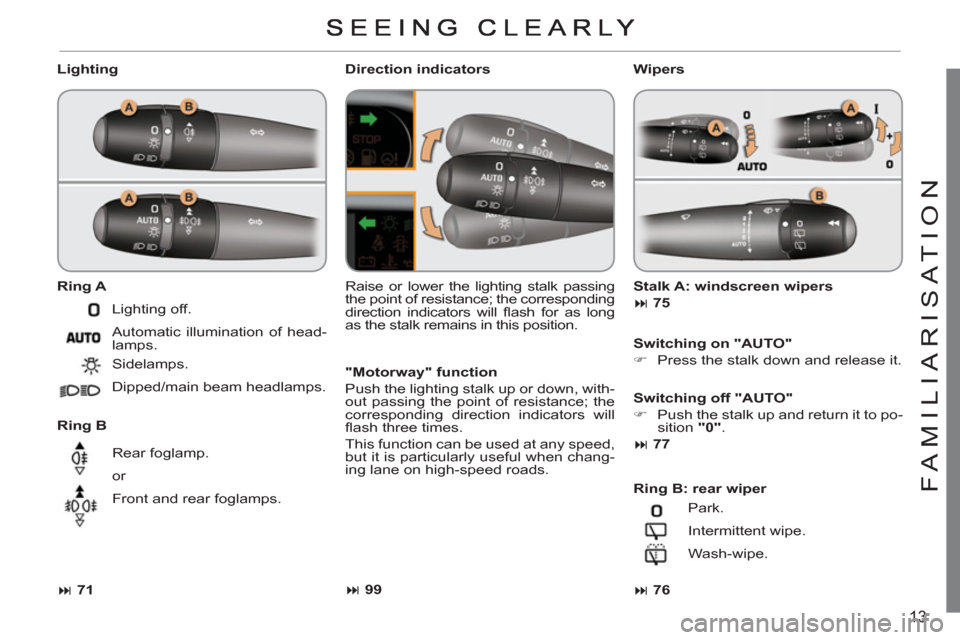

INSTRUMENTS AND CONTROLS

13
FAMILIARI
S
AT I
ON

Lighting

Ring A


Ring B
Raise or lower the lighting stalk passing
the point of resistance; the corresponding
direction indicators will fl ash for as long
as the stalk remains in this position.
Direction indicators

Switching on "AUTO"



)
Press the stalk down and release it.

Ring B: rear wiper




71





76


Lighting off.
Automatic illumination of head-
lamps.
Sidelamps.
Dipped/main beam headlamps.
Rear foglamp.
or
Front and rear foglamps.
Park.
Intermittent wipe.
Wash-wipe.
Stalk A: windscreen wipers




75

Wipers

Switching off "AUTO"



)
Push the stalk up and return it to po-
sition "0"
.



77




99


"Motorway" function

Push the lighting stalk up or down, with-
out passing the point of resistance; the
corresponding direction indicators will
fl ash three times.
This function can be used at any speed,
but it is particularly useful when chang-
ing lane on high-speed roads.

5
73

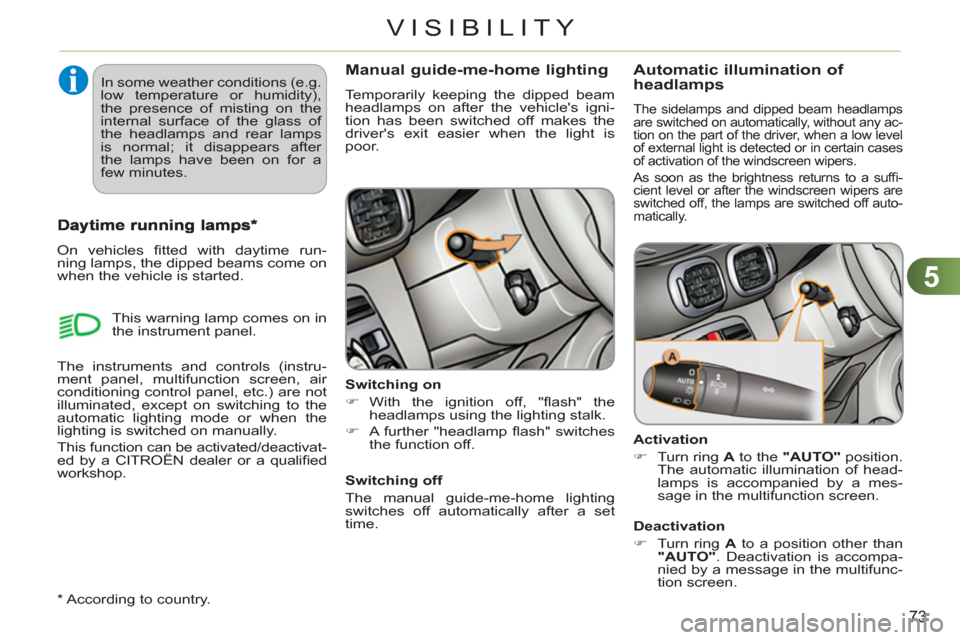

VISIBILITY
Manual guide-me-home lighting
Temporarily keeping the dipped beam
headlamps on after the vehicle's igni-
tion has been switched off makes the
driver's exit easier when the light is
poor.

Switching on


)
With the ignition off, "fl ash" the
headlamps using the lighting stalk.

)
A further "headlamp fl ash" switches
the function off.


Switching off
The manual guide-me-home lighting
switches off automatically after a set
time.


On vehicles fi tted with daytime run-
ning lamps, the dipped beams come on
when the vehicle is started.

* According to country. This warning lamp comes on in
the instrument panel.
Automatic illumination of
headlamps
The sidelamps and dipped beam headlamps
are switched on automatically, without any ac-
tion on the part of the driver, when a low level
of external light is detected or in certain cases
of activation of the windscreen wipers.
As soon as the brightness returns to a suffi -
cient level or after the windscreen wipers are
switched off, the lamps are switched off auto-
matically.

Activation


)
Turn ring A
to the "AUTO"
position.
The automatic illumination of head-
lamps is accompanied by a mes-
sage in the multifunction screen.


Deactivation


)
Turn ring A
to a position other than
"AUTO"
. Deactivation is accompa-
nied by a message in the multifunc-
tion screen.
The instruments and controls (instru-
ment panel, multifunction screen, air
conditioning control panel, etc.) are not
illuminated, except on switching to the
automatic lighting mode or when the
lighting is switched on manually.
This function can be activated/deactivat-
ed by a CITROËN dealer or a qualifi ed
workshop. In some weather conditions (e.g.
low temperature or humidity),
the presence of misting on the
internal surface of the glass of
the headlamps and rear lamps
is normal; it disappears after
the lamps have been on for a
few minutes.

5
75
VISIBILITY

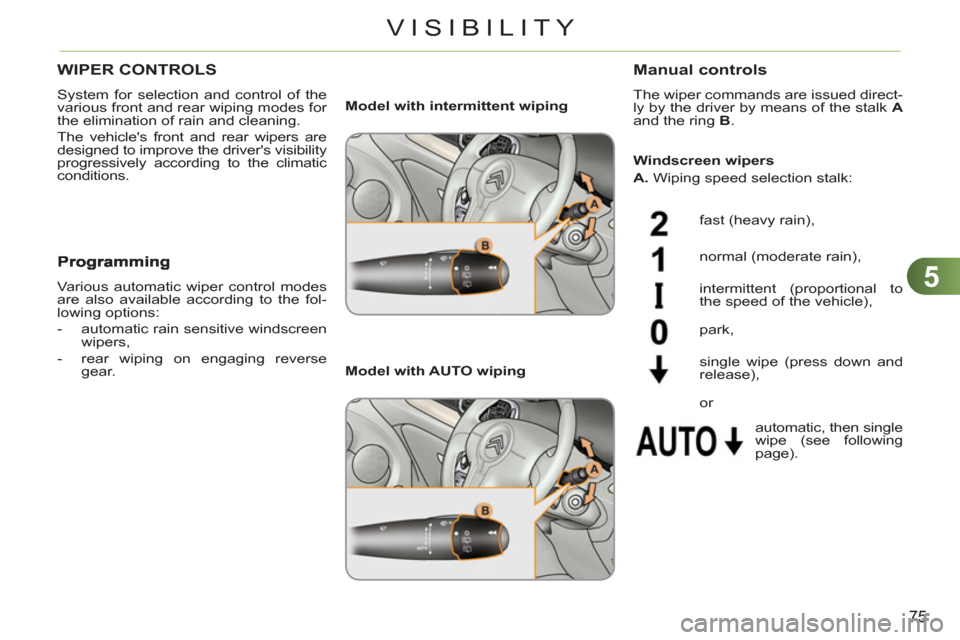

WIPER CONTROLS
System for selection and control of the
various front and rear wiping modes for
the elimination of rain and cleaning.
The vehicle's front and rear wipers are
designed to improve the driver's visibility
progressively according to the climatic
conditions.

Manual controls

The wiper commands are issued direct-
ly by the driver by means of the stalk A

and the ring B
.

Model with intermittent wiping



Model with AUTO wiping
fast (heavy rain),
normal (moderate rain),
intermittent (proportional to
the speed of the vehicle),
automatic, then single
wipe (see following
page). park,

single wipe (press down and
release),
Various automatic wiper control modes
are also available according to the fol-
lowing options:


- automatic rain sensitive windscreen
wipers,

- rear wiping on engaging reverse
gear.

Windscreen wipers

A.
Wiping speed selection stalk:





or

5
76
VISIBILITY







Windscreen wash
Pull the wiper stalk towards you.
The windscreen wash, then the windscreen
wipers, operate for a pre-determined time.



B.
Rear wiper selection ring:
park,
intermittent wipe,
wash-wipe (set duration).

Reverse gear
When reverse gear is engaged, the rear
wiper will operate if the windscreen wipers
are operating.

Programming
The function is activated or deactivated
via the multifunction screen confi gura-
tion menu.
This function is activated by default.











Rear wiper
If a signifi cant accumulation of
snow or ice is present, or when
using a tailgate bicycle car-
rier, deactivate the automatic
rear wiper via the multifunction
screen confi guration menu.
Wiping zone
The curved shape of the rear screen re-
sults in a smaller wiping zone.

5
77
VISIBILITY

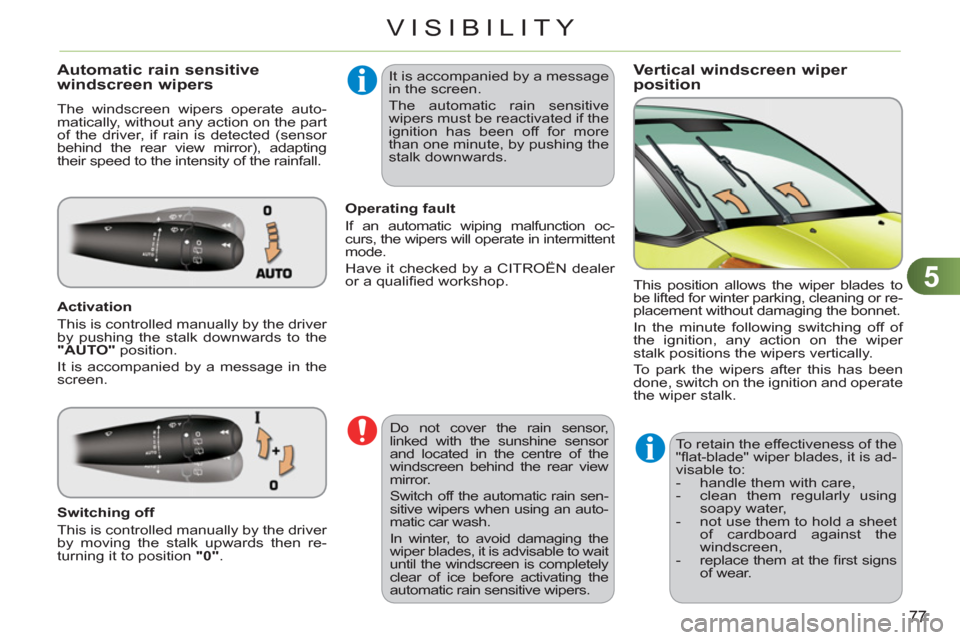

Vertical windscreen wiper position Automatic rain sensitive
windscreen wipers
The windscreen wipers operate auto-
matically, without any action on the part
of the driver, if rain is detected (sensor
behind the rear view mirror), adapting
their speed to the intensity of the rainfall.

Activation
This is controlled manually by the driver
by pushing the stalk downwards to the
"AUTO"
position.
It is accompanied by a message in the
screen. This position allows the wiper blades to
be lifted for winter parking, cleaning or re-
placement without damaging the bonnet.
In the minute following switching off of
the ignition, any action on the wiper
stalk positions the wipers vertically.
To park the wipers after this has been
done, switch on the ignition and operate
the wiper stalk.
Do not cover the rain sensor,
linked with the sunshine sensor
and located in the centre of the
windscreen behind the rear view
mirror.
Switch off the automatic rain sen-
sitive wipers when using an auto-
matic car wash.
In winter, to avoid damaging the
wiper blades, it is advisable to wait
until the windscreen is completely
clear of ice before activating the
automatic rain sensitive wipers.
It is accompanied by a message
in the screen.
The automatic rain sensitive
wipers must be reactivated if the
ignition has been off for more
than one minute, by pushing the
stalk downwards.

Switching off
This is controlled manually by the driver
by moving the stalk upwards then re-
turning it to position "0"
.
Operating fault
If an automatic wiping malfunction oc-
curs, the wipers will operate in intermittent
mode.
Have it checked by a CITROËN dealer
or a qualifi ed workshop.
To retain the effectiveness of the
"fl at-blade" wiper blades, it is ad-
visable to:


- handle them with care,

- clean them regularly using
soapy water,

- not use them to hold a sheet
of cardboard against the
windscreen,

- replace them at the fi rst signs
of wear.

11

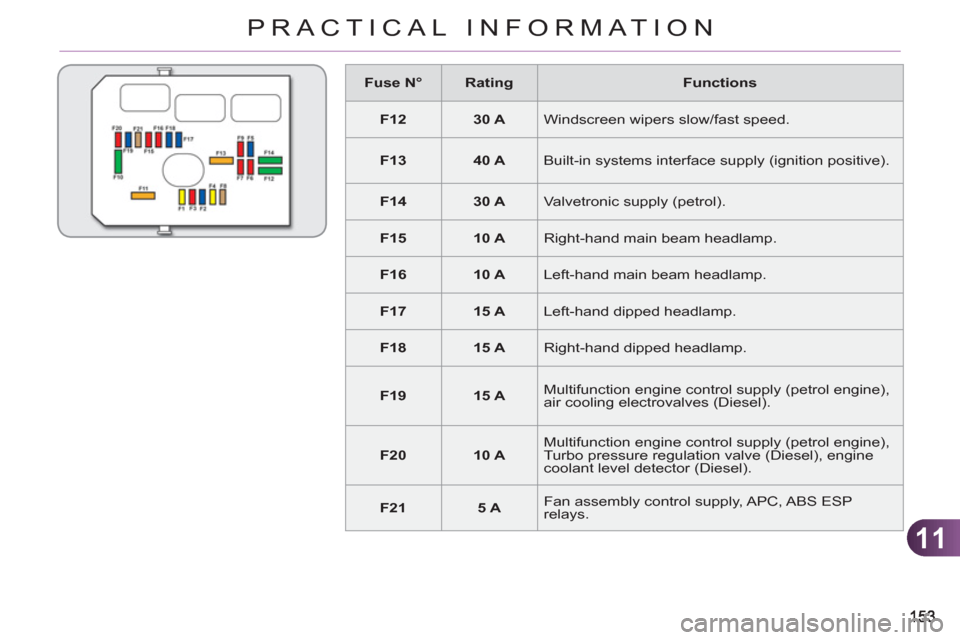

PRACTICAL INFORMATION


Fuse N°



Rating


Functions



F12



30 A

Windscreen wipers slow/fast speed.


F13



40 A

Built-in systems interface supply (ignition positive).


F14



30 A

Valvetronic supply (petrol).


F15



10 A

Right-hand main beam headlamp.


F16



10 A

Left-hand main beam headlamp.


F17



15 A

Left-hand dipped headlamp.


F18



15 A

Right-hand dipped headlamp.


F19



15 A

Multifunction engine control supply (petrol engine),
air cooling electrovalves (Diesel).


F20



10 A

Multifunction engine control supply (petrol engine),
Turbo pressure regulation valve (Diesel), engine
coolant level detector (Diesel).


F21



5 A

Fan assembly control supply, APC, ABS ESP
relays.

11
157
PRACTICAL INFORMATION
A fl at battery prevents the en-
gine from starting (refer to the
corresponding paragraph).
If the telephone is being used
at the same time on the MyWay
audio navigation system, it will
be interrupted after 10 minutes.

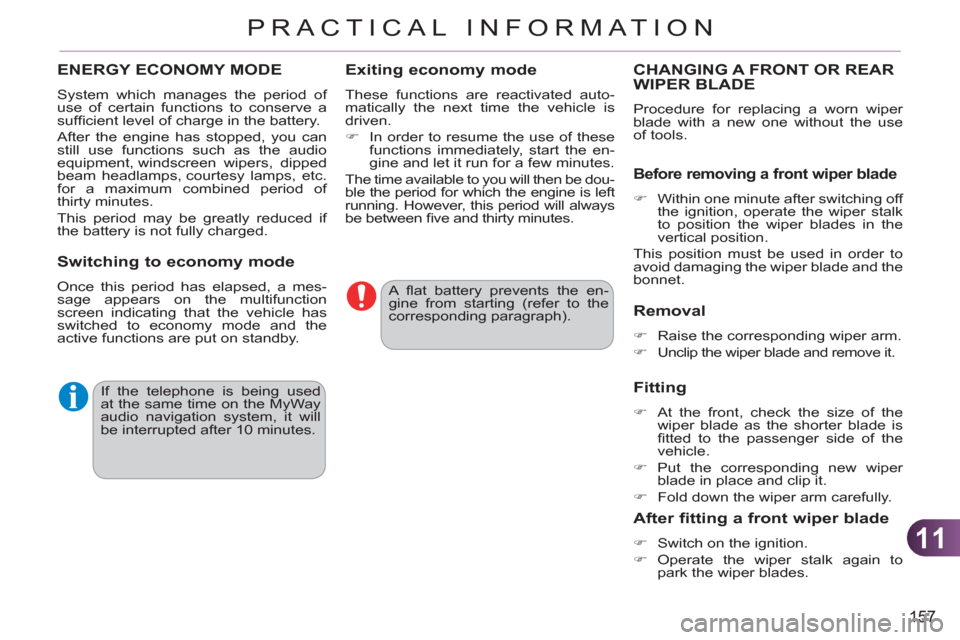

ENERGY ECONOMY MODE

System which manages the period of
use of certain functions to conserve a
suffi cient level of charge in the battery.
After the engine has stopped, you can
still use functions such as the audio
equipment, windscreen wipers, dipped
beam headlamps, courtesy lamps, etc.
for a maximum combined period of
thirty minutes.
This period may be greatly reduced if
the battery is not fully charged.
Exiting economy mode
These functions are reactivated auto-
matically the next time the vehicle is
driven.


)
In order to resume the use of these
functions immediately, start the en-
gine and let it run for a few minutes.
The time available to you will then be dou-
ble the period for which the engine is left
running. However, this period will always
be between fi ve and thirty minutes.


Switching to economy mode

Once this period has elapsed, a mes-
sage appears on the multifunction
screen indicating that the vehicle has
switched to economy mode and the
active functions are put on standby.
CHANGING A FRONT OR REARWIPER BLADE
Procedure for replacing a worn wiper
blade with a new one without the use
of tools.
Removal



)
Raise the corresponding wiper arm.

)
Unclip the wiper blade and remove it.



Fitting



)
At the front, check the size of the
wiper blade as the shorter blade is
fi tted to the passenger side of the
vehicle.

)
Put the corresponding new wiper
blade in place and clip it.

)
Fold down the wiper arm carefully.



Before removing a front wiper blade



)
Within one minute after switching off
the ignition, operate the wiper stalk
to position the wiper blades in the
vertical position.
This position must be used in order to
avoid damaging the wiper blade and the
bonnet.


After fitting a front wiper blade



)
Switch on the ignition.

)
Operate the wiper stalk again to
park the wiper blades.

229
ALPHABETICAL INDEX
A ABS and EBFD systems ............100
Accessories ................................162
Accessory socket, 12 V ....80, 82, 84
Adjusting headlamps ....................74
Adjusting head
restraints ..............................53, 55
Adjusting seat belt height ...........102
Adjusting the steering
wheel ..........................................57
Airbags, curtain ..................108, 109
Airbags, front ......................106, 109
Airbags, lateral ...................108, 109
Air conditioning .............................20
Air conditioning, digital ...........46, 49
Air conditioning, manual .........46, 47
Air fi lter .......................................131
Air fl ow .........................................45
Air vents .......................................45
Anti-lock braking system
(ABS) ........................................100
Anti-pinch .....................................62
Anti-theft .......................................59
Armrest .........................................53
Assistance call ...................100, 174
Audible warning ............................99
Audio streaming
(Bluetooth) ................................219
Audio system ..............207, 222, 224
Automatic illumination
of headlamps ........................71, 73
Automatic operation of hazard
warning lamps ............................99
Automatic rain sensitive
windscreen wipers ................75, 77
Auxiliary
socket .................80, 194, 214, 216B Battery ................................131, 155
Battery, charging ........................156
Battery, remote control ...........60, 61
Blinds ...........................................85
Bluetooth
(hands-free) ......................195, 217
Bluetooth (telephone) .........195, 217
Bonnet ........................................126
Bonnet stay ................................126
Boot ..............................................66
Boot fl oor, adjustable ..............87, 88
Boot lamp .............................79, 147
Bottle holder .................................81
Brake discs .................................132
Brake lamps ...............................145
Brake pads .................................132
Brakes ........................................132
Braking assistance system .........100
C Capacity, fuel tank ........................68
CD MP3 ..............................193, 213
Central locking .......................58, 65
Changing a bulb ..................142-147
Changing a fuse ..................148-154
Changing a wheel ...............138-141
Changing a wiper blade .......77, 157

Changing the date ...36, 198, 220, 221
Changing the remote
control battery ............................60

Changing the time ...36, 198, 220, 221
Checking levels ..................130, 131
Checking the engine oil level ....33, 130
Checking tyre pressures
(using the kit) ............................137
Checks ................................125-132C Children .................. 90-98, 105, 107
Child seats .............................90-97
Child surveillance mirror ...............81
Cigar lighter ..................................80
Closing the boot .....................58, 66
Closing the doors ...................58, 64

Connectors, audio ...80, 194, 214, 216
Coolant level ..............................130
Courtesy lamps ....................78, 147
Courtesy mirror ............................81
Cruise control .............................121
Cup holder ..............................80, 84
D Date (setting) ........36, 198, 220, 221
Daytime running lamps ................73
Deactivating the passenger
airbag .......................................107
Deactivating the rear
windows .....................................63
Deadlocking .................................58
Defrosting .....................................47
Dials .............................................22
Diesel additive level ...................131
Dimensions ................................170
Dipped beam ........................71, 143
Dipstick .................................33, 130
Direction indicators ...............99, 145
Doors ............................................64
Doors emergency control .............66
Driving economically ....................20
E EBA (Emergency braking
assistance) ...............................100
Eco-driving ..................................20
Economy mode ..........................157

232
ALPHABETICAL INDEX
S Ski fl ap .........................................86
Spare wheel ...............................138
Speed limiter .............................. 119
Speedometer ................................22
Stability control (ESP) ................101
Starting the vehicle ............... 59, 112
Steering mounted controls,
audio ................................177, 209
Stopping the vehicle ............. 59, 112
Stop & Start ............. 44, 49, 68, 116,
126, 131, 155
Storage ...................................80, 87
Storage box ..................................80
Storage boxes ..............................84
Storage drawer .............................82
Storage wells ................................87
Stowing rings ................................87
Sun visor ......................................81
Synchronising the remote
control ........................................60
System, navigation .....................181
Systems, ASR and ESP .............101
T Table of weights.........165, 167, 169 Table position...............................54Tables, aircraft..............................85Tables of engines.......164, 166,168 Tables of fuses...........................148Tank, fuel ................................68,70Technical data ............164, 166,168 Telephone ...........................195, 217
Temporary tyre repair kit ..........133
Ticket holder .................................83
TMC (Traffi c info) .......................189
Tools ...........................................138
T Torch ..............................79, 87, 147
Total distance recorder .................34
Towbar ........................................160
T
owed loads ...............165, 167, 169
Towing another vehicle ...............158
Traction control (ASR) ................101
Traffi c information
(TA) ..........................190, 191, 212
Traffi c information (TMC) ...189, 190
Trip computer ....................39, 42-44
Trip distance recorder ..................34
Tyre pressures ...........................171
Tyres ............................................20
U Unlocking .....................................58
Unlocking from the inside .............65
Update risk areas .......................188
Updating the date .........36, 220, 221
Updating the time .........36, 220, 221
USB Reader ...............................214
V Vehicle identifi cation ...................171
Ventilation ................................45-47
W Warning lamps ........................23-30
Wash-wipe, rear ...........................76
Wei
ghts ......................165, 167, 169
Window controls ...........................62
Wiper, rear ....................................76
Wiper control stalk ...................75-77
Wipers .....................................75-77
