boot Citroen C3 PICASSO RHD 2012.5 1.G Owner's Guide

11
Practical information
161

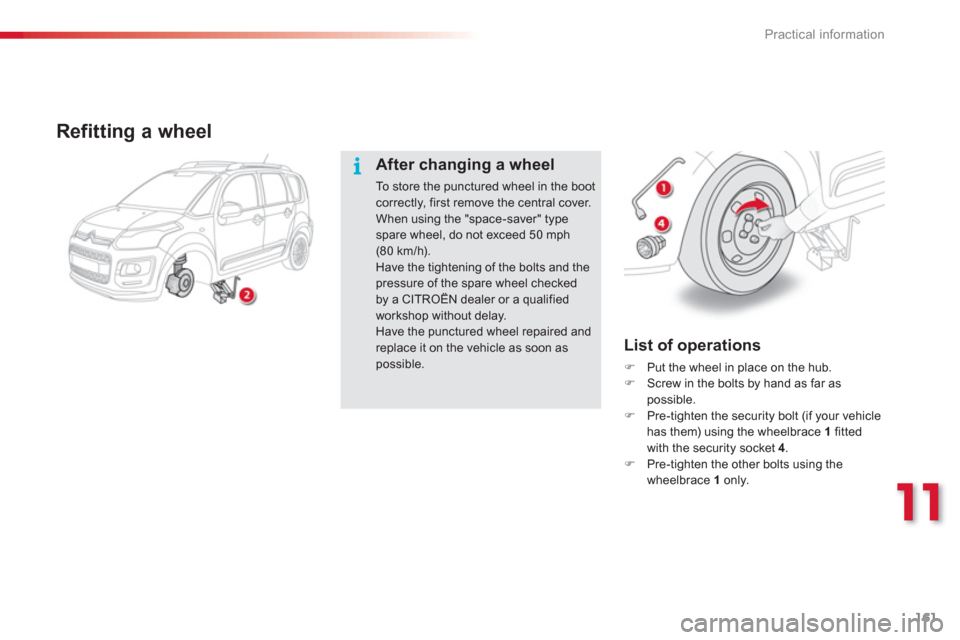

List of operations
)
Put the wheel in place on the hub. )
Screw in the bolts by hand as far aspossible.)
Pre-tighten the security bolt (if your vehiclehas them) using the wheelbrace 1
fitted
with the security socket 4 . )
Pre-tighten the other bolts using the
wheelbrace 1only.

Refitting a wheel
After changing a wheel
To store the punctured wheel in the boot correctly, first remove the central cover. When using the "space-saver" typespare wheel, do not exceed 50 mph(80 km/h). Have the tightening of the bolts and thepressure of the spare wheel checkedby a CITROËN dealer or a qualified workshop without delay. Have the punctured wheel repaired and replace it on the vehicle as soon aspossible.

11
Practical information
169

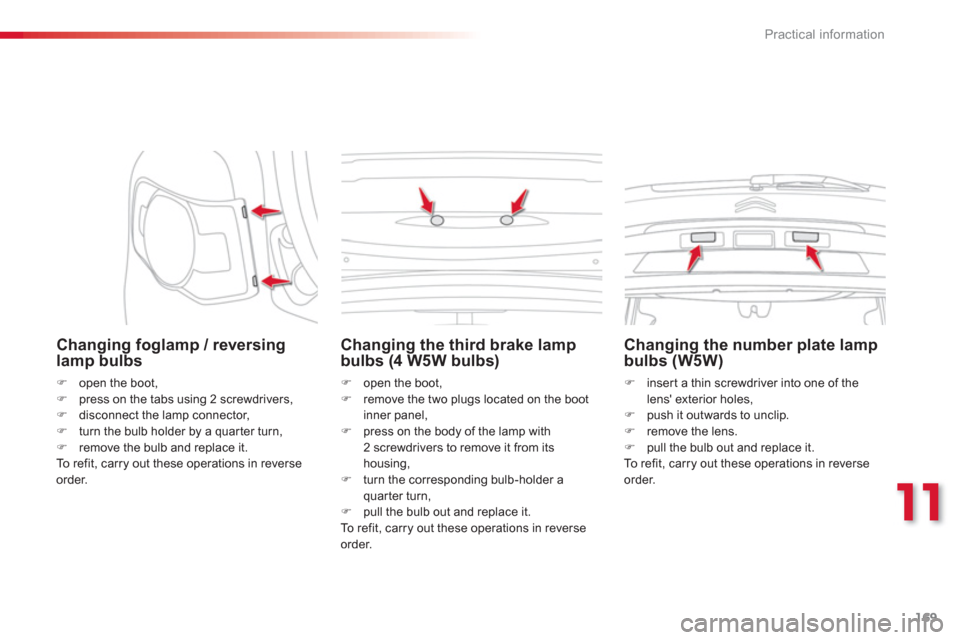

Changing foglamp / reversing lamp bulbs
)
open the boot,)
press on the tabs using 2 screwdrivers,)
disconnect the lamp connector,
)
turn the bulb holder by a quar ter turn,)
remove the bulb and replace it.
To r efit, carry out these operations in reverseorder.
Changing the third brake lampbulbs (4 W5W bulbs)
)
open the boot,)
remove the two plugs located on the bootinner panel,
)
press on the body of the lamp with
2 screwdrivers to remove it from its
housing, ) turn the corresponding bulb-holder a quarter turn, )
pull the bulb out and replace it.
To r e f i t , c a r ry out these operations in reverse order.

Changing the number plate lamp
bulbs (W5W)
) insert a thin screwdriver into one of the lens' exterior holes,)
push it outwards to unclip.
)
remove the lens. )
pull the bulb out and replace it.
To r efit, carry out these operations in reverseorder.

11
Practical information
171

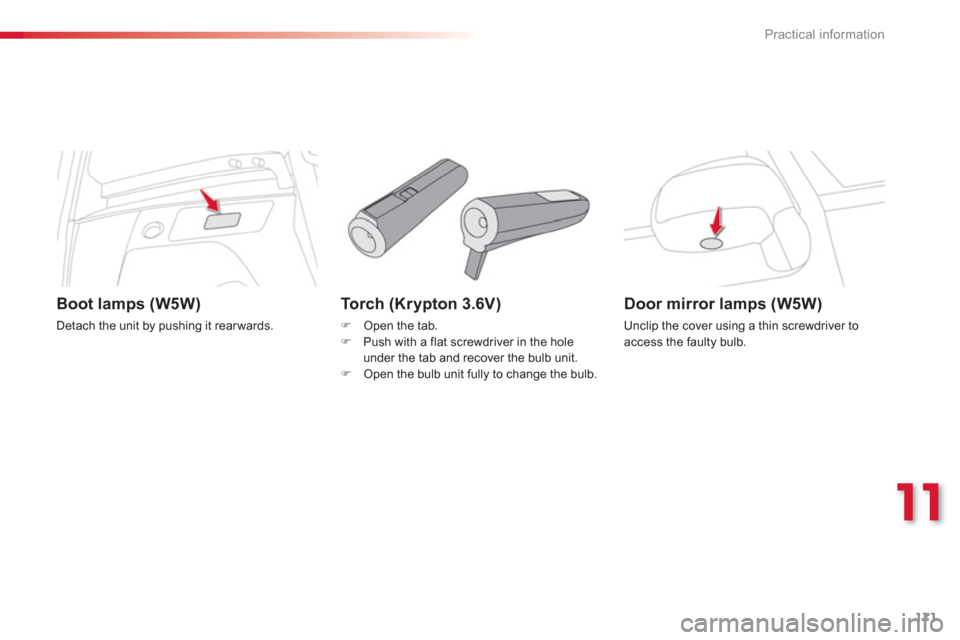

To r c h (Krypton 3.6V)
)Open the tab.)Push with a flat screwdriver in the holeunder the tab and recover the bulb unit.)Open the bulb unit fully to change the bulb.

Door mirror lamps (W5W)
Unclip the cover using a thin screwdriver toaccess the faulty bulb.



Boot lamps (W5W)
Detach the unit by pushing it rear wards.

11
Practical information
183





Towing the vehicle


Access to the tools

The towing eye is installed under the boot floor.
To gain access to it: )open the boot, )remove the adjustable boot floor, )lift up the boot carpet, )remove the towing eye from the tool holder.
Procedure for havin
g your vehicle towed or for towing another vehicle using a removable towing eye.
General recommendations
Obser ve the legislation in force in your country. Ensure that the weight of the towing vehicle is higher than that of the towed vehicle. The person at the wheel of the towed vehicle must have a valid driving licence.When towing a vehicle with all four wheels on the ground, always use an approved towingbar; rope and straps are prohibited. When towing a vehicle with the engine off, there is no longer any power assistance for braking or steering. In the following cases, you must always call on a professional recovery service: - vehicle broken down on a motor way or fast road, - 4 wheel drive vehicle, - when it is not possible to put the gearbox into neutral, unlock the steering, or release theparking brake, - towing with only two wheels on the ground, - where there is no approved towing bar available...

11
Practical information
187
"Comfort":
front and rear parking sensors, insulated module, reading lamp, sun blinds, head
restraint-mounted coat hanger, centre armrest,
air deflector, scented air freshener car tridges, portable ashtray, solar films for windows...


"Protection":

mats *
, seat covers, mudflaps, bumper
protectors, vehicle protective cover, dog guard,
pet seat and boot covers...

"Transport solutions":

boot liner, boot carpet, towbar, towbar wiring harness, transverse and longitudinal roof
bars, bicycle carrier, ski carrier, roof box, bootspacers, boot net, business/commercial vehicle
conversion kit, sliding boot floor...
"Safety and security":
anti-theft alarm, warning triangle, high visibility
vest, breathalyzer, first aid kit, snow chains,non-skid covers, security wheel bolts, vehicle
tracking system, child seats, fire extinguisher,
caravan mirror, glass security films...
"Style":
allow wheels, chromed mirror shells, leather
steering wheel, gear lever knob, aluminium
footrest, wheel caps...




Accessories A wide range of accessories and genuine par ts is available from the CITROËN dealer network.
These accessories and par ts have been tested and approved for reliability and safety.
They are all adapted to your vehicle and benefit from CITROËN's recommendation and warranty.

*
To avoid any risk of jamming of the pedals:
- ensure that the mat is positioned and
secured correctly,
- never fit one mat on top of another.

.
