Access
69

















Window controls System which opens or closes a window manually or automatically. It is fitted with anti-pinch protection if an obstacle is detected on the one-touchmodels and a deactivation system to prevent misuse of the rear switches on all models.
1.Driver's electric window.2. Passenger's electric window.3.Rear right electric window.4.Rear left electric window.5.Deactivating the rear electric windowand door controls.
Electric windows
)Press or pull the switch. The
window stops as soon as theswitch is released.

One-touch electric
windows
There are two methodsof operation:
-manual mode)Press or pull the switch gently. The
window stops as soon as the switch is released.

- automatic mode)Press or pull the switch fully. The window
opens or closes completely when the switch is released.)Pressing the switch again stops themovement of the window.

The electric window switches remainoperational for approximately 45 seconds after the ignition is switchedoff or until a front door is opened.

The electric window switchesremain operational for approximately45 seconds after the ignition is switched
off or until a front door is opened.

Access
70

Reinitialisation
Deactivating the rear window and door controls
)
For the safety of your children, press switch 5to prevent operation of the rear
windows irrespective of their position.
With the indicator lamp on, the rear controls aredeactivated.
With the indicator lamp off, the rear controls are
activated.
When the
function is activated,
this warning lamp lights up on the
instrument panel for a few seconds.
This control also deactivates the interior rear door controls (see "Child safety -Electric child lock" section).
In the event of contact during operationof the windows, you must reverse the movement of the window. To do this,press the switch concerned.
When the driver operates the passenger
electric window switches, they mustensure that no one is preventing correct closing of the windows.
The driver must ensure that the passengers use the electric windowscorrectly.
Be aware of children when operating the windows.
Safety anti-pinch
The one-touch electric windows are fitted with a safety anti-pinch function.When the window rises and meets an obstacle, it stops and partially lowers again.

In the event of unwanted opening of thewindow on closing (for example in the presence of frost): )press the switch until it opens completely, )then pull it immediately until itcloses,)continue to hold the switch for approximately one second after thewindow has closed.
The safety anti-pinch function is not active during these operations.

In the event of a malfunction you must reinitialise
the o
peration of the electric windows: )release the switch and pull it again until the
window closes completely, )hold the switch for approximately onesecond after closing,
)press the switch to lower the window automatically. The safety anti-pinch function is not active
during these operations. Always remove the key from the ignition when
leaving the vehicle, even for a shor t time.

4
Access
71











Doors


From outside
)After unlocking the vehicle using theremote control or the key, pull the door handle.
From inside
)
Pull the front door control to open the door;
this unlocks the vehicle completely. ) Pull the rear door control to open the door;
this unlocks only the door opened.

Closing
-when the engine is running
, this
warnin
g lamp comes on, accompanied
by a message in the multifunction screen for a few seconds,

Opening

When a door is not closed correctly:

- when the vehicle is movin
g
(speed higher than 6 mph (10 km/h)), this warning
lamp comes on, accompanied by an
audible signal and a message in the multifunction screen for a few seconds.

Access
72
Manual centralised control
Locking
)Press button Ato lock the vehicle.
The red indicator lamp on the button comes on.

Automatic centralised
control

Unlocking
)Above 6 mph (10 km/h), press button Ato
unlock the doors and the boot temporarily.

Unlocking
)
Press button A
again to unlock the vehicle.
The red indicator lamp on the button switches
off.


Locking

When the speed exceeds 6 mph (10 km/h), the doors and the boot lock automatically.
If the vehicle is locked from the outside,the red indicator lamp flashes andbutton A
is inactive. )In this case, use the remote controlor the key to unlock the vehicle.

If one of the doors is open, centrallocking from the inside does not takeplace.

If one of the doors is open, theautomatic central locking does not take place.
If the boot is open, the automatic centrallocking of the doors is active.
System which provides full manual locking or
unlocking of the doors from the inside. System which provides full automatic locking
or unlocking of the doors and the boot while
driving.
You can activate or deactivate this function.

4
Access
73
Activation
)Press button Afor more than two seconds.
A confirmation message appears on themultifunction screen, accompanied by an
audible signal.


Deactivation
)Press button Aagain for more than
two seconds.
A confirmation message appears on themultifunction screen, accompanied by an
audible signal.

Emergency control


Locking the front and rear passenger doors
)
Inser t the key in the lock, located on the edge of the door, then turn it one eighth of a turn
.

Locking the driver's door
)
Inser t the key in the lock, then turn it to theleft.
Unlocking the driver's door
)
Inser t the key in the lock, then turn it to theright.


Unlocking the front and rear passenger doors
)
Pull the interior door opening control.
In the event of a failure with the centrallocking system, you should disconnectthe battery to lock the boot and soensure the complete locking of thevehicle.
System which locks or unlocks the doors
mechanically in the event of a malfunction of
the battery or of the central locking.

Access
74
)After unlocking the vehicle using theremote control or the key, pull the handleand raise the tailgate.











Boot
- when the engine is running
, this
warning lamp comes on, accompanied
by a message on the multifunction
screen for a few seconds,
Tailgate release

Unlocking
)Fold back the rear benchseat to gainaccess to the lock from inside the boot. )Insert a small screwdriver into hole Aof thelock to unlock the tailgate.




Closing

If the tailgate is not closed correctly:
Opening
-when the vehicle is moving
(speed above 6 mph (10 km/h)), this warning lamp comeson, accompanied by an audible signal anda message on the multifunction screen for a few seconds.

)
Lower the tailgate using the interior grab handle.
System for mechanical unlocking of the boot
in the event of a battery or central lockingmalfunction.

4
Access
75

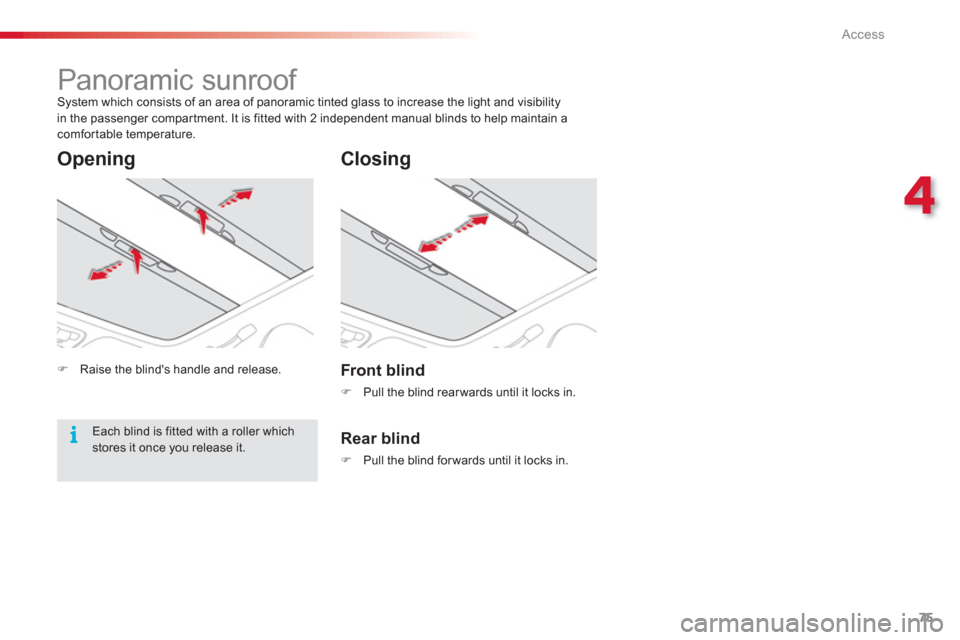

Panoramic sunroof System which consists of an area of panoramic tinted glass to increase the light and visibility
in the passenger compar tment. It is fitted with 2 independent manual blinds to help maintain acomfortable temperature.
Closing
Rear blind
) Pull the blind forwards until it locks in.


Front blind
)
Pull the blind rearwards until it locks in.



Opening
)Raise the blind's handle and release.

Each blind is fitted with a roller whichstores it once you release it.

Access
76


























Fuel tank
Low fuel level
Fillin
g

A label affixed to the inside of the flap reminds you of the type of fuel to be used depending on your engine.
Wh
en the low fuel level is reachedthis warning lamp comes on in the
instrument panel. When it first comes
on there remains approximately5 litresof fuel in the tank. To fill the tank safel
y: )the engine must be switched off,)
open the fuel filler flap,
)
inser t the key in the cap, then turn it to the left,
)
remove the cap and hook it onto the clip located on the inside of the flap,)
fill the tank, but do not continue after the3rd cut- off of the pump; this could cause
malfunctions.
When
you have filled the tank: )
put the cap back in place, )
turn the key to the right, then remove itfrom the cap,
)
close the flap.

Additions of fuel must be of at least5 litres to be registered by the fuelgauge.
The key cannot be removed from the lock until the cap is refitted.
Opening the filler cap may create anoise caused by an inrush of air. Thisvacuum is entirely normal and results from the sealing of the fuel system. With Stop & Star t, never refuel with the system in STOP mode; you must switchoff the ignition with the key. Fuel tank capacit
y: approximately 50 litres (petrol) or 48 litres (Diesel); (Depending
on version: approximately 30 litres(petrol or Diesel)). For the LPG version: approximately 33 litres.
You must refuel as soon as possible to avoid running out of fuel.
If you run out of fuel (Diesel), refer also to the
"Checks" section.

4
Access
77
Quality of the fuel used
for petrol engines

The petrol engines are perfectly compatible
with E10 or E24 type petrol bio
fuels (containing
10 % or 24 % ethanol), conforming to Europeanstandards EN 228 and EN 15376.
E85 type fuels (containing up to 85 % ethanol)
are reser ved exclusively for vehicles marketed
for the use of this type of fuel (BioFlex
vehicles). The quality of the ethanol mustcomply with European standard EN 15293.
For Brazil only, special vehicles are marketed
to run on fuels containing up to 100 % ethanol(E10 0 type).
For Russia only, the use of RON 92 unleadedpetrol is possible.

Quality of the fuel used
for Diesel engines
The Diesel engines are perfectly compatible
with biofuels which conform to current and future European standards (Diesel fuel which complies with standard EN 590 mixed with a
biofuel which complies with standard EN 14214)available at the pumps (containing up to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in cer tain Diesel
engines; however, this use is subject to strictapplication of the special ser vicing conditions.
Contact a CITROËN dealer or a qualifiedworkshop.
The use of any other type of (bio)fuel (vegetable or animal oils, pure or diluted,
domestic fuel...) is strictly prohibited (risk of
damage to the engine and fuel system).

Access
78
















Misfuel prevention (Diesel) *
Operation
When a petrol filler nozzle is introduced into the
fuel filler neck of your Diesel vehicle, it comes
into contact with the flap. The system remainsclosed and prevents filling.Do not persist but introduce a Diesel type filler nozzle.
*
According to country of sale.
It remains possible to use a fuel can to fill the tank. In order to ensure a good flow of fuel,do not place the nozzle of the fuel can in direct contact with the flap of the misfuel prevention device and pour slowly.
Travelling abroad

As Diesel fuel pump nozzles may be different in other countries, the presence of the misfuel prevention device may make refuelling impossible. Before travelling abroad, we
recommend that you check with the CITROËN dealer network, whether your vehicle is suitable for the fuel pumps inthe country in which you want to travel.
Mechanical device which prevents fillin
g the tank of a Diesel vehicle with petrol. It avoids the risk of engine damage that can result from filling with the wrong fuel.
Located in the filler neck, the misfuel prevention device appears when the filler cap is removed.
