Citroen C3 PICASSO RHD 2013 1.G Owner's Manual

6
Fittings
99

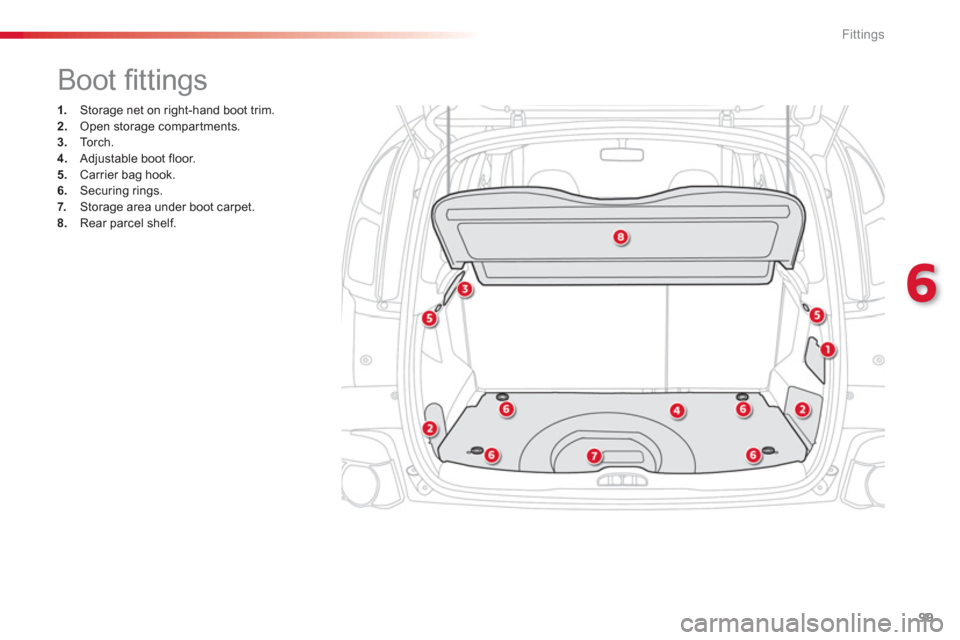

Boot fi ttings
1.
Storage net on right-hand boot trim. 2.Open storage compar tments.3.Torch. 4.
Adjustable boot floor.
5. Carrier bag hook.
6.Securing rings. 7. Storage area under boot carpet.8.Rear parcel shelf.

Fittings
100

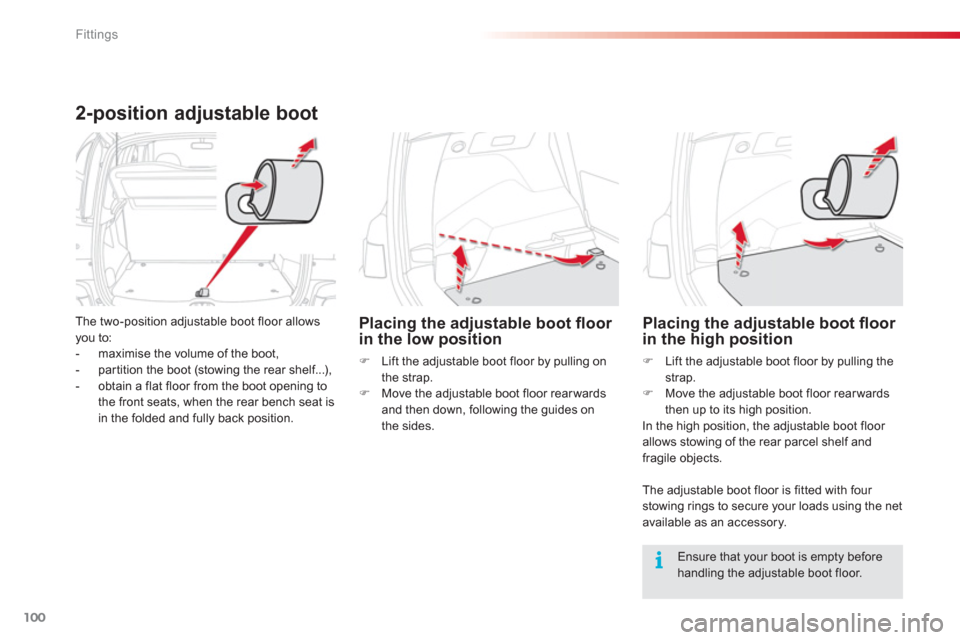

2-position adjustable boot
The two-position adjustable boot floor allows you to:
- maximise the volume of the boot,
- par tition the boot
(stowing the rear shelf...),
- obtain a flat floor from the boot opening to
the front seats, when the rear bench seat isin the folded and fully back position.

Placing the adjustable boot fl oor in the low position
)
Lift the adjustable boot floor by pulling on
the strap.) Move the adjustable boot floor rear wards
and then down, following the guides on
the sides.



Placing the adjustable boot fl oor in the high position
)Lift the adjustable boot floor by pulling the strap.)Move the adjustable boot floor rearwards
then up to its high position.
In the high position, the adjustable boot floor
allows stowing of the rear parcel shelf and
fragile objects.
The ad
justable boot floor is fitted with four stowing rings to secure your loads using the net
available as an accessory.
Ensure that your boot is empty beforehandling the adjustable boot floor.

6
Fittings
101

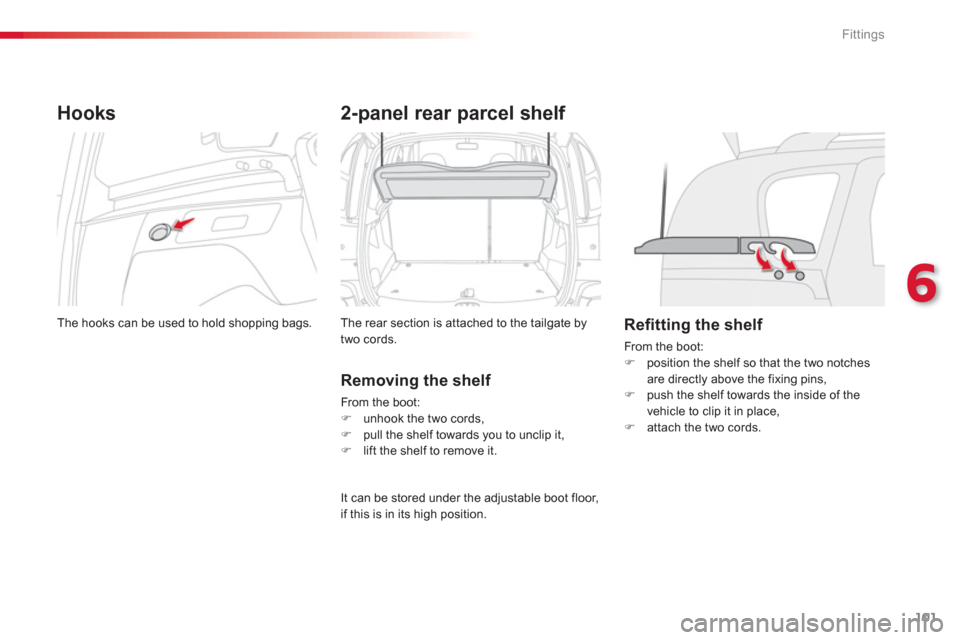

Hooks
The hooks can be used to hold shopping bags.
2-panel rear parcel shelf
The rear section is attached to the tailgate bytwo cords.
Removing the shelf
From the boot: )
unhook the two cords,)
pull the shelf towards you to unclip it, )
lift the shelf to remove it.


Refi tting the shelf
From the boot:)
position the shelf so that the two notches
are directly above the fixing pins, ) push the shelf towards the inside of the
vehicle to clip it in place,
) attach the two cords.
It can be stored under the ad
justable boot floor,if this is in its high position.

Fittings
102

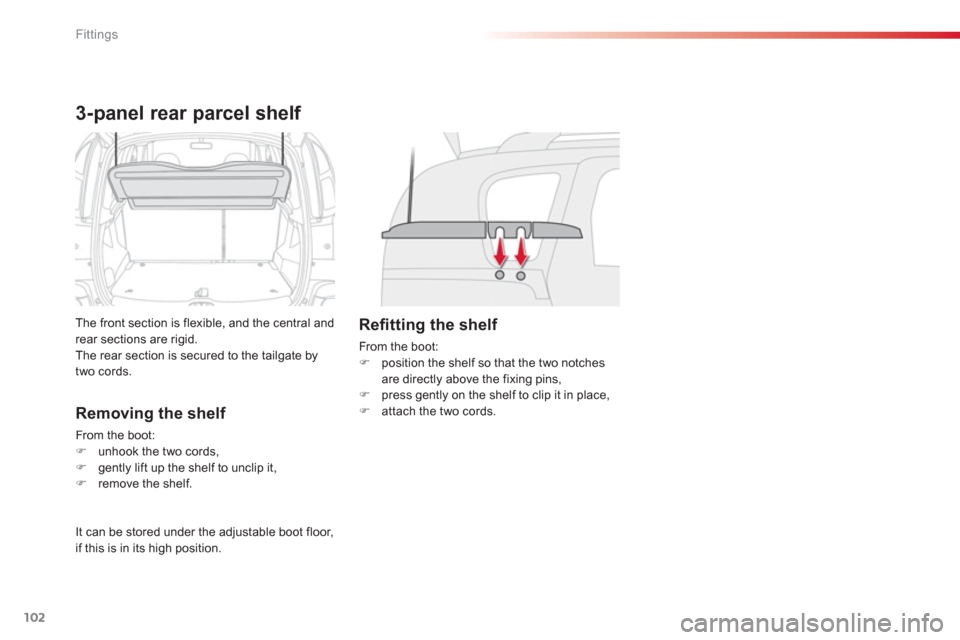

3-panel rear parcel shelf
The front section is flexible, and the central andrear sections are rigid. The rear section is secured to the tailgate by
two cords.
Removing the shelf
From the boot: )unhook the two cords, )gently lift up the shelf to unclip it, )remove the shelf.

Refi tting the shelf
From the boot:)
position the shelf so that the two notches
are directly above the fixing pins, ) press gently on the shelf to clip it in place, )
attach the two cords.


It can be stored under the ad
justable boot floor,
if this is in its high position.

7
Child safety
103











General points on child seats
Although one of CITROËN's main criteria when designing your vehicle, the safety of your children p
also depends on you.

*

The rules for carrying children are specific to each country. Refer to the current legislation
in
your country. For maximum sa
fety, please follow these precautions:


- in accordance with European regulations,all children under the age of 12 or less
than one and a half metres tall must
travel in a
pproved child seats suited to
their weight , on seats fitted with a seat
belt or ISOFIX mountings * ,-statistically, the safest seats in your
vehicle for the transpor tation of
children are the rear seats, -
a child weighing less than 9 kg must
travel in the "rearwards-facing" position both in the front and in the rear.
CITROËN recommendsthat children
should travel in the rear seats of your vehicle, with the rear seats in the fully back position: -"rearwards-facing"
up to the age of 2, -"forwards-facing"
over the age of 2.

Child safety
104

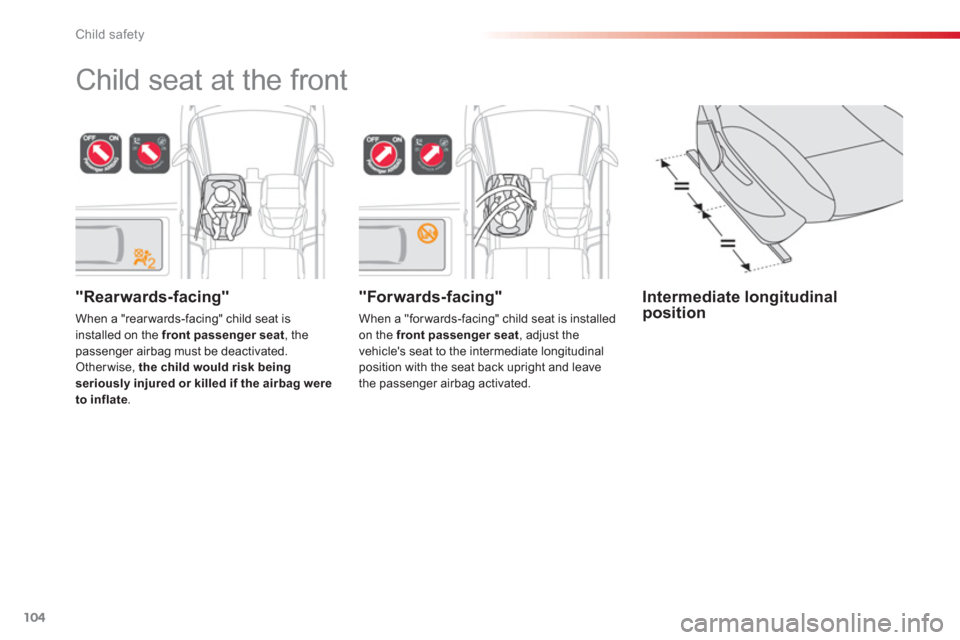

"Forwards-facing"

When a "for wards-facing" child seat is installed on the front passenger seat, adjust the
vehicle's seat to the intermediate longitudinal
position with the seat back upright and leave
the passenger airbag activated.
"Rearwards-facing"
When a "rear wards-facing" child seat is
installed on the front passenger seat, the passenger airbag must be deactivated. Otherwise, the child would risk beingseriously injured or killed if the airbag were
to inflate.
Child seat at the front


Intermediate longitudinal position

7
Child safety
105

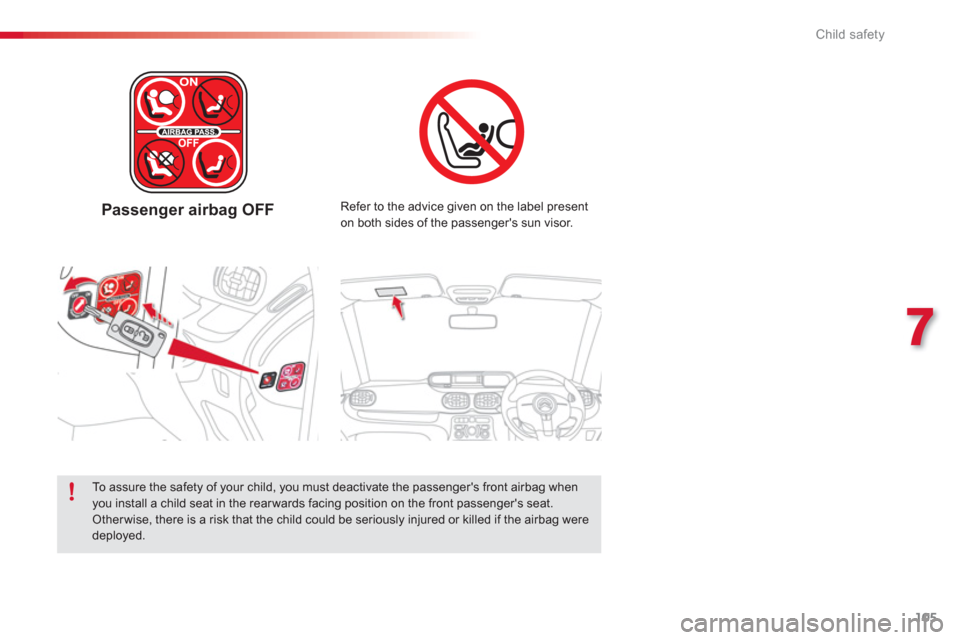

Passenger airbag OFF Refer to the advice given on the label present
on both sides of the passenger's sun visor.


To assure the safety of your child, you must deactivate the passenger's front airbag whenyou install a child seat in the rear wards facing position on the front passenger's seat. Other wise, there is a risk that the child could be seriously injured or killed if the airbag weredeployed.

Child safety
106
Group 0+: from bir th to 13 kgGroups 1, 2 and 3: from 9 to 36 kg



L1"RÖMER Baby-Safe Plus"
Installed in the
rearwards-facingposition.



L2"KIDDY Comfort Pro"
The impact shield must
be used for carryingyoung children (from 9 to 18 kg).
Groups 2 and 3: from 15 to 36 kg



L4"KLIPPAN Optima"From the age of 6 years (approximately 22 kg),
t
he booster is used on its own.




L5"RÖMER KIDFIX"Can be fitted to the vehicle's ISOFIX mountings. The child is restrained by the seat belt.












Child seats recommended by CITROËN CITROËN offers a complete range of recommended child seats which are secured using a ythree point seat belt
:

7
Child safety
107













Installing child seats attached using the seat belt
In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt and universally approved (a)in accordance with the weight of the child and the seat in the vehicle.
a
Universal child seat: child seat that can be installed in all vehicles using a seat belt.b:Group 0: from birth to 10 kg. Shells seats and baby carriers cannot be installed in the front passenger seat.c :Consult the legislation in force in your country before installing your child on this seat. U: Seat suitable for the installation of a child seat secured using a seat belt and universally approved, "rear wards-facing" and/or "for wards-facing".
X:Seat position not suitable for installation of a child seat for the weight class indicated.
CITROËN recommends that children travel in the rear seats, with the rear seats in the fully back position.
Weight of the child and indicative age
SeatUnder 13 kg(groups 0 (
b ) and 0+)
Up to approx 1 year
From 9 to 18 kg(group 1)1 to 3 years approx
From 15 to 25 kg(group 2)
3 to 6 years approx
From 22 to 36 kg(group 3)
6 to 10 years approx

Front passenger seat(
c )UUUU
Outer rear seats UUUU
Centre rear seat XXXX

Child safety
108
The incorrect installation of a child seat in a vehicle compromises the child's protection inthe event of an accident.

Remember to fasten the seat belts or the child seat harnesses keeping the slackrelative to the child's body to a minimum,even for shor t journeys.
When installing a child seat using the seat belt, ensure that the seat belt is tightenedcorrectly on the child seat and that it securesthe child seat firmly on the seat of your vehicle. If your passenger seat is adjustable,move it for wards if necessary.
For optimum installation of the "forwards-facing" child seat, ensure that the back of the child seat is in contact with the back of the vehicle's seat and that the head restraint does not cause any discomfor t.
If the head restraint has to be removed,ensure that it is stored or attached securelyto prevent it from being thrown around the vehicle in the event of sharp braking.
Children under the age of 10 must not travel in the "forwards-facing" position on the frontpassenger seat, unless the rear seats are
already occupied by other children, cannot be used or are absent.
Deactivate the passenger airbag when a "rearwards-facing" child seat is installed on the front seat.
Other wise, the child would risk being seriously injured or killed if the airbag were to inflate.
As a safety precaution, do not leave:- a child or children alone and unsupervised in a vehicle,
- a child or an animal in a vehicle whichis exposed to the sun, with the windows closed, - the keys within reach of children inside the vehicle. To prevent accidental opening of the doors and rear windows, use the "Child lock".Take care not to open the rear windows by more than one third. To protect young children from the rays of thesun, fit side blinds on the rear windows.





Advice on child seats


Installing a booster seat

The chest par t of the seat belt must be positioned on the child's shoulder withouttouching the neck.
Ensure that the lap part of the seat belt passes correctly over the child's thighs.
CITROËN recommends the use of a booster seat which has a back, fitted with a seat belt guide at shoulder level.
