belt Citroen C3 PICASSO RHD 2013 1.G Owner's Manual

.
Contents
Direction indicators 113
Hazard warning lamps 113
Horn 113
Emergency or assistance call 114
Brakin
g assistance systems 114
Tr a
jectory control systems 116
Front seat belts 117
Airbags 121
Safety
Parking brake 125
6-speed manual gearbox 125
Gear effi ciency indicator 126
6-speed electronic gearbox system 127
Hill start assist 131
Stop & Start 132
Speed limiter 135
Cruise control 137
Rear parking sensors 139
Reversing camera 141
Driving
Emergency or assistance 199
eMyWay 201
Audio system 255
Audio and telematics
Alphabetical index
Bonnet 143
Running out of fuel (Diesel) 144
Petrol engines 145
Diesel engines 146
Checking levels 147
Checks 149
Checks
Te m p o r a ry puncture repair kit 151
Changing a wheel 156
Changing a bulb 163
Changing a fuse 172
Battery 179
Energy economy mode 181
Changing a wiper blade 182
To w i ng the vehicle 183
To w i ng a trailer 185
Fitting roof bars 186
Accessories 187
Snow chains 189
Practical informationTechnical data
Petrol engines 190
Petrol weights 191
LPG engines 192
LPG weights 193
Diesel engines 194
Diesel wei
ghts 195
Dimensions 196
Identifi cation markings 197

Familiarisation
12
Adjustment
This operates with the ignition on.
From the driver's seat, select the mirror bymoving the control 1, to the left or to the right,
then adjust the mirror in the four directions by moving the control 2.The demisting - defrosting of the mirrors is
linked with that of the rear screen.

Interior rear view mirror


Manual day/night model
1.Selection of the "day" position of the mirror.
2. Mirror adjustment.



Front seat belt
1.
Fastening.2.Height adjustment. 63
117
Folding the mirrors
When parking, the mirrors can be folded manually or electrically.
6
2
Sitting comfortably


Automatic day/night model
1.Automatic detection of day/night mode. 2.Mirror adjustment.

Familiarisation
16
Passenger's front airbag
Electric child lock
1.
Inser t the key.2.
Select the position:
"OFF"
(deactivation), with "rear facing" child seat",
"ON"
(activation), with front passenger or "forwards facing" child seat.3.
Remove the key keeping the switch in the new position. Illumination of the indicator lamp
A
indicatesthat the electric child lock is on. A
. Front and/or rear seat belts not fastened / unfastened warning lamp.B.
Front left seat belt warning lamp.C.
Front right seat belt warning lamp.D.Rear right seat belt warning lamp.
E.Rear centre seat belt warning lamp.
F. Rear left seat belt warning lamp.
G.Passenger's front airbag deactivated
warning lamp.
H.Passenger's front airbag activated warning lamp.


Seat belts and passenger's
front airba
g
Passenger safety
122
117, 118
112

1
Monitoring
29
Low fuel level fixed. When it first comes on there remainsapproximately 5 litres offfuel
in the
tank. Yo u m u s t r e
fuel as soon as possible to avoid running out of fuel.This warning lamp will come on every time the ignition
is switched on, until a sufficient addition of fuel is made.
Fuel tank capacity: approximately 50 litres (petrol) or
48 litres (Diesel); depending on version: approximately
30 litres (petrol or Diesel).
Never continue to drive until you run out of fuel as
this could damage the emission control and injection systems.
Warning lampis onCauseAction / Observations
Maximum coolant temperature
fixed red. The temperature of the cooling system is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down before topping
up the level, if necessary.
If the problem persists, contact a CITROËN dealer or qualified workshop.
Engine oilpressure
fixed. There is a fault with the engine
lubrication system. You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a CITROËN
dealer or a quali
fied workshop.
Battery charge
fixed. The battery charging circuit has a fault (dirty or loose terminals, slack or cut alternator belt, ...). The warnin
g lamp should go off when the engine is started.
If it does not go off, contact a CITROËN dealer or a qualified workshop.

Monitoring
30
Warning lampis onCauseAction / Observations
Airbagstemporarily. This lamp comes on for a fewseconds when you turn on the
ignition, then goes off. This lamp should
go off when the engine is started.
If it does not go off, contact a CITROËN dealer or a qualified workshop.
fix
ed.One of the airbag or seat beltpretensioner systems has a fault.Have it checked by a CITROËN dealer or a qualified
workshop.
Front seat beltnot fastened / unfastened
fixed then flashingaccompanied by an
increasing audible
signal. The driver and
/or the front passenger has not fastened or has unfastened
their seat belt.
Pull the strap then insert the tongue in the buckle.
Rear seat belt not fastened / unfastened
fixed then flashingaccompanied by anaudible signal.
One or more rear passengers haveunfastened their seat belt.
Power steeringfixed.The power steering has a fault. Drive carefully at reduced speed.
Have it checked by a CITROËN dealer or a qualified
workshop.
Door(s) openfixed if the speed is
below 6 mph (10 km/h). A door or the boot is still open.Close the door or boot.
fixed and accompanied
b
y an audible signal
if the speed is above
6 mph (10 km/h).

3
Comfort
61

Fully-folded position
)Move the corresponding front seat forward
if necessary. )Put the rear seat in the fully back position. )Place the head restraints in the lowposition.)Pull control A, to release the seat back
which folds easily onto the seat cushion.
The seat fits into the floor, providing acontinuous level floor.
To put the seat back in position: )Pull the seat back backwards until it locks
in place.
)Return the seat cushion to the desired position.
When putting back in position, take care not to jam the seat belts.

7
Child safety
103

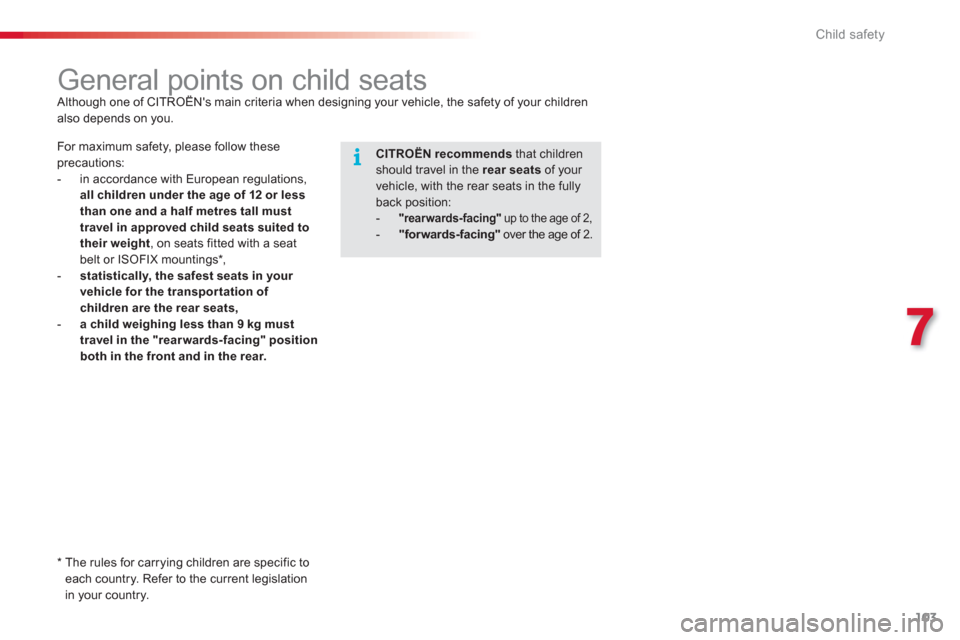

General points on child seats
Although one of CITROËN's main criteria when designing your vehicle, the safety of your children p
also depends on you.

*

The rules for carrying children are specific to each country. Refer to the current legislation
in
your country. For maximum sa
fety, please follow these precautions:


- in accordance with European regulations,all children under the age of 12 or less
than one and a half metres tall must
travel in a
pproved child seats suited to
their weight , on seats fitted with a seat
belt or ISOFIX mountings * ,-statistically, the safest seats in your
vehicle for the transpor tation of
children are the rear seats, -
a child weighing less than 9 kg must
travel in the "rearwards-facing" position both in the front and in the rear.
CITROËN recommendsthat children
should travel in the rear seats of your vehicle, with the rear seats in the fully back position: -"rearwards-facing"
up to the age of 2, -"forwards-facing"
over the age of 2.

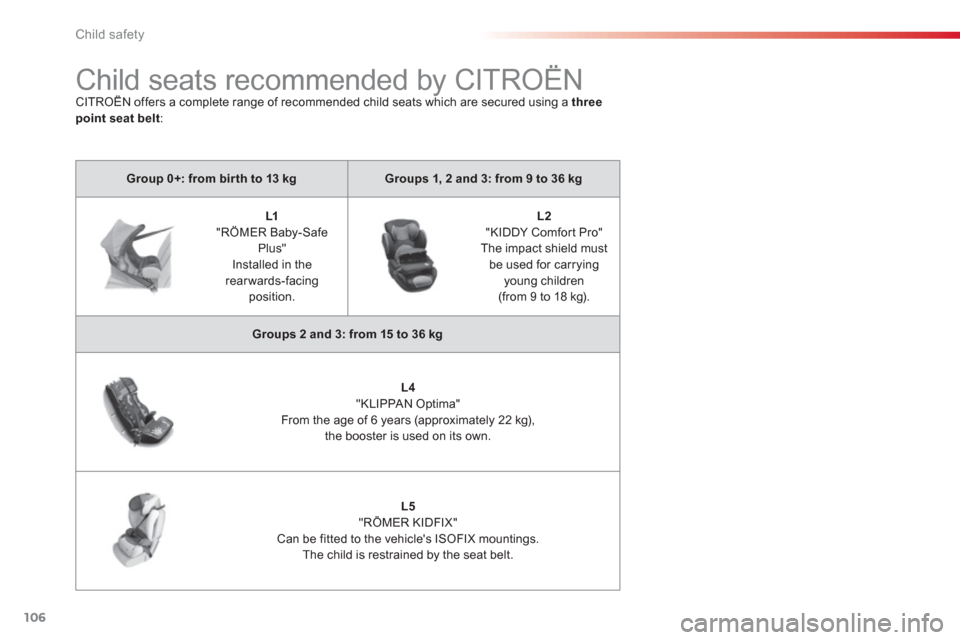

Child safety
106
Group 0+: from bir th to 13 kgGroups 1, 2 and 3: from 9 to 36 kg



L1"RÖMER Baby-Safe Plus"
Installed in the
rearwards-facingposition.



L2"KIDDY Comfort Pro"
The impact shield must
be used for carryingyoung children (from 9 to 18 kg).
Groups 2 and 3: from 15 to 36 kg



L4"KLIPPAN Optima"From the age of 6 years (approximately 22 kg),
t
he booster is used on its own.




L5"RÖMER KIDFIX"Can be fitted to the vehicle's ISOFIX mountings. The child is restrained by the seat belt.












Child seats recommended by CITROËN CITROËN offers a complete range of recommended child seats which are secured using a ythree point seat belt
:

7
Child safety
107

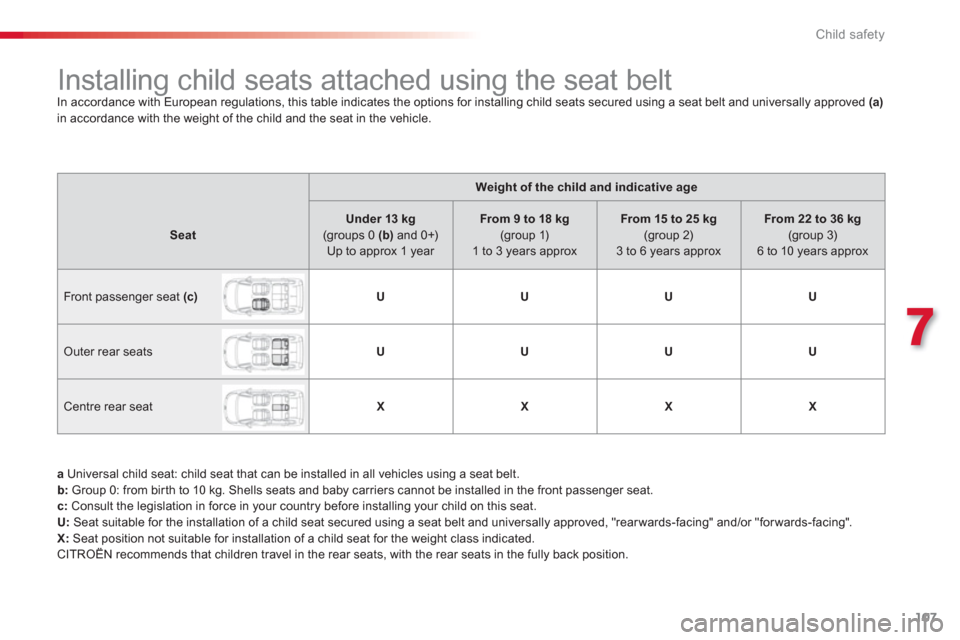

Installing child seats attached using the seat belt
In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt and universally approved (a)in accordance with the weight of the child and the seat in the vehicle.
a
Universal child seat: child seat that can be installed in all vehicles using a seat belt.b:Group 0: from birth to 10 kg. Shells seats and baby carriers cannot be installed in the front passenger seat.c :Consult the legislation in force in your country before installing your child on this seat. U: Seat suitable for the installation of a child seat secured using a seat belt and universally approved, "rear wards-facing" and/or "for wards-facing".
X:Seat position not suitable for installation of a child seat for the weight class indicated.
CITROËN recommends that children travel in the rear seats, with the rear seats in the fully back position.
Weight of the child and indicative age
SeatUnder 13 kg(groups 0 (
b ) and 0+)
Up to approx 1 year
From 9 to 18 kg(group 1)1 to 3 years approx
From 15 to 25 kg(group 2)
3 to 6 years approx
From 22 to 36 kg(group 3)
6 to 10 years approx

Front passenger seat(
c )UUUU
Outer rear seats UUUU
Centre rear seat XXXX

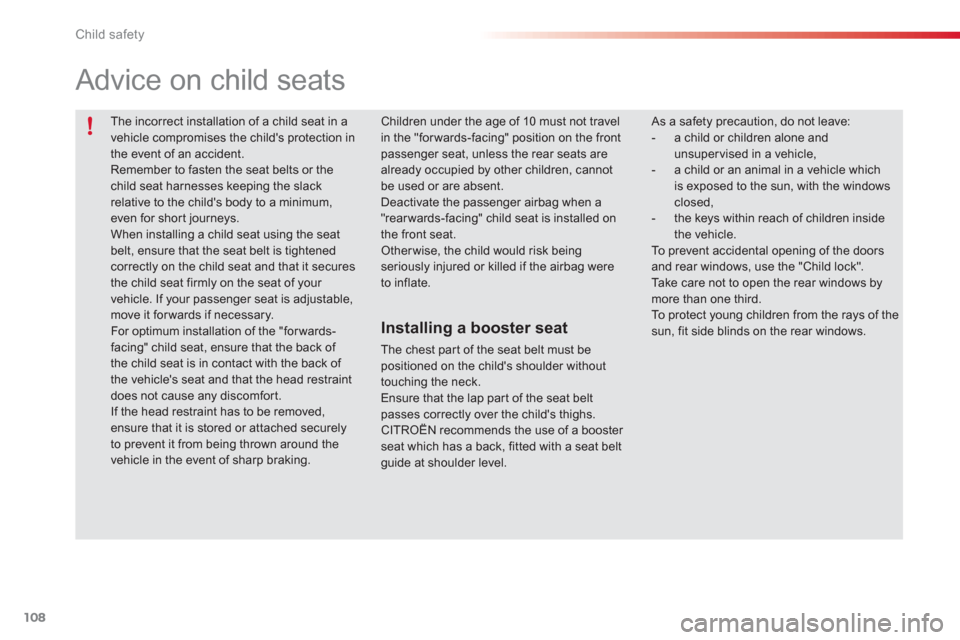

Child safety
108
The incorrect installation of a child seat in a vehicle compromises the child's protection inthe event of an accident.

Remember to fasten the seat belts or the child seat harnesses keeping the slackrelative to the child's body to a minimum,even for shor t journeys.
When installing a child seat using the seat belt, ensure that the seat belt is tightenedcorrectly on the child seat and that it securesthe child seat firmly on the seat of your vehicle. If your passenger seat is adjustable,move it for wards if necessary.
For optimum installation of the "forwards-facing" child seat, ensure that the back of the child seat is in contact with the back of the vehicle's seat and that the head restraint does not cause any discomfor t.
If the head restraint has to be removed,ensure that it is stored or attached securelyto prevent it from being thrown around the vehicle in the event of sharp braking.
Children under the age of 10 must not travel in the "forwards-facing" position on the frontpassenger seat, unless the rear seats are
already occupied by other children, cannot be used or are absent.
Deactivate the passenger airbag when a "rearwards-facing" child seat is installed on the front seat.
Other wise, the child would risk being seriously injured or killed if the airbag were to inflate.
As a safety precaution, do not leave:- a child or children alone and unsupervised in a vehicle,
- a child or an animal in a vehicle whichis exposed to the sun, with the windows closed, - the keys within reach of children inside the vehicle. To prevent accidental opening of the doors and rear windows, use the "Child lock".Take care not to open the rear windows by more than one third. To protect young children from the rays of thesun, fit side blinds on the rear windows.





Advice on child seats


Installing a booster seat

The chest par t of the seat belt must be positioned on the child's shoulder withouttouching the neck.
Ensure that the lap part of the seat belt passes correctly over the child's thighs.
CITROËN recommends the use of a booster seat which has a back, fitted with a seat belt guide at shoulder level.
