buttons Citroen C3 PICASSO RHD 2013 1.G Owner's Manual

.
.
Contents
Conventional child seats 103
ISOFIX child seats 109
Child lock 112
Child safety
Instrument panel 22
Indicator and warning lamps 23
Indicators 31
Adjustment buttons 34
Monitoring Familiarisation
Screens with audio equipment 35
Tr i p c o m p u t e r 45
Multifunction screens
Ventilation 48
Rear screen demist/defrost 50
Heating 51
Manual air conditioning 51
Dual-zone digital air conditioning 53
Scented air freshener 56
Front seats 57
Rear seats 60
Mirrors 62
Steering wheel adjustment 63
Comfort
Remote control key 64
Window controls
69
Doors 71
Boot 74
Panoramic sunroof 75
Fuel tank 76
Misfuel prevention (Diesel) 78
Access
Lighting controls 79
LED lamps 83
Cornering lighting 84
Headlamp adjustment 85
Wiper controls 86
Courtesy lamps 89
Boot lamp 91
Visibility
Front fi ttings 92
Rear fi ttings 96
Boot fi ttings 99
Fittings Eco-driving

2
Multifunction screens
35













Monochrome screen A
Controls

Displa
ys in the screen

This displays the following information:


- time,

- date,

- ambient temperature
(this flashes if there isa risk of ice),

- state of the openings (doors, boot, ...),

- audio sources (radio, CD, ...),

- trip computer (refer to the end of the section).
Warning messages or information messagesmay appear temporarily. These can be cleared
by pressing the "Back"button.


Main menu
)
Press the "MENU"
button for access to
the main menu
, then press the "  " or " " buttons to scroll through the variousmenus:
- radio-CD,
- vehicle configuration,
- options,
- displa
y settings,
- language,
- units.)
Press the "OK"button to select the menurequired.
From the audio equipment control panel, youcan: )
press the "MENU"
button for access to themain menu
, )
press the "
" or " " buttons to scroll
through the items on the screen, ) press the "MODE"
button to change the
permanent application (trip computer, audiosource, ...),) press the "  " or " " buttons to change asetting value,)
press the "OK"button to confirm,or )
press the "Back"button to abandon the
operation in progress.



Radio-CD
With the audio equipment switched on, once
the "Radio-CD" menu has been selected youcan activate or deactivate the functions linkedwith use of the radio (RDS, REG) or the CD(introscan, shuffle, CD repeat).
For more information on the "Radio- CD"
application, refer to the "Audio s
ystem" section.

Multifunction screens
36

Display settings
Once the "Display settings" menu has been selected,you can gain access to the following settings:



- year,

- month,

- day,

- hour,

- minutes,

-
12 or 24 hour mode.


Setting the date and time
)Press the MENUbutton. )Select "Display adjust" using the "
" or ""
button.)Press OK
to confirm the selection.)Select the "Year" function using the " " or
"
" button.)Press OK
to confirm the selection.)Define the desired value, using the " " or
" " buttons. )Press OK
to confirm the selection.)Repeat the procedure for the "Month",
"Day", "Hours", and "Minutes" functions.
) Once you have selected a setting, press
the "  " or "
" buttons to change its value.
)
Press the "  " or " " buttons to switch
respectively to the previous or next setting.) Press the "OK"
button to record the change and return to the normal display or
press the "Back"button to cancel.
Options
Once the "Options" menu has been selected, you can star t diagnostics of the status of the equipment (active, not active, faulty).
Vehicle confi guration
Once the "Vehicle Configuration" menu hasbeen selected, you can activate or deactivate
the following equipment:
- wiper linked with reverse gear (refer to the"Visibility" section),
- "guide-me-home" lighting (refer to the "Visibility" section).

Multifunction screens
38







Monochrome screen A associated with the eMyWay satellite
navigation colour screen
This displays the following information:
- ambient temperature (this flashes if there isa risk of ice),
- trip computer (refer to the end of the
section).
Warning messages or information messagesmay appear temporarily. These can be cleared
by pressing the "Back"
button.


Controls

There are three display control buttons:


- "Back"
to abandon the operation in
progress,-"MENU"to scroll through the menus or sub-menus, -"OK"
to select the menu or sub-menu
required.


Main menu
)Press the "MENU"
button to scroll through
the various menus of the main menu:- vehicle configuration,
- options,
- language,
- units. )Press the "OK"button to select the menurequired.
Displays in screen A

2
Multifunction screens
41
This displays the following information:


- time,

- date,

- ambient temperature (this flashes if there isa risk of ice),

- state of the openings (doors, boot, etc.),

- audio sources (radio, CD, USB port, etc.),

- trip computer (refer to the end of the section).
Warnin
g messages or information messagesmay appear temporarily. These can be clearedby pressing the "Back"button.
From the audio system control panel, you can: )
press the "MENU"
button to gain access to
the main menu,)
press the "
" or " " buttons to scroll
through the items on the screen, ) press the "MODE"
button to change the
permanent application (trip computer, audiosource, ...),) press the "
" or "
" buttons to change a
setting value,)
press the "OK"button to confirm,
or ) press the "Back"button to abandon the
operation in progress.



Main menu
)
Press the "MENU"
button to gain access to
the main menu:
- audio functions,
- the trip computer
(refer to the end of thesection),
- personalisation-configuration,
- telephone (hands-free kit). )
Press the "  " or "  " buttons to select themenu required, then confirm by pressing
the "OK"
button.












Monochrome screen C
Controls
"Au d i o f u n c t i o n s"
menu

With the audio equipment switched on, once
this menu has been selected you can activate or deactivate the functions linked with useof the radio (RDS, REG, RadioText), the CD (introscan, shuffle, CD repeat) or the MP3
pla
yer (USB por t).
For more information on the "Audio functions"
application, refer to the Audio systems par t of
the "Audio and telematics" section.


Displays in the screen

2
Multifunction screens
43

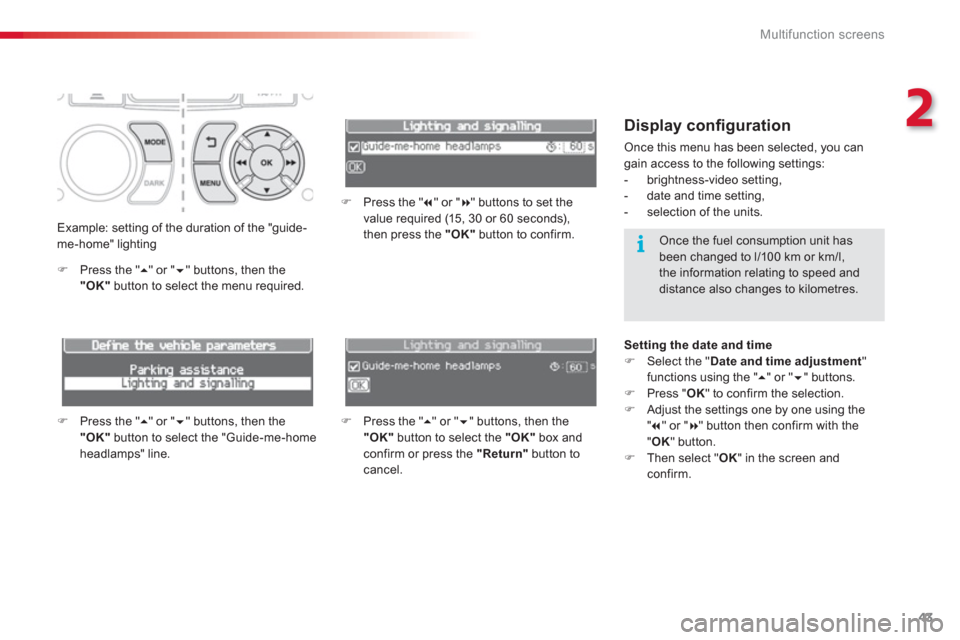

Display confi guration
Once this menu has been selected, you can
gain access to the following settings:


- brightness-video setting,

- date and time setting,

- selection of the units.
Example: setting of the duration of the "guide-me-home" lighting
)Press the "  " or "  " buttons, then the "OK"button to select the menu required.
)Press the "
" or "
" buttons, then the "OK"button to select the "Guide-me-homeheadlamps" line.
)
Press the " " or " " buttons to set the
value required (15, 30 or 60 seconds),
then press the "OK"button to confirm.
) Press the "
" or "" buttons, then the"OK"
button to select the "OK"box andconfirm or press the "Return"
button to cancel.
Once the fuel consumption unit has been changed to l/100 km or km/l, the information relating to speed anddistance also changes to kilometres.
Settin
g the date and time) Select the "Date and time adjustment"
functions using the " " or "
" buttons. )
Press "OK
" to confirm the selection.)
Adjust the settings one by one using the " " or "
" button then confirm with the"OK" button. )
Then select "OK
" in the screen andconfirm.

3
Comfort
55

6. Air distribution adjustment
)
Press one or more buttons todirect the air flow towards:


7. Air fl ow adjustment
)
Turn this control to the left todecrease the air flow or to theright to increase the air flow.
8. Air intake / Air recirculation )
Turn the air flow control to the left until all
of the indicator lamps go off.
This action switches off the air conditioning and
the ventilation.
Temperature related comfor t is no longer guaranteed but a slight flow of air, due to the
movement of the vehicle, can still be felt.
) Turn the air flow dial to the right or press
the "AU TO "button to reactivate the system
with the values set before it was switched off.
)Press this button for recirculation of the interior air. The indicator lamp in the button comes on.


- t
he windscreen and side windows (demisting or defrosting),

- the windscreen, the side windows and the
vents,

- the windscreen, the side windows, the
vents and the footwells,

- the vents and the footwells
,

- the vents,

- the footwells,

- the windscreen, the side windows and the footwells.
The air
flow indicator lamps, between the twofans, come on progressively in relation to the
value requested.
) As soon as possible, press this button
again to permit the intake of outside air and
prevent the formation of condensation. The
indicator lamp on the button switches off.
9. Mono-zone / Dual-zone
)Press this button to equalise
the comfort value on thepassenger's side with that on
the driver's side (mono zone).
The indicator lamp in the button
comes on.


Air recirculation enables the passenger compartment
to be isolated from exterior odours and smoke.
Avoid prolonged operation in interior air recirculation mode or driving for long periods with the system off (risk of
condensation and deterioration of the air quality).


Switching the system off

Access
68

Remote control

The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk of stopping it from working and the remote control would haveto be reinitialised.
No remote control can operate when the key is in the ignition switch, even when the ignition is switched off, except for reinitialisation.


Locking the vehicle

Driving with the doors locked may make access to the passenger compar tment by theemergency services more difficult in an emergency.
However, the vehicle unlocks automatically in the event of a serious impact causing airbag deployment. As a safety precaution, never leave children alone in the vehicle, except for a very shor t period.
In all cases, it is essential to remove the key from the ignition switch when leaving the vehicle.


Anti-theft protection

Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions.


When purchasing a second-hand vehicle

Have the pairing of all of the keys in your possession checked by a CITROËN dealer, to ensure that only your keys can be used to open and start the vehicle.
Lost keys

Visit a CITROËN dealer with the vehicle's registration document, your personal identification documents and if possible the key code label.
The CITROËN dealer will be able to look up the key code and the transponder coderequired to order a new key.
Do not throw the remote controlbatteries away, they contain metals which are harmful to the environment.
Take them to an approved collectionpoint.

Driving
136
Programming
) Turn thumb wheel 1to the "LIMIT"position: the speed limiter mode is selected but is not switched on(PAUSE).
You do not have to switch the s
peed limiter
on in order to set the speed.
Exceeding the programmed speed
Pressing the accelerator pedal to exceed the programmed speed will not have
an
y effect unless you press the pedal firmlypast the ypoint of resistance.eThe speed limiter is deactivated temporarily and the programmed speed, which
is still displayed, flashes.
Returning to the programmed speed, by means of intentional or unintentional
deceleration of the vehicle, automatically cancels the flashing of the
programmed speed.
Leaving limiter mode
)Turn thumb wheel 1
to the "0"position: the speed limiter mode is
deselected. The display returns to the distance recorder.



Operating fault

In the event of a speed limiter fault, the speed
is cleared resulting in flashing of the dashes.
Have it checked by a CITROËN dealer or a qualified workshop.
)Set the speed value by pressing button 2or 3(e.g.: 55 mph (90 km/h)).
You can then change the programmed speed using buttons 2 and 3 :
- by + or - 1 mph (km/h) = shor t press,
- by + or - 5 mph (km/h) = long press,
- in steps of + or - 5 mph (km/h) = maintained press. )Switch the speed limiter on by pressing button 4.)Switch the speed limiter off by pressing button 4: the display confirms that it has been switched off (PAUSE).)Switch the speed limiter back on by pressing button 4
again.

On a steep descent or in the event of sharp acceleration, the speed limiter willnot be able to prevent the vehicle from exceeding the programmed speed.
To a v o i d a ny risk of jamming of the pedals:


- ensure that the mat is positioned correctly,

- do not fit one mat on top of another.

Driving
138
Programming
) Turn dial 1
to the "CRUISE"position:
the cruise control mode is selectedbut is not switched on (PAUSE).
Exceeding the programmed speed
Intentional or unintentional exceeding of the programmed speed results in
flashing of this speed in the screen.
Return to the programmed speed, by means of intentional or unintentional
deceleration of the vehicle, automatically cancels the flashing of the speed.
Return to normal driving
)Turn dial 1 to the "0"
position: the cruise control mode is
deselected. The display returns to the distance recorder.



Operating fault

In the event of a cruise control malfunction,
the speed is cleared resulting in flashing of the dashes.
Have it checked by a CITROËN dealer or a
qualified workshop. )
Set the programmed speed by
accelerating to the required speed,
then press button 2or 3(e.g.: 70 mph (11 0 k m/h)).
)Switch off the cruise control by pressing button 4 : this is confirmed in the screen (PAUSE).
)Switch the cruise control back on by pressing button 4
again.
You can then change the programmed speed using buttons 2
and 3:- by + or - 1 mph (km/h) = shor t press,
- by + or - 5 mph (km/h) = long press,
- in steps of + or - 5 mph (km/h) = maintained press.

When the cruise control is switched on, be careful if you maintain the pressure on one of the programmed speed changing buttons: this may result in a very rapid change in the speed of your vehicle. Do not use the cruise control on slippery roads or in heavy traffic. On a steep descent, the cruise control will not be able to prevent the vehiclefrom exceeding the programmed speed.
To a v o i d a ny risk of jamming of the pedals:


- ensure that the mat is positioned correctly,

- never fit one mat on top of another.
