Page 68 of 288
66
Fuel tank
Low fuel levelFilling
A label affixed to the inside of the flap reminds
you of the type of fuel to be used depending on
your engine.
When the low fuel level is reached
this warning lamp comes on in the
instrument panel. When it first comes
on there remains approximately
5 litres of fuel in the tank. To fill the tank safely:
F
t
he engine must be switched off,
F
o
pen the fuel filler flap,
F
i
nsert the key in the cap, then turn it to
the
left,
F
r
emove the cap and hook it onto the clip
located on the inside of the flap,
F
f
ill the tank, but do not continue after the
3rd cut- off of the pump ; this could cause
malfunctions.
When you have filled the tank:
F
p
ut the cap back in place,
F
t
urn the key to the right, then remove it
from the cap,
F
c
lose the flap.
ad
ditions of fuel must be of at least
5
litres to be registered by the fuel
gauge.
The key cannot be removed from the
lock until the cap is refitted.
op
ening the filler cap may create a
noise caused by an inrush of air. This
vacuum is entirely normal and results
from the sealing of the fuel system. With Stop & Start, never refuel with the
system in STOP mode; you must switch
off the ignition with the key.
Fuel tank capacity: approximately 50 litres
(petrol) or 48 litres (Diesel); (Depending
on version: approximately 30 litres
(petrol or Diesel)). For the LPG version:
approximately 33 litres.
You must refuel as soon as possible to avoid
running out of fuel.
If you run out of fuel (
di
esel), refer also to the
"Checks" section.
access
Page 69 of 288
67

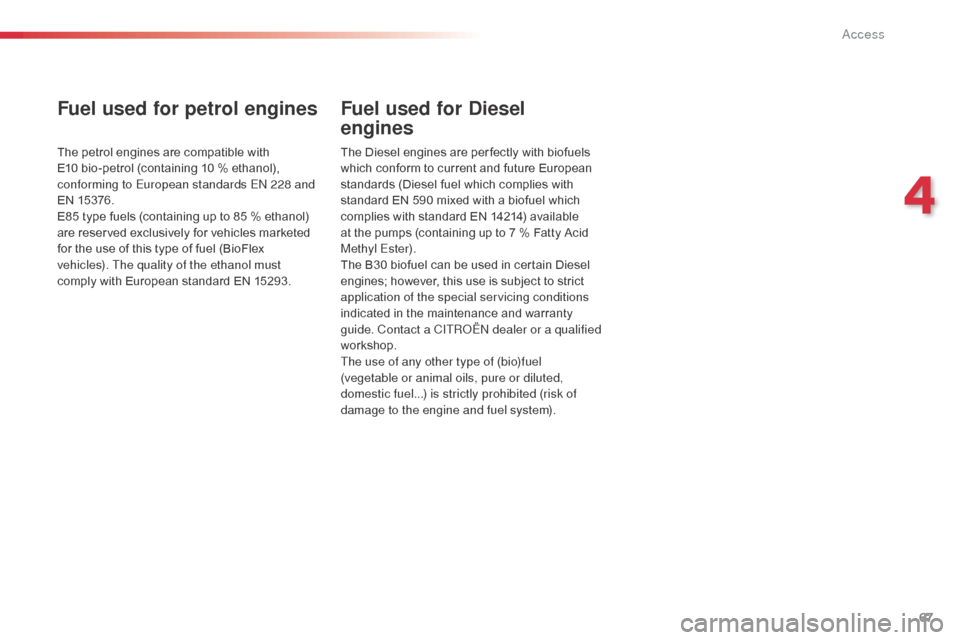

Fuel used for petrol engines
The petrol engines are compatible with
E10 bio-petrol (containing 10 % ethanol),
conforming to European standards E
n
228 and
EN 15376.
E85 type fuels (containing up to 85 % ethanol)
are reserved exclusively for vehicles marketed
for the use of this type of fuel (BioFlex
vehicles). The quality of the ethanol must
comply with European standard EN 15293.
Fuel used for Diesel
engines
The Diesel engines are per fectly with biofuels
which conform to current and future European
standards (Diesel fuel which complies with
standard EN 590 mixed with a biofuel which
complies with standard EN 14214) available
at the pumps (containing up to 7 % Fatty Acid
Methyl Ester).
The B30 biofuel can be used in certain Diesel
engines; however, this use is subject to strict
application of the special servicing conditions
indicated in the maintenance and warranty
guide. Contact a CITR
oËn
dealer or a qualified
workshop.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or diluted,
domestic fuel...) is strictly prohibited (risk of
damage to the engine and fuel system).
4
Access
Page 70 of 288
68
Misfuel prevention (diesel)*
Operation
When a petrol filler nozzle is introduced into the
fuel filler neck of your
di esel vehicle, it comes
into contact with the flap. The system remains
closed and prevents filling.
Do not persist but introduce a Diesel type
filler nozzle.
*
a
c
cording to country of sale. It remains possible to use a fuel can to
fill the tank.
In order to ensure a good flow of fuel,
do not place the nozzle of the fuel can
in direct contact with the flap of the
misfuel prevention device and pour
s l ow l y.Travelling abroad
as
diesel fuel pump nozzles may
be different in other countries, the
presence of the misfuel prevention
device may make refuelling impossible.
be
fore travelling abroad,
we
recommend that you check with the
CITROËN dealer network, whether your
vehicle is suitable for the fuel pumps in
the country in which you want to travel.
Mechanical device which prevents filling the tank of a Diesel vehicle with petrol. It avoids the risk of
engine damage that can result from filling with the wrong fuel.
Located in the filler neck, the misfuel prevention device appears when the filler cap is removed.
access
Page 81 of 288
79
Courtesy lampsSelection and control of the various passenger compartment lamps.
1.
F
ront courtesy lamp
2.
M
ap reading lamps
3.
R
ear courtesy lamp
Front and rear courtesy lamps
Map reading lamps
F With the ignition on, press the corresponding switch.
In this position, the courtesy lamp
comes on gradually:
Permanently off.
Permanent lighting.
It switches off gradually:
-
w
hen the vehicle is locked,
-
w
hen the ignition is switched on,
-
3
0 seconds after the last door is closed.
-
w
hen the vehicle is unlocked,
-
w
hen the key is removed from the ignition,
-
w
hen a door is opened,
-
w
hen the remote control locking button is
pressed, in order to locate your vehicle.
Footwell lighting
These lamps come on at the same time as the
courtesy lamps.
In permanent lighting mode, different lighting times
are available:
- with the ignition off, approximately ten minutes,- in energy economy mode, approximately
thirty seconds,
- with the engine running, unlimited.
5
Visibility
Page 83 of 288
81
This comes on automatically when the boot is
opened and goes off automatically when the
boot is closed.
To r c h
This is a removable lamp, fitted in the side of
the boot, which can be used to illuminate the
boot or as a torch.
boot lamp
Use
F Extract the torch from its location by pulling it from the front.
F
P
ress the switch, located on the back, to
switch the torch on or off.
F
U
nfold the support, located on the back, to
set down and raise the torch; for example,
when changing a wheel.
Storing
F Put the torch back in place in its location starting with the rear.
I
f you have forgotten to switch off the torch,
this switches it off automatically.
It the torch is not engaged correctly, it may not
charge and may not come on when the boot is
opened.
Operation
This torch operates with NiMH type
rechargeable batteries.
It has a battery life of approximately 45 minutes
and charges while you are driving.
The lighting time varies according to the
circumstances:
- when the ignition is off, approximately ten minutes,- in energy economy mode, approximately
thirty seconds,
- when the engine is running, no limit.
Observe the polarities when fitting the
batteries.
ne
ver replace the rechargeable
batteries with single-use batteries.
5
Visibility
Page 115 of 288
113
Deactivation
In exceptional conditions (starting a vehicle
which is bogged down, stuck in snow, on soft
ground...), it may be advisable to deactivate the
DSC and ASR systems, so that the wheels can
move freely and regain grip.
F
P
ress the button, located in the centre of
the dashboard.
If this warning lamp comes on in the
instrument panel and the indicator
lamp on the button comes on, this
indicates that the
d
S
C and a
S
R
systems are deactivated.
Reactivation
These systems are reactivated automatically
each time the ignition is switched back on or
from 30 mph (50 km/h).
F
P
ress the button again to reactivate them
manually.
Operating fault
If this warning lamp comes on,
accompanied by an audible signal
and a message in the multifunction
screen, this indicates a malfunction
of these systems.
Trajectory control systems
The anti-slip regulation (also known as traction
control) optimises traction to prevent skidding of
the wheels, by acting on the brakes of the driving
wheels and on the engine.
The electronic stability control acts on the brake
of one or more wheels and on the engine to keep
the vehicle on the trajectory required by the driver,
within the limits of the laws of physics.
Anti-slip regulation (ASR)
and dynamic stability
control (DSC)
This is indicated by flashing of this
warning lamp in the instrument panel.
Activation
These systems are activated automatically
each time the vehicle is started.
They come into operation in the event of a grip
or trajectory problem. The
d
S
C/
aS
R systems offer
exceptional safety in normal driving, but
this should not encourage the driver to
take extra risks or drive at high speed.
The correct operation of these
systems depends on observation of
the manufacturer's recommendations
regarding wheels (tyres and rims),
braking components, electronic
components and assembly and repair
procedures.
af
ter an impact, have these systems
checked by a CITR
oËn
dealer or a
qualified workshop.
Have it checked by a CITR
oËn
dealer or a
qualified workshop.
8
Safety
Page 118 of 288
116
2nd row rear centre seat
belt
Removal and storing
F Press the red button on the buckle B, then on the buckle A .
F
G
uide the strap as it rolls up and bring the
tongue B , then A
onto the magnet of the
attachment point on the roof.
Installation
F Pull the strap and insert the tongue A in the left-hand buckle.
F
I
nsert the tongue B in the right-hand
buckle.
F
C
heck the fastening of each buckle by
pulling the strap.
The seat belt for the rear centre seat of the
2nd
row is incorporated at the rear left of the roof.
Seat belt unfastened warning
lamp display
When the ignition is switched on, the
corresponding warning lamps
4, 5 and 6 come
on in red for approximately 30 seconds, if the
seat belt is not fastened.
When the engine is running or the vehicle is
moving, the corresponding warning lamp 4, 5 or
6 comes on in red, accompanied by an audible
signal and a message on the multifunction
screen, if a rear passenger has unfastened
their seat belt.
Safety
Page 124 of 288
122
Parking brake
Applying
F Pull the parking brake lever fully up to immobilise your vehicle.
When the vehicle is being driven, if this warning lamp
and the STOP warning lamp come on, accompanied
by an audible signal and a message in the
multifunction screen, this indicates that the parking
brake is still on or has not been properly released.
Releasing
F Pull the parking brake lever gently, press the release button then lower the lever
fully.
6-speed manual
gearbox
Engaging 5th or 6th gear
F Move the lever fully to the right to engage 5th or 6th g e a r.
Engaging reverse gear
F Raise the ring under the knob and move the gear lever to the left then for wards.
When parking on a slope, direct your
wheels against the pavement, apply the
parking brake and engage a gear. Only engage reverse gear when the
vehicle is stationary with the engine at idle.
as a s
afety precaution and to facilitate
starting of the engine:
-
a
lways select neutral,
-
p
ress the clutch pedal.
Failure to follow this advice may cause
permanent damage to the gearbox
(engagement of 3
rd or 4th gear by
m i st a ke).
driving
Page 126 of 288
124
Display in the instrument panel
Gear lever positions
N. neutral
R. R everse
1, 2, 3, 4, 5, 6.
G
ears in manual mode.
AUTO.
T
his comes on when the automated
mode is selected. It switches off on
changing to manual mode.
Moving off
F Select position N .
F P ress the brake pedal down fully.
F
S
tart the engine.N appears in the instrument panel
screen.
F
Sel
ect automated mode (position A ) or
manual mode (position M) or reverse
(position R ).
F
R
elease the parking brake.
F
P
rogressively take your foot off the brake
pedal.
F
A
ccelerate away.
AUTO and 1, 1 or R appear in the instrument
panel screen.
Automated mode
F Select position A .
AUTO and the gear engaged appear
in the instrument panel screen.
The gearbox operates in auto-active mode,
without any action on the part of the driver. It
continuously selects the most suitable gear for:
-
o
ptimisation of fuel consumption,
-
t
he style of driving,
-
t
he profile of the road.
-
t
he vehicle load.
For optimum acceleration, for example
when overtaking another vehicle, press the
accelerator pedal firmly past the point of
resistance.
You must press the brake pedal when
starting the engine.
ne
ver select neutral N when driving.
N
flashes in the instrument panel,
accompanied by an audible signal and a
message in the multifunction screen, if the
gear lever is not in position N on starting.
a
message is displayed in the screen, if
the brake pedal is not pressed on starting
the engine.
You can change mode at any time by
moving the gear lever from A to M or
the other way round.
Driving
Page 127 of 288
125
F Select position M. To engage reverse gear R
, the vehicle must be
immobilised with your foot on the brake pedal.
F
Sel
ect position R.
At very low speed, if reverse gear is requested,
this will only be acted on when the vehicle is
immobilised.
at h
igh speed, if reverse gear is requested,
the
N indicator flashes and the gearbox goes
into neutral. To engage a gear again, put the
gear lever in position A or M .Temporary control of gear
changing
You can temporarily take over control of
gear changing using the "+" and "-" steering
mounted paddles: if the engine speed allows,
the request to change gear is acted on.
This function allows you to anticipate certain
situations such as overtaking a vehicle or the
approach to a corner.
After a few moments without any action on
the control paddles, the gearbox resumes
automatic control of the gears. The gears engaged appear in
succession in the instrument panel
screen.
The gear change requests are only acted on if
the engine speed permits.
It is not necessary to release the accelerator
during gear changes.
When braking or slowing down, the gearbox
changes down automatically to allow the
vehicle to accelerate in the correct gear.
On sharp acceleration, the gearbox will not
change up unless the driver acts on the gear
lever or the steering mounted paddles.
ne
ver select neutral N while the vehicle
is moving. You can change mode at any time, be
moving the gear lever from M to A or
the other way round. Engagement of reverse gear is
accompanied by an audible signal.
Manual mode
Reverse
9
driving
