ESP Citroen C3 PICASSO RHD 2015 1.G Service Manual

187

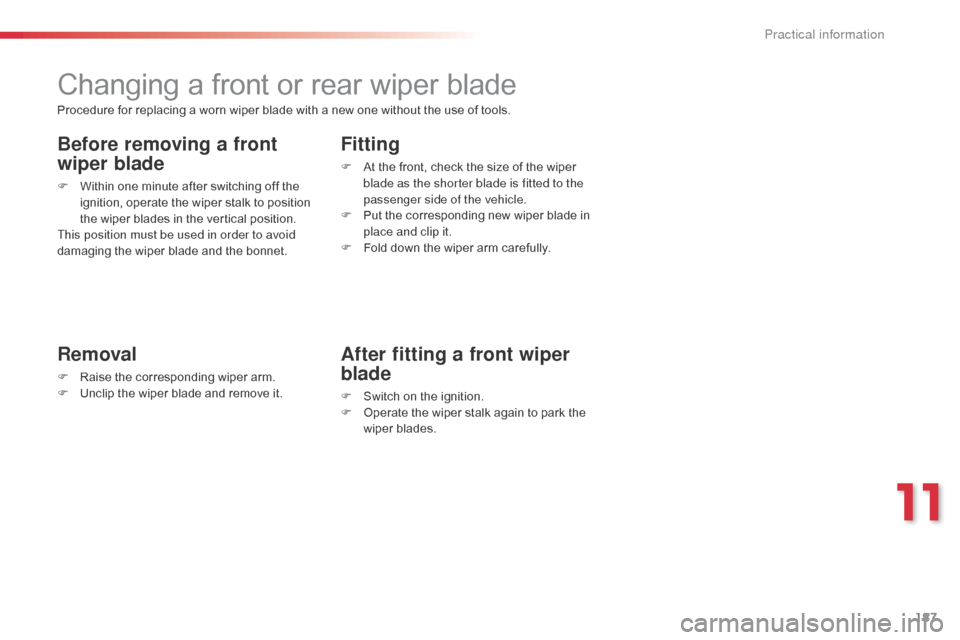

Changing a front or rear wiper blade
Removal
F Raise the corresponding wiper arm.
F U nclip the wiper blade and remove it.
Fitting
F At the front, check the size of the wiper blade as the shorter blade is fitted to the
passenger side of the vehicle.
F

P
ut the corresponding new wiper blade in
place and clip it.
F

F
old down the wiper arm carefully.
Before removing a front
wiper blade
F Within one minute after switching off the ignition, operate the wiper stalk to position
the wiper blades in the vertical position.
This position must be used in order to avoid
damaging the wiper blade and the bonnet.
After fitting a front wiper
blade
F Switch on the ignition.
F O perate the wiper stalk again to park the
wiper blades.
Procedure for replacing a worn wiper blade with a new one without the use of tools.
11
Practical information

08
240
Audio streaming
Streaming allows audio files on your telephone to be played via the
vehicle's speakers.
Connect the telephone: refer to the "USING THE TELEPHONE"
section.
Select "Audio" or "All" profile.
If play does not start automatically, it may be necessary to start the
audio playback from the telephone.
Control is from the peripheral device or by using the audio system
buttons.
Once connected in streaming mode, the telephone is considered to be
a media source.
It is recommended that you activate "Repeat" on the Bluetooth
peripheral.
MUSIC MEDIA PLAYERS
Connecting APPLE® players
Connect the Apple® player to the USB port using a suitable cable
(not supplied).
Play starts automatically.
Control is via the audio system.
The classifications available are those of the portable device
connected (artists / albums / genres / playlists / audiobooks /
podcasts).
The default classification used is by artist. To modify the classification
used, return to the first level of the menu then select the desired
classification (playlists for example) and confirm to go down through
the menu to the desired track.
The "Shuffle tracks" mode on an iPod
® corresponds to the "Random"
mode on the audio system.
The "Shuffle albums" mode on an iPod
® corresponds to the "Random
all" on the audio system.
"Shuffle tracks" is restored by default on each connection.
The version of software in the audio system may not be compatible
with the generation of your Apple
® player.

11
247
2
3
3
1
4
2
2
1
4
4
2
2
Night mode
Auto Day/Night
Adjust luminosity
Set date and time
"SETUP" MENU
Display configuration
Choose colourHarmony:
Cartography:Day mode
Speech synthesis setting
Guidance instructions volume
Select male voice/Select female voice
2Select units
1Define vehicle parameters*
* The settings vary according to the vehicle.
2Alert log
1Trip computer
2Status of functions
2Français
1Select language
2English
2Italiano
2Portuguese
2Español
2Deutsch
2Nederlands
2
2
Turkçe
Cestina
2
2
Polski
Hrvatski
2
2
Русский
Hungarian
SCREEN MENU MAP(S)

07
269
Units
Temperature: °Celsius / °Fahrenheit
Fuel consumption:
KM/L - L/100 - MPG
1
2
2
SCREEN MENU MAP(S)
Display adjust
Month
Day
Hour
Minutes Year
12 H/24 H mode
Language
Italiano
Nederlands
Portuguès
Português do Brasil Français
Deutsch
Čeština English
Hrvatski Español
Magyar1
2
2
2
2
2
2
2
1
2
2
2
2
2
2
2
2
2
2

07-15
Labels are applied at various points on your vehicle. They
carry safety warnings as well as vehicle identification
information. Do not remove them: they form an integral part
of your vehicle.
Automobiles CITROËN declares, by application of the
provisions of the European legislation (Directive 2000/53)
relating to End of Life Vehicles, that it achieves the
objectives set by this legislation and that recycled materials
are used in the manufacture of the products that it sells.
Reproduction or translation of all or part of this document
is prohibited without written authorisation from Automobiles
CITROËN.
For any work on your vehicle, use a qualified workshop
that has the technical information, competence and
equipment required, which a CITROËN dealer is able to
provide. Printed in the EU
Anglais
We draw your attention to the following points:
-

The fitting of electrical equipment or accessories not
listed by CITROËN

may cause faults and failures
with the electrical system of your vehicle. Contact
a CITROËN dealer for information on the range of
recommended accessories.
-

As a safety measure, access to the diagnostic socket,
used for the vehicle's electronic systems, is reserved
strictly for CITROËN dealers or qualified workshops,
equipped with the special diagnostic tool required (risk
of malfunctions of the vehicle's electronic systems that
could cause breakdowns or serious accidents).

The
manufacturer cannot be held responsible if this advice
is not followed.
-

Any modification or adaptation not intended or
authorised by

Automobiles CITROËN or carried out
without meeting the technical requirements defined by
the manufacturer would lead to the suspension of the
legal and contractual warranties.
