In order to be effective, a seat belt must:
- b e tightened as close to the body as
possible,
-

b
e pulled in front of you with a smooth
movement, checking that it does not
twist,
-

b
e used to restrain only one person,
-

n
ot bear any trace of cuts or fraying,
-

n
ot be converted or modified to avoid
affecting its performance.
The driver must ensure that passengers use
the seat belts correctly and that they are all
fastened before setting off.
Wherever you are seated in the vehicle,
always fasten your seat belt, even for short
journeys.
Do not interchange the seat belt buckles as
they will not fulfil their role fully.
The seat belts are fitted with an inertia reel
permitting automatic adjustment of the length
of the strap to your size. The seat belt is
stowed automatically when not in use.
Before and after use, ensure that the seat
belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the pelvis.
The upper part must be positioned in the
hollow of the shoulder.
The inertia reels are fitted with an automatic
locking device which comes into operation in
the event of a collision, emergency braking
or if the vehicle rolls over. You can release
the device by pulling the strap firmly and
then releasing it so that it reels in slightly. In accordance with current safety
regulations, for all repairs on your vehicle's
seat belts, go to a qualified workshop with
the skills and equipment needed, which a
CITROËN dealer is able to provide.
Have your seat belts checked regularly by
a CITROËN dealer or a qualified workshop,
particularly if the straps show signs of
damage.
Clean the seat belt straps with soapy
water or a textile cleaning product, sold by
CITROËN dealers.
After folding or moving a seat or rear bench
seat, ensure that the seat belt is positioned
and reeled in correctly.Recommendations for children
Use a suitable child seat if the passenger is
less than 12 years old or shorter than one
and a half metres.
Never use the same seat belt to secure more
than one person.
Never allow a child to travel on your lap.
For more information on child seats, refer to
the corresponding section.
In the event of an impact
Depending on the nature and seriousness
of the impact
, the pretensioning device may
be deployed before and independently of the
airbags. Deployment of the pretensioners
is accompanied by a slight discharge of
harmless smoke and a noise, due to the
activation of the pyrotechnic cartridge
incorporated in the system.
In all cases, the airbag warning lamp
comes


on.
Following an impact, have the seat belts
system checked, and if necessary replaced,
by a CITROËN dealer or a qualified
workshop.
Advice
8
Safety

119
Operating fault
If this warning lamp comes on in the
instrument panel, you must contact
a CITROËN dealer or a qualified
workshop to have the system
checked. The airbags may no longer
be deployed in the event of a serious
impact.
Reactivation
When you remove the rear ward facing child
seat, with the ignition off, turn switch 1 to
the
"ON" position to reactivate the airbag and
so assure the safety of your front passenger in
the event of an impact.
With the ignition on, this warning
lamp comes on in the instrument
panel or in the seat belt and
passenger's front airbag warning
lamp display for approximately one
minute, if the passenger's front
airbag is activated.
According to version, this warning
lamp comes on either in the
instrument panel or on the seat belt
and passenger's front airbag warning
lamp display when the ignition is on
and until the airbag is reactivated.
Deactivation
Only the passenger's front airbag can be
deactivated:
F

w
ith the ignition off , insert the key in the
passenger airbag deactivation switch 1 ,
F

t
urn it to the "OFF" position,
F

t
hen, remove the key keeping the switch
in this position . To assure the safety of your child, it is
imperative that the passenger's front
airbag is deactivated when you install a
rear ward facing child seat on the front
passenger seat.
Other wise, the child would risk being
seriously injured or killed if the airbag
were deployed.
8
Safety

123
Electronic engine immobiliser
The key contains an electronic chip which has
a special code. When the ignition is switched
on, this code must be recognised in order for
starting to be possible.
This electronic engine immobiliser locks the
engine management system a few moments
after the ignition is switched off and prevents
starting of the engine by anyone who does not
have the key.
Anti-theft protection
In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal
and a message in the screen.
Ignition switch
It has 3 positions:
- P osition 1: Stop
-

P
osition 2: Ignition on
-

P
osition 3: Starting
Ignition on
In this position the vehicle's electrical
equipment can be used or accessories
charged.
When the state of charge of the battery
drops to a reserve level, the system goes into
energy economy mode: the power supply is
automatically cut off to preserve the state of
charge of the battery.
Keep safely, away from your vehicle, the label
attached to the keys given to you on acquisition
of the vehicle. In this case, your vehicle will not start; contact
a CITROËN dealer as soon as possible.
Starting-switching off the engine
Starting the engine
F Apply the parking brake.
F
W ith a manual gearbox: place the lever in
neutral and fully depress the clutch pedal.
F

W
ith an electronic gearbox: place the lever
at position N and press the brake pedal
f i r m l y.
F

W
ith an automatic gearbox: place the lever
at position P and press the brake pedal
f i r m l y.
F

I
nsert the key in the ignition switch; the
system recognises the code.
F

U
nlock the steering column by
simultaneously turning the steering and the
key.
F

W
ith a petrol engine, operate the starter
motor by turning the key to position 3 until
the engine starts, without pressing the
accelerator pedal. Once the engine starts,
release the key.
F

W
ith a Diesel engine, turn the key to
position 2 , ignition on, to operate the
engine preheating system. In some circumstances, you may have
to apply some force to turn the steering
wheel (wheels on lock for example).
9
Driving

124
Never leave the engine running in
an enclosed area without adequate
ventilation: internal combustion
engines emit toxic exhaust gases,
such as carbon monoxide. Danger of
intoxication and death. In very severe
winter conditions (temperatures
below -23°C), it is necessary to allow
the engine to run for 4 minutes before
setting off, in order to ensure the
correct operation and durability of
the mechanical components of your
vehicle, the engine and gearbox.
If the engine does not start straight
away, switch the ignition off. Wait a
few moments before trying again. If
the engine does not start after a few
attempts, do not keep trying: you risk
damaging the starter motor and the
engine. Call on a CITROËN dealer or a
qualified workshop. In temperate conditions, do not
warm the engine up with the vehicle
stationary, but move off straight away
and drive at moderate engine speeds.
In wintry conditions, the warning lamp
will stay on longer. When the engine is
hot, it does not come on. Wait until this warning lamp goes off
in the instrument panel, then operate
the starter motor by turning the key to
position
3 until the engine starts, without
pressing the accelerator pedal. Once
the engine starts, release the key.
Switching the engine off
F Immobilise the vehicle.
F W ith the engine at idle, turn the key fully
towards you to position 1 (Stop) .
F

R
emove the key from the ignition switch.
F

T
o lock the steering column, turn the
steering wheel until it locks.
Never switch the ignition off until the
vehicle has come to a complete stop and
the parking brake has been applied. With
the engine stopped, the braking and
steering assistance systems are also cut
off: risk of loss of control of the vehicle. To facilitate unlocking of the steering
column, put the front wheels in the
straight ahead position before switching
the ignition off.
F

E
nsure that the parking brake is applied
correctly, particularly when on a slope.
Driving

125
Parking brake
Applying
F Pull the parking brake lever fully up to immobilise your vehicle.
When the vehicle is being driven, if this
warning lamp and the STOP warning lamp
come on, accompanied by an audible signal
and a message in the multifunction screen,
this indicates that the parking brake is still
on or has not been properly released.
Releasing
F Pull the parking brake lever gently, press the release button then lower the lever
fully.
When parking on a slope, direct your
wheels against the pavement, apply the
parking brake and engage a gear.
When you leave the vehicle, take the
key with you and lock the vehicle.
Energy economy mode
After switching off the engine (position 1 - Stop
),
you can still use functions such as the audio
and telematic system, the wipers, dipped beam,
courtesy lamps, etc., for maximum cumulative
period of 30 minutes.
For more information, refer to the "Energy
economy mode" section.
Key reminder
If the key is left in the ignition switch, an
audible signal sounds when the driver's
door is opened.
Avoid attaching heavy objects to the
key, which would weigh down on its
blade in the ignition switch and could
cause a malfunction.
9
Driving

131
Hill start assist (with
electronic gearbox)
System which holds your vehicle temporarily
(approximately 2 seconds) when starting on a
slope, the time it takes to move your foot from
the brake pedal to the accelerator pedal.
This function is only active when:
-
t
he vehicle is completely stationary, with
your foot on the brake pedal,
-

c
ertain conditions on a slope are met,
-

w
ith the driver’s door closed.
The hill start assist function cannot be
deactivated. On an ascending slope, with the vehicle
stationary, the vehicle is held momentarily
when you release the brake pedal:
-

p
rovided you are in automated mode
(position A ) or in manual mode (position M )
with an electronic gearbox. On a descending slope, with the vehicle
stationary and reverse gear engaged, the
vehicle is held momentarily when you
release the brake pedal.
Operating fault
If a malfunction of the system occurs, these
warning lamps come on. Contact a CITROËN
dealer or a qualified workshop to have the
system checked.
Do not leave the vehicle while it is being
held in the hill start assist phase.
If you need to leave the vehicle with
the engine running, manually apply
the parking brake then ensure that the
parking brake warning lamp is on (not
flashing) in the instrument panel.
Operation
9
Driving

137
DeactivationReactivation
With the engine running, press button A to
deactivate the system permanently. The
indicator lamp in the button comes on.
The system will be deactivated
automatically when towing a trailer or
when a bicycle carrier is fitted (vehicle
fitted with a towbar or bicycle carrier
recommended by CITROËN). In bad or wintry weather, ensure that
the sensors are not covered with mud,
frost or snow.
Press button A again to reactivate the system.
The indicator lamp in the button goes off.
If there is an operating fault, when reverse gear
is engaged, the service warning lamp comes
on, accompanied by an audible signal (short
beep) and a message in the multifunction
screen.
9
Driving

146
Coolant level
The coolant level should be close
to the "MA X" mark but should never
exceed it.
Fluid specification
For optimum cleaning and to avoid freezing,
this fluid must not be topped up or replaced
with plain water.
In wintry conditions, it is recommended that you
use an ethyl alcohol or methanol based fluid.
Coolant specification
The coolant must conform to the
manufacturer's recommendations.
Screenwash fluid level
When the engine is warm, the temperature of
the coolant is regulated by the fan.Top up the level when necessary.
The cooling fan may star t after switching
off the engine: take care with ar ticles and
clothing that might be caught by the fan
blades.
In addition, as the cooling system is pressurised,
wait at least one hour after switching off the
engine before carrying out any work.
To avoid any risk of scalding, unscrew the cap
by two turns to allow the pressure to drop. When
the pressure has dropped, remove the cap and
top up the level.
Diesel additive level (Diesel
engine with particle filter) Used products
To p p i n g u p
This additive must be topped up by a CITROËN
dealer or a qualified workshop without delay. Avoid prolonged contact of used oil or
fluids with the skin.
Most of these fluids are harmful to
health or indeed very corrosive.
Do not discard used oil or fluids into
sewers or onto the ground.
Take used oil to a CITROËN dealer or
a qualified workshop (France) or to an
authorised waste disposal site.
The additive reservoir low
level is indicated by fixed
illumination of this warning lamp,
accompanied by an audible
warning and a message in the
multifunction screen.
Checks

147
Particle filter (Diesel)
The start of saturation of the
particle filter is indicated by
the temporary illumination of this warning lamp
accompanied by a message in the multifunction
screen.
As soon as the traffic conditions permit, regenerate
the filter by driving at a speed of at least 40 mph
(60 km/h) until the warning lamp goes off.
If the warning lamp stays on, this indicates a low
additive level.
For more information on checking levels, refer to
the corresponding section.
On a new vehicle, the first particle
filter regeneration operations may be
accompanied by a "burning" smell,
which is per fectly normal.
Following prolonged operation of the
vehicle at very low speed or at idle,
you may, in exceptional circumstances,
notice the emission of water vapour at
the exhaust on acceleration. This does
not affect the behaviour of the vehicle
or the environment.
Checks
12 V battery
The battery does not require any maintenance.
However, check that the terminals are clean
and correctly tightened, particularly in summer
and winter.
Air filter and passenger compartment filter
Refer to the manufacturer's
service schedule for details of the
replacement intervals for these
components.
Oil filter
Replace the oil filter each time the
engine oil is changed.
Refer to the manufacturer's
service schedule for details of
the replacement interval for this
component.
Unless other wise indicated, check these components in accordance with the manufacturer's service schedule and according to your engine.
Other wise, have them checked by a CITROËN dealer or a qualified workshop.
When carrying out work on the battery, refer
to the "12 V battery" section for details of the
precautions to be taken before disconnecting
the battery and following its reconnection.
Depending on the environment (e.g. dusty
atmosphere) and the use of the vehicle
(e.g.

city driving), replace them twice as often
if necessary .
A clogged passenger compartment filter may
have an adverse effect on the per formance
of the air conditioning system and generate
undesirable odours.
10
Checks

153

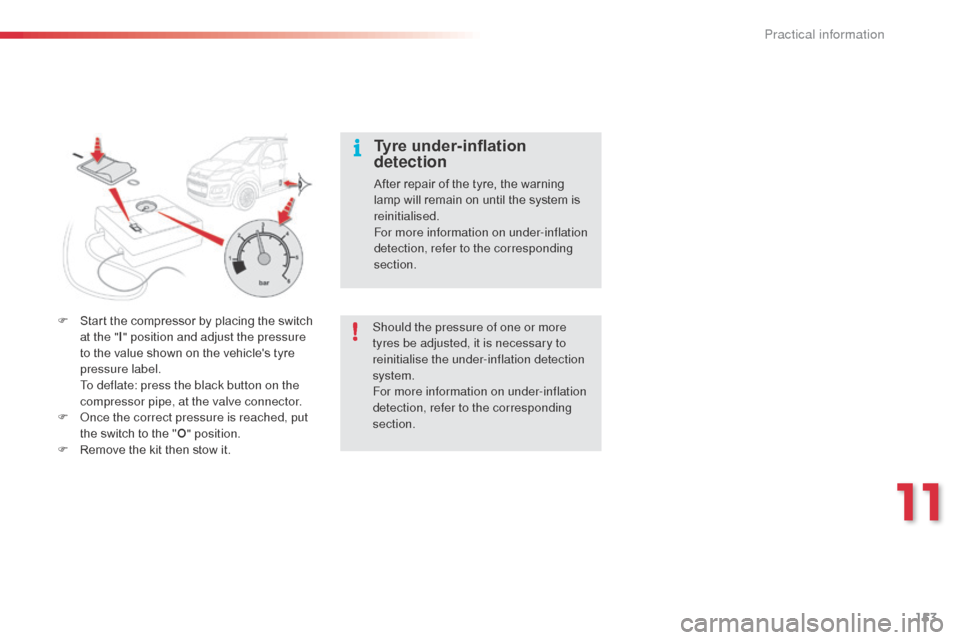

F Start the compressor by placing the switch at the " I" position and adjust the pressure
to the value shown on the vehicle's tyre
pressure label.
T

o deflate: press the black button on the
compressor pipe, at the valve connector.
F

O
nce the correct pressure is reached, put
the switch to the " O" position.
F

R
emove the kit then stow it.
Tyre under-inflation
detection
After repair of the tyre, the warning
lamp will remain on until the system is
reinitialised.
For more information on under-inflation
detection, refer to the corresponding
section.
Should the pressure of one or more
tyres be adjusted, it is necessary to
reinitialise the under-inflation detection
system.
For more information on under-inflation
detection, refer to the corresponding
section.
11
Practical information
