Citroen C3 PICASSO RHD 2015 1.G Workshop Manual

49
Scented air freshenerSystem permitting the diffusion of a fragrance in the passenger compartment in accordance with
your requirements, by means of the adjustment dial and the various fragrance cartridges available.
Fitting the cartridge
F Remove the cartridge from the sealing case.
F

I
nstall the cartridge (flower at top right).
F

P
ress the dial and turn it a quarter of a turn
clockwise.
This dial is located on the dashboard.
It allows you to adjust the intensity of diffusion
of the fragrance.
F

T

urn the dial to the right to permit diffusion
of the fragrance.
F

T

urn the dial to the left to stop diffusion of
the fragrance.
Fragrance cartridge
Removing the cartridge
F Press the dial and turn it a quarter of a turn anti-clockwise.
F

R
emove the cartridge.
F

R
efit its sealing case.
As a safety precaution, do not carry
out any action on the cartridge while
driving.
Do not dismantle the cartridges.
Do not attempt to refill the fragrance
diffuser or the cartridges.
Avoid all contact with the skin and eyes.
Keep out of reach of children and
animals. Do not discard the original cartridge as
this serves as a plug when no fragrance
cartridge is in use.
In order to preserve the service life of
the cartridge, turn the dial to the left
when you no longer wish to diffuse the
fragrance in the passenger compartment.
Leave the central vents open.
The intensity of diffusion of the
fragrance may depend on the
ventilation or air conditioning settings.
Adjustment dial
This cartridge can be removed easily.
You can change it at any time and store it in the
sealed case which keeps it closed once it has
been opened.
You can obtain different fragrance cartridges
from a CITROËN dealer or a qualified
workshop.
3
Comfort

50
Front seatsSeat consisting of a seat cushion, a seat back and a head restraint which can all be adjusted to
adapt your position for ease of driving and comfort.
Driver's seat height adjustment Seat back angle adjustment
Forwards-backwards adjustment
F Raise the control bar and slide the seat
for wards or backwards. F
P ull the control lever upwards to raise
or push it downwards to lower, as many
times as necessary, to obtain the position
required. F
P ush the control rear wards.
Before moving the seat backwards, ensure that there is nothing that might prevent the full travel of the seat, so as to avoid the risk of of jamming
the seat caused by the presence of objects on the floor behind the seat or rear passengers. If the seat jams, stop the movement immediately.
Comfort

51

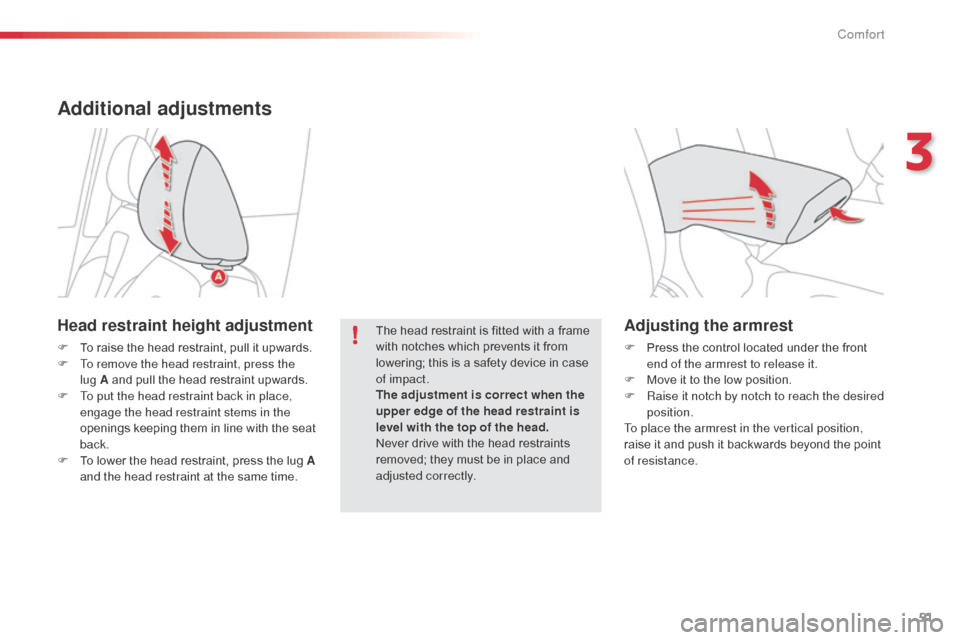

Adjusting the armrest
F Press the control located under the front end of the armrest to release it.
F

M
ove it to the low position.
F

R
aise it notch by notch to reach the desired
position.
To place the armrest in the vertical position,
raise it and push it backwards beyond the point
of resistance.
Head restraint height adjustment
F To raise the head restraint, pull it upwards.
F T o remove the head restraint, press the
lug A and pull the head restraint upwards.
F

T
o put the head restraint back in place,
engage the head restraint stems in the
openings keeping them in line with the seat
back.
F

T
o lower the head restraint, press the lug A
and the head restraint at the same time.
Additional adjustments
The head restraint is fitted with a frame
with notches which prevents it from
lowering; this is a safety device in case
of impact.
The adjustment is correct when the
upper edge of the head restraint is
level with the top of the head.
Never drive with the head restraints
removed; they must be in place and
adjusted correctly.
3
Comfort

52
Table position of the front
passenger seat
Placing this seat in the table position, with the
rear benchseat also in the table position, allows
you to transport long objects.
F
P
ush the control upwards and guide the
seat back for wards to fold it onto the seat
cushion.
F

T
o put it back in place, lift up the seat back
and guide it rear wards until it locks in. Do not forget to fold the "aircraft" type
table fixed on the back of the seat first.
For safety reasons, a passenger sat in
the rear of the vehicle must not place
his feet on the front seat in the table
position.
Comfort

53

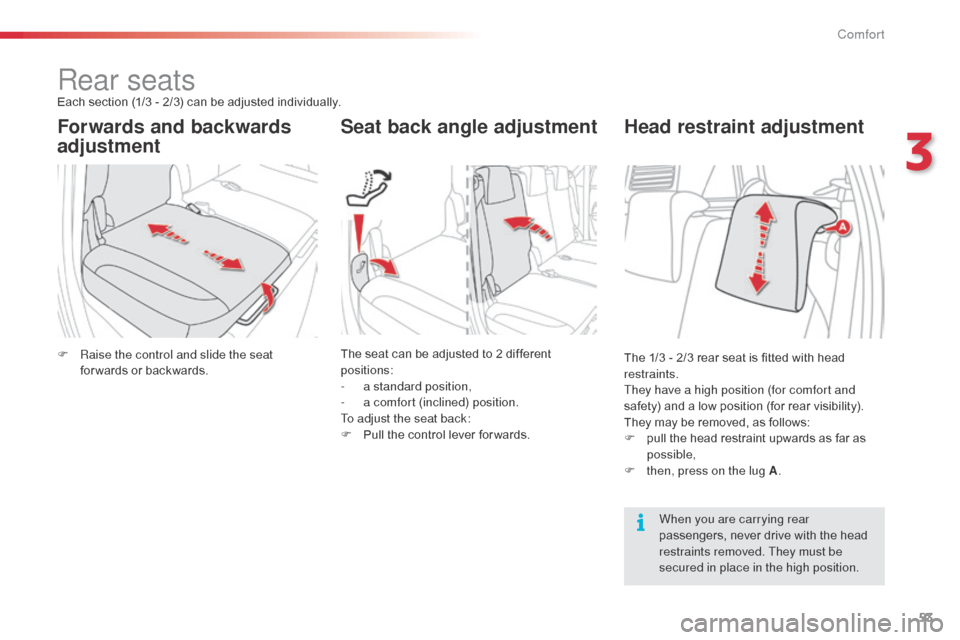

Rear seatsEach section (1/3 - 2/3) can be adjusted individually.
Forwards and backwards
adjustmentSeat back angle adjustment
F Raise the control and slide the seat
for wards or backwards. The seat can be adjusted to 2 different
positions:
-

a s
tandard position,
-
a

comfort (inclined) position.
To adjust the seat back:
F

P
ull the control lever for wards.
Head restraint adjustment
The 1/3 - 2/3 rear seat is fitted with head
restraints.
They have a high position (for comfort and
safety) and a low position (for rear visibility).
They may be removed, as follows:
F

p
ull the head restraint upwards as far as
possible,
F

t
hen, press on the lug A .
When you are carrying rear
passengers, never drive with the head
restraints removed. They must be
secured in place in the high position.
3
Comfort

54
Fully-folded position
F Move the corresponding front seat for ward if necessary.
F

P
ut the rear seat in the fully back position.
F

P
lace the head restraints in the low
position.
F

P
ull control A , to release the seat back
which folds easily onto the seat cushion.
The seat fits into the floor, providing a
continuous level floor.
To put the seat back in position:
F

P
ull the seat back backwards until it locks
in place.
F

R
eturn the seat cushion to the desired
position. When putting back in position, take care
not to jam the seat belts.
Comfort

55
Mirrors
The mirror glass is electrically adjustable.
A lamp located under the mirror shell provides
lighting for the driver's and front passenger's
entry and exit.
This exterior lighting comes on when the
vehicle is unlocked or a door is opened and
stays on for a timed period.
Folding
F From outside: lock the vehicle using the remote control or the key.
F

F
rom inside: with the ignition on, pull the
control A in the central position rear wards.
Unfolding
F From outside: unlock the vehicle using the remote control or the key.
F

F
rom inside: with the ignition on, pull the
control A in the central position rear wards.
Adjustment
F Move control A to the right or to the left to select the corresponding mirror.
F

M
ove control B in all four directions to
adjust.
F

R
eturn control A to the central position. If the mirrors are folded using control A
,
they will not unfold when the vehicle is
unlocked. Pull again on control A .
The folding and unfolding of the door
mirrors using the remote control can be
deactivated by a CITROËN dealer or a
qualified workshop.
Never fold or unfold the electric folding
mirrors manually.
The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of vehicles
approaching from behind.
Door mirrors
3
Comfort

56
Adjustment
F Adjust the mirror so that the glass is directed correctly in the "day" position.
Manual day/night model
Day / night position
F Pull the lever to change to the "night" anti-dazzle position.
F

P
ush the lever to change to the normal
"day" position.
Rear view mirror
Adjustable mirror providing a central rear ward view.
Equipped with an anti-dazzle system, which darkens the mirror glass and reduces the nuisance to
the driver caused by the sun, headlamps from other vehicles...
Steering wheel adjustment
F When stationary , pull the control lever to
release the adjustment mechanism.
F

A
djust the height and reach to suit your
driving position.
F

P
ush the control lever to lock the
adjustment mechanism.
As a safety measure, the mirrors should
be adjusted to reduce the "blind spot". As a safety measure, these operations
should only be carried out with the
vehicle stationary.
Automatic day/night model
By means of a sensor, which measures the
light from the rear of the vehicle, this system
automatically and progressively changes
between the day and night uses.
In order to ensure optimum visibility
during your manoeuvres, the mirror
lightens automatically when reverse
gear is engaged.
Comfort

57
Remote control key
System which permits central locking or unlocking of the vehicle using the door lock or from a distance. It is also used to locate and start the vehicle, as
well as providing protection against theft.
Unfolding the key
F First press this button to unfold the key.
Unlocking the vehicle
F Press the open padlock to unlock the vehicle.
Unlocking using the key
F Turn the key to the right in the driver's door lock to unlock the vehicle.
Unlocking using the remote
control
Locking the vehicle
F Press the closed padlock to lock the vehicle.
Locking using the key
F Turn the key to the left in the driver's door lock to lock the vehicle completely.
Locking using the remote control
If one of the doors or the boot is still
open, the central locking does not take
place.
When the vehicle is locked, if it is
unlocked inadvertently, it will lock itself
again automatically after thirty seconds,
unless a door or the boot is open.
The folding and unfolding of the door
mirrors using the remote control can be
deactivated by a CITROËN dealer or a
qualified workshop.
Locking is confirmed by fixed lighting of
the direction indicators for approximately
two

seconds.
According to version, the door mirrors fold at
the same time.
Unlocking is confirmed by rapid flashing of
the direction indicators for approximately
two

seconds.
According to version, the door mirrors unfold at
the same time.
4
Access

58
Deadlocking using the
remote controlDeadlocking using the key
F Turn the key to the left in the driver's door
lock to lock the vehicle completely.
F

T
urn the key to the left again within
five


seconds to deadlock the vehicle.
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual central
control button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
F

P

ress the closed padlock to lock
the vehicle.
F

P

ress the closed padlock again
within five seconds to deadlock
the vehicle.
Deadlocking is confirmed by fixed lighting
of the direction indicators for approximately
two
seconds.
According to version, the door mirrors fold at
the same time.
Access
