relay Citroen C3 PICASSO RHD 2015 1.G Owner's Manual

178
Dashboard fuses
The fusebox is located in the glove box.
Access to the fuses
F refer to the paragraph "Access to the tooling".
Fuse tables
Fuse N° Rating Functions
FH36 5 ATrailer relay unit.
FH37 15 ATrailer accessories socket supply.
FH38 20 ANavigation.
FH39 -Not used.
FH40 30 ATrailer relay unit.
Fuse N° Rating Functions
F1 15 ARear wiper.
F2 -Not used.
F3 5 AAirbags and pretensioners control unit.
F4 10 ASteering wheel angle sensor, air conditioning, clutch switch,
particle filter pump, diagnostic socket, air flow meter.
F5 30 AElectric windows panel, passenger's electric window control,
front electric windows motor.
F6 30 ARear electric windows motor and driver's electric window motor.
F7 5 ACourtesy and front map reading lamps, rear reading lamps.
Practical information

179
Fuse N°Rating Functions
F8 20 AMultifunction screen, audio system, navigation radio.
F9 30 AAudio system (fitted as an option), 12 V socket.
F10 15 ASteering mounted controls.
F11 15 AIgnition, diagnostic socket.
F12 15 ARain / sunshine sensor, trailer relay unit.
F13 5 AMain stop switch, engine relay unit.
F14 15 AParking sensors control unit, seat belt unfastened warning
lamp, airbag control unit, instrument panel, air conditioning,
USB Box.
F15 30 ALocking.
F16 -Not used.
F17 40 ARear screen and door mirrors demist/defrost.
SH -PARC shunt.
11
Practical information

181
Fuse N°Rating Functions
F1 20 AEngine control unit supply, cooling fan unit control, multifunction
engine control main relay.
F2 15 AHorn.
F3 10 AFront / rear wash-wipe.
F4 20 ADaytime running lamps.
F5 15 ADiesel fuel heater (Diesel engine), fuel pump (petrol engine)
F6 10 AABS/ESP control unit, ABS/ESP cut-off relay, secondary stop
switch.
F7 10 AElectrical power steering.
F8 25 AStarter control.
F9 10 ASwitching and protection unit (Diesel).
F10 30 ADiesel engine injection pump valve, injectors and ignition coils
(petrol engine)
F11 40 AAir conditioning fan.
Fuse table
11
Practical information

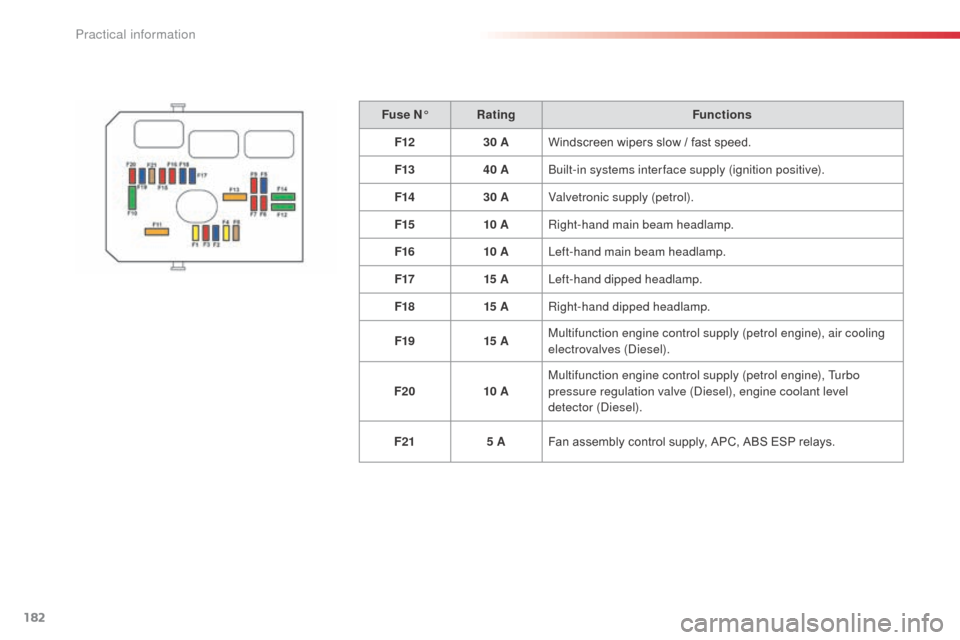

182
Fuse N°Rating Functions
F12 30 AWindscreen wipers slow / fast speed.
F13 40 ABuilt-in systems inter face supply (ignition positive).
F14 30 AValvetronic supply (petrol).
F15 10 ARight-hand main beam headlamp.
F16 10 ALeft-hand main beam headlamp.
F17 15 ALeft-hand dipped headlamp.
F18 15 ARight-hand dipped headlamp.
F19 15 AMultifunction engine control supply (petrol engine), air cooling
electrovalves (Diesel).
F20 10 AMultifunction engine control supply (petrol engine), Turbo
pressure regulation valve (Diesel), engine coolant level
detector (Diesel).
F21 5 AFan assembly control supply, APC, ABS ESP relays.
Practical information
