trip computer Citroen C3 PICASSO RHD 2016 1.G Owner's Manual

.
.
Child seats 93
Deactivating the passenger's front airbag
9
6
Isofix child seats

1
02
Child lock

1
06
Child safety
Instrument panel 1 0
Indicator and warning lamps
1
1
Indicators

2
2
Distance recorders

2
6
MonitoringOver view
Screens with audio system 2
7
Trip computer
3
8
Multifunction screens
Ventilation 41
Rear screen demist /defrost
4
3
Heating


44
Manual air conditioning
4

4
Dual-zone digital air conditioning
4

6
Scented air freshener
4

9
Front seats

5
0
Rear seats

5
3
Mirrors
55
Steering wheel adjustment

5
6
Comfort
Remote control key 57
Window controls
6
1
Doors

6
3
Boot


66
Panoramic sunroof

6
7
Fuel tank

6
8
Misfuel prevention (Diesel)

7
0
Access
Lighting controls 7 1
LED daytime running lamps
7
5
Cornering lighting

7
6
Headlamp adjustment
7

7
Wiper controls

7
8
Courtesy lamps

8
1
Boot lamp

8
2
Visibility
Front fittings 8 3
Rear fittings
87
B

oot fittings
9
0
Fittings
Eco-driving
C3Picasso_gb_Chap00a_sommaire_ed01-2015
Contents

6
Instruments and controls
1. Steering lock and ignition.
2. Audio system steering mounted controls.
3.
W

ipers / screenwash / trip computer control
stalk.
4.
I

nstrument panel.
5.
D

river's airbag.


Horn.
6.
G

ear lever.
7.
O

pen storage compartment.
8.
D

oor mirror controls.
E

lectric window controls.
R

ear electric windows and doors
deactivation control.
9.
P

assenger's airbag deactivation.
10.
M

anual headlamp height adjustment.
11.
F

ront side window demisting vent.
12 .
W

indscreen demisting vent.
13.
N

avigation screen and scented air
freshener.


or


Storage.
Over view

27
Monochrome screen A
Controls
This displays the following information:
- time,
-


date,
-

a
mbient temperature (this flashes if there is
a risk of ice),
-

s
tate of the openings (doors, boot, ...),
-

a
udio sources (radio, CD, ...),
-

t
rip computer (refer to the end of the
section).
Warning messages or information messages
may appear temporarily. These can be cleared
by pressing the "Back" button.
Main menu
F Press the "MENU" button for access to
the main menu , then press the " 5" or
" 6 " buttons to scroll through the various
menus:
-


radio - CD,
-
v

ehicle configuration,
-


options,
-
d

isplay settings,
-


language,
-


units.
F

P
ress the "OK" button to select the menu
required.
From the audio equipment control panel, you
can:
F

p

ress the "MENU" button for access to the
main menu ,
F

p

ress the " 5" or " 6" buttons to scroll
through the items on the screen,
F

p

ress the "MODE" button to change the
permanent application (trip computer,
audio source, ...),
F

p

ress the " 7" or " 8" buttons to change a
setting value,
F

p

ress the "OK" button to confirm,
or
F

p

ress the "Back" button to abandon the
operation in progress.
Radio- CD
With the audio equipment switched on, once
the "Radio- CD" menu has been selected you
can activate or deactivate the functions linked
with use of the radio (RDS, REG) or the CD
(introscan, shuffle, CD repeat).
For more information on the "Radio-CD"
application, refer to the "Audio system" section.
Displays in the screen
2
Multifunction screens

32
Displays in the eMyWay
satellite navigation colour
screen
Display configuration
This menu allows you to choose a colour
scheme for the screen, adjust its brightness,
set the date and choose the units for distance
(km or miles), fuel consumption (l/100 km,
mpg or km/l) and temperature (°Celsius or
°Fahrenheit).
This displays the following information:
-

time,
-


date,
-
a

udio functions,
-
p

arking sensor information (depending on
version),
-
n

avigation system information.
"SETUP" menu
Press the SETUP button to access the
"SETUP" menu. It gives you access to the
following functions:
-
"

Display configuration",
-

"
Voice synthesis setting",
-

"
Trip computer". Adjusting the date and time
F
P ress the SETUP
button.
F Sel ect "Display configuration " and press
the knob to confirm.
F

Sel
ect "Adjust date and time " and press
the knob to confirm.
F

A
djust the settings one by one using the
directional arrows then confirm by pressing
the knob.
Select " Synchronisation of minutes
with GPS " for the minutes to be adjusted
automatically by satellite reception.
Multifunction screens

33
Voice synthesis setting
This menu allows you to adjust the volume for
navigation instructions and choose the type of
voice (male or female).
For more information, refer to the Audio and
telematics section.
Trip computer
This menu allows you to view information on
the state of the vehicle. You can choose from
the following functions:
-
"
Alert log"
L

ist of active alerts.
-

"
State of functions"
L

ist of the state of functions (activated,
deactivated or faulty).
As a safety measure, configuration of
the multifunction screen by the driver
must only be done when stationary.
2
Multifunction screens

34
This displays the following information:
- time,
-


date,
-

a
mbient temperature (this flashes if there is
a risk of ice),
-

s
tate of the openings (doors, boot, etc.),
-

a
udio sources (radio, CD, USB port, etc.),
-

t
rip computer (refer to the end of the
section).
Warning messages or information messages
may appear temporarily. These can be cleared
by pressing the "Back" button. From the audio system control panel, you can:
F
p ress the "MENU" button to gain access to
the main menu ,
F

p
ress the "5" or " 6" buttons to scroll
through the items on the screen,
F

p
ress the "MODE" button to change the
permanent application (trip computer,
audio source, ...),
F

p
ress the "7" or " 8" buttons to change a
setting value,
F

p
ress the "OK" button to confirm,
or
F

p
ress the "Back" button to abandon the
operation in progress.
Main menu
F Press the "MENU" button to gain access
to the main menu :
-
a

udio functions,
-

t
he trip computer (refer to the end of the
section),
-


personalisation-configuration,
-
t

elephone (hands-free kit).
F

P
ress the " 5" or " 6" buttons to select the
menu required, then confirm by pressing
the "OK" button.
Monochrome screen C
ControlsDisplays in the screen
Multifunction screens

35
"Trip computer" menu
Alert log
This summarises the active warning messages,
displaying them in succession in the
multifunction screen. Once this menu has been selected, you can
consult information concerning the status of the
vehicle (alert log, status of functions, etc.)
Status of functions
This summarises the status (active or inactive)
of the vehicle's functions.
Enter distance to destination
This allows you to enter an approximate
distance until your final destination.F

P
ress the "MENU"
button for access to the
main menu.
F
P
ress the arrows, then the "OK"
button to
select the " Trip computer " menu.
F
I
n the "
Trip computer " menu, select one of
the following applications:
"Audio functions"
menu
With the audio equipment switched on, once
this menu has been selected you can activate
or deactivate the functions linked with use
of the radio (RDS, REG, RadioText), the CD
(introscan, shuffle, CD repeat) or the MP3
player (USB port).
For more information on the "Audio functions"
application, refer to the Audio systems part of
the "Audio and telematics" section.
2
Multifunction screens

38

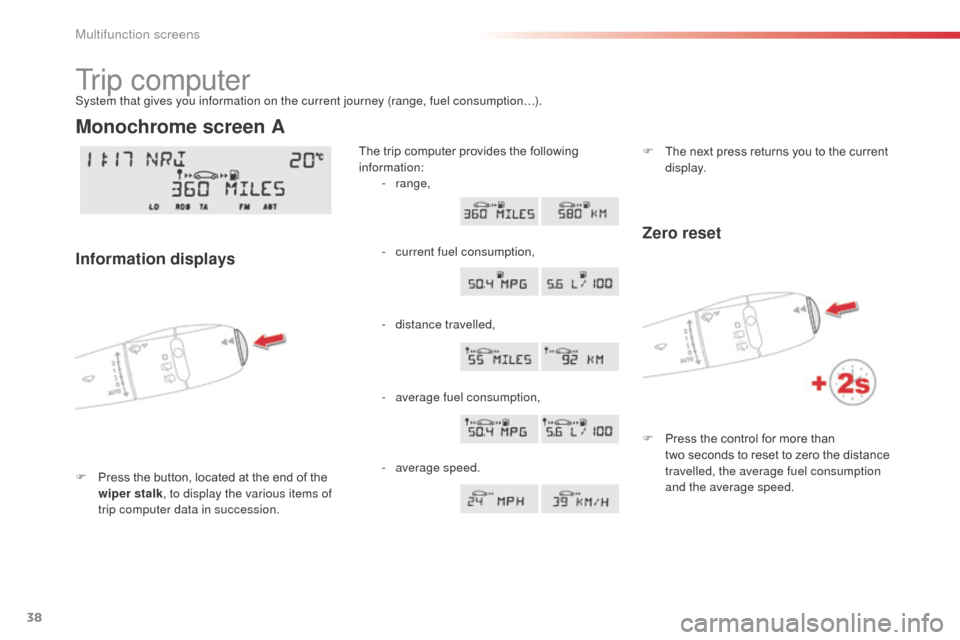

Tr i p c o m p u t e r
F Press the button, located at the end of the wiper stalk , to display the various items of
trip computer data in succession. The trip computer provides the following
information:
System that gives you information on the current journey (range, fuel consumption…).
Monochrome screen A
Information displays
-
range,
-
c
urrent fuel consumption,
-
d

istance travelled,
-
a

verage fuel consumption,
-
a

verage speed. F

T
he next press returns you to the current
display.
Zero reset
F Press the control for more than two seconds to reset to zero the distance
travelled, the average fuel consumption
and the average speed.
Multifunction screens

39
- the current information tab with:
●

t
he range,
●

t
he current fuel
consumption,
●

t
he distance remaining to
be travelled.

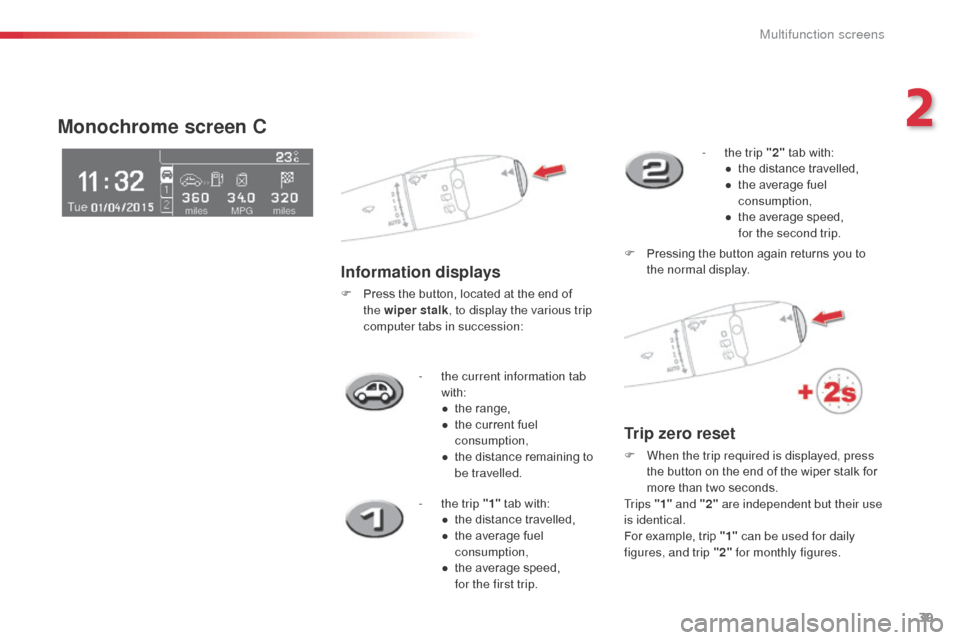

Monochrome screen C
Information displays
F Press the button, located at the end of the wiper stalk , to display the various trip
computer tabs in succession:
-

t
he trip "1" tab with:
●

t
he distance travelled,
●

t
he average fuel
consumption,
●

t
he average speed,
f

or the first trip. -

t
he trip "2"
tab with:
●
t
he distance travelled,
●
t
he average fuel
consumption,
●
t
he average speed,
f

or the second trip.
F
P
ressing the button again returns you to
the normal display.
Trip zero reset
F When the trip required is displayed, press the button on the end of the wiper stalk for
more than two seconds.
Tr i p s "1" and "2" are independent but their use
is identical.
For example, trip "1" can be used for daily
figures, and trip "2" for monthly figures.
2
Multifunction screens

40
Trip computer, a few definitions
When the range falls below 20 miles (30 km),
dashes are displayed. After filling with at least
5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (100 km).
Range
(miles or km)
The distance which can still be
travelled with the fuel remaining
in the tank (related to the
average fuel consumption over
the last few miles (kilometres)
travelled).
Current fuel
consumption
(mpg or l/100 km or km/l)
Calculated over the last few seconds.
Average fuel
consumption
(mpg or l/100 km or km/l)
Calculated since the last trip
computer reset.
Distance travelled
(miles or km)
Calculated since the last trip
computer reset.
Average speed
(mph or km/h)
Calculated since the last trip
computer reset.
Distance remaining to
destination
(miles or km)
This is the distance remaining to be
travelled to the final destination. It
is either calculated instantly by the
navigation system, if guidance is
activated, or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.
If dashes are displayed continuously
while driving in place of the digits,
contact a CITROËN dealer or a
qualified workshop. This value may vary following a change
in the style of driving or the relief,
resulting in a significant change in the
current fuel consumption. This function is only displayed from
20

mph (30 km/h).
Multifunction screens
