M O N I T O R I N G
Instrument panelControls panel
A. Rev counter.
B. Instrument panel screen.
C. Fuel gauge.
D. Dashboard lighting rheostat.
When the ignition is switched on, the orange and red warning lamps light up.
With the engine running, these warning lamps should go out.
If the warning lamps remain lit, re-fer to the appropriate page.
Warning lamps
The lighting of the warning lamp indicates the status of the corresponding function.
A. Activation of alarm.
B. Locking of electric rear windows.
C. Activation of overspeed alert.
D. Deactivation of ESP.
2730
23
51
61
60

II
44
S I G N A L L I N G
Direction indicators
Left, downwards.
Right, upwards.
For a change of direction, move the control stalk beyond the tight spot. Stops automatically with the return of the steering wheel.
Visible alert / headlamp fl ash
Pull the control towards you.
The headlamp fl ash can be made even with the ignition switched off.
Horn
Press at the centre of the steering wheel.
Hazard warning lamps
This operates all the direction indi-cators simultaneously.
Only use them to indicate dan-ger, for an emergency stop or for driving in abnormal conditions.
The hazard lamps can also be used with the ignition switched off.
Sound signal for headlamps left on
This operates when the driver's door is opened, ignition off, to indi-cate that the vehicle lamps are still on.
It stops when you close the door, switch off the lamps or switch on the ignition.
This signal does not operate if the automatic lighting of headlamps or the guide-me-home lighting are active.
Emergency operation of haz-ard warning lamps
A sudden deceleration of the vehi-cle causes the hazard lamps to come on automatically.
They will cease to operate auto-matically, or manually if you press the hazard lamps button on the dashboard.
The direction indicators cannot operate if the hazard warning lamps are on.

II
49
D A S H B O A R D A D J U S T M E N T S
Headlamps adjustment
You are advised to adjust the aim of the headlamps in accordance with vehicle load.
In the dashboard on the right hand side of the steering column.
0: Unladen weight.
1: Lightly laden.
2: Half laden.
3: Fully laden.
As a metter of safety, these manœuvres should not be performed while the vehicle is moving.
Steering column adjustment
The steering can be adjusted for both height and reach.
With the vehicle stationary, fi rst adjust your seat to the most suit-able position, then adjust the posi-tion of the steering wheel. See “Driving position”.
Unlock the steering wheel by pull-ing the control upwards.
Adjust the position of the steering wheel then lock by pushing the control fully downwards.
Make sure that you have a good view of the instrument panel dis-plays.

2
11II
53
E L E C T R O N I C G E A R B O X S Y S T E M
G E N E R A L
The Electronic Gearbox System gives you the choice of two driving modes:Automatic mode.
Manual mode with two control possibilities: The controls under the steer-ing wheel 1 and the selection lever 2 on the central console.
Selection lever for Electronic gearbox operating mode:Automatic operation with the gear lever 2 in position A.
Remark: Instant manual mode activates whenever you action one of the controls under the steering wheel 1.
Manual operation with the gear lever 2 in position M.




Dashboard displayThe gear engaged and the mode “AUTO” are displayed on the instrument panel, even if the ignition is switched off, when for example a door is opened.
The foot-on-brake warning lamp fl ashes to indicate the neces-sity to press the brake pedal, in order to start the engine or to engage reverse gear.


With the ignition switched on, simultaneous fl ashing of th e warning lamps “” and “AUTO” indicates a fault, contact a CITROËN dealer as soon as possible.CITROËN dealer as soon as possible.CITROËN dealer as soon as possible.CITROËN dealer as soon as possible.CITROËN dealer as soon as possible.

59
ABS system
The ABS system enhances your safety by preventing the wheels from locking in the event of sudden braking or in conditions of poor road adherence. It enables you to retain control of the steering.
The functioning capability of all the electrical components essential to the ABS is monitored electronically before and during your journey. The ABS warning lamp lights up when you switch on the ignition: it should go out after a few seconds.
If the monitoring warning lamp does not go out, that means that the ABS has disconnected because there is a fault. Also, the fact that the monitoring warning lamp comes on durin g the journey shows that the ABS system is inactive. In both cases, the normal braking system remains effi cient, exactly a s on a vehicle without ABS. However, in order for the security associated with the correct functioning of the ABS to be restored, the vehicle should be examined as soon as possible by a CITROËN dealer.for the security associated with the correct associated with the
On roads with poor adherence (chippings, snow, ice etc.), it is always imperative to drive with prudence.
System of emergency braking assistance
(For vehicles with the ABS system)
The emergency braking assistance system helps you to attain the requ ired braking pressure more rapidly, thus to reduce the stopping distance. It operates as a function of the speed of action on the brake pedal, decreasing the resistance to this action. To prolong this action of the emerg ency braking assistance system, simply keep your foot on the brake pedal.
Emergency braking or sudden deceleration automatically operates th e hazard warning lamps. They will cease to operate automatically, or manually if you press the hazard lamps button on the dashboard.
B R A K E S

E
II
61
O V E R S P E E D A L E R T
Overspeed alert
Function for keeping to a desired maximum speed.
A short press on control E activates this function (the warning lamp lights up).
To pre-set or modify the desired alert speed, when you have reach ed this speed, give a long press on control E (located on the dashboard central panel) until you hear a confi rmation gong.
An audible signal indicates that the programmed speed is being exceeded.
To cancel
Give another short press on control E to deactivate this function (the warn-ing lamp goes out).
Note: The overspeed alert only functions for speeds above around 30 km/h (around 20 mph).

A
67
Warning: The automatic air conditioning system uses a temperature sensor located on the dashboard (see reference A), this sensor should not be obstructed.
V E N T I L A T I O N - H E A T I N G

III
73
A U T O M A T I C A I R C O N D I T I O N I N G
Manual recalling of one or more functions
One or more functions can be adjusted manually, while still retaining the other functions in automatic mode.
The function display “AUTO” then goes out.
4. Air conditioning
Press the control located on the control panel.
A symbol appears on the display (system active).
To prevent misting inside the vehicle in cold or humid weather, you are advised to use the AUTO mode.
Press on the control on the dashboard to activate or deactivate the production of cold air.
Air conditioning is then obtained from the mixing of hot air with cold air, using the air blower temperature adjustment 3.
5. Air recirculation
By pressing the control, the entry of air from outside is closed off and the symbol appears on the display.
This position is useful for excluding undesirable odours or fumes coming from outside. It should be cancelled as soon as possible in order to permit renewal of air in the cabin and to prevent misting.
For this, press the “AUTO” button or press again on the air recycling button.
6. Air distribution
Press on the button to scroll through the displays of air fl ow to:
Windscreen.
Central and lateral air vents. Windscreen and passenger footwells.
Windscreen and passenger footwells.
Passenger footwells.
(Air vents closed).
Central and lateral air vents.
Central and lateral air vents and passen-ger footwells.
Note: In AUTO position the air distribution displayed is that chosen by the system.

1
2
A
V
102

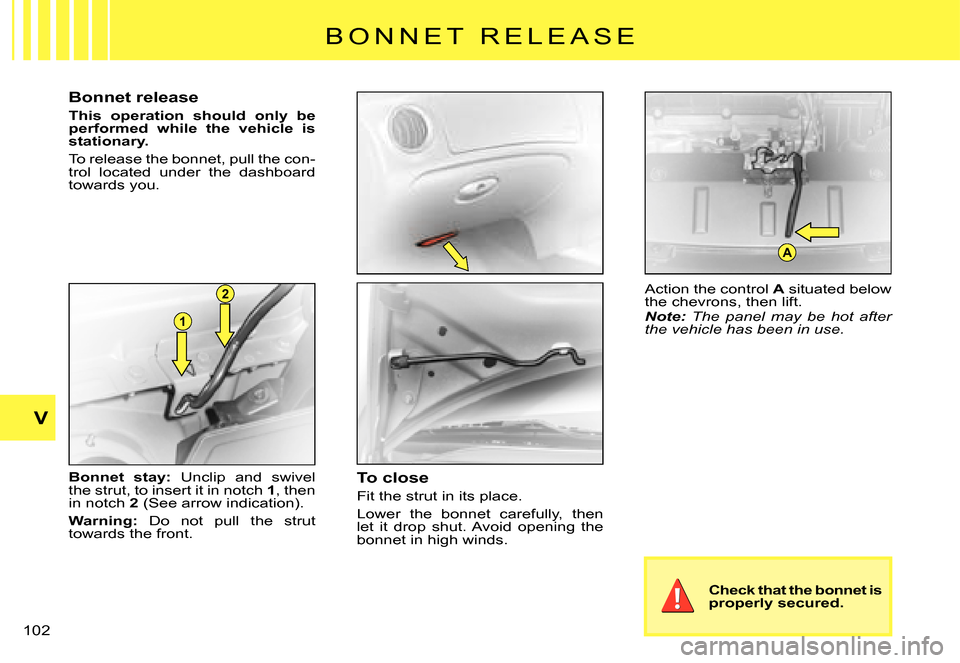

B O N N E T R E L E A S E
Bonnet release
This operation should only be performed while the vehicle is stationary.
To release the bonnet, pull the con-trol located under the dashboard towards you.
Bonnet stay: Unclip and swivel the strut, to insert it in notch 1, then in notch 2 (See arrow indication).
Warning: Do not pull the strut towards the front.
To close
Fit the strut in its place.
Lower the bonnet carefully, then let it drop shut. Avoid opening the bonnet in high winds.
Action the control A situated below the chevrons, then lift.Note: The panel may be hot after the vehicle has been in use.
Check that the bonnet is properly secured.

V
111
F U S E S
Fuseboxes
There are two fuse boxes, one below the dashboard and one under the bonnet.
Dashboard fuses
The fuse box is located in the lower glovebox compartment.
To access the fuses, open the glove box, pull the handle on the fuse box cover.
Replacing a fuse
Before replacing a fuse, you should ascertain the cause of the fault and have it remedied. The numbers of the fuses are indicated on the fusebox.
Replace the fuse that has blown with one of the same rating (same colour).
Use the special pliers A stowed on the cover close to the fuseboxes, this includes a compartment for replacement fuses.
GoodBad
Pliers A
