relay Citroen C3 RHD 2011.5 2.G Owner's Manual

11
154
PRACTICAL INFORMATION

Dashboard fusebox

The fusebox is placed in the lower dash-
board (left-hand side).

Access to the fuses


)
Refer to the paragraph "Access to
the tools".

Fuse tables


Fuse N°



Rating


Functions



FH36



5 A

Trailer relay unit.


FH37



-

Not used.


FH38



20 A

HiFi amplifi er.


FH39



-

Not used.


FH40



40 A

Trailer relay unit.


Fuse N°



Rating


Functions



F1



15 A

Rear wiper.


F2



-

Not used.


F3



5 A

Airbags and pretensioners control unit.


F4



10 A

Air conditioning, clutch switch, electrochromatic
mirror, particle fi lter pump (Diesel), diagnostic
socket, airfl ow sensor (Diesel).


F5



30 A

Electric windows panel, passenger’s electric
window control, front electric window motor.


F6



30 A

Rear electric windows motors and driver’s electric
window motor.


F7



5 A

Courtesy lamp, side reading lamps.

11
155
PRACTICAL INFORMATION


Fuse N°



Rating


Functions



F8



20 A

Multifunction screen, audio system, navigation
radio, instrument panel with clock, alarm control
unit, alarm siren, audio system (after-market),
portable navigation system carrier supply.


F9



30 A

Multifunction screen, audio system, navigation
audio unit, instrument pnael with clock, alarm
control unit, alarm siren, audio system
(after-market), 12 V socket, portable navigation
support supply, locking.


F10



15 A

Steering mounted controls.


F11



15 A

Ignition, diagnostic socket, automatic gearbox
control unit.


F12



15 A

Rain/sunshine sensor, trailer relay unit, driving
school module.


F13



5 A

Main stop switch, engine relay unit.


F14



15 A

Parking sensors control unit, airbag control unit,
instrument panel, automatic air conditioning,
USB Box, HiFi amplifi er.


F15



30 A

Locking.


F16



-

Not used.


F17



40 A

Rear screen and door mirrors demisting/defrosting.


SH



-

PARC shunt.

11

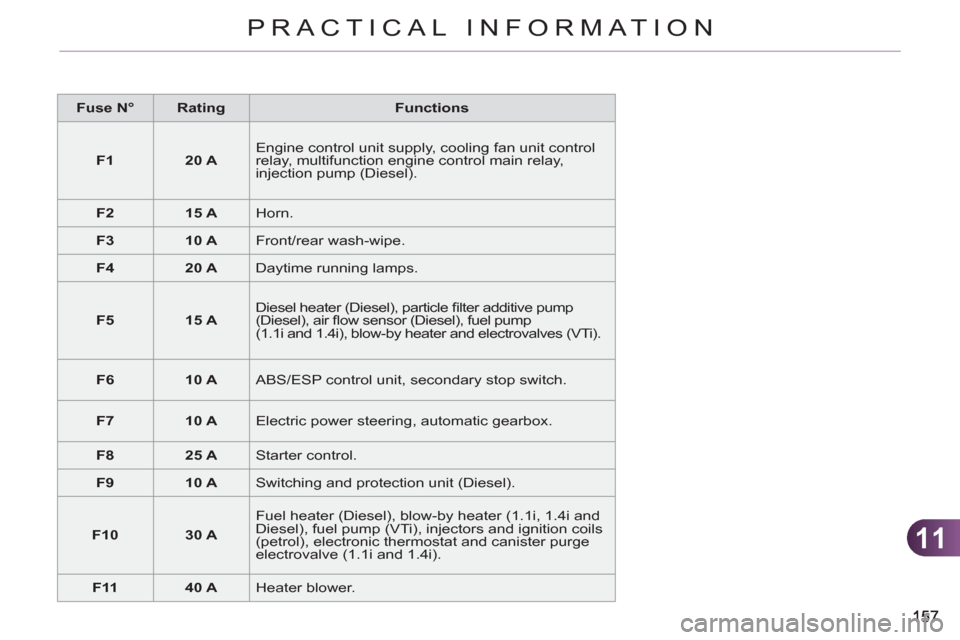

PRACTICAL INFORMATION


Fuse N°



Rating


Functions



F1



20 A

Engine control unit supply, cooling fan unit control
relay, multifunction engine control main relay,
injection pump (Diesel).


F2



15 A

Horn.


F3



10 A

Front/rear wash-wipe.


F4



20 A

Daytime running lamps.


F5



15 A

Diesel heater (Diesel), particle fi lter additive pump
(Diesel), air fl ow sensor (Diesel), fuel pump
(1.1i and 1.4i), blow-by heater and electrovalves (VTi).


F6



10 A

ABS/ESP control unit, secondary stop switch.


F7



10 A

Electric power steering, automatic gearbox.


F8



25 A

Starter control.


F9



10 A

Switching and protection unit (Diesel).


F10



30 A

Fuel heater (Diesel), blow-by heater (1.1i, 1.4i and
Diesel), fuel pump (VTi), injectors and ignition coils
(petrol), electronic thermostat and canister purge
electrovalve (1.1i and 1.4i).


F11



40 A

Heater blower.
