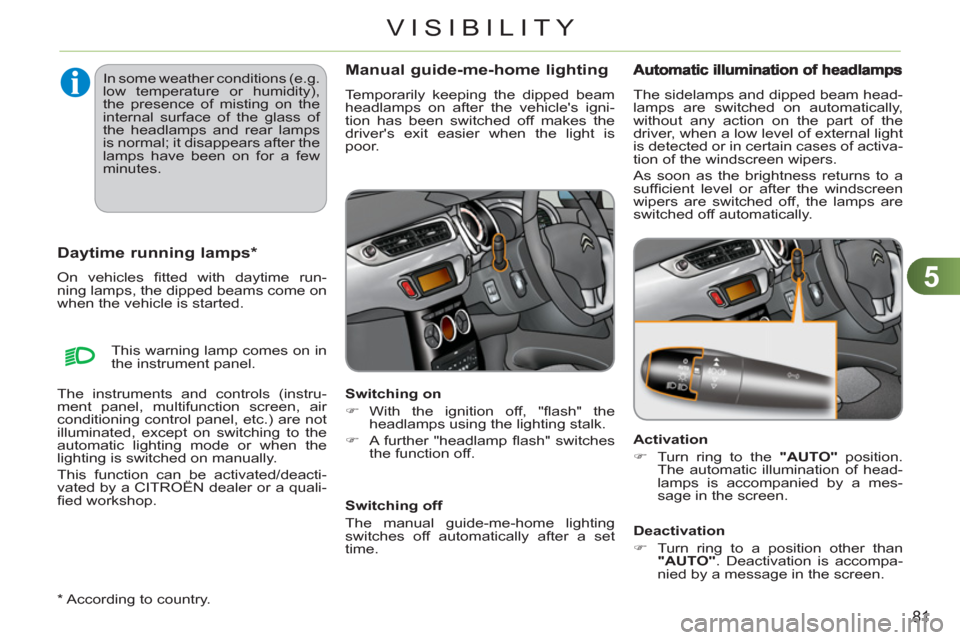

Page 83 of 252
5
81
VISIBILITY
* According to country.
Daytime running lamps *
On vehicles fi tted with daytime run-
ning lamps, the dipped beams come on
when the vehicle is started.
Manual guide-me-home lighting
Temporarily keeping the dipped beam
headlamps on after the vehicle's igni-
tion has been switched off makes the
driver's exit easier when the light is
poor.
Switching on
)
With the ignition off, "fl ash" the
headlamps using the lighting stalk.
)
A further "headlamp fl ash" switches
the function off.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time.
The sidelamps and dipped beam head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external light
is detected or in certain cases of activa-
tion of the windscreen wipers.
As soon as the brightness returns to a
suffi cient level or after the windscreen
wipers are switched off, the lamps are
switched off automatically.
Activation
)
Turn ring to the "AUTO"
position.
The automatic illumination of head-
lamps is accompanied by a mes-
sage in the screen.
Deactivation
)
Turn ring to a position other than
"AUTO"
. Deactivation is accompa-
nied by a message in the screen.
This warning lamp comes on in
the instrument panel.
The instruments and controls (instru-
ment panel, multifunction screen, air
conditioning control panel, etc.) are not
illuminated, except on switching to the
automatic lighting mode or when the
lighting is switched on manually.
This function can be activated/deacti-
vated by a CITROËN dealer or a quali-
fi ed workshop. In some weather conditions (e.g.
low temperature or humidity),
the presence of misting on the
internal surface of the glass of
the headlamps and rear lamps
is normal; it disappears after the
lamps have been on for a few
minutes.
Page 84 of 252
5
82
VISIBILITY
To avoid causing a nuisance to other
road users, the height of the headlam-
ps should be adjusted in relation to the
load in the vehicle.
0
.
Driver only or driver + front passenger.
-
. Intermediate setting
1.
5 people.
-
. 5 people + load in the boot.
2.
Driver only + maximum authorised
load in the boot.
This position is suffi cient to avoid causing
dazzle.
Higher settings may limit the spread of
light from the headlamps.
The initial setting is position "0"
.
HEADLAMP ADJUSTMENT
Association with the automatic
"Guide-me-home" lighting
Association with the automatic illumination of headlamps provides "guide-me-home"
lighting with the following additional op-
tions:
- selection of the lighting duration to 15,
30 or 60 seconds in the functions that
can be set in the vehicle confi gura-
tion menu (except in the case of the
monochrome screen A, for which the
duration is set: 60 seconds),
- automatic activation of "guide-me-
home" lighting when automatic illumi-
nation of headlamps is in operation.
Operating fault In fog or snow, the sunshine sen-
sor may detect suffi cient light.
Therefore, the lighting will not
come on automatically.
Do not cover the sunshine sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the rear view
mirror; the associated functions
would no longer be controlled.
In the event of a fault with the
sunshine sensor, the lighting
come on, this warning lamp
is displayed in the instrument panel and/
or a message appears in the screen,
accompanied by an audible signal.
Contact a CITROËN dealer or a qualifi ed
workshop.

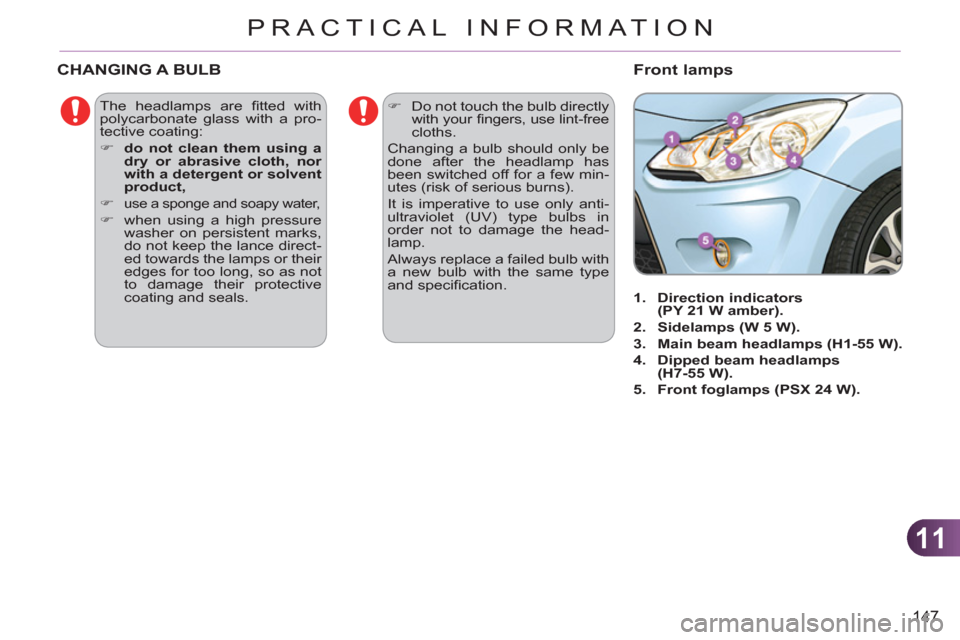

Page 149 of 252
11
147
PRACTICAL INFORMATION
The headlamps are fi tted with
polycarbonate glass with a pro-
tective coating:
)
do not clean them using a
dry or abrasive cloth, nor
with a detergent or solvent
product,
)
use a sponge and soapy water,
)
when using a high pressure
washer on persistent marks,
do not keep the lance direct-
ed towards the lamps or their
edges for too long, so as not
to damage their protective
coating and seals.
CHANGING A BULB
)
Do not touch the bulb directly with your fi ngers, use lint-free
cloths.
Changing a bulb should only be
done after the headlamp has
been switched off for a few min-
utes (risk of serious burns).
It is imperative to use only anti-
ultraviolet (UV) type bulbs in
order not to damage the head-
lamp.
Always replace a failed bulb with
a new bulb with the same type
and specifi cation.
Front lamps
1.
Direction indicators
(PY 21 W amber).
2.
Sidelamps (W 5 W).
3.
Main beam headlamps (H1-55 W).
4.
Dipped beam headlamps
(H7-55 W).
5.
Front foglamps (PSX 24 W).

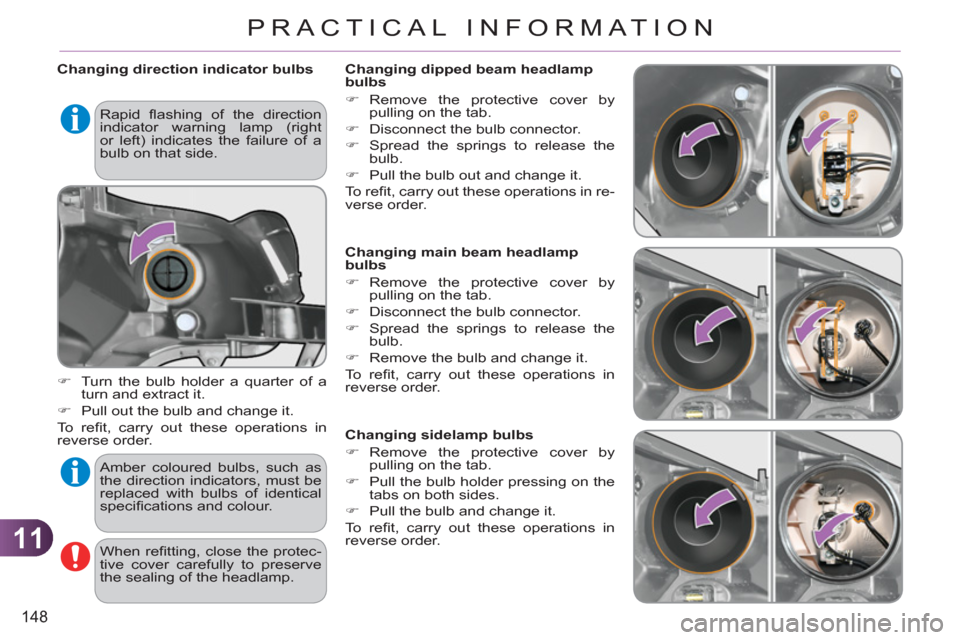

Page 150 of 252
11
148
PRACTICAL INFORMATION
Changing direction indicator bulbs
)
Turn the bulb holder a quarter of a
turn and extract it.
)
Pull out the bulb and change it.
To r efi t, carry out these operations in
reverse order.
When refi tting, close the protec-
tive cover carefully to preserve
the sealing of the headlamp.
Rapid fl ashing of the direction
indicator warning lamp (right
or left) indicates the failure of a
bulb on that side.
Amber coloured bulbs, such as
the direction indicators, must be
replaced with bulbs of identical
specifi cations and colour.
Changing dipped beam headlamp
bulbs
)
Remove the protective cover by
pulling on the tab.
)
Disconnect the bulb connector.
)
Spread the springs to release the
bulb.
)
Pull the bulb out and change it.
To r efi t, carry out these operations in re-
verse order.
Changing main beam headlamp
bulbs
)
Remove the protective cover by
pulling on the tab.
)
Disconnect the bulb connector.
)
Spread the springs to release the
bulb.
)
Remove the bulb and change it.
To r efi t, carry out these operations in
reverse order.
Changing sidelamp bulbs
)
Remove the protective cover by
pulling on the tab.
)
Pull the bulb holder pressing on the
tabs on both sides.
)
Pull the bulb and change it.
To r efi t, carry out these operations in
reverse order.

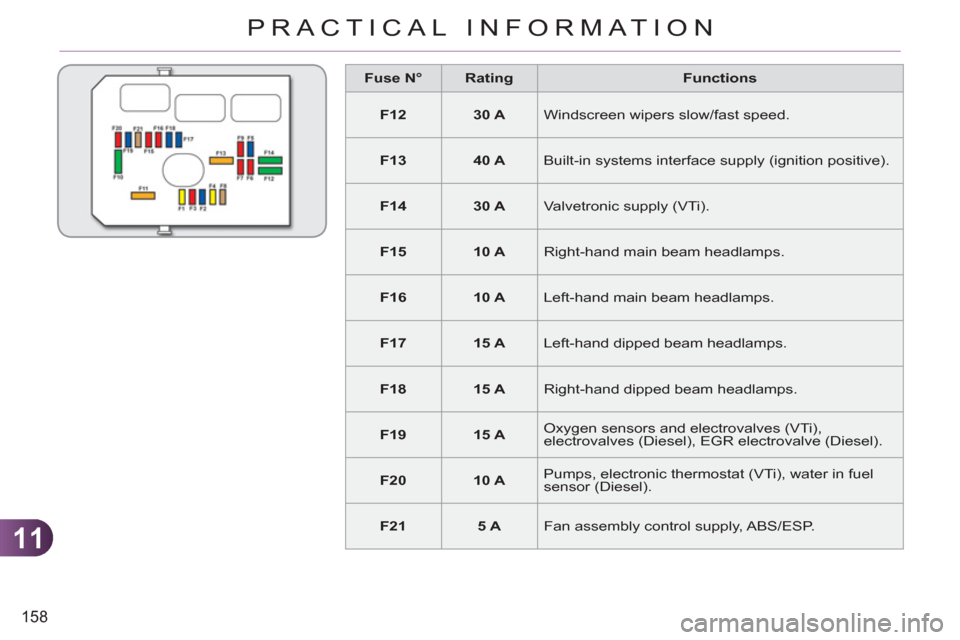

Page 160 of 252
11
158
PRACTICAL INFORMATION
Fuse N°
Rating
Functions
F12
30 A
Windscreen wipers slow/fast speed.
F13
40 A
Built-in systems interface supply (ignition positive).
F14
30 A
Valvetronic supply (VTi).
F15
10 A
Right-hand main beam headlamps.
F16
10 A
Left-hand main beam headlamps.
F17
15 A
Left-hand dipped beam headlamps.
F18
15 A
Right-hand dipped beam headlamps.
F19
15 A
Oxygen sensors and electrovalves (VTi),
electrovalves (Diesel), EGR electrovalve (Diesel).
F20
10 A
Pumps, electronic thermostat (VTi), water in fuel
sensor (Diesel).
F21
5 A
Fan assembly control supply, ABS/ESP.

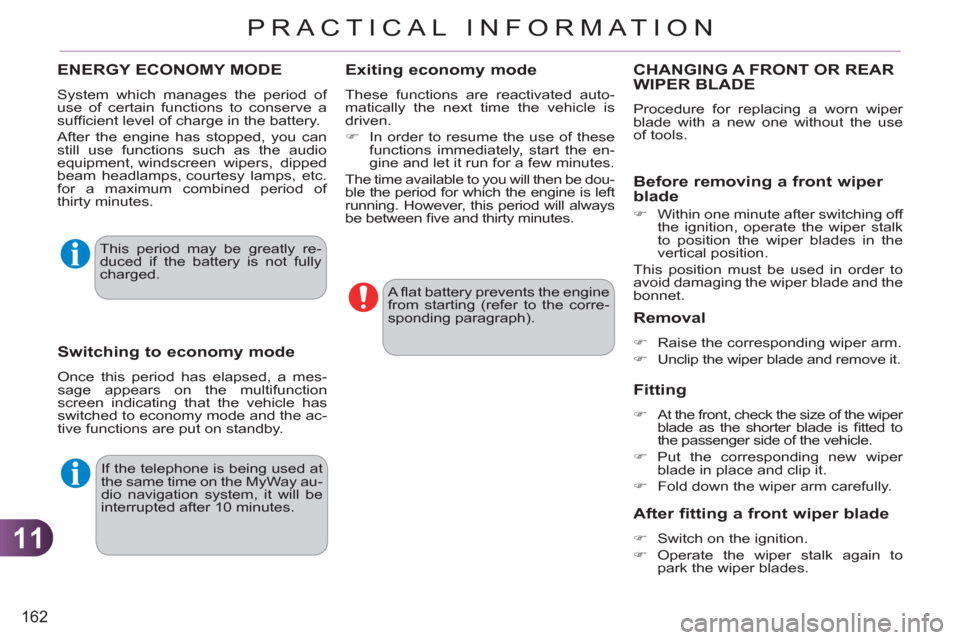

Page 164 of 252
11
162
PRACTICAL INFORMATION
If the telephone is being used at
the same time on the MyWay au-
dio navigation system, it will be
interrupted after 10 minutes. A fl at battery prevents the engine
from starting (refer to the corre-
sponding paragraph).
ENERGY ECONOMY MODE
System which manages the period of
use of certain functions to conserve a
suffi cient level of charge in the battery.
After the engine has stopped, you can
still use functions such as the audio
equipment, windscreen wipers, dipped
beam headlamps, courtesy lamps, etc.
for a maximum combined period of
thirty minutes.
Switching to economy mode
Once this period has elapsed, a mes-
sage appears on the multifunction
screen indicating that the vehicle has
switched to economy mode and the ac-
tive functions are put on standby.
Exiting economy mode
These functions are reactivated auto-
matically the next time the vehicle is
driven.
)
In order to resume the use of these
functions immediately, start the en-
gine and let it run for a few minutes.
The time available to you will then be dou-
ble the period for which the engine is left
running. However, this period will always
be between fi ve and thirty minutes.
This period may be greatly re-
duced if the battery is not fully
charged.
CHANGING A FRONT OR REARWIPER BLADE
Procedure for replacing a worn wiper
blade with a new one without the use
of tools.
Before removing a front wiper
blade
)
Within one minute after switching off
the ignition, operate the wiper stalk
to position the wiper blades in the
vertical position.
This position must be used in order to
avoid damaging the wiper blade and the
bonnet.
Removal
)
Raise the corresponding wiper arm.
)
Unclip the wiper blade and remove it.
Fitting
)
At the front, check the size of the wiper
blade as the shorter blade is fi tted to
the passenger side of the vehicle.
)
Put the corresponding new wiper
blade in place and clip it.
)
Fold down the wiper arm carefully.
After fitting a front wiper blade
)
Switch on the ignition.
)
Operate the wiper stalk again to
park the wiper blades.
Page 239 of 252
237
VISUAL SEARCH
Remote control key................64-67
- opening/closing
- anti-theft protection
- starting
- battery
EXTERIOR
Lighting controls ....................79-82
Headlamp adjustment................. 82
Changing bulbs..................147-149
- front lamps
- front foglamps
- direction indicator repeaters Door mirrors ................................ 62
Doors .....................................72-74
- opening/closing
- central locking
- emergency control
Alarm .....................................68-69
Electric child lock ...................... 102
Electric windows ....................70-71
Fuel tank ................................76-77
Misfuel prevention ...................... 78 Hill start assist .......................... 124
Braking assistance ................... 104
Trajectory control ...................... 105
Tyre
pressures ....................... 142, 179 Wiper controls........................83-85
Changing
a wiper blade ......................... 162
Boot ............................................ 75
Temporary puncture
repair kit ..........................138-142
Changing a wheel ..............143-146
- tools
- removing/refi tting
Changing bulbs..................150-151
- rear lamps
- 3rd brake lamp
- number plate lamps
Rear parking
sensors ...........................129-130
Towbar ...................................... 165
Towing ...............................163-164 Accessories .......................167-168
Page 241 of 252
239
VISUAL SEARCH
Lighting controls ....................79-82
Headlamp adjustment................. 82
INSTRUMENTS AND CONTROLS
Scented air freshener ................. 58
Multifunction screens .............43-49
Hazard warning lamps .............. 103
Ventilation/Heating.................50-54
Manual air conditioning..........52-54
Digital air conditioning ...........55-56
Rear screen demist/
defrost ...................................... 57
Opening the bonnet .................. 132 Door mirrors ................................ 62
Electric windows ....................70-71 Instrument panels ..................23-24
Warning lamps .......................25-34
Gauges and indicators...........35-37
Adjustment buttons ................38-39
- trip distance recorder/clock
- lighting dimmer/black panel
Steering wheel adjustment ......... 63
Horn .......................................... 103
Speed limiter......................125-126
Cruise control ....................127-128 Wiper controls........................83-85
Trip computer ........................40-42
Audio system .....................215-236
Setting the date/time..........228-229
MyWay ...............................183-214
Setting the date/time................. 206
Emergency or assistance
call ................................. 104, 181 Interior mood lighting .................. 87 Rear view mirror ......................... 63
Zenith windscreen
blind ........................................... 6
Sun visor..................................... 89
Manual gearbox ........................ 112
Gear effi ciency
indicator ................................. 113
Electronic gearbox ............. 114-117
Automatic
gearbox ........................... 118-120
Parking brake ........................... 112 Dashboard
fuses ...............................153-155 Stop & Start .......................121-123
Page 243 of 252
241
ALPHABETICAL INDEX
A ABS and EBFD systems ............ 104
Accessories ................................ 167
Accessory socket, 12V ................. 90
Adjusting headlamps .................... 82
Adjusting head restraints .............. 60
Adjusting the steering wheel ........ 63
Airbags, curtain .................. 110, 111
Airbags, front ...................... 108, 111
Airbags, lateral ................... 110, 111
Air conditioning ............................. 21
Air conditioning, digital ........... 51, 55
Air conditioning, manual ......... 51, 52
Air filter ....................................... 136
Air flow ......................................... 50
Air intake ...................................... 50
Air recirculation ...................... 53, 56
Air vents ....................................... 50
Alarm ............................................ 68
Ambient temperature (display) ..... 23
Anti-lock braking
system (ABS) ........................... 104
Anti-pinch ..................................... 70
Anti-theft ....................................... 65
Armrest, front ............................... 89
Assistance call ................... 104, 182
Audible warning .......................... 103
Audio streaming (Bluetooth) ....... 227
Audio system .......................215-236
Automatic illumination
of headlamps ........................ 79, 81
Automatic operation of hazard
warning lamps .......................... 103
Automatic rain sensitive
windscreen wipers ................ 83, 85
Auxiliary socket .... 90, 202, 222, 224B Battery ................................ 136, 160
Battery, charging ........................ 161
Battery, remote control ........... 66, 67
Black panel ................................... 39
Blind ............................................... 6
Bluetooth
(hands-free) ...................... 203, 225
Bluetooth (telephone) ......... 203, 225
Bonnet ........................................ 132
Boot .............................................. 75
Boot lamp ............................. 87, 152
Brake discs ................................. 137
Brake lamps ............................... 150
Brake pads ................................. 137
Brakes ........................................ 137
Braking assistance system ......... 104
C Capacity, fuel tank ........................ 76
CD MP3 .............................. 201, 221
Central locking ....................... 64, 73
Changing a bulb ..................147-152
Changing a fuse ..................153-159
Changing a wheel ...............143-146
Changing a wiper blade ....... 85, 162
Changing the date ...... 206, 228, 229
Changing the remote control
battery ........................................ 66
Changing the time ... 38, 206, 228, 229
Checking levels .................. 135, 136
Checking the engine oil level ....... 37
Checking tyre pressures
(using the kit) ............................ 142
Checks ................................132-137
Child lock .................................... 102
Children .................94-102, 107, 109C Child seats ...........................94-101
Clock .................... 38, 206, 228, 229
Closing the boot ..................... 64, 75
Closing the doors ................... 64, 72
Connectors,
audio .................. 90, 202, 222, 224
Coolant level .............................. 135
Courtesy mirror ............................ 89
Cruise control ............................. 127
Cup holder .................................... 88
D Date (setting) .............. 206, 228, 229
Daytime running lamps ................ 81
Deactivating
the passenger airbag ............... 109
Deactivating the rear windows ..... 71
Deadlocking ................................. 65
Defrosting ............................... 54, 55
Demisting ............................... 54, 55
Dials and gauges ................... 23, 24
Diesel additive level ................... 136
Dimensions ................................ 178
Dipped beam ........................ 79, 148
Dipstick ................................. 37, 135
Direction indicators ..... 103, 148, 150
Doors ............................................ 72
Doors emergency control ............. 74
Door pockets ................................ 88
Driving economically ................... 21
E EBA (Emergency braking
assistance) ............................... 104
Eco-driving (advice) ..................... 21
Page 244 of 252
242
ALPHABETICAL INDEX
F Fusebox, dashboard .................. 153
Fuses ......................................... 153
G G.P.S. ......................................... 189
Gearbox, automatic ............ 118, 137
Gearbox, electronic .... 114, 121, 137
Gearbox,
manual ............. 112, 113, 121, 137
Gear efficiency indicator ............. 113
Gear lever .................................... 21
Gear lever, automatic gearbox ... 118
Gear lever, electronic gearbox
system .............................. 114, 137
Gear lever, manual gearbox ....... 112
Glove box ..................................... 89
GPL ............................................ 172
Guidance .................................... 189
H Halogen headlamps ................... 147
Hands-free kit ............. 203, 204, 225
Hazard warning lamps ............... 103
Head restraints, front .................... 60
Head restraints, rear .................... 61
Heating ................................... 52, 55
Height and reach adjustment,
steering wheel ............................ 63
Hill start assist ............................ 124
Hooks ........................................... 93
Horn ........................................... 103
I Indicators, direction .... 103, 148, 150
Inflating accessories
(using the kit) ............................ 142 E Economy mode .......................... 162
Electric window controls ............... 70
Electronic brake force
distribution (EBFD) ................... 104
Electronic engine
immobiliser ........................... 65, 67
Emergency boot release .............. 75
Emergency braking system ........ 104
Emergency call ................... 104, 182
Emergency warning lamps ......... 103
Energy economy mode .............. 162
En
gines......................169,172,174
Engine, Diesel ..............77,134,174
Engine, petrol ...............77,133,169 Engine compartment .......... 133, 134
Engine compartment
fusebox ..................................... 156
Engine oil level indicator ...... 37, 135
Environment ...21, 51, 57, 67, 120, 136
ESP/ASR .................................... 105
F Filling with fuel .........................76-78
Fitting a wheel ............................ 146
Fittings, boot ................................. 92
Fitting speakers .......................... 166
Flashing indicators ..................... 103
Foglamps, rear ..................... 80, 150
Foglamps, front .................... 80, 149
Fragrance cartridge ...................... 58
Front seats ................................... 59
Fuel ........................................ 21, 77
Fuel consumption ......................... 21
Fuel filler flap .......................... 76, 78
Fuel gauge ................. 15, 23, 24, 76
Fuel tank ................................ 76, 78I Inflating tyres ................................ 21
Inputs for
audio system ...... 90, 202, 222, 224
Installing speakers ..................... 166
Instrument panel lighting .............. 39
Instrument panels ................... 23, 24
Instrument panel
screen .................................. 23, 24
Interior fittings ......................... 88, 89
Interior lamp ......................... 86, 152
Interior mood lighting .................... 87
ISOFIX child seats ..............100-101
ISOFIX mountings ................ 99, 101
J Jack ............................................ 143
JACK socket ......... 90, 202, 222, 224
K Keeping children
safe .....................94-102, 107, 109
Key in ignition warning ................. 65
Key with remote control ...........64-67
L Labels, identification ................... 179
Lamps, warning and
indicator .................................25-36
Level, brake fluid ........................ 135
Levels and checks ...............133-137
Lighting, guide-me home ........ 81, 82
Lighting, interior .............. 86, 87, 152
Lighting bulbs
(replacement) ....................147-152
Lighting control stalk .................... 79
Lighting dimmer ............................ 39
