5
FAMILIARI
S
AT I
ON

Remote control keyFuel tank



1.
Opening the fuel fi ller fl ap.

2.
Opening and hooking the fuel fi ller
cap.
A.
Unfolding/Folding the key.

B.
Unlocking the vehicle.



64




76




A.
Interior release lever.

B.
Exterior safety catch.

C.
Bonnet stay.



132




Bonnet


Other functions...


C.
Normal locking of the vehicle.
or
Deadlocking of the vehicle.
Vehicle location. Tank capacity:


- approximately 50 litres (petrol),

- approximately 46 litres (Diesel).

- (according to version: approximately
30 litres (petrol or Diesel)).

ACCESS

9
FAMILIARI
S
AT I
ON


1.
Steering wheel adjustment control.

2.
Headlamp height adjustment.

3.
Cruise control/speed limiter
controls.

4.
Lighting and direction indicator
control stalk.

5.
Microphone.

6.
Central locking button.

7.
Multifunction screen.

8.
Hazard warning lamps button.

9.
Central adjustable air vents.

10.
Sunshine sensor
Hi-Fi audio system central speaker.

11 .
Passenger’s airbag.

12.
Glove box/Passenger’s airbag
deactivation/Fusebox.

13.
Bonnet release lever.

14.
12 V accessory socket
USB port/auxiliary socket.

15.
Upper and lower storage.

16.
MyWay or Audio system.

17.
Heating/air conditioning controls.

INSTRUMENTS AND CONTROLS

19
FAMILIARI
S
AT I
ON

Stop & Start


Going into engine STOP mode
The "ECO"
warning lamp comes
on in the instrument panel and
the engine goes into standby:


- with a manual gearbox;
at speeds
below 12 mph (20 km/h), when you
put the gear lever into neutral and
you release the clutch pedal.

- with a 5 or 6 speed electronic
gearbox
: at speeds below 5 mph
(8 km/h), when you press the brake
pedal or when you put the gear lever
into position N
.
In certain circumstances, STOP may
not be available; the "ECO"
warning
lamp fl ashes for a few seconds, then
goes off.
Going into engine START mode
The "ECO"
warning lamp goes
off and the engine restarts:


- with a manual gearbox
: when you
depress the clutch pedal.

- with a 5 or 6 speed electronic
gearbox
:


●
gear lever in position A
or M
, when
you release the brake pedal,

●
or gear lever in position N
and
brake pedal released, when you
select position A
or M
,

●
or when you engage reverse.

In certain circumstances, START mode
may be invoked automatically; the
"ECO"
warning lamp fl ashes for a few
seconds, then goes off.
Deactivation/Reactivation
You can deactivate the system at any
time by pressing the "ECO OFF"
but-
ton; the warning lamp in the button
comes on.
The system is reactivated auto-
matically every time the engine
is started with with the key.
Before refuelling or doing any-
thing under the bonnet, you
must switch off the ignition with
the key.




122







121





122

4
68

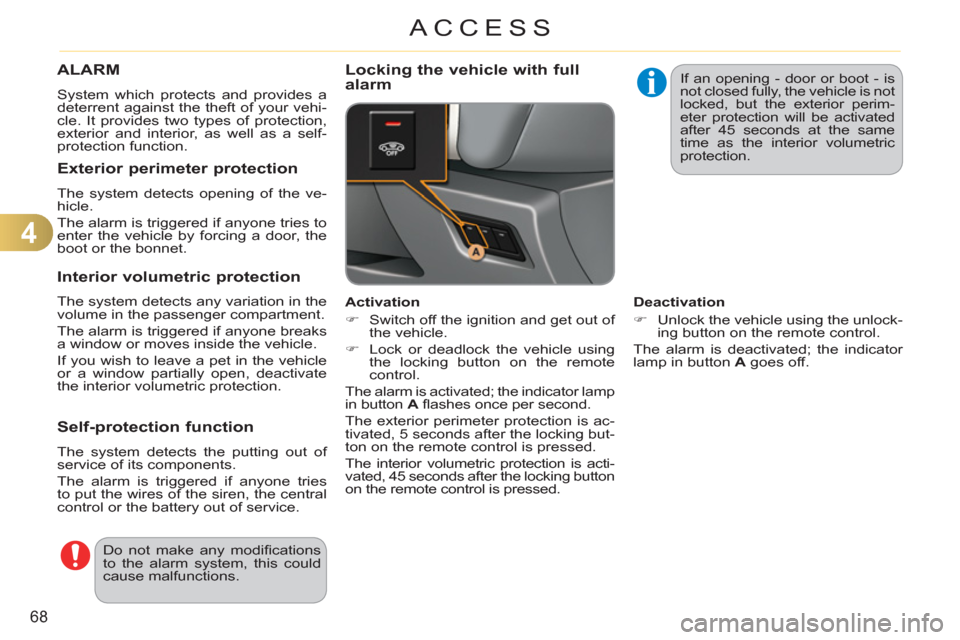

ACCESS
ALARM
System which protects and provides a
deterrent against the theft of your vehi-
cle. It provides two types of protection,
exterior and interior, as well as a self-
protection function.

Exterior perimeter protection

The system detects opening of the ve-
hicle.
The alarm is triggered if anyone tries to
enter the vehicle by forcing a door, the
boot or the bonnet.


Interior volumetric protection

The system detects any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks
a window or moves inside the vehicle.
If you wish to leave a pet in the vehicle
or a window partially open, deactivate
the interior volumetric protection.


Self-protection function

The system detects the putting out of
service of its components.
The alarm is triggered if anyone tries
to put the wires of the siren, the central
control or the battery out of service.
Do not make any modifi cations
to the alarm system, this could
cause malfunctions.
Locking the vehicle with full alarm


Activation


)
Switch off the ignition and get out of
the vehicle.

)
Lock or deadlock the vehicle using
the locking button on the remote
control.
The alarm is activated; the indicator lamp
in button A
fl ashes once per second.
The exterior perimeter protection is ac-
tivated, 5 seconds after the locking but-
ton on the remote control is pressed.
The interior volumetric protection is acti-
vated, 45 seconds after the locking button
on the remote control is pressed. If an opening - door or boot - is
not closed fully, the vehicle is not
locked, but the exterior perim-
eter protection will be activated
after 45 seconds at the same
time as the interior volumetric
protection.

Deactivation


)
Unlock the vehicle using the unlock-
ing button on the remote control.
The alarm is deactivated; the indicator
lamp in button A
goes off.

5
85
VISIBILITY
Automatic rain sensitive
windscreen wipers
The windscreen wipers operate automati-
cally, without any action on the part of the
driver, if rain is detected (sensor behind
the rear view mirror), adapting their speed
to the intensity of the rainfall.

Activation

Switching off
Operating fault
If an automatic wiping fault occurs,
the wipers will operate in intermittent
mode.
Have it checked by a CITROËN dealer
or a qualifi ed workshop.
Vertical windscreen wiper position

To retain the effectiveness of the
"fl at-blade" wiper blades, it is ad-
visable to:


- handle them with care,

- clean them regularly using
soapy water,

- not use them to hold a sheet
of cardboard against the
windscreen,

- replace them at the fi rst signs
of wear.
Do not cover the rain sensor,
linked with the sunshine sensor
and located in the centre of the
windscreen behind the rear view
mirror.
Switch off the automatic wiping
when using an automatic car
wash.
In winter, it is advisable to wait
until the windscreen is completely
clear of ice before activating the
automatic wiping.
The automatic wiping must be re-
activated if the ignition has been
off for more than one minute, by
pushing stalk A
downwards.
This position allows the wiper blades to
be lifted for winter parking, cleaning or re-
placement without damaging the bonnet.
In the minute following switching off of
the ignition, any action on the wiper
stalk positions the wipers vertically.
To park the wipers after this has been
done, switch on the ignition and operate
the wiper stalk.
This is controlled manually by the driver by
pushing stalk A
to the "AUTO"
position.

This is controlled manually by the driver
by moving stalk A
upwards, returning it
to position "0"
. It is accompanied by the indica-
tor lamp in the instrument panel
going off and a message in the
multifunction screen.
It is accompanied by the illumina-
tion of this indicator lamp in the
instrument panel and a message
in the multifunction screen.

9
11 7
DRIVING
Reverse

To engage reverse, the vehicle must
be immobilised with your foot on the
brake.


)
Select position R
.


Stopping the vehicle
Operatin
g fault

With the ignition on, if this
warning lamp comes on and
AUTO
fl ashes, accompa-
nied by an audible signal and a mes-
sage in the multifunction screen, this
indicates a gearbox fault.
Have it checked by a CITROËN dealer
or a qualifi ed workshop. There is an audible signal on
engagement of reverse.
At low speed, if reverse gear is request-
ed, the N
warning lamp fl ashes and the
gearbox goes into neutral automatically.
To engage reverse, put the gear lever
into position N
, then to position R
. Before doing anything under the
bonnet, ensure that the gear le-
ver is in neutral (position N
) and
that the parking brake is ap-
plied.
For all parking situations, you
must apply the parking brake

to immobilise the vehicle. When immobilising the vehicle
with the engine running, you
must put the gear lever into
neutral (position N
).
Before switching off the engine:


- change to position N
to be in neutral,
or

- leave the vehicle in gear; in this case
the vehicle cannot be moved.
Reinitialisation(5-speed electronic gearbox)

Following disconnection of the battery, it
is necessary to reinitialise the gearbox.


)
Switch on the ignition.

AUTO
and - -
appear in the
instrument panel.


)
Select position N
.

)
Press the brake pedal.

)
Wait for around 30 seconds until N

or a gear appears in the instrument
panel.

)
Move the gear lever to position A
,
then to position N
.

)
With your foot still on the brake pedal,
start the engine.
The gearbox is operational again.
In exceptional circumstances,
the gearbox may need an au-
tomatic reinitialisation: starting
and gear changing are no lon-
ger possible.

AUTO
and - -
appear in
the instrument panel.
Follow the procedure described
above.

9
123
DRIVING

Operating fault Maintenance

In the event of a fault with the system,
the "ECO OFF"
switch warning lamp
fl ashes then comes on continuously.
Have it checked by a CITROËN dealer
or a qualifi ed workshop.
In the event of a fault in STOP mode,
the vehicle may stall. It is then neces-
sary to switch off the ignition and start
the engine again using the key.
Before doing anything under the
bonnet, deactivate the Stop &
Start system to avoid any risk of
injury resulting from automatic
operation of START mode.

The Stop & Start system makes
use of advanced technology. All
work on this type of battery must
be done by a CITROËN dealer
or a qualifi ed workshop.
This system requires a battery with a
special specifi cation and technology
(reference numbers available from a
CITROËN dealer or a qualifi ed work-
shop).
Fitting a battery not listed by CITROËN
introduces the risk of malfunction of the
system.

10
132
CHECKS
BONNET
Protects the components of the engine
and provides access for checking levels.

Opening


)
Push the exterior safety catch B
to
the left and raise the bonnet.
)
Unclip the bonnet stay C
from its
housing, holding it by its foam pro-
tection.

)
Fix the stay in the notch to hold the
bonnet open.
The location of the interior re-
lease lever prevents opening of
the bonnet while the front left
door is closed.
Closing


)
Take the stay out of the support
notch.

)
Clip the stay in its housing.

)
Lower the bonnet and release it at
the end of its travel.

)
Pull on the bonnet to check that it is
fully latched.

RUNNING OUT OF FUEL (DIESEL)

If your vehicle is fi tted with an HDi en-
gine, the fuel system must be primed if
you run out of fuel.
This system consists of a priming pump
and a transparent pipe under the bonnet.



)
Fill the fuel tank with at least fi ve litres
of Diesel.

)
Open the bonnet.

)
Depending on version, unclip the
cover to gain access to the priming
pump.

)
Squeeze and release the priming
pump until resistance is felt (could
be from the fi rst application) and fuel
appears in the transparent pipe with
the green connector.

)
Operate the starter until the engine
starts.

)
Depending on version, put the cover
back in position and clip it in place.

)
Close the bonnet.
If the engine does not start at the
fi rst attempt, do not try again.
Operate the priming pump again,
then the starter. When the engine is hot, handle
the exterior safety catch and the
stay with care.





Before doing anything under the
bonnet, switch off the Stop &
Start system to avoid any risk of
injury resulting from an automatic
change to START mode.


)
Open the front left door.

)
Pull the interior release lever A
,
located at the bottom of the door
aperture.

10
135
CHECKS
CHECKING LEVELS
Check all of these levels regularly and
top them up if necessary, unless other-
wise indicated.
If a level drops signifi cantly, have the
corresponding system checked by a
CITROËN dealer or a qualifi ed work-
shop.

Oil level

The reading will only be correct
if the vehicle is on level ground
and the engine has been off for
more than 30 minutes.
The check is carried out either when the igni-
tion is switched on using the oil level indicator
in the instrument panel, or using the dipstick.

Engine oil change
Refer to the servicing booklet for details
of the interval for this operation.
In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited.

Oil grade
The oil must be suitable for your en-
gine and conform to the manufacturer's
recommendations.


The brake fl uid level should be
close to the "MAX" mark. If it is
not, check the brake pad wear.

Changing the fl uid
Refer to the servicing booklet for details
of the interval for this operation.

Fluid specifi cation
The brake fl uid must conform to the
manufacturer's recommendations and
meet the DOT4 standard.

Coolant level

The coolant level should be
close to the "MAX" mark but
should never exceed it.
When the engine is warm, the
temperature of the coolant is regulated
by the fan. This can operate with the igni-
tion off.

On vehicles which are fi tted with a par-
ticle emission fi lter, the fan may ope-
rate after the vehicle has been switched
off, even if the engine is cold.
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work. To avoid any risk of scalding, unscrew
the cap by two turns to allow the pres-
sure to drop. When the pressure has
dropped, remove the cap and top up
the level.

Changing the coolant

The coolant does not have to be changed.


Fluid specifi cation
The coolant must conform to the manu-
facturer's recommendations.



Screenwash fluid level

Top up the level when neces-
sary.

Fluid specifi cation
For optimum cleaning and to avoid
freezing, this fl uid must not be topped
up or replaced with plain water.



Take care when carrying out
checks under the bonnet as
some parts of the engine can be
very hot (risk of burns).


It is normal to top up the engine oil
between services. CITROËN recom-
mends that you check the oil level and
top up if necessary, every 3 000 miles
(5 000 kilometres).
